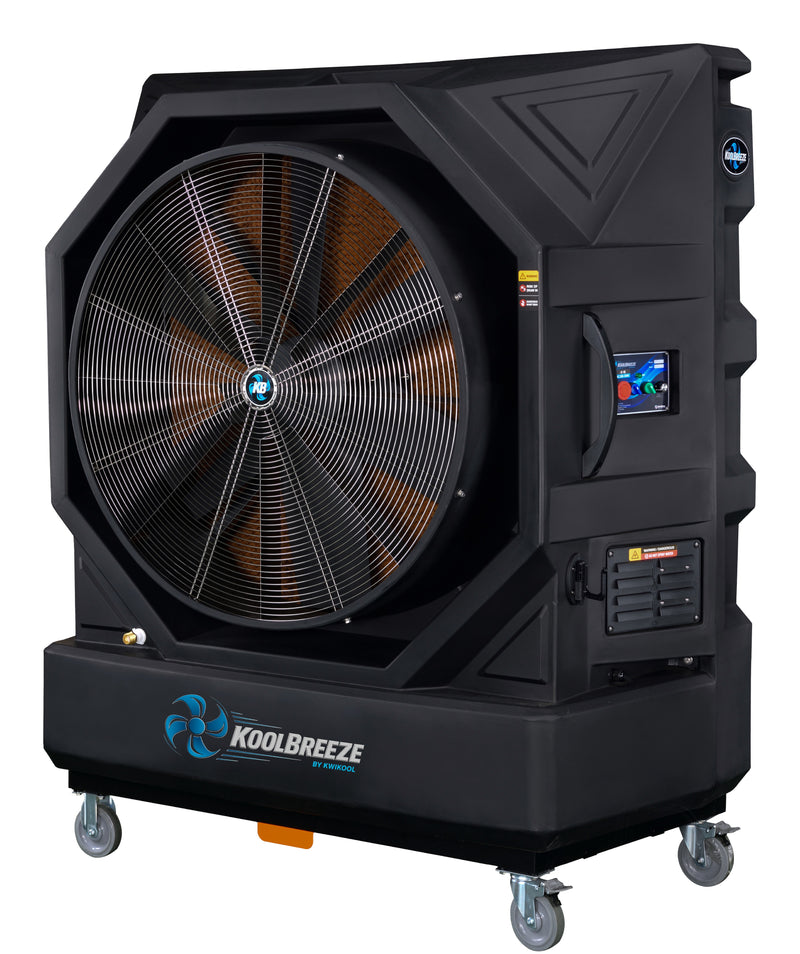

The KwiKool KoolBreeze KB190 is a heavy-duty open-fan evaporative cooler with a 42" six-blade fan that moves 18,000 CFM and throws air up to 82'. KwiKool rates it for up to 6,800ft², with a 48-gallon tank in the base.
It is sized for warehouses, factories, hangars and large outdoor events. Choose the KB190X1 for 115V power or the KB190X2 for 220V single-phase, which draws up to 7.6 A. Either version rolls on casters with brakes.
Features
High Airflow
Moves 18,000 CFM through a wet cooling pad with no compressor and no exhaust duct.

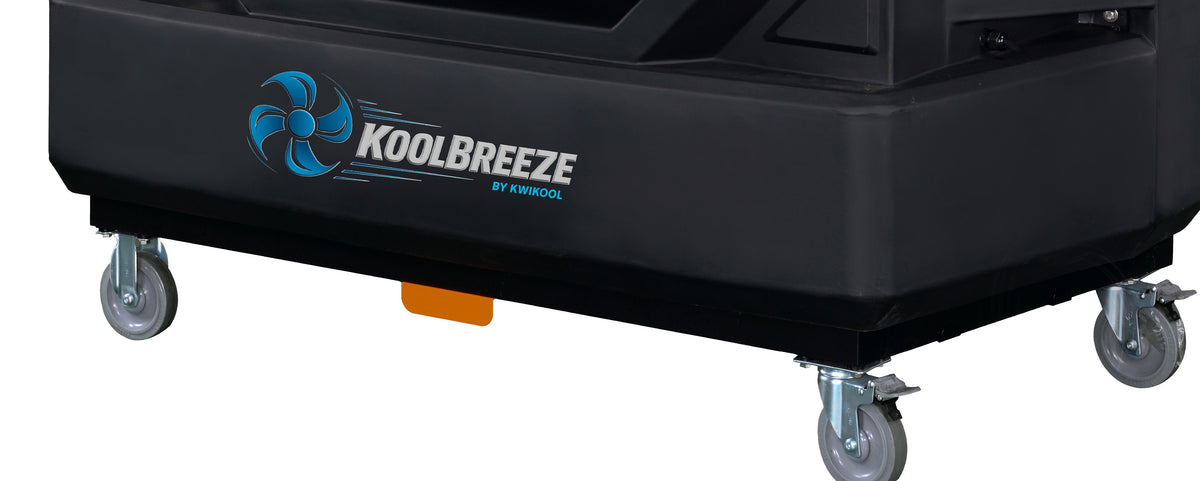

Large Water Tank
The 48-gallon tank supports up to 6 hours of operation, and the auto water inlet connects a hose for continuous use.
Fan-Only Mode

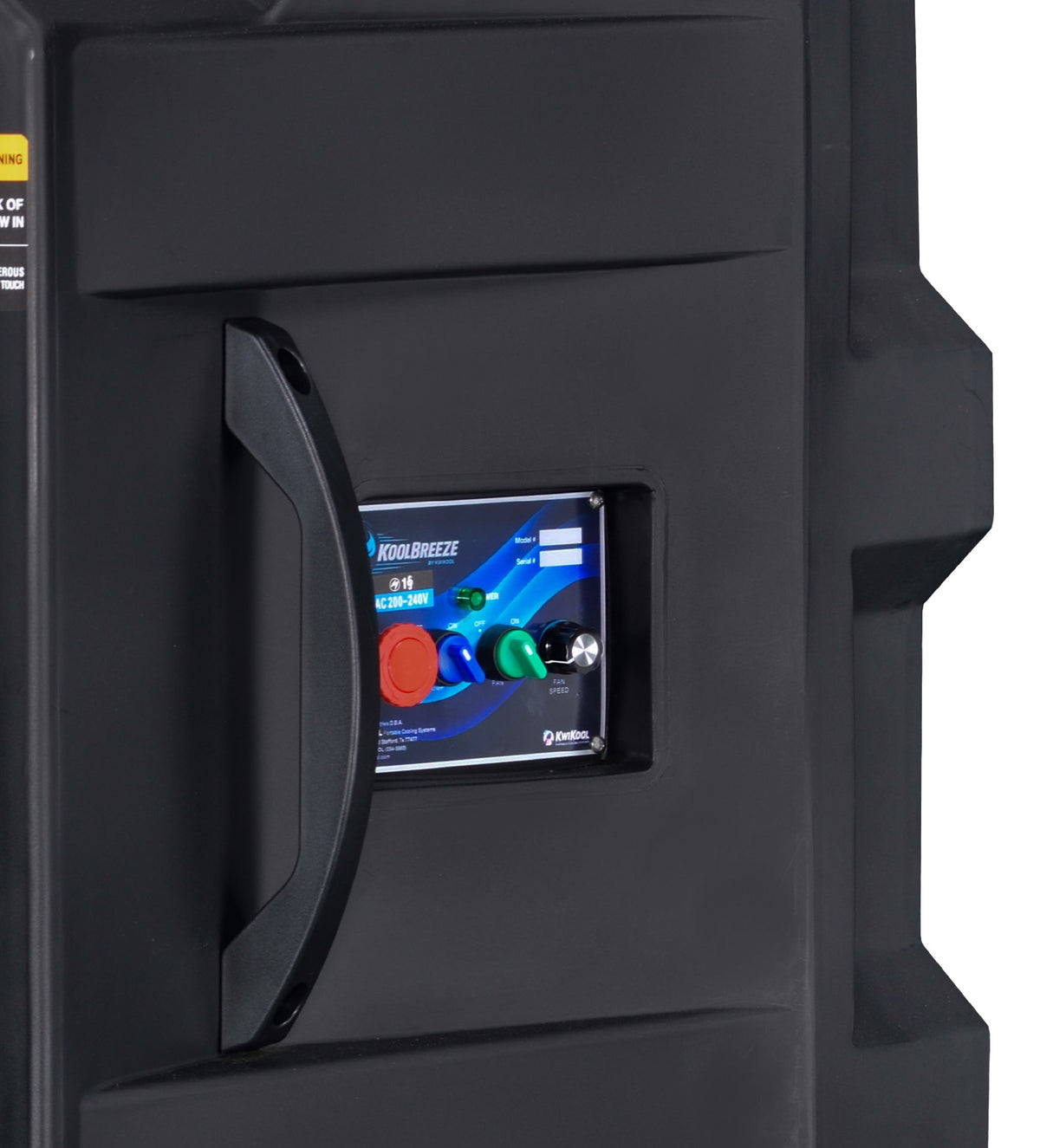

Switch the pump off to run as a fan or to dry the cooling pad before storage.
Low-Water Safety
The pump will not start when the water is too low, which protects it from running dry.
Ice Door
Add ice through the ice door for extra cooling on the hottest days.

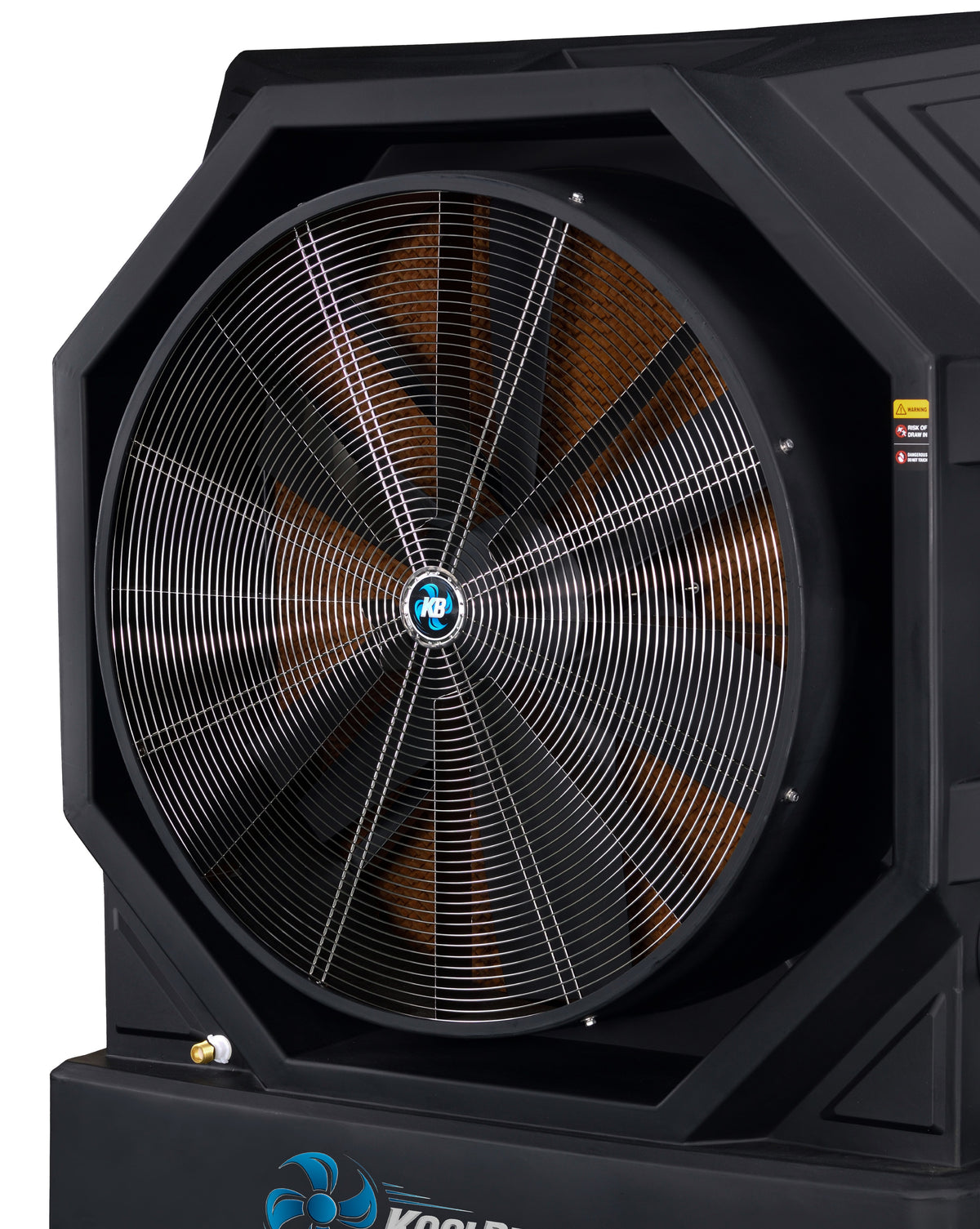

42" Six-Blade Fan
A 1.5 HP motor turns a 42" six-blade fan for an air throw of up to 82'.
Two Voltages
Order the KB190X1 for 115V outlets or the KB190X2 for 220V circuits.
Rugged and Mobile
A high-strength polyethylene body on casters with brakes, and a canvas cover comes with it.
Specifications
-
Model: KB190X1 (115V) and KB190X2 (220V)
-
Airflow: 18,000 CFM
-
Coverage: Up to 6,800ft²
-
Max. Air Distance: Up to 82'
-
Max. Fan Speed: 580 RPM
-
Blades: 42", 6 blades, nylon and fiberglass
-
Motor: 1.5 HP
-
Voltage: 115V (KB190X1) or 220V single-phase, 50/60 Hz (KB190X2)
-
Max. Current: 7.6 A (KB190X2)
-
Max. Power Consumption: 800 W (KB190X2)
-
Water Tank: 48 gal
-
Louvers: None (fixed open fan)
-
Frame: Polyethylene
-
Dimensions (W x H x D): 61" x 73" x 32"
-
Weight: 265 lbs empty, 661 lbs full
What's Included
- KwiKool KoolBreeze KB190 evaporative cooler
- Canvas protective cover
- Owner's manual
Resources
Shipping, Returns & Warranty
Shipping is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
KwiKool only takes back current, unused units, and every return needs a return authorization issued in advance, so contact us before you ship. Returns must arrive within 21 days of delivery in the original packaging, and you prepay the return freight. Any damage found when the unit arrives back is charged for repair, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated units and special-order items can't be returned.
KwiKool warrants its products against defects in material and workmanship for one year from the date of purchase, with defective equipment repaired or replaced at KwiKool's option. The warranty start date is the ship date, or a documented installation date, but no later than 18 months from the ship date. Units used for rental purposes carry a 90-day parts and labor warranty, and shipping charges apply to warranty returns after the first 90 days. The warranty extends to purchasers who buy for commercial or industrial use and excludes filters and other maintenance items, misuse, improper installation, freight damage and operation outside the published ambient temperature range.
Warranty claims. Call KwiKool Technical Support at 1-800-594-5665 with the model and serial number. KwiKool decides between an authorized on-site repair and a return to its repair facility. The owner pays the freight to the repair facility and carries the risk of freight damage. KwiKool's warranty covers units bought for commercial or industrial use.
About KwiKool
KoolBreeze is the evaporative cooler line from KwiKool Portable Cooling Systems, the Texas maker of commercial portable air conditioners, heat pumps and air scrubbers. KoolBreeze coolers move large volumes of air for open shops, loading docks, tents and other spaces that a ducted spot cooler cannot reach.
The KoolBreeze range runs from the 4,900 CFM KB80L1 to the 26,000 CFM KB280. The L models add automatic oscillating louvers, and the two largest sizes come in 115V and 220V versions. For enclosed rooms that need real air conditioning, see the KwiKool KPAC II spot coolers.
