The KwiKool KPAC II 2-ton is the largest single-duct spot cooler in the KPAC II series, rated at 22,900 BTU/hr. It comes in two electrical versions: the KPAC2411-3 for a 115V, 20 A circuit and the KPAC2421-3 for a 230V circuit with a NEMA 6-20 plug.
It suits larger server rooms, electrical rooms and production areas that need serious cooling without a permanent install. Two 6" air chutes direct the cold air, a 14" condenser duct carries the heat into the ceiling, and the cabinet still rolls on locking casters.
Features
Made in Texas
KwiKool builds the KPAC II in the Houston and Stafford area of Texas, with an insulated galvanized steel cabinet and an epoxy HammerCoat finish.

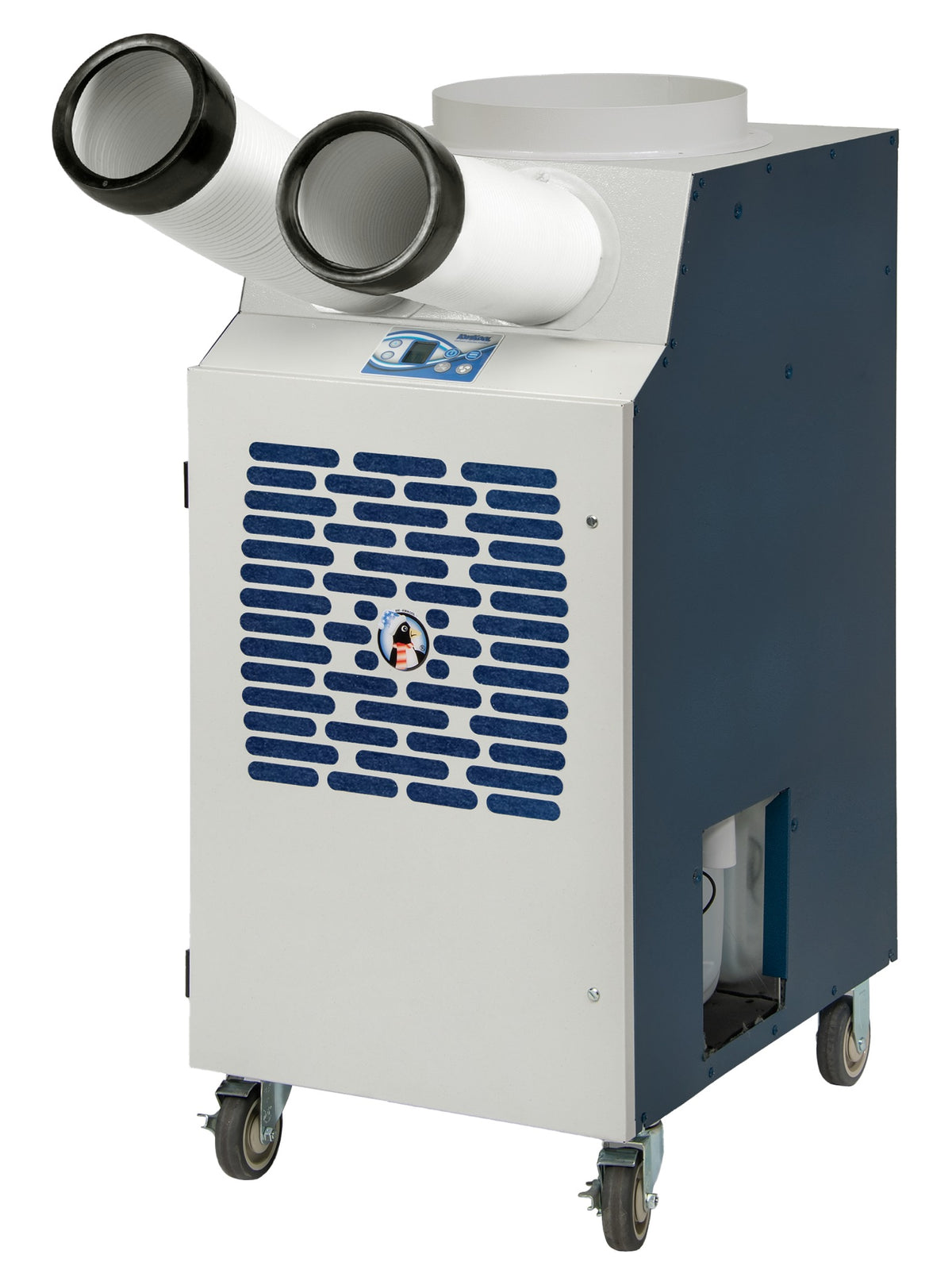

Two Adjustable Air Chutes
Standard flexible chutes direct cold air at a person, a rack or a machine instead of trying to cool the whole room.

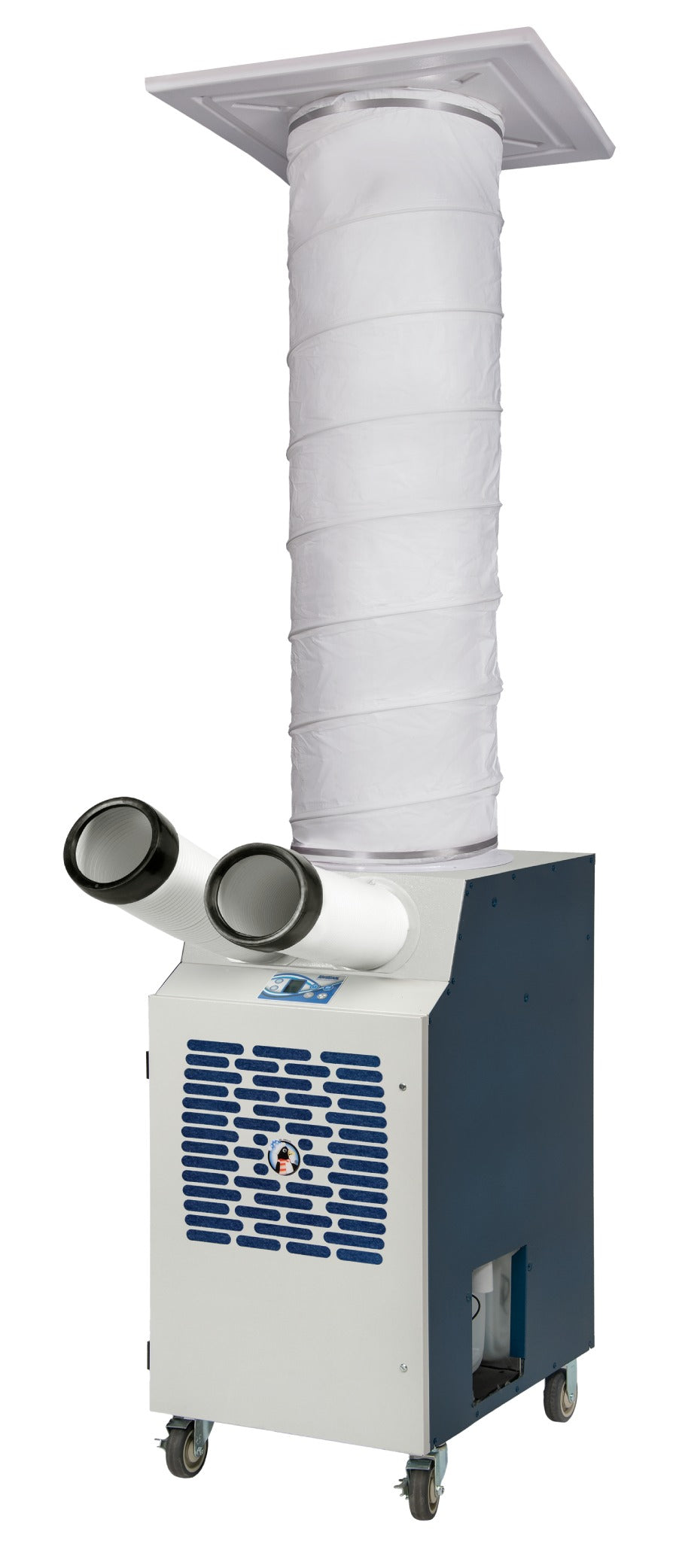

Single-Duct Condenser
One flexible duct carries the condenser heat into a drop ceiling or another space, which keeps setup simple.
Internal Condensate Tank
A 2.5-gallon tank with a float switch shuts the unit down and sounds an alarm before it can overflow.
Digital Microprocessor Control
An LCD display and touch pads set the temperature, and the unit restarts automatically after a power failure.
Built-In Protection
A manual-reset high-pressure switch, short-cycle protection and overload protection on the fan motor and compressor guard the refrigeration circuit.
Locking Casters
Heavy-duty locking casters let you roll the 206-lb unit into place, and it plugs into a standard NEMA 5-20 (115V) or NEMA 6-20 (230V) receptacle.
Specifications
-
Models: KPAC2411-3 (115V) and KPAC2421-3 (230V)
-
Cooling Capacity: 22,900 BTU/hr (2-ton) at 95°F, 60% RH
-
Power Supply, KPAC2421-3: 230V, single-phase, 9.5 A, 1.97 kW, 20 A breaker, NEMA 6-20 plug
-
Power Supply, KPAC2411-3: 115V, single-phase, 20 A circuit, NEMA 5-20 plug
-
Evaporator Airflow: 810 CFM (KPAC2421-3), single speed
-
Supply Air: 2 flexible air chutes, 6" dia. x 18"
-
Condenser Airflow: 1100 CFM (KPAC2421-3)
-
Condenser Duct (optional): 14" dia. x 8', 25' maximum
-
Operating Range: 70°F to 105°F at 50% RH
-
Refrigerant: R-454B
-
Compressor: Hermetic rotary
-
Condensate: Internal 2.5-gallon tank with float shutoff and alarm
-
Dimensions (W x D x H): 20" x 26" x 44"
-
Weight: 206 lbs (266 lbs shipping)
What's Included
- KwiKool KPAC II 2-ton spot cooler (KPAC2411-3 or KPAC2421-3)
- Two flexible air chutes (standard equipment)
- Internal 2.5-gallon condensate tank
- Owner's manual
Setup & Placement
Roll the KPAC II into the room it will cool and lock the casters. If you use the optional ceiling kit (sold separately), bolt its flange to the top of the unit, clamp the condenser duct to it, open a 24" x 24" space in the ceiling grid and drop in the replacement panel with the duct attached. Plug the unit into a dedicated circuit that matches its plug.
Keep the condenser duct to 25' or less. Aim the two air chutes at the people or equipment you need to cool, and check that the room can make up the air the condenser exhausts.
Resources
Shipping, Returns & Warranty
Shipping is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
KwiKool only takes back current, unused units, and every return needs a return authorization issued in advance, so contact us before you ship. Returns must arrive within 21 days of delivery in the original packaging, and you prepay the return freight. Any damage found when the unit arrives back is charged for repair, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated units and special-order items can't be returned.
KwiKool warrants its products against defects in material and workmanship for one year from the date of purchase, with defective equipment repaired or replaced at KwiKool's option. The warranty start date is the ship date, or a documented installation date, but no later than 18 months from the ship date. Units used for rental purposes carry a 90-day parts and labor warranty, and shipping charges apply to warranty returns after the first 90 days. The warranty extends to purchasers who buy for commercial or industrial use and excludes filters and other maintenance items, misuse, improper installation, freight damage and operation outside the published ambient temperature range.
Warranty claims. Call KwiKool Technical Support at 1-800-594-5665 with the model and serial number. KwiKool decides between an authorized on-site repair and a return to its repair facility. The owner pays the freight to the repair facility and carries the risk of freight damage. KwiKool's warranty covers units bought for commercial or industrial use.
About KwiKool
KwiKool Portable Cooling Systems is a manufacturer of commercial and industrial portable cooling equipment, building its spot coolers, heat pumps and BioAir air scrubbers in the Houston and Stafford area of Texas. Its range runs from 1-ton plug-in spot coolers to large indoor and outdoor systems, and KwiKool designs it for commercial and industrial applications rather than homes.
The KPAC II series is KwiKool's single-duct line: the 1.1-ton KPAC1411-3, the 1.5-ton KPAC1811-3 and the 2-ton KPAC2411-3 and KPAC2421-3. For heating as well as cooling, the PHP heat pumps use a balanced two-duct condenser, and the BioKool adds HEPA filtration and UVC lamps.
