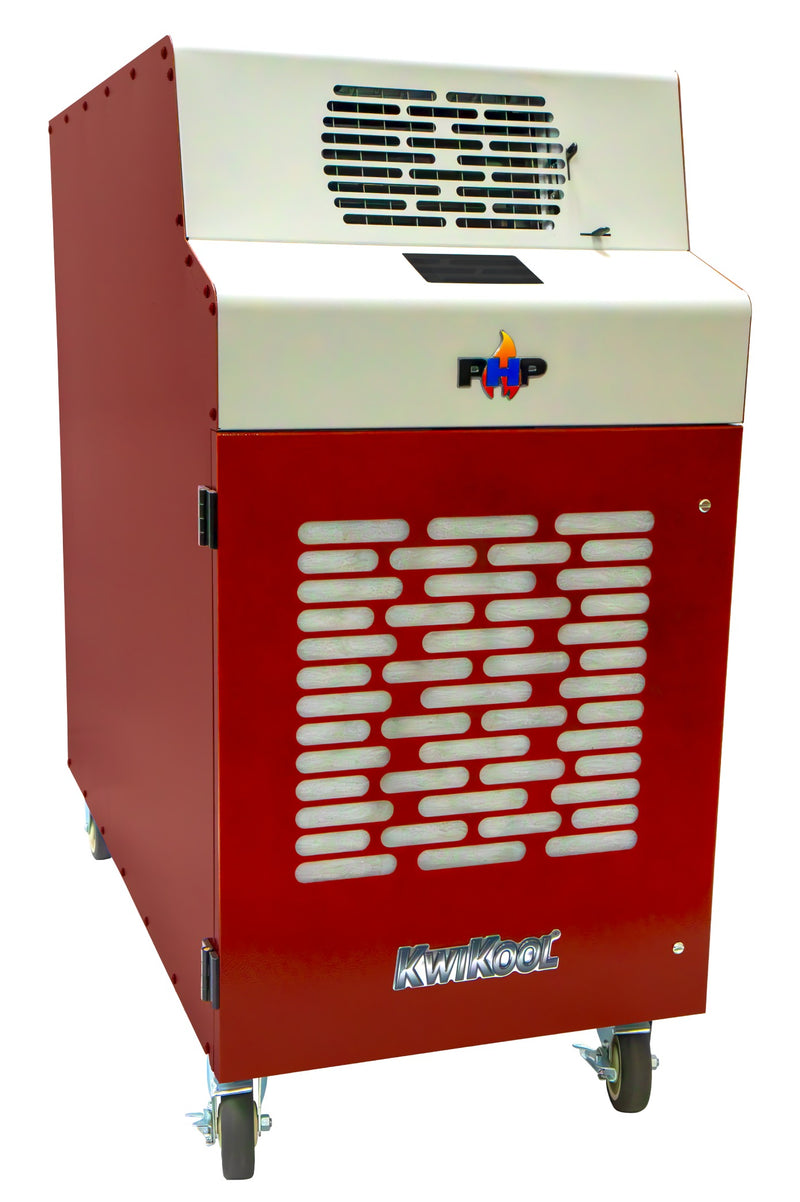

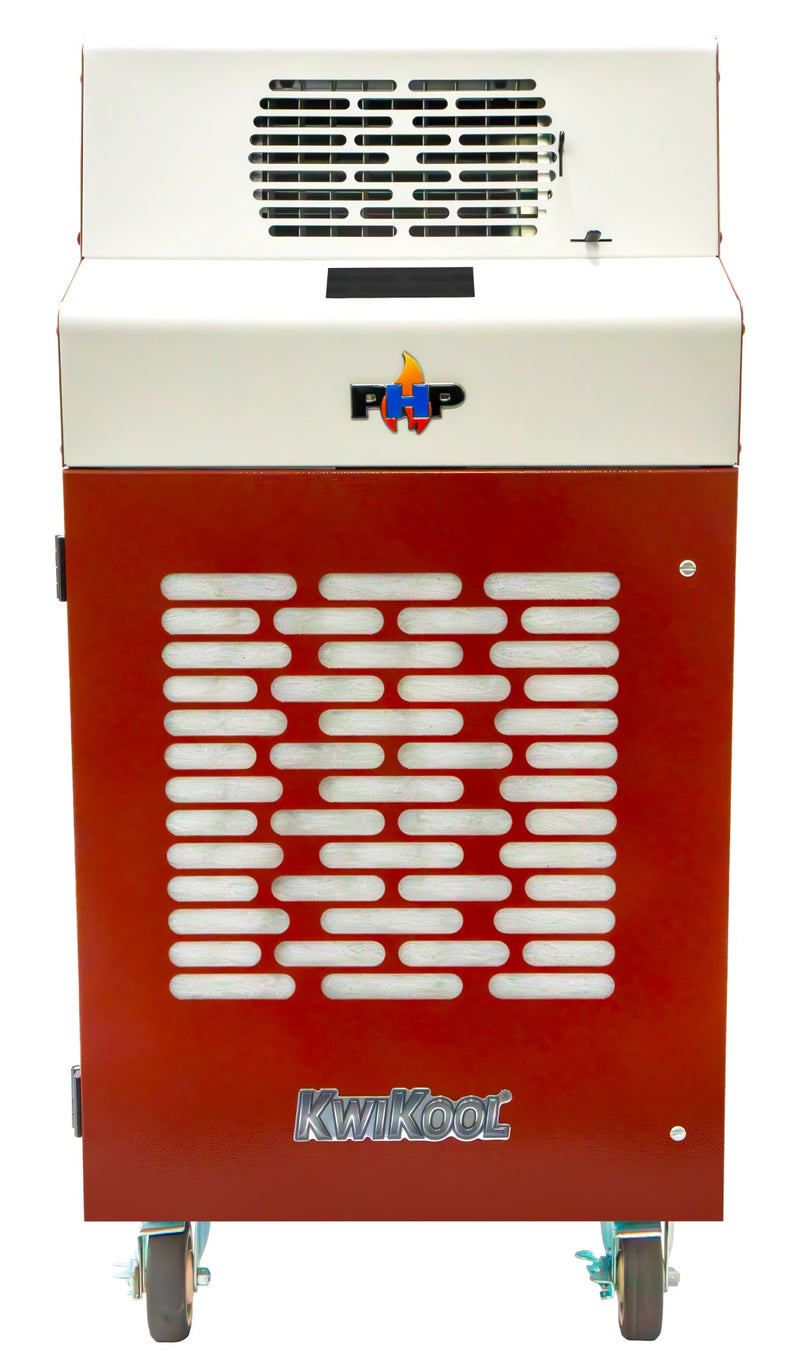

The KwiKool PHP KPHP2211-3 is the larger PHP heat pump spot cooler, heating at 21,240 BTU/hr (1.8-ton) and cooling at 17,700 BTU/hr (1.5-ton). It still runs on 115V, from a 20 A circuit with a NEMA 5-20 plug, and its two-duct condenser keeps the room balanced.
It is sized for bigger offices, classrooms, trailers and equipment rooms that need year-round temperature control without a permanent system. It heats in rooms down to 40°F, moves 600 CFM of supply air and ships with an external 5-gallon condensate tank.
Features
Heating and Cooling

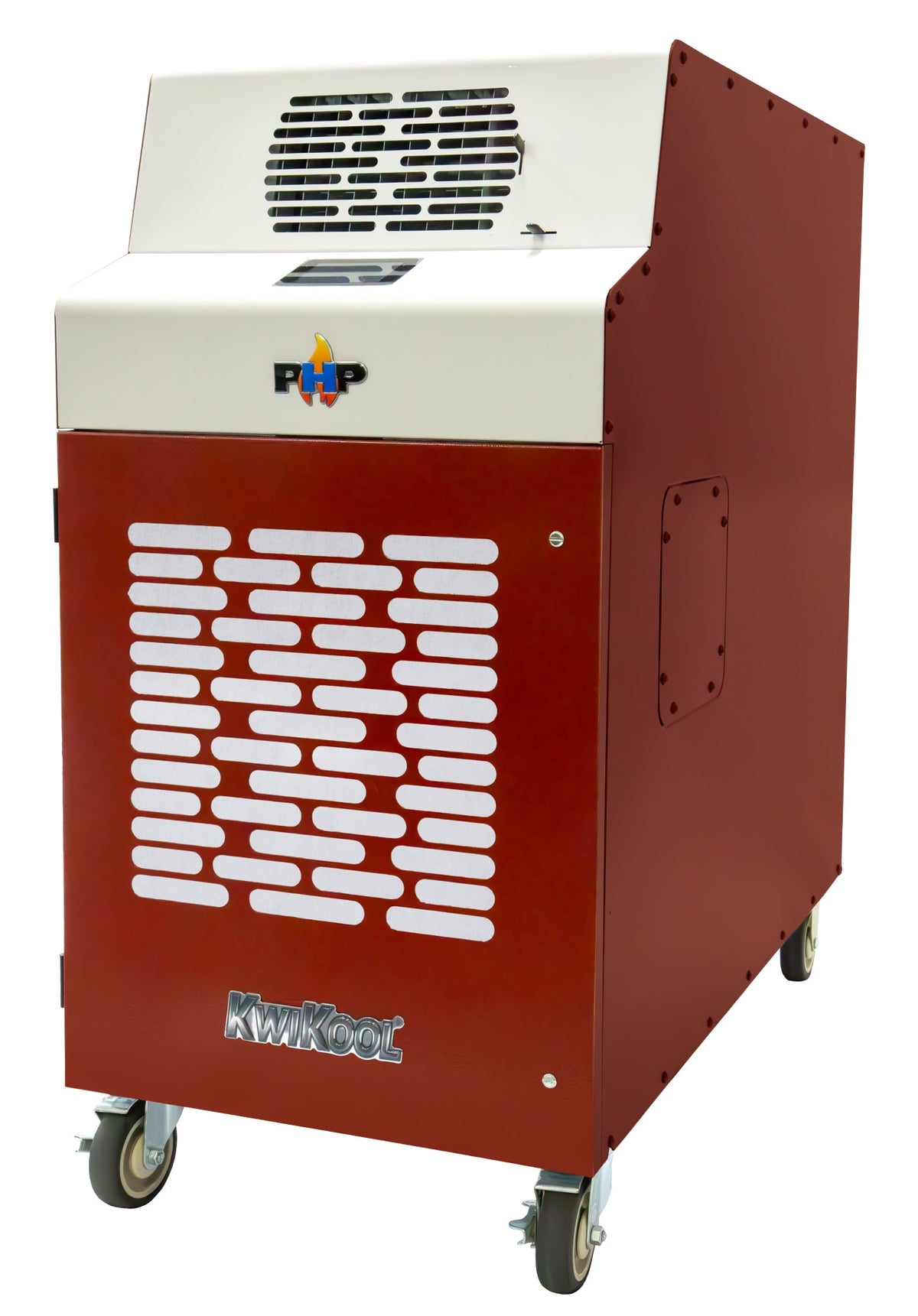

One cabinet cools at 17,700 BTU/hr and heats at 21,240 BTU/hr, so the unit earns its keep all year.
I/O Integral Condenser
Both condenser openings are ductable without add-on kits, which keeps the room in balance instead of under negative pressure.
Heats Down to 40°F
KwiKool's automatic heat retainer lets the PHP heat in rooms as cold as 40°F.
Condensate Handling
An internal high-lift condensate pump and an external 5-gallon tank with overflow protection come standard.
Microprocessor Control
An LCD control with self-diagnostics, an audible alarm and input/output alarm contacts for building systems.
Protected Refrigeration Circuit
High-pressure and low-pressure safeties, hot gas bypass freeze protection and short-cycle protection.
Built in Texas
KwiKool builds the PHP in the Houston and Stafford area of Texas, in an insulated galvanized steel cabinet.
Specifications
-
Model: KPHP2211-3
-
Heating Capacity: 21,240 BTU/hr (1.8-ton)
-
Cooling Capacity: 17,700 BTU/hr (1.5-ton) at 95°F, 60% RH
-
Operating Range, Heating: 40°F to 80°F at 50% RH
-
Operating Range, Cooling: 60°F to 110°F at 50% RH
-
Power Supply: 115V, single-phase
-
Current Draw: 15.5 A heating, 16 A cooling
-
Power Consumption: 1.84 kW
-
Recommended Breaker: 20 A (30 A maximum)
-
Plug: NEMA 5-20, 12 AWG cord, 6'
-
Evaporator Airflow: 600 CFM
-
Supply Air: Adjustable vent; optional 2 x 6" dia. x 18" chutes
-
Condenser Airflow: 950 CFM, I/O integral condenser, balanced
-
Condenser Ducts (optional): 2 x 14" dia. x 8', 25' maximum
-
Refrigerant: R-454B
-
Compressor: Hermetic rotary
-
Condensate: External 5-gallon tank with float shutoff and alarm
-
Dimensions (W x L x H): 20" x 41" x 43"
-
Weight: 278 lbs (328 lbs shipping)
What's Included
- KwiKool PHP KPHP2211-3 heat pump
- External 5-gallon condensate tank
- Owner's manual
Setup & Placement

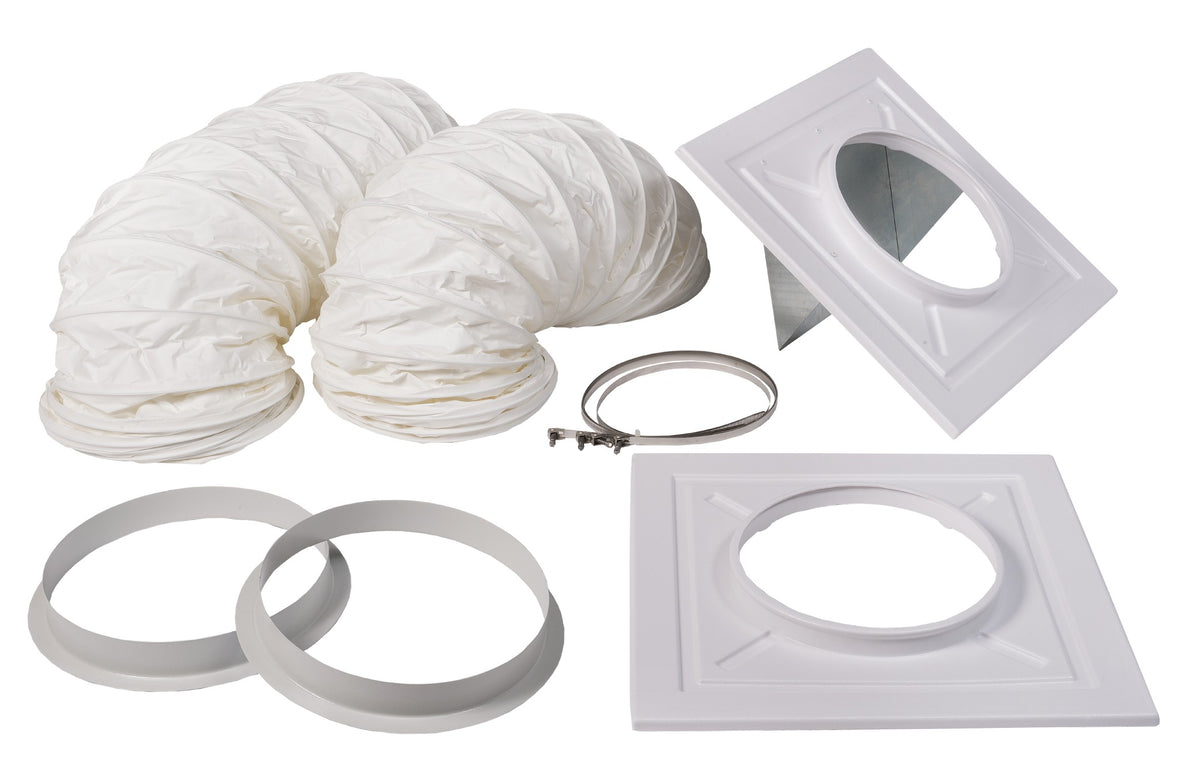

Roll the PHP into place and lock the casters. Connect the condenser make-up and discharge openings to the two-duct ceiling kit or to ducts of 25' or less, and connect the external condensate tank or a drain line.
Plug the unit into a dedicated 115V circuit that matches its plug: NEMA 5-15 for the KPHP1811-3 and NEMA 5-20 for the KPHP2211-3.
Resources
Shipping, Returns & Warranty
Shipping is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
KwiKool only takes back current, unused units, and every return needs a return authorization issued in advance, so contact us before you ship. Returns must arrive within 21 days of delivery in the original packaging, and you prepay the return freight. Any damage found when the unit arrives back is charged for repair, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated units and special-order items can't be returned.
KwiKool warrants its products against defects in material and workmanship for one year from the date of purchase, with defective equipment repaired or replaced at KwiKool's option. The warranty start date is the ship date, or a documented installation date, but no later than 18 months from the ship date. Units used for rental purposes carry a 90-day parts and labor warranty, and shipping charges apply to warranty returns after the first 90 days. The warranty extends to purchasers who buy for commercial or industrial use and excludes filters and other maintenance items, misuse, improper installation, freight damage and operation outside the published ambient temperature range.
Warranty claims. Call KwiKool Technical Support at 1-800-594-5665 with the model and serial number. KwiKool decides between an authorized on-site repair and a return to its repair facility. The owner pays the freight to the repair facility and carries the risk of freight damage. KwiKool's warranty covers units bought for commercial or industrial use.
About KwiKool
KwiKool Portable Cooling Systems is a manufacturer of commercial and industrial portable cooling equipment, building its spot coolers, heat pumps and BioAir air scrubbers in the Houston and Stafford area of Texas. Its range runs from 1-ton plug-in spot coolers to large indoor and outdoor systems, and KwiKool designs it for commercial and industrial applications rather than homes.
The PHP series has two sizes: the KPHP1811-3 (17,010 BTU/hr heating, 13,850 BTU/hr cooling) and the KPHP2211-3 (21,240 BTU/hr heating, 17,700 BTU/hr cooling). For cooling only, the KPAC II spot coolers run from 1.1 to 2 tons.
