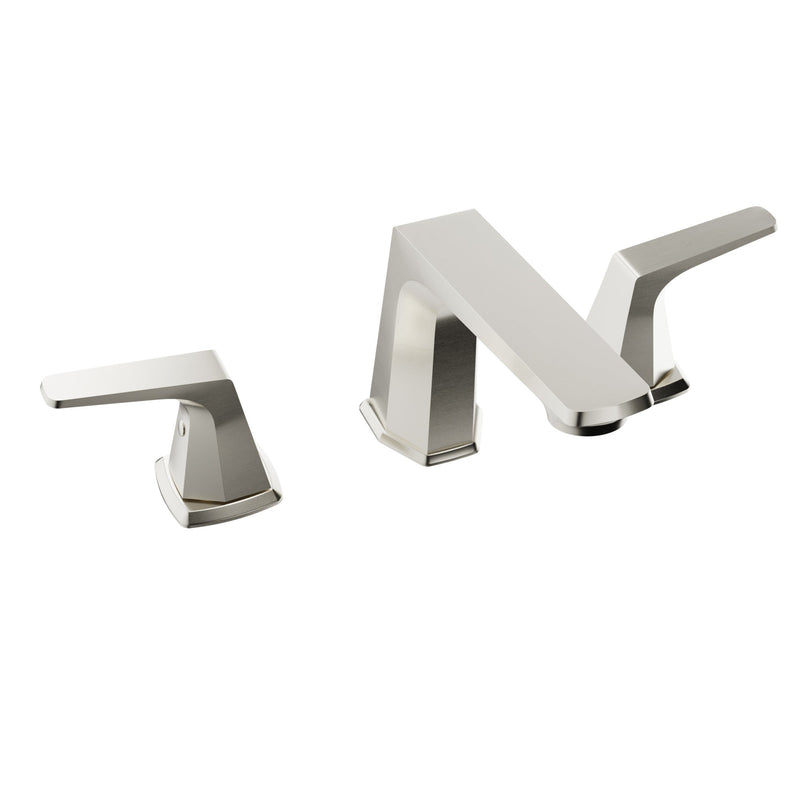

The ANZZI L-AZ905BN is a Contemporary 8" widespread bathroom faucet in brushed nickel, a two-handle brass lavatory faucet for a 3-hole sink or vanity top drilled at 8" centers. A push pop-up drain is packed in the box, so the faucet is ready to install out of the box.
Separate hot and cold levers let you set the exact mix of temperature and volume. The aerator holds the flow to 1.2 GPM, which cuts water use at the sink while keeping a full, strong stream for hand washing and brushing teeth.
Built for a 3-Hole, 8" Widespread Sink
As an ANZZI 8" widespread bathroom faucet, the set installs as three separate pieces: the spout in the center hole and a valve in each outer hole. The manual marks the valve with the red ring as the left, hot side and the other as the right, cold side, and each valve is turned so its outlet points at the spout before the handle base goes on. The valves end in a 1/2" male thread connection, and the box includes an Allen key and a T-wrench for the lock nuts.
The spout stands 5.28" tall with a 5.51" reach and a 7.31" length, a squared, angular profile. The handles and spout are sculpted from straight lines and sharp angles, and the minimalist styling looks clean and uncluttered when matched to any sink.
Brass Body, Modern Two-Tone Finishes
Construction is brass throughout, and the faucet is Rhino Alloy certified. The installation manual marks it lead free and NSF/ANSI/CAN 61, and it is designed for household water pressure between 20 and 125 PSI.
Before the faucet goes in, ANZZI asks that the supply lines are flushed free of debris with shut-off stops installed, and ANZZI highly recommends professional installation. If you are fitting it yourself and run into trouble, the manual points you to a professional plumber rather than forcing a fitting.
The L-AZ905BN is one of five finishes in the ANZZI Contemporary widespread series, from solid brushed nickel and matte black to three two-tone matte black options.
Fit the spout first: attach the hoses to the screw holes under the spout, feed them through the O-ring, set the spout in the centre hole and secure it from below with the rubber gasket, metal gasket and nut, hand tight first and then with the T-wrench. Each valve goes up through its outer hole from below with its rubber washer, metal washer and lock nut, and the handle base screws on over an O-ring on top of the sink. To set the handles, turn the left one clockwise and the right one counter-clockwise until they stop; if a handle does not line up with its base, pull it up, turn it to the correct position and refit it.
In one box, the L-AZ905BN includes an angular brass widespread faucet in brushed nickel, a push pop-up drain and the tools to fit it.
Features
Fits 3-Hole 8" Widespread Sinks
The spout and two valves mount in three holes at 8" centers on a widespread sink or vanity top.
Separate Hot and Cold Levers
Two lever handles give independent control of hot and cold water, letting you dial in a precise temperature and flow that a single mixing lever cannot hold as finely.
Push Pop-Up Drain Included
A push pop-up drain with body, gasket and lock nut comes in the box and installs through the sink drain hole.
Brass Body, Lead Free
The faucet is built of brass and is lead free and NSF/ANSI/CAN 61 compliant.
Clearance Over the Basin
A 5.28" spout height and 5.51" reach put the stream toward the center of the bowl, giving room for hands underneath and keeping water off the deck.
1/2" Male Thread Connections
The valves take 1/2" male thread supply connections, and the faucet works at household water pressure between 20 and 125 PSI.
Specifications
-
Model: L-AZ905BN
-
Spout Height: 5.28"
-
Spout Length: 7.31"
-
Spout Reach: 5.51"
-
Material: Brass
-
Finish: Brushed Nickel
-
Installation: Deck mount, 3-hole 8" widespread
-
Handles: Two lever handles
-
Flow Rate: 1.2 GPM
-
Supply Connection: 1/2" male thread
-
Mounting Hole: 1.06" to 1.18"
-
Water Pressure: 20 to 125 PSI
-
Drain: Push pop-up drain included
-
Certifications: Lead free, NSF/ANSI/CAN 61
-
Series: Contemporary
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- L-AZ905BN widespread spout and two handle valve assemblies
- Push pop-up drain
- Spout hoses
- Aerator and aerator key
- Allen key and T-wrench
Sold separately: Supply hoses or copper tubes from the shut-off valves (not provided)
Installation & Care
Installation
Deck mount on a sink or counter drilled with three holes at 8" centers; the manual's size chart gives a 1.06" to 1.18" mounting hole. Connect the valve inlets to the hot and cold shut-off valves with 1/2" male thread supply hoses or copper tubes, which are not provided; the red-ring valve goes on the left. Water pressure must be between 20 and 125 PSI, and the supply lines should be flushed of debris before install. ANZZI recommends professional installation.
Care
Wipe the faucet with mild soap and water on a soft, non-abrasive cloth and dry it to prevent spotting. ANZZI's manual recommends a non-abrasive wax, such as car wax, to preserve the finish on the metal parts, and says any cleaner should be rinsed off immediately; avoid abrasive pads on plated finishes. Unscrew and clean the aerator regularly to clear calcium build-up that reduces flow.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Contemporary widespread faucet comes in Brushed Nickel (L-AZ905BN), Matte Black (L-AZ905MB), Matte Black with Brushed Gold (L-AZ905MB-BG), Matte Black with Brushed Nickel (L-AZ905MB-BN) and Matte Black with Polished Chrome (L-AZ905MB-CH). ANZZI also makes a Contemporary single-hole bathroom faucet for one-hole vanities.
