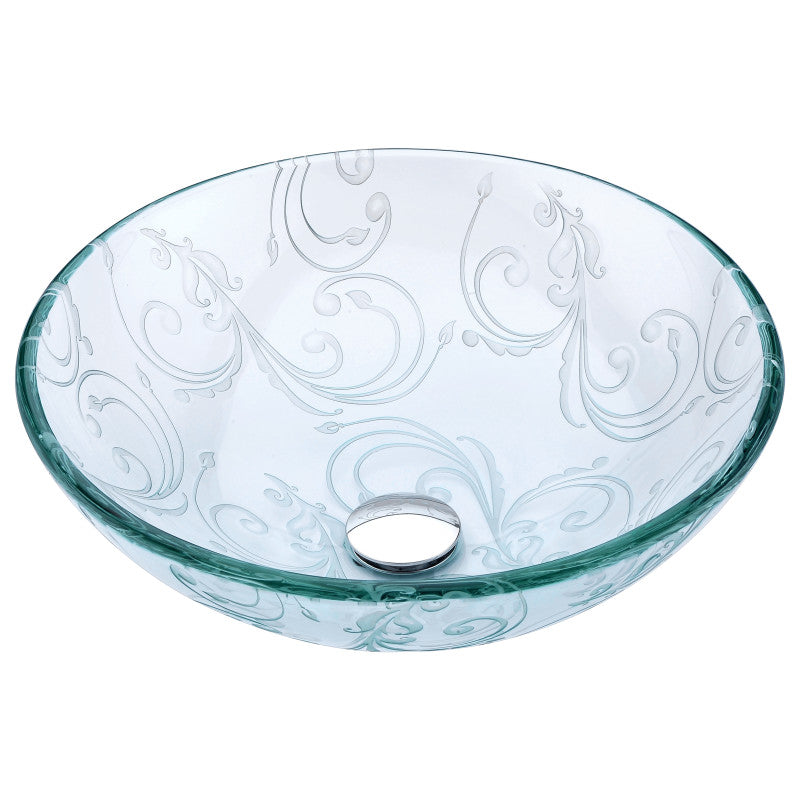

The LS-AZ065 Vieno Series is an ANZZI 16.5" round tempered glass vessel sink in Crystal Clear Floral. It is a traditionally crafted round vessel sink adorned in a Crystal Clear Floral finish, made to sit on top of a bathroom counter.
The bowl measures 16.5" L x 16.5" W x 5.5" H and a single 1.75" standard drain opening. The 5.5" figure is the overall height of the bowl, which is also how far its rim stands above the counter once it is set in place.
Each Vieno sink is formed from high tempered Deco-Glass. Installation is top mount, so the bowl rests on the counter over a single drain hole.
Installing the LS-AZ065 on Your Counter
The vessel sink manual asks you to read the whole instruction sheet before you start, observe all local building and safety codes, and inspect the sink as soon as it arrives, reporting any damage to ANZZI's customer service right away. The tools and materials it lists are silicone sealant, a damp cloth, a basin wrench and thread sealant. Place the sink upside down on the counter on a towel or other soft cloth, apply a continuous bead of silicone to the base where it will rest on the counter, then turn it right side up and position it over the 2" drain hole. Remove any excess silicone with a damp cloth and let the silicone dry for 24 hours. ANZZI recommends consulting a professional if you are unfamiliar with this type of installation, and states that it accepts no liability for damage to floors, walls or plumbing, or for injury, during installation.
No drain is included with this sink; it has a single 1.75" standard drain opening. To fit the drain: disassemble the drain by removing the threaded tail piece, rubber sealing gaskets, friction washer and lock nut; put thread sealant on the tail piece threads and reattach it; slide the flat rubber gasket up to the top of the drain body, where it seals the drain flange to the sink; place the drain in the sink's drain hole; from under the counter fit the tapered rubber gasket flat side down until it meets the sink, slide the friction washer up to it, and thread on the lock nut. Hand-tighten, check the drain is aligned, then finish with a basin wrench.
Choosing a Faucet for a 5.5" Bowl
Among ANZZI's vessel faucets, the Crown L-AZ022 has an 8" spout height and a 5.54" reach, the Saunter L-AZ121 an 8.75" spout height and a 4.75" reach, and the Enti L-AZ096 stands 8.87" tall with a 6.02" reach. All three are single hole, single lever faucets rated at 1.2 GPM.
As an ANZZI 16.5" round tempered glass vessel sink with a single 1.75" standard drain opening, the LS-AZ065 gives a bathroom counter a Crystal Clear Floral glass bowl with a scratch-tough, easy-to-clean surface.
Features
Crystal Clear Floral Finish
The LS-AZ065 comes in Crystal Clear Floral, the color and pattern of this Vieno Series model, set in tempered Deco-Glass.
16.5" x 16.5" x 5.5" Bowl
The bowl measures 16.5" by 16.5"; it stands 5.5" high, and the footprint is the space it takes on the vanity top when you plan the counter and faucet position.
Deco-Glass
Each sink is formed from high tempered Deco-Glass, the same construction used across its Deco-Glass vessel range.
Scratch-Tough, Stain-Resistant Surface
The surface is scratch-tough, stain-resistant and non-porous, and the sink is easy to clean and low maintenance.
Top-Mount Installation
The sink is top mount and seals to the counter with a continuous bead of silicone over a single 2" drain hole.
Pairs With ANZZI Vessel Faucets
ANZZI's Crown L-AZ022 (8" spout height) and Saunter L-AZ121 (8.75" spout height) are single hole vessel faucets made to stand over a bowl like this one.
Specifications
-
Model: LS-AZ065
-
Dimensions: 16.5" L x 16.5" W x 5.5" H
-
Shape: Round
-
Material: Tempered Deco-Glass
-
Finish: Crystal Clear Floral
-
Mounting: Top mount (vessel)
-
Drain Opening: 1.75"
-
Series: Vieno
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- LS-AZ065 Vieno Series tempered glass vessel sink in Crystal Clear Floral
Installation & Care
Installation
Top mount over a single 2" drain hole in the counter. Read the full instructions first and observe all local building and safety codes. Set the sink upside down on a soft cloth, run a continuous bead of silicone around its base, turn it over onto the drain hole, wipe off excess with a damp cloth and let it dry for 24 hours. Then fit a vessel drain in the 1.75" opening with thread sealant, hand-tighten the lock nut and finish with a basin wrench. ANZZI recommends consulting a professional if you are unfamiliar with this type of installation.
Care
Clean regularly with regular soap and hot water and a non-abrasive cloth or sponge to avoid build-up. Test any stronger cleaner on an inconspicuous area first, wipe and rinse completely with water immediately after, rinse and dry overspray on nearby surfaces, and do not allow the cleaner to soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Vieno is one of ANZZI's tempered Deco-Glass vessel sinks. Pair it with a single hole ANZZI vessel faucet such as the Crown L-AZ022 or Saunter L-AZ121.
