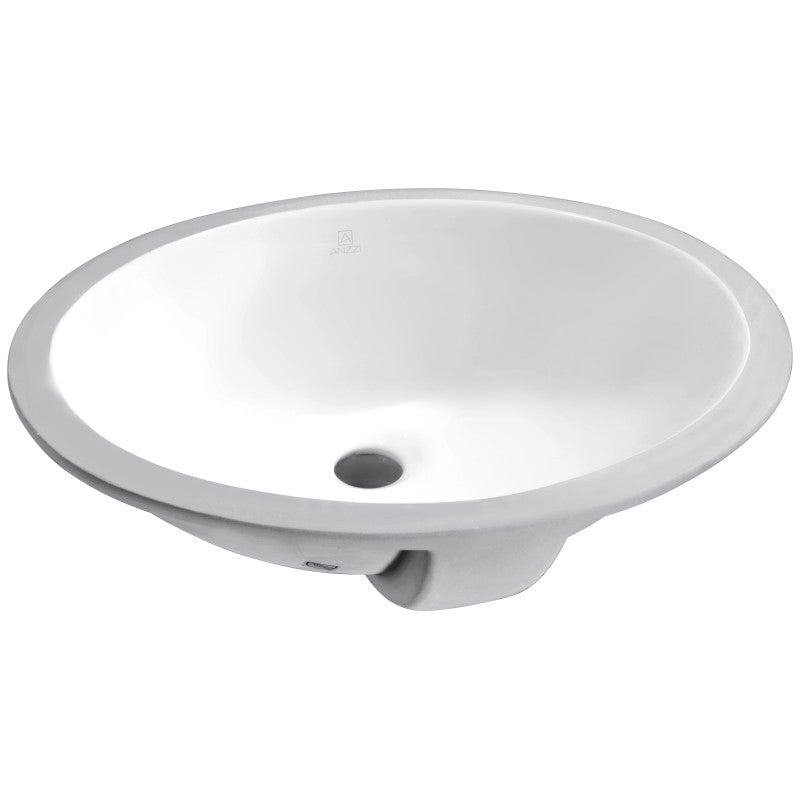

The ANZZI LS-AZ102 Lanmia Series is a 19.5" x 15.75" undermount bathroom sink in white vitreous china, mounted beneath the countertop so the counter edge runs straight into the bowl. It mounts under a vanity top cut for an undermount sink, leaving no rim on the counter.
The 19.5" basin has a front built-in overflow and a standard 1.75" drain opening. With no faucet holes in the sink, the faucet is mounted on the countertop.
ANZZI makes the Lanmia from vitreous china it describes as RHINO ALLOY approved, with a non-porous, long lasting polished white finish. The sink is cUPC certified.
Undermount installation hangs the sink from the underside of the countertop with sink clips and silicone. ANZZI ships the sink without a drain assembly.
Planning the Countertop Cutout
ANZZI's instructions turn the vanity top upside down on a cushioned surface, center the sink over the cutout and evenly between the bolt holes, trace it, run a generous bead of silicone around the rim, then secure it with sink clips and wing bolts tightened snugly.
Faucet, Drain and Overflow
There are no faucet holes in the sink, so the faucet is drilled through the countertop behind it. The front built-in overflow means the drain should be a 1.75" bathroom pop-up with an overflow opening; ANZZI does not include the drain assembly.
ANZZI's undermount manual lists the tools: a pencil, a damp cloth, thread sealant, a basin wrench and silicone sealant. To fit the drain, take the threaded tail piece, rubber sealing gaskets, friction washer and lock nut off the drain body, put thread sealant on the tail piece threads and reattach it, and slide the flat rubber gasket up to the top of the drain body, where it forms the watertight seal between the drain flange and the sink. Set the drain in the hole, add the tapered gasket and friction washer from below and hand-tighten the lock nut, then finish with a basin wrench. The manual asks you to observe all local building and safety codes.
Caring for Polished White China
Clean with regular soap and hot water and a non-abrasive cloth or sponge, then rinse fully. Test any stronger cleaner on a hidden area first and do not let it soak on the surface.
Completing the Lanmia Setup
The LS-AZ102 sits in a two-size Lanmia range, also offered as LS-AZ105 at 24" x 15".
The LS-AZ102 is an ANZZI 19.5" x 15.75" undermount vitreous china bathroom sink with a front overflow, cUPC certified, in a polished white glaze.
Features
19.5" x 15.75" Undermount Basin
The basin measures 19.5" x 15.75", and ANZZI also makes the Lanmia as the wider 24" LS-AZ105.
Clean Undermount Edge
Mounted under the counter, the sink leaves no rim on top of the countertop around the bowl.
Front Built-In Overflow
The front built-in overflow is part of the bowl, so use a 1.75" bathroom drain that has an overflow opening.
Vitreous China, Polished White
ANZZI uses RHINO ALLOY approved artisan strength vitreous china with a non-porous, long lasting polished white finish.
cUPC Certified
The Lanmia LS-AZ102 is cUPC certified, and it is built from RHINO ALLOY approved artisan strength vitreous china.
Standard 1.75" Drain
The 1.75" drain opening takes a standard bathroom drain with an overflow port, sold separately.

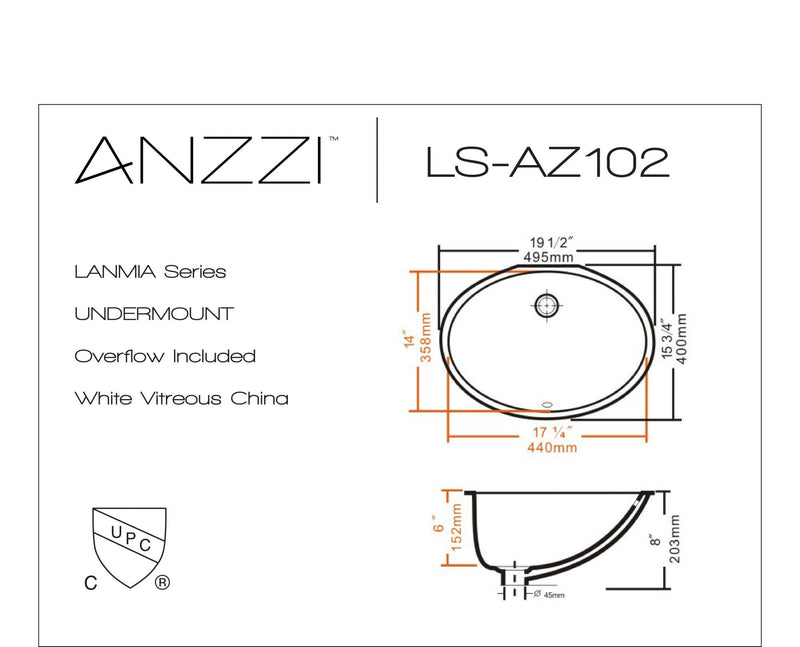

Specifications
-
Model: LS-AZ102
-
Dimensions: 19.5" x 15.75"
-
Material: Vitreous china (ANZZI RHINO ALLOY approved)
-
Finish: Polished White
-
Mounting: Undermount
-
Overflow: Built-in, front
-
Drain Opening: 1.75"
-
Drain: Not included
-
Faucet Holes: None
-
Certifications: cUPC
-
Series: Lanmia
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- LS-AZ102 Lanmia Series undermount bathroom sink in white
Sold separately: Drain assembly, Faucet
Installation & Care
Installation
Undermount beneath the countertop. Following ANZZI's undermount instructions: center the sink upside down over the countertop cutout, evenly spaced between the bolt holes, outline it, apply a generous bead of silicone around the sink rim, set it in the outline and attach the sink clips (if included) with the wing bolts, then turn the top over onto the vanity. Fit a 1.75" drain (not included) with thread sealant and a basin wrench.
Care
Clean the vitreous china with regular soap and hot water and a non-abrasive cloth or sponge, then rinse and wipe dry. Use only a non-abrasive cloth or sponge. Test any stronger cleaner on a hidden area first and do not let cleaner soak on the surface.
