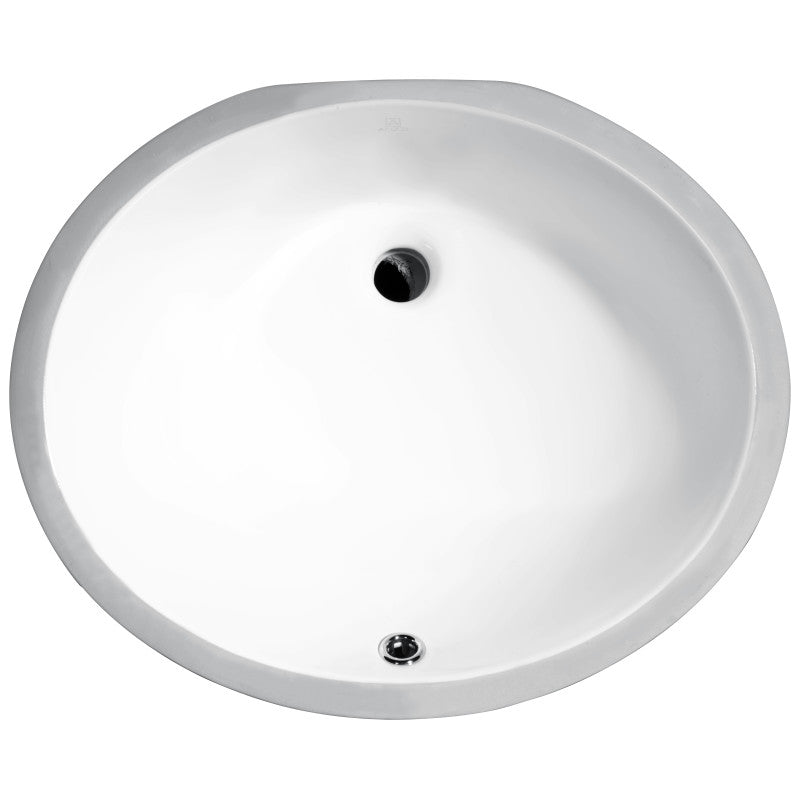

The ANZZI LS-AZ103 Pegasus Series is a 18.25" x 15" undermount bathroom sink in white vitreous china, mounted beneath the countertop so the counter edge runs straight into the bowl. It is a piece of modern contemporary artistry in vitreous china.
The 18.25" basin has a front-side built-in overflow and a standard 1.75" drain opening. There are no faucet holes in the sink, so the faucet mounts on the countertop.
ANZZI makes the Pegasus from vitreous china it describes as RHINO ALLOY approved, with a non-porous, long lasting polished white finish, and the sink is cUPC and CSA certified.
Undermount sinks are hung from the underside of the countertop with clips and silicone. ANZZI ships the sink without a drain assembly, so plan a 1.75" bathroom drain with an overflow port in your faucet's finish.
Planning the Countertop Cutout
ANZZI's instructions turn the vanity top upside down on a cushioned surface, center the sink over the cutout and evenly between the bolt holes, trace it, run a generous bead of silicone around the rim, then secure it with sink clips and wing bolts tightened snugly.
Faucet, Drain and Overflow
The front built-in overflow means the drain should be a 1.75" bathroom pop-up with an overflow opening; ANZZI does not include the drain assembly.
ANZZI's undermount manual lists the tools: a pencil, a damp cloth, thread sealant, a basin wrench and silicone sealant. To fit the drain, take the threaded tail piece, rubber sealing gaskets, friction washer and lock nut off the drain body, put thread sealant on the tail piece threads and reattach it, and slide the flat rubber gasket up to the top of the drain body, where it forms the watertight seal between the drain flange and the sink. Set the drain in the hole, add the tapered gasket and friction washer from below and hand-tighten the lock nut, then finish with a basin wrench. The manual asks you to observe all local building and safety codes.
Caring for Polished White China
Clean with regular soap and hot water and a non-abrasive cloth or sponge, then rinse fully. Test any stronger cleaner on a hidden area first and do not let it soak on the surface.
Completing the Pegasus Setup
The LS-AZ103 is one of two Pegasus sizes; the series is also offered as LS-AZ107 at 21" x 14.5".
For a vanity top cut for an undermount sink, the LS-AZ103 is an ANZZI 18.25" x 15" undermount vitreous china bathroom sink with a front overflow, cUPC and CSA certified, in a polished white glaze.
Features
18.25" x 15" Undermount Basin
The LS-AZ103 measures 18.25" x 15", an undermount vitreous china basin with no faucet holes, cUPC and CSA certified.
Clean Undermount Edge
Mounted under the counter, the sink leaves no rim on top, and the faucet mounts on the countertop, not the sink.
Front Built-In Overflow
The front-side built-in overflow is part of the bowl, so pair the sink with a 1.75" bathroom drain that has an overflow opening.
Polished White Vitreous China
The sink is RHINO ALLOY approved vitreous china with a long lasting, non-porous polished white finish.
cUPC and CSA Certified
The Pegasus is cUPC and CSA certified and made from RHINO ALLOY approved vitreous china.
Faucet-Free Deck
With no faucet holes in the sink, the faucet mounts through the countertop behind the basin.
Standard 1.75" Drain
The 1.75" opening takes a standard bathroom drain with an overflow port, sold separately.

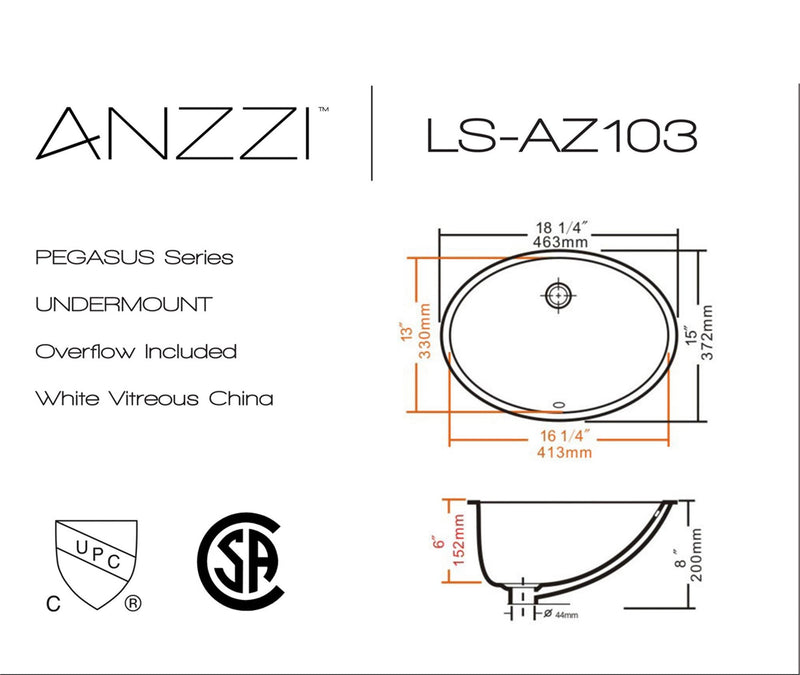

Specifications
-
Model: LS-AZ103
-
Dimensions: 18.25" x 15"
-
Material: Vitreous china (ANZZI RHINO ALLOY approved)
-
Finish: Polished White
-
Mounting: Undermount
-
Overflow: Built-in, front side
-
Drain Opening: 1.75"
-
Drain: Not included
-
Faucet Holes: None
-
Certifications: cUPC, CSA
-
Series: Pegasus
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- LS-AZ103 Pegasus Series undermount bathroom sink in white
Sold separately: Drain assembly, Faucet
Installation & Care
Installation
Undermount beneath the countertop. Following ANZZI's undermount instructions: turn the vanity top upside down on a cushioned surface, center the sink over the cutout and evenly between the bolt holes, outline it, apply a generous bead of silicone around the sink rim, set it in the outline and attach the sink clips (if included) with the wing bolts, then turn the top over onto the vanity. Fit a 1.75" drain (not included) with thread sealant and a basin wrench.
Care
Clean the vitreous china with regular soap and hot water and a non-abrasive cloth or sponge, then rinse and wipe dry. Use only a non-abrasive cloth or sponge. Test any stronger cleaner on a hidden area first and do not let cleaner soak on the surface.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Pegasus undermount comes in 18.25" x 15" (LS-AZ103) and 21" x 14.5" (LS-AZ107), both with a front overflow. ANZZI's Lanmia is its other white vitreous china undermount series, in 19.5" and 24" sizes.
