The LS-AZ109 Rhodes Series is an ANZZI 21.5" ceramic undermount bathroom sink in white. It is a smoothly polished vitreous china basin with the delicate features of fine china and the durability of high-end ceramics, mounted beneath the vanity top.

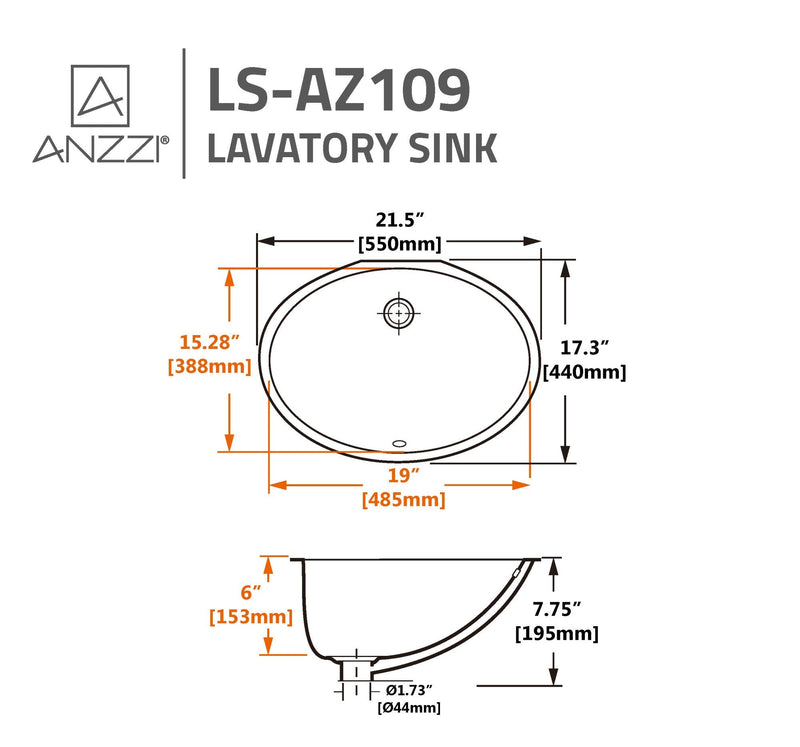

The sink measures 21.5" x 15.28", with a 1.73" drain opening and no faucet holes.
The material is RHINO ALLOY approved artisan strength vitreous china, with a non-porous, long lasting polished white finish. The bowl has a front side built-in overflow, and the sink is cUPC and CSA certified. The drain assembly is not included, so plan a 1.73" drain with an overflow opening.
Drain and Faucet
With no faucet holes in the china, the faucet goes through the vanity top, so the countertop's faucet drilling decides which faucet fits. When you trace the outline, center the sink on the faucet hole in the top, so mark the faucet position before the sink is set.
As an ANZZI 21.5" ceramic undermount bathroom sink with a front built-in overflow and cUPC and CSA certification, the LS-AZ109 gives a vanity top a polished white basin set beneath the counter.
Features
21.5" x 15.28" Undermount Basin
The LS-AZ109 measures 21.5" x 15.28", an undermount sink mounted beneath the vanity top.
Front Side Built-In Overflow
The bowl has a front side built-in overflow, so pair the sink with a 1.73" drain that has an overflow opening.
RHINO ALLOY Approved Vitreous China
The sink is RHINO ALLOY approved artisan strength vitreous china, with a smoothly polished basin and a non-porous, long lasting polished white finish.
No Faucet Holes
The sink has no faucet holes, so the faucet is mounted through the vanity top behind the basin.
1.73" Drain Opening
The sink has a 1.73" drain opening; the drain assembly is not included and is bought separately.
Clip-Mounted Undermount Install
The sink sets in a generous bead of silicone and is secured with sink clips and wing bolts, where clips are included.
Specifications
-
Model: LS-AZ109
-
Dimensions: 21.5" x 15.28"
-
Material: Vitreous china (ANZZI RHINO ALLOY approved)
-
Finish: Polished white
-
Mounting: Undermount
-
Faucet Holes: None
-
Overflow: Front side built-in
-
Drain Opening: 1.73"
-
Drain: Not included
-
Certifications: cUPC, CSA
-
Series: Rhodes
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- LS-AZ109 Rhodes vitreous china undermount sink in white
Sold separately: Drain assembly, Faucet
Installation & Care
Installation
Undermount beneath the vanity top; observe all local building and safety codes. Turn the top upside down on a cushioned surface, center the sink over the cutout and between the bolt holes, trace it, run a generous bead of silicone around the rim, set the sink within the outline, fit the sink clips (if included) with the wing bolts tightened snugly, and turn the top over onto the vanity. Fit a 1.73" drain with overflow (not included). To fit it: disassemble the drain by removing the threaded tail piece, rubber sealing gaskets, friction washer and lock nut; put thread sealant on the tail piece threads and reattach it; slide the flat rubber gasket up to the top of the drain body, where it seals the drain flange to the sink; place the drain in the sink's drain hole; from under the counter fit the tapered rubber gasket flat side down until it meets the sink, slide the friction washer up to it, and thread on the lock nut. Hand-tighten, check the drain is aligned, then finish with a basin wrench.
Care
Clean regularly with regular soap and hot water and a non-abrasive cloth or sponge to avoid build-up. Test any stronger cleaner on an inconspicuous area first, wipe and rinse completely with water immediately after, rinse and dry overspray on nearby surfaces, and do not allow the cleaner to soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Rhodes Series also includes the LS-AZ110 and LS-AZ112.
