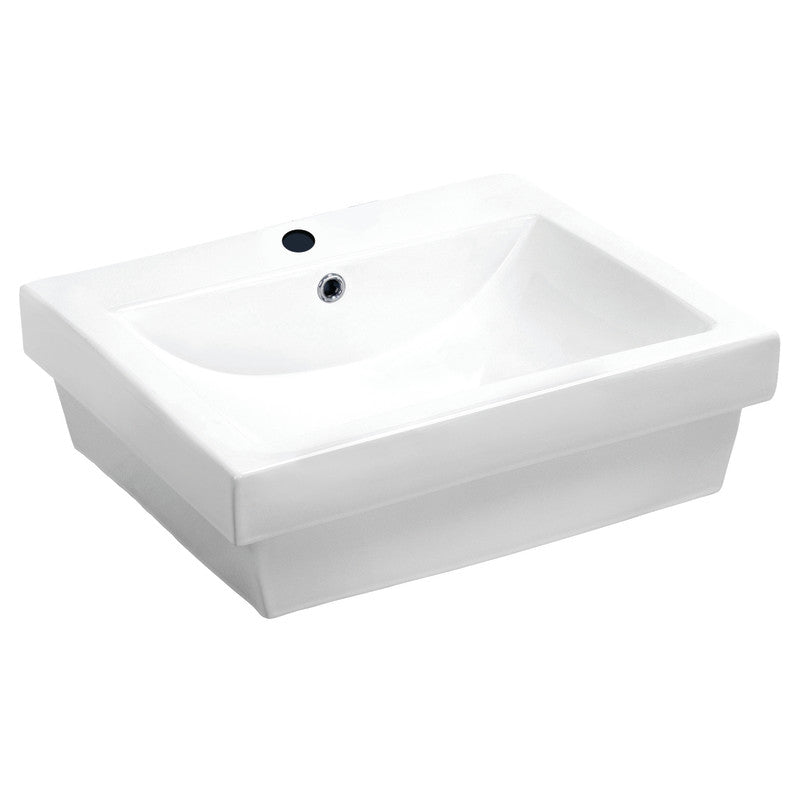

The ANZZI LS-AZ117 Neptune Series is a 21.45" x 17.9" vitreous china vessel sink in polished white, with a built-in overflow and one faucet hole in the sink deck. The faucet mounts on the sink itself.

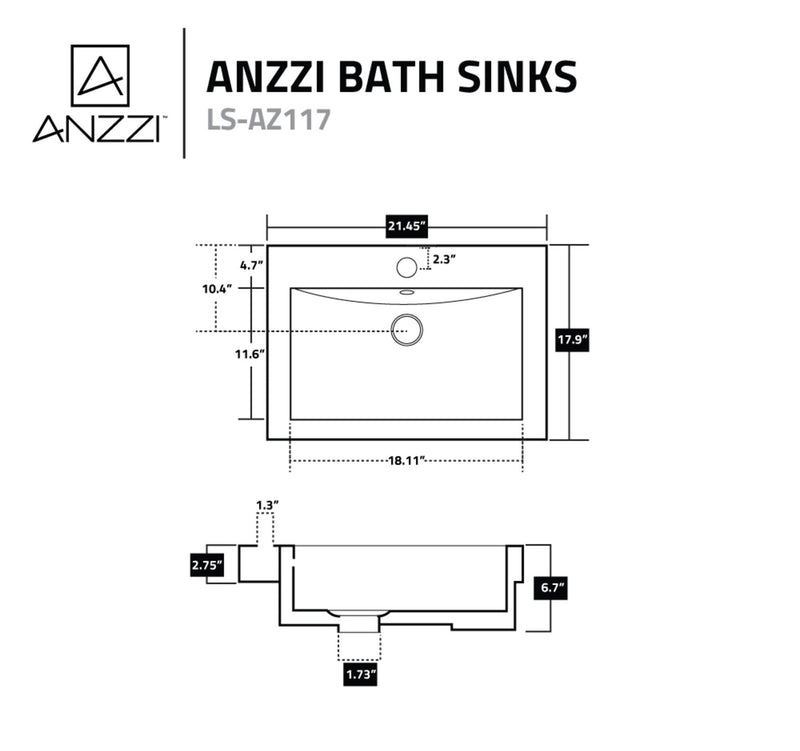

The Neptune measures 21.45" L x 17.9" W and stands 6.7" tall. The bowl has a back-side built-in overflow.
ANZZI makes the Neptune from vitreous china it describes as RHINO ALLOY approved, with a non-porous, long lasting polished white finish. It pairs the delicate look of fine china with the durability of high-end ceramics.
The sink installs top mount on the counter over a 1.75" standard drain opening and is sealed with silicone. The single faucet hole is 35 mm and takes a single-hole bathroom faucet. The drain is not included. The sink is cUPC certified.
A Vessel Sink with Its Own Faucet Hole
The Neptune's single 35 mm faucet hole sits in a 2.75" high deck at the back of the sink, so it takes a single-hole bathroom faucet mounted on the basin itself. The deck rests on the counter, so the counter needs a drain hole and a hole under the faucet hole for the supply lines.
Drain and Overflow
The 1.75" standard drain opening works with the back-side built-in overflow, so choose a 1.75" pop-up drain with an overflow opening; ANZZI does not include the drain. ANZZI's vessel sink instructions set the bowl over a 2" drain hole in the counter and seal its base with a continuous bead of silicone, left to dry for 24 hours.
Caring for Polished White China
Clean with regular soap and hot water and a non-abrasive cloth or sponge, then rinse fully. Test any stronger cleaner on a hidden area first and do not let it soak on the surface.
Completing the Neptune Setup
The LS-AZ117 is cUPC certified.
Gather silicone sealant, a damp cloth, a basin wrench and thread sealant before you start. To set the sink, turn it upside down on a towel or soft cloth, run the silicone bead around its base, then turn it upright over the counter hole and wipe away the excess with the damp cloth. When fitting your drain, coat the tail piece threads with thread sealant, place the tapered rubber gasket and friction washer under the counter and hand-tighten the lock nut. Inspect the sink as soon as it arrives and report any damage to ANZZI right away.
The LS-AZ117 is an ANZZI 21.45" vitreous china vessel sink with a faucet hole and built-in overflow, cUPC certified.
Features
Faucet Mounts on the Sink
One 35 mm faucet hole in the 2.75" high sink deck takes a single-hole bathroom faucet; the counter needs a hole under it for the supply lines.
21.45" x 17.9" Basin
The vitreous china sink measures 21.45" L x 17.9" W and stands 6.7" tall, with an 18.11" wide bowl.
Back-Side Built-In Overflow
The overflow at the back of the bowl is built in, so pair the sink with a 1.75" drain that has an overflow opening.
Polished White Vitreous China
ANZZI uses RHINO ALLOY approved vitreous china with a non-porous, long lasting polished white finish.
cUPC Certified
ANZZI lists the Neptune as cUPC certified, alongside its RHINO ALLOY approved vitreous china construction.
Standard 1.75" Drain Opening
The 1.75" opening takes a standard bathroom drain with an overflow port, sold separately.
Top-Mount Installation
The sink sits on top of the counter and seals with a bead of silicone over a single 2" drain hole.
Specifications
-
Model: LS-AZ117
-
Dimensions: 21.45" L x 17.9" W
-
Material: Vitreous china (ANZZI RHINO ALLOY approved)
-
Finish: Polished White
-
Mounting: Top mount (vessel)
-
Faucet Holes: 1 (35 mm)
-
Overflow: Built-in, back side
-
Drain Opening: 1.75"
-
Drain: Not included
-
Certifications: cUPC
-
Series: Neptune
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- LS-AZ117 Neptune Series vitreous china vessel sink in white
Sold separately: Drain, Faucet
Installation & Care
Installation
Top mount over a single drain hole in the counter. Following ANZZI's vessel sink instructions, set the sink upside down on a soft cloth, run a continuous bead of silicone around the base where it rests on the counter, turn it over and position it over the drain hole, wipe off the excess with a damp cloth and let the silicone dry for 24 hours. Then fit a vessel drain (not included) in the 1.75" opening with thread sealant and a basin wrench. ANZZI recommends a professional if you are unfamiliar with this type of installation. Mount a single-hole faucet through the 35 mm hole in the sink deck, with a matching hole in the counter below for the supply lines.
Care
Clean the vitreous china with regular soap and hot water and a non-abrasive cloth or sponge, then rinse and wipe dry. Use only a non-abrasive cloth or sponge. Test any stronger cleaner on a hidden area first and do not let cleaner soak on the surface.
