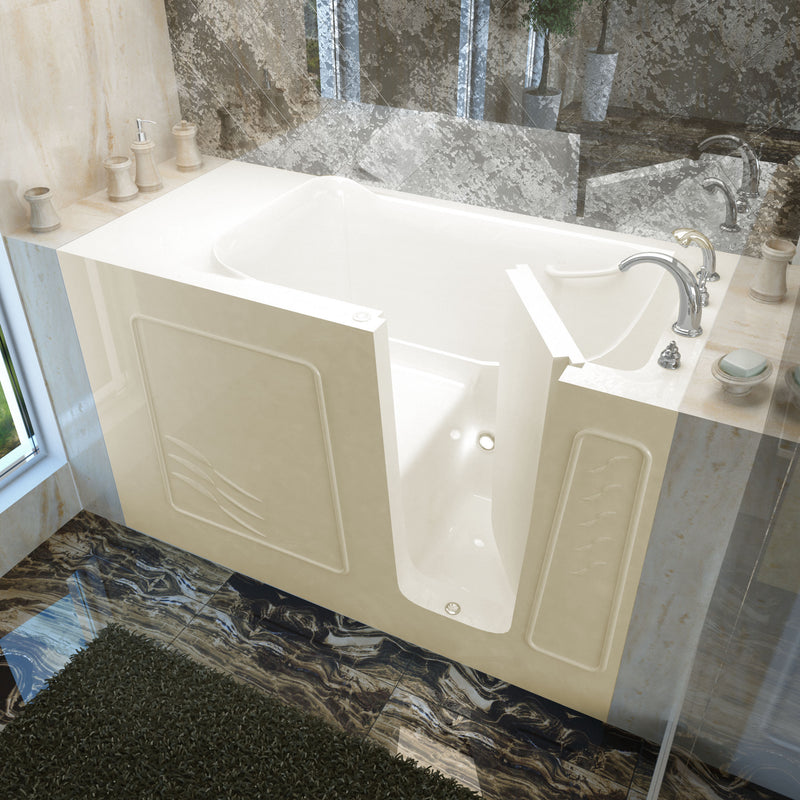

The MediTub 3060WIRBS is a 30" x 60" walk-in bathtub in biscuit with a non-jetted soaking basin and a right side drain. It is built for anyone who finds stepping over a tub wall hard or unsafe: you open the inward-swinging door, step over a 7.25" threshold, sit down on a molded 16.75" high seat and close the door behind you before the bath fills.
A walk-in tub with a door suits aging in place, an ADA bathroom remodel or any home where someone finds a standard step-over tub difficult. The 3060WIRBS keeps the whole bath seated: you sit down before the water goes in and stay seated through the soak, so there is no climbing, kneeling or lowering yourself to the tub floor.
A Deep, Quiet Soak With No Wiring
With the door closed, the tub fills to a 32" soaking depth from drain to overflow, so you soak sitting upright with the water around you. There are no jets, pump or blower, so the bath is quiet and still, it is safe for bath salts and aromatic oils, and the tub needs no electrical circuit.
Grab Bar, Textured Floor and a Sealed Door
Safety is built into the shell: a built-in grab bar, a slip-resistant textured floor and an ADA compliant molded seat support you on the way in and out, and the doorway gives 12.75" of clearance. The door closes on an advanced GE water seal, a door drain with a check valve clears water from the door channel after each bath, and the cable-operated waste and overflow opens and closes the floor drain with a chrome turn knob inside the tub.
The tub rides on a solid stainless steel frame with 8 laser precision support points and adjustable leveling feet, and the shell is gel coat fiberglass. It is designed for an alcove installation. Removable front access panels keep the plumbing reachable for service once the tub is installed. MediTub lists it as ADA compliant and IAPMO listed, and its spec sheet shows UPC and EGS certification.
Fitting the 30" x 60" Footprint
Measured for the room, the MediTub 30" x 60" walk-in bathtub is 59" L x 30" W x 39" H overall, with a 22.25" interior width, a 24" x 22" standing area and a 4.5" faucet deck. The drain sits 9.5" from the side wall and 15.25" from the back wall, which is the rough-in your plumber works to. Measure on site before building the surround: jet, pump and blower positions are set at the factory and cannot be moved.
The MediTub 3060 series is offered in white or biscuit, with the drain on the left or right, and as a soaking model with no jets, an air bubble model, a whirlpool model or a dual whirlpool and air model. All of them share the same shell, seat, door and safety features, so the choice comes down to the massage you want and which side of the room the drain needs to be on.
In short, the MediTub 3060WIRBS brings together a 7.25" step-in, a 16.75" ADA compliant seat, a 32" soak and a still, non-jetted bath in a biscuit finish with a right drain, so bathing at home stays safe and independent.
Features
Low 7.25" Step-In Threshold
The inward-swinging door opens to a 7.25" threshold, so you step in rather than lift a leg over a full tub wall, through a doorway with 12.75" of clearance.
16.75" ADA Compliant Seat
A molded 21" wide seat at 16.75" height lets you sit down and stand up without lowering yourself to the tub floor.
Quiet, Non-Jetted Soak
With no jets, pump or blower there is nothing to run or service, just a deep, still soak that is safe for bath salts and aromatic oils.
No Electrical Circuit Needed
Because the soaking model has no motors, installation needs only the plumbing connections, with no dedicated GFCI circuit to run to the bathroom.
32" Soaking Depth
Water fills to 32" from drain to overflow in a 22.25" wide interior, so you soak upright on the seat in water much deeper than a standard bathtub holds.
Grab Bar and Textured Floor
A built-in grab bar and a slip-resistant textured floor give you a hand hold and secure footing while you sit, stand and step out.
Sealed Door With Door Drain
The inward-swinging door closes on an advanced GE water seal, and a door drain with a check valve clears leftover water from the door channel after each bath.
Stainless Steel Frame
A solid stainless steel frame with 8 laser precision support points and adjustable leveling feet carries the tub; set level, it keeps the door seal and drain working.
Alcove Installation
It is designed for an alcove installation, in a footprint of 59" L x 30" W x 39" H.
Service Access Panels
Removable front access panels open for maintenance after installation, so plumbing stays reachable without opening the wall.
Specifications
-
Model: 3060WIRBS
-
Overall Dimensions: 59" L x 30" W x 39" H
-
Bath Therapy: Non-jetted soaking
-
Drain Placement: Right
-
Color: Biscuit
-
Material: Gel coat fiberglass
-
Door: Inward swinging
-
Step-In Height: 7.25"
-
Door Clearance: 12.75"
-
Seat: 21" W, 16.75" high
-
Soaking Depth: 32"
-
Interior Width: 22.25"
-
Standing Area: 24" x 22"
-
Faucet Deck: 4.5"
-
Installation: Alcove
-
Faucet: Sold separately (MediTub OPFHC)
-
Tile Flange: Built in
-
Standards: ASME A112.19.15, CSA C22.2 No. 218.2, UL 1795, ADA
-
Drain Rough-In: 9.5" from side wall, 15.25" from back wall
-
Weight: 130 lbs
-
Certifications: ADA compliant; IAPMO listed; UPC and EGS certified
-
Warranty: 10 years shell, frame and finish; 1 year components; lifetime door seal
What's Included
- 3060WIRBS walk-in bathtub with door
- Waste and overflow kit with cable-operated drain
- Sanitary tee
- Door drain adaptor with 3/8" barb
- Removable front access panels
- Suction cup handle
- Owner's manual with registration card
Sold separately: Faucet set (MediTub OPFHC), Supply lines and drain piping
Installation & Care
Installation
Right side drain; overall 59" L x 30" W x 39" H; the drain sits 9.5" from the side wall and 15.25" from the back wall. It is designed for an alcove installation. The tile flange is built in. The supplied 1.5" waste and overflow connects to a minimum 1.5" sanitary drain line in Schedule 40 PVC, and the door drain hose joins the main drain at about 45 degrees. The faucet (sold separately) mounts on the 4.5" faucet deck. The soaking model needs no electrical supply. Level the tub on its leveling feet and water test it before it is enclosed: fill above the highest jet, let it stand 30 minutes, and keep the motor access panel reachable. Lift the tub by its frame handles, never by the plumbing. MediTub requires installation by a licensed plumber and electrician; the installation manual is in Resources.
Care
Wipe the biscuit shell with mild soap, warm water and a soft cloth, and rinse it; avoid abrasive pads, scouring powders and harsh chemical cleaners, which scour and dull the finish. Do not lean on the door or use it for support, since its alignment keeps the seal watertight. MediTub recommends a bath no hotter than 102°F.
Resources
Shipping, Returns & Warranty
MediTub ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused MediTub products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
MediTub covers the bathtub shell, frame and finish for 10 years from the original purchase, and the motors, controls, waste and overflow, fittings and plated finishes for one year, with labor covered in the first 90 days; the door seal carries a lifetime warranty. Register the tub at swcorp.com/register within 90 days of delivery, have it installed by a licensed plumber, electrician or contractor, and report any damage within 5 business days of delivery. The warranty belongs to the original owner and does not cover water damage, misuse or improper installation.
Warranty claims. Call MediTub (SW Corp) at 866-633-4882 with your proof of purchase, the model number and a description of the problem; written notice goes by certified mail to 5701 NW 35 Avenue, Miami, FL 33142. Register the tub at swcorp.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About MediTub
MediTub builds walk-in and wheelchair-accessible bathtubs for safe, independent bathing, with soaking, whirlpool, air and dual massage systems. It is part of SW Corp in Miami, Florida, the company behind ANZZI and SteamSpa.
The MediTub 3060 Series is the 30" x 60" walk-in tub, built in biscuit or white with a left or right drain and 4 therapy systems: soaking (S), whirlpool (H), air jetted (A) and whirlpool plus air (D). MediTub also builds walk-in tubs from the compact 26" x 46" 2646 and the small-space 2739, 3140 and 3238 up to the 30" x 60" 3060 and 36" x 60" 3660, the 2953WCA and 3060WCA wheelchair accessible tubs and the 3060SI step-in tub, so the same safety features come in a size for most bathrooms.
