The Minuteman 390 Series is a commercial wet/dry tank vacuum that pairs a single-motor lid, rated at 115 CFM and 105" of static lift, with a choice of tanks: a 15 gal stainless steel tank, or a 55 gal painted drum on a dolly with a push handle. It is built for wet recovery and dry pickup in hospitality, institutional, industrial and healthcare facilities.
The self-sealing intake takes 1-1/4", 1-1/2" or 2" hoses, so the 390 works with the tool kits many facilities already own. A light on the lid signals a full bag or a clogged cloth filter, and the machine runs on a standard 15 A, 115 V circuit.
Features
Self-Sealing Intake
The intake seals itself around the hose for a positive vacuum seal and accepts 1-1/4", 1-1/2" and 2" hoses, so it adapts to most tool kits.
105" Static Lift, 115 CFM
The single-motor lid on both tanks is rated at 105" of static lift and 115 CFM for wet recovery and dry debris.
Filter Bags That Guard the Motor
An embossed filter bag shields the motor and float shut-off from lint during wet pickup, while a self-cleaning cloth bag sheds dust so it keeps breathing.
Full-Bag Indicator Light
A light on the lid assembly comes on when the disposable bag is full or the cloth filter is clogged.
15 Gal Stainless or 55 Gal Painted

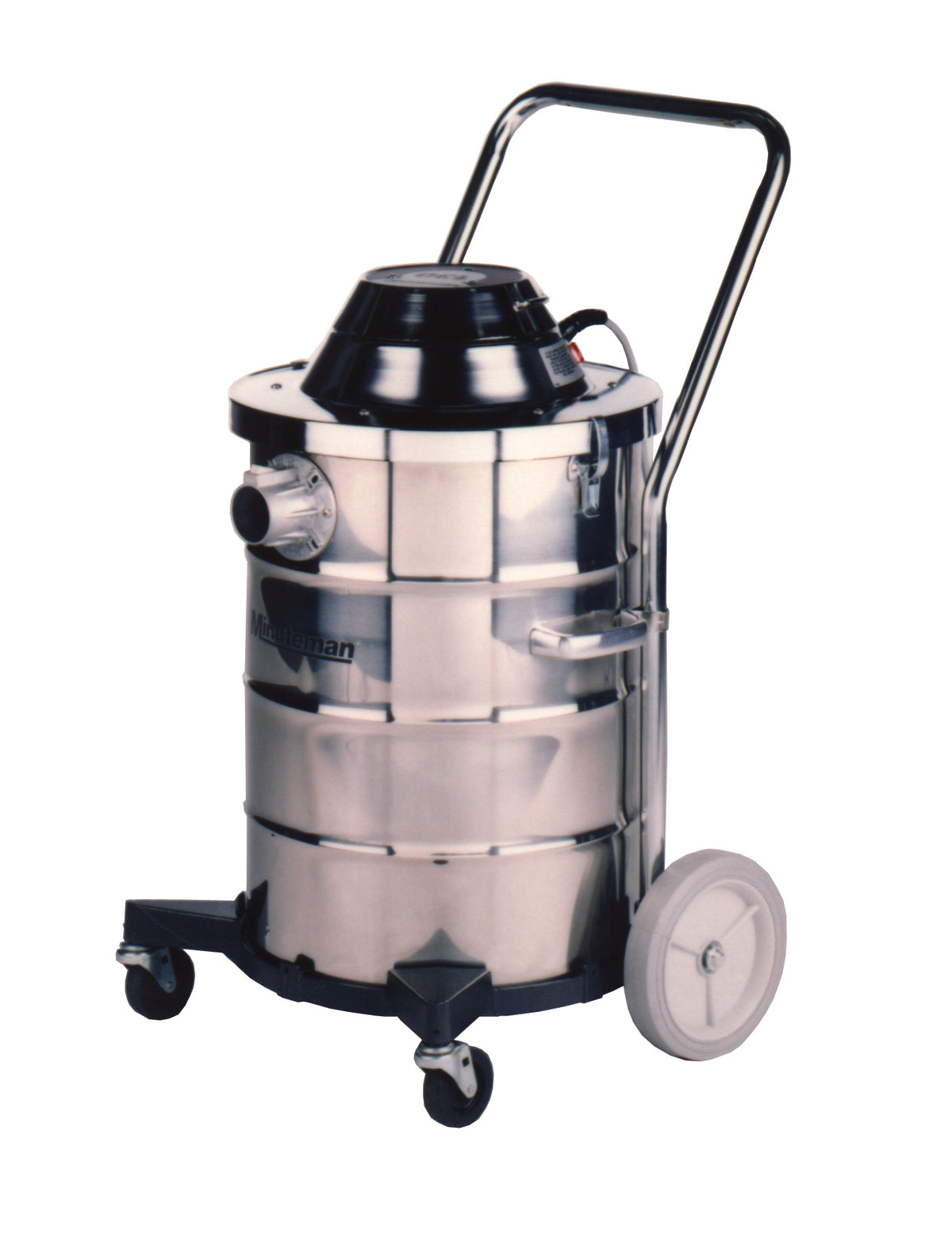

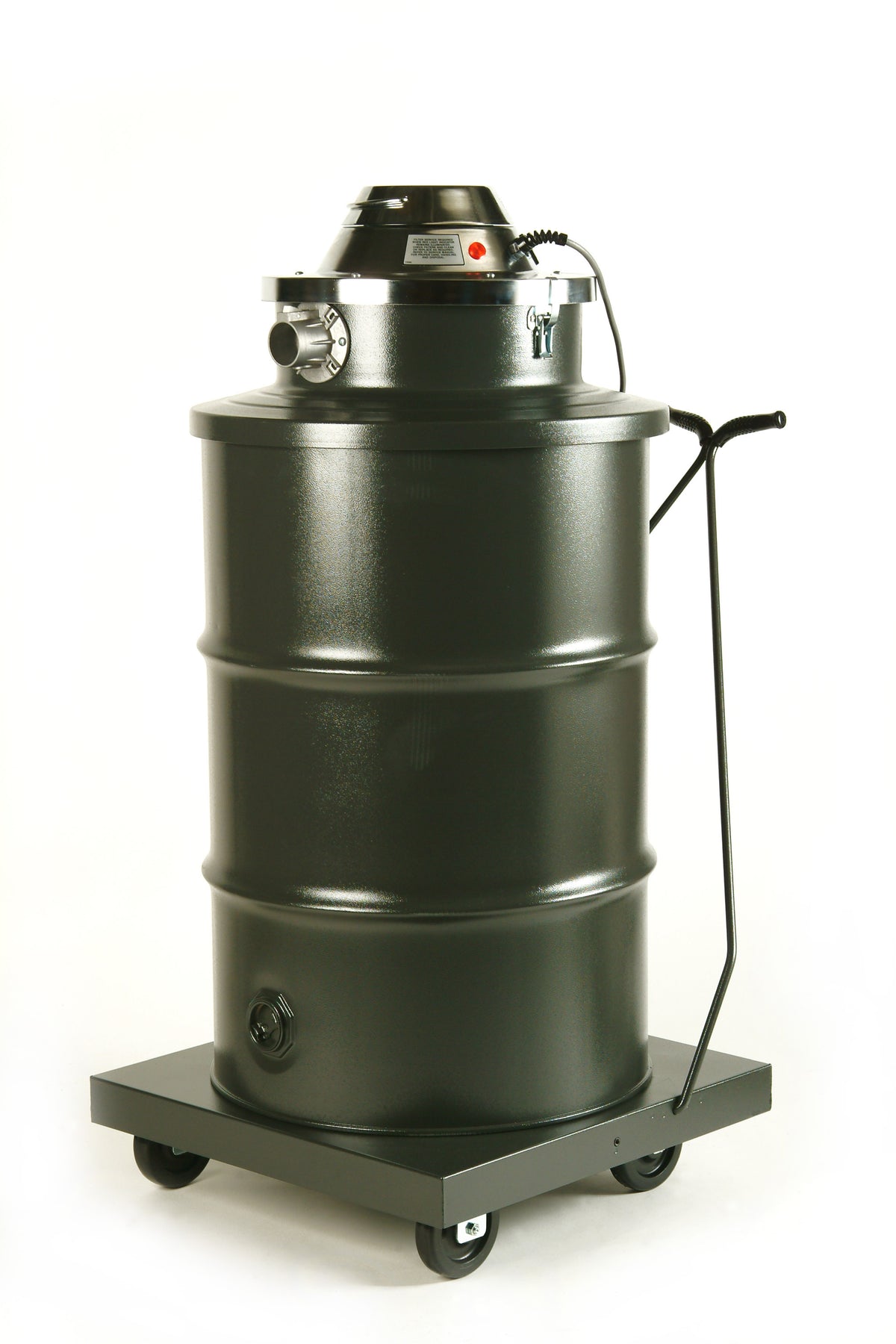

Choose the 15 gal stainless steel tank (14 gal wet capacity) for smaller jobs, or the 55 gal painted drum (47 gal wet) on a caster dolly for large spills and debris loads.
Front Squeegee Option
The 15 gal stainless model can take an optional 27" or 33" front-mount squeegee for picking up water on hard floors.
Dump Valve on the 55 Gal Drum
The painted drum drains through a dump valve, and the motor head lifts off the tank for bag service once the cord is unplugged.
Specifications
-
Model: 390 Series: C39105-01 (15 gal stainless steel), C39055-03 (55 gal painted)
-
Tank Size: 15 gal (C39105-01); 55 gal (C39055-03)
-
Tank Type: Stainless steel (C39105-01); painted steel drum (C39055-03)
-
Wet Capacity: 14 gal (C39105-01); 47 gal (C39055-03)
-
Dry Capacity: 2.15ft³ (C39105-01); 7.15ft³ (C39055-03)
-
Airflow: 115 CFM
-
Static Lift: 105"
-
Intake: Self-sealing; accepts 1-1/4", 1-1/2" and 2" hoses
-
Filtration: Embossed filter bag and self-cleaning cloth filter bag, float shut-off
-
Indicator: Full-bag / clogged-filter light on the lid
-
Electrical: 115 V, 60 Hz, standard 15 A circuit
-
Power Cord (C39055-03): 50', 16/3
-
Casters and Wheels: 3" front casters and 8" rear wheels on the optional 15 gal caster chassis (C39105-01); 5" casters on the dolly (C39055-03)
-
Drain (C39055-03): Dump valve
What's Included
- Minuteman 390 Series wet/dry tank vacuum with the tank chosen: 15 gal stainless steel tank (C39105-01), or 55 gal painted drum on a caster dolly with push handle (C39055-03)
- Motor lid assembly with full-bag indicator light, float shut-off and attached power cord
- Cloth filter bag
Resources
Shipping, Returns & Warranty
Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Minuteman equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated machines and special-order items can't be returned.
Covered by Minuteman's Commercial Limited Warranty for its corded electric machines: 5 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The 390 Series is one of Minuteman's commercial tank vacuums. For hazardous dust and fine powders, Minuteman builds the X-839 Series critical filter vacuums, and for carpeted hallways and offices the BPV Pro backpack vacuum.
