The Minuteman 747 is a cordless wide-area carpet vacuum that runs on two 12 V deep-cycle batteries. A 3/4 HP, 24 V DC motor moves 200 CFM through a 4" helical brush with conductive nylon bristles, and Minuteman rates it at up to 25,000ft² per hour, so large carpeted spaces can be vacuumed without a cord trailing behind.
Debris collects in a 9ft³ needle-felt cloth bag that breathes to keep airflow up, and a fan deflector protects the bag from sharp objects. This Quick Pack includes the batteries, a 24 V charger and the cloth bag.
Features
Cordless 24 V Operation
Two 12 V deep-cycle batteries power a 3/4 HP permanent-magnet motor, with no cord to manage across open floors.
Wide Helical Brush
A 26.5"-wide, 4" diameter brush with conductive nylon bristles stays in contact with the carpet and moves debris from the outer edges toward the vacuum inlet.
200 CFM Airflow
A 5" hose connects the brush chamber to the fan and bag.

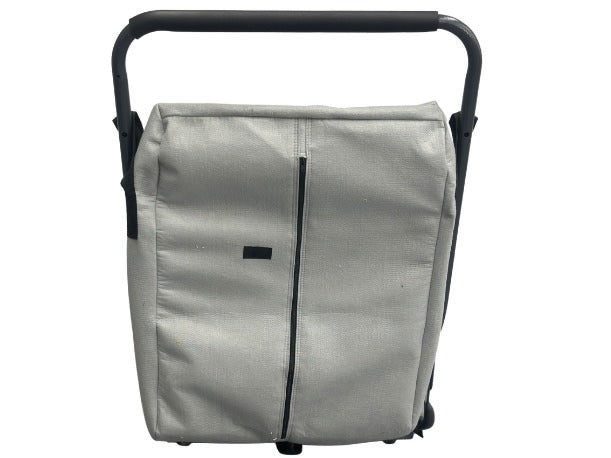

9ft³ Needle-Felt Bag
The breathable cloth bag, with 19ft² of filter area, is mildew resistant, washable and empties through a zipper; Minuteman rates the filtration at 95% at 5 microns.
Adjustable Brush Height
A cam lever on the right side sets the brush for short-nap or high-pile carpet.
Easy Service Access
An easy-open panel gives clear access to the bag, fan and belts.
Large Wheels
16" main wheels and 4" casters make it easy to push and turn.
Specifications
-
Model No.: MC827854
-
Coverage: Up to 25,000ft² per hour
-
Motor: 3/4 HP (0.6 kW), PM, 24 V DC
-
Airflow: 200 CFM
-
Bristle Width: 26.5"
-
Brush: 4" diameter, conductive nylon, helical
-
Bag Volume: 9ft³
-
Filter Area: 19ft²
-
Hose Diameter: 5"
-
Batteries: Two 12 V deep-cycle
-
Charger: 24 V, 10 A, 115 V, 50/60 Hz
-
Wheels: 16" main; 4" casters
-
Dimensions (retracted): 37.75"L x 29.5"W x 24"H
-
Weight: 154 lbs without batteries
What's Included
- Minuteman 747 wide-area vacuum
- Two 12 V deep-cycle batteries
- 24 V, 10 A charger (115 V, 50/60 Hz)
- Cloth filter bag
Setup & Placement
Install the two 12 V batteries in the battery box and connect them for 24 V, then charge them fully on the included charger before first use. When the handle is folded over the cover for storage, remove the two screws with wing nuts from the handle assembly first.
Resources
Warranty & Shipping
Warranty. Covered by Minuteman's Commercial Limited Warranty; see the manufacturer warranty for the terms on this model. Batteries are replaced in full for the first 3 months and pro-rated from months 4 to 12. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
Shipping. Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect on delivery. Check the carton and the machine when it arrives and note any damage on the delivery receipt before signing.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The 747 is Minuteman's battery wide-area carpet vacuum. The MPV-31 does the same job on a power cord with a 30" brush and on-board detail tools, and the Phenom 15 and Phenom 18 dual-motor uprights cover smaller rooms and edges.
