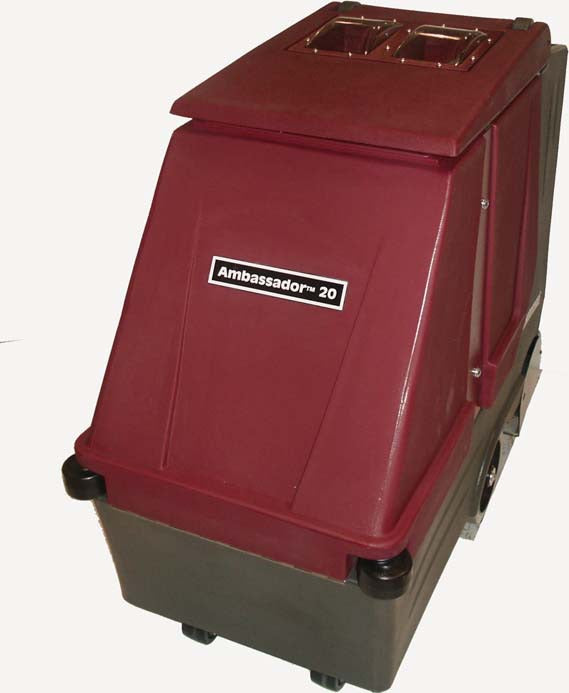

The Minuteman Ambassador 20 is a self-propelled walk-behind carpet extractor with a 20" cleaning path. It sprays through four quick-disconnect jets at 100 psi, scrubs with a 4" brush and recovers with a 2 HP three-stage vacuum motor rated at 100 CFM and 105" of water lift.

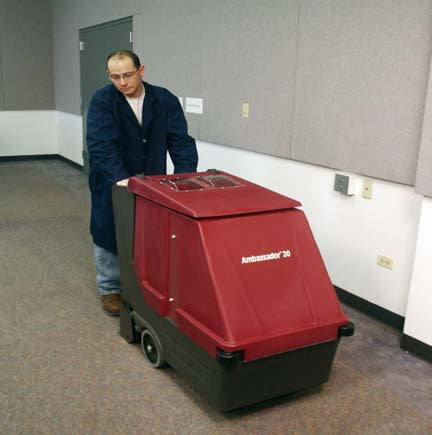

Two 25-gallon tanks of rotationally molded polyethylene and a traction drive with a working speed dial let one operator clean hotel corridors, offices and institutional carpet with fewer stops to refill. It runs entirely on a 75' cord at 12 A.
Features
Self-Propelled Traction Drive
Forward/reverse switch, traction drive control levers and a working speed dial; the machine does the pushing.
Pivoting Spring-Loaded Vac Shoe
Minuteman's patented 20" stainless steel shoe follows the carpet and disengages when the machine backs up.
2 HP Three-Stage Vacuum
100 CFM of airflow and 105" of water lift pull the solution back into the recovery tank.
25 Gal Solution and Recovery Tanks
Rotationally molded polyethylene with Minuteman's patented MaxiWall tank design.
100 psi Pump, Four Jets
Quick-disconnect jets unclip for cleaning, and the pump switch has automatic and auxiliary positions.
43" Turning Radius
Brings the machine around at the end of a pass in corridors and meeting rooms.
Auxiliary Tool Hookups
A solution hookup and a 120 V auxiliary outlet run optional wands and upholstery tools without any tools needed to attach them.
Specifications
-
Model: Ambassador 20 (C8420-115)
-
Cleaning Path: 20"
-
Brush: 4" diameter, 1040 RPM
-
Vacuum Motor: 2 HP, 3-stage
-
Airflow: 100 CFM
-
Water Lift: 105"
-
Solution Tank: 25 gal
-
Recovery Tank: 25 gal
-
Solution Pump: 100 psi, 4 quick-disconnect jets
-
Vac Shoe: 20" stainless steel, pivoting, spring-loaded
-
Turning Radius: 43"
-
Electrical: 115 V, 60 Hz; 12 A
-
Power Cord: 75', 14/3, with GFCI
-
Sound Level: 79 dBA at the operator's ear; 73.6 dBA at 3 m
-
Tank Construction: Rotationally molded polyethylene
-
Wheels: Two 8" front wheels; two 3" rear casters
-
Dimensions: 45 1/8"L x 20 3/4"W x 38 1/4"H
-
Weight: 234 lbs (gross)
What's Included
- Minuteman Ambassador 20 self-propelled carpet extractor (115 V)
- 75' 14/3 power cord with GFCI
- Parts and instruction manual
Resources
Shipping, Returns & Warranty
Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Minuteman equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated machines and special-order items can't be returned.
Covered by Minuteman's Commercial Limited Warranty for its corded electric machines: 5 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The Ambassador 20 is Minuteman's self-propelled walk-behind extractor. For smaller rooms Minuteman builds the Ambassador Jr., for wide-open carpet the XRide 28 rider extractor, and for restoration work the Rush series portable box extractors.
