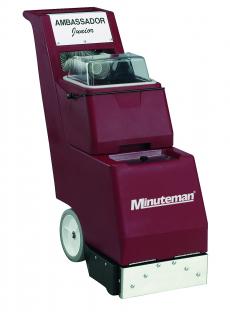

The Minuteman Ambassador Jr. is a self-contained carpet extractor with a 14" cleaning path. It sprays, brushes and vacuums in one pass, pairing a helical cylindrical brush that stays in constant contact with the carpet with a 1 HP two-stage vacuum motor rated at 85" of water lift.
Matching 6-gallon solution and recovery tanks, a polyethylene body that resists dents and rust, and a weight of 75 lbs make it a manageable machine for day-to-day commercial carpet care. Its hospital-grade plug and non-conductive control console also meet the needs of healthcare facilities.
Features
Helical Cylindrical Brush
The brush spirals across its 14" width to keep contact with the carpet; set its pressure with a knob and check it on the rear gauge.
Three Quick-Disconnect Spray Jets
Jets twist out a quarter turn for cleaning, and a 3-way switch sprays continuously or on demand for small areas.
1 HP Two-Stage Vacuum
85" of water lift recovers solution through a clear dome, so the operator can see the recovery level from the handle.
Automatic Float Shutoff
Stops the vacuum motor from drawing water once the recovery tank is full.
Independent Switches
Moisture-resistant switches for vacuum, brush, pump and auxiliary pump, plus a main switch that turns every function on or off.
Chemical-Resistant Build
Viton seals and a stainless steel solution strainer protect the pump, and the polyethylene body will not corrode.
Hospital-Grade Plug
Paired with a non-conductive operator console for facilities with healthcare compliance rules.
Specifications
-
Model: Ambassador Jr. (C45014-01, 115 V)
-
Cleaning Path: 14"
-
Brush: Cylindrical, helical
-
Brush Motor: 1/8 HP
-
Vacuum Motor: 1 HP, 2-stage
-
Water Lift: 85"
-
Solution Tank: 6 gal
-
Recovery Tank: 6 gal, removable
-
Solution Pump: 50 psi
-
Spray Jets: 3, quick-disconnect
-
Electrical: 115 V, 60 Hz, 15 A circuit
-
Power Cord: 50', with hospital-grade plug
-
Construction: Polyethylene
-
Weight: 75 lbs
What's Included
- Minuteman Ambassador Jr. carpet extractor (115 V)
- 50' power cord
- Parts and instruction manual
Resources
Shipping, Returns & Warranty
Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Minuteman equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated machines and special-order items can't be returned.
Covered by Minuteman's Commercial Limited Warranty for its corded electric machines: 5 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The Ambassador Jr. is the compact self-contained extractor in Minuteman's carpet range. For larger carpeted areas Minuteman builds the self-propelled Ambassador 20 and the XRide 28 rider extractor, and the Rush series of portable box extractors handles restoration work.
