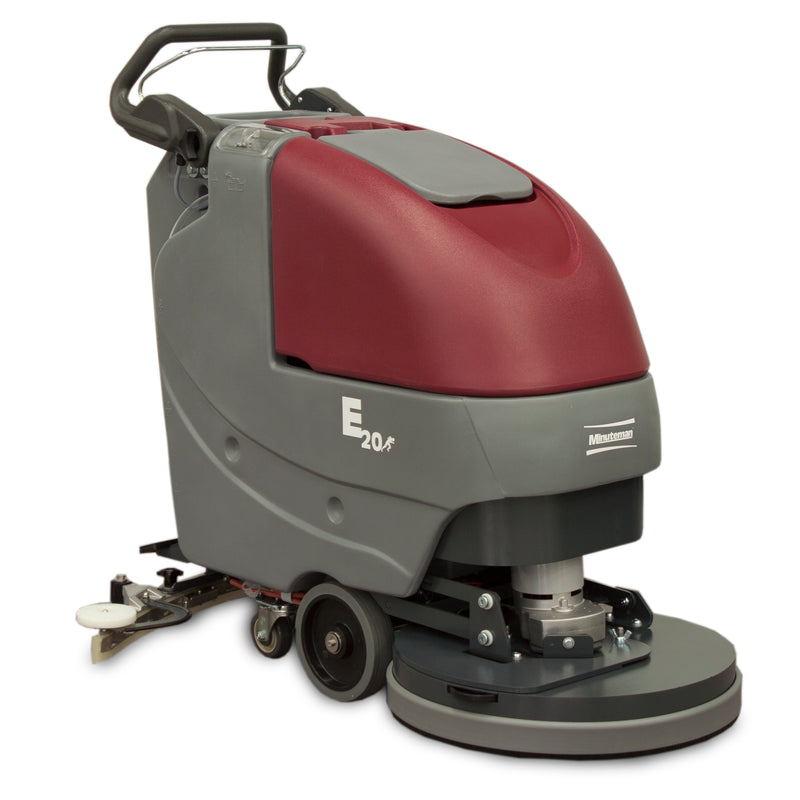

The Minuteman E20 is a battery walk-behind floor scrubber with a 20" disc, a 33" squeegee, a 12 gal solution tank and a 13 gal recovery tank. It runs on two 12 V batteries kept topped up by its own on-board charger, and it loads or drops its pad driver with a turn of the key.
Pick brush drive for smaller, level areas, or traction drive for a powered wheel and dial speed control across long corridors and open floors. Either way, the E20 fits schools, hospitals, stores and warehouses, with wet lead-acid or sealed AGM batteries to match how your team handles maintenance.
Features
Key-Operated Brush Load and Unload
Lower the deck over the pad driver and pull the bail to engage it; turn the key briefly to the unload position to drop it. Hands stay away from the dirty pad.
Low-Profile Disc Deck
A single 20" disc turns at 180 rpm on a 3/4 HP brush motor, with a low deck that scrubs around and under obstacles.
12 Gal Solution, 13 Gal Recovery
Long runs between refills, and a hygienic recovery tank that is quick to rinse at the end of the shift.
No-Fuss Squeegee
The 33" rear squeegee needs no daily operator adjustment and comes off with two star-shaped knobs. Its blades turn to use all four edges.
On-Board Smart Charger
Charge from any grounded outlet. The machine is locked out while plugged in, and the charger stops at full charge to protect the batteries.
Traction Drive Option
Traction drive models add a 1/5 HP drive motor with a speed dial, a 3.1 mph working speed and 27,280ft²/hr rated productivity.
Adjustable Handle
The handle adjusts for angle and height, and ergonomic bail handles give a secure grip for steering.
Specifications
-
Model: E20 Disc, brush drive (E20BDQP, E20BDQPG) or traction drive (E20DTDQP, E20DTDQPG)
-
Cleaning Path: 20"
-
Squeegee Width: 33"
-
Brush: One disc, 180 rpm, 3/4 HP motor
-
Solution Tank: 12 gal
-
Recovery Tank: 13 gal
-
Theoretical Productivity (brush drive): 15,000ft²/hr
-
Theoretical Productivity (traction drive): 27,280ft²/hr
-
Working Speed (brush drive): 1.7 mph
-
Working Speed (traction drive): 3.1 mph
-
Drive Motor (traction drive): 1/5 HP
-
Vacuum: 0.60 HP, 65 CFM, 45" water lift
-
Voltage: 24 V (two 12 V batteries)
-
Batteries: Wet lead-acid or AGM, per the option chosen
-
Charger: On-board, 115 V
-
Maximum Current: 32 amps (brush drive); 40 amps (traction drive)
-
Sound Level: 69 dBA
-
Maximum Grade: 2%
-
Dimensions: 47.4"L x 21.3"W x 42.3"H
-
Weight with Batteries (brush drive): 331 lbs wet lead-acid; 336 lbs AGM
-
Weight with Batteries (traction drive): 372 lbs
What's Included
- Minuteman E20 disc walk-behind floor scrubber (brush drive or traction drive)
- On-board 115 V battery charger
- Two 12 V batteries (wet lead-acid or AGM, per the option chosen)
- 20" pad driver
Setup & Placement
The two 12 V batteries sit under the recovery tank, which tilts back for access once it is drained. Charge them fully with the on-board charger before the first shift. On wet lead-acid batteries, keep the water 1/4"-1/2" above the separators with distilled water and never overfill.
To fit the pad driver, center the raised deck over it, release the deck lift pedal to lower the deck, turn the key on and pull the bail handle to engage it.
Resources
Warranty & Shipping
Warranty. Covered by Minuteman's Commercial Limited Warranty for battery automatic scrubbers, including the on-board charger: 5 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. Batteries are replaced in full for the first 3 months and pro-rated from months 4 to 12. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
Shipping. Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect on delivery. Check the carton and the machine when it arrives and note any damage on the delivery receipt before signing.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The E20 sits in the middle of Minuteman's E series of walk-behind scrubbers. The E17 shares its 12 gal and 13 gal tanks with a 17" path, while the E26 and the E30 and E33 step up to wider paths and larger tanks. For a seated operator on the same 20" pad driver, look at the Max Ride 20.
