The Minuteman E20 Cylindrical is a 20" traction drive walk-behind scrubber that uses two counter-rotating cylindrical brushes instead of a disc. The brushes turn at 600 rpm and flick loose debris into a tray in the deck while they scrub, which cuts down on pre-sweeping.
That makes it a strong fit for grouted tile, textured safety flooring and uneven concrete, where a flat disc rides over the low spots. It keeps the E20's 12 gal solution and 13 gal recovery tanks, on-board charger and dial speed control, in a body 24" wide.
Features

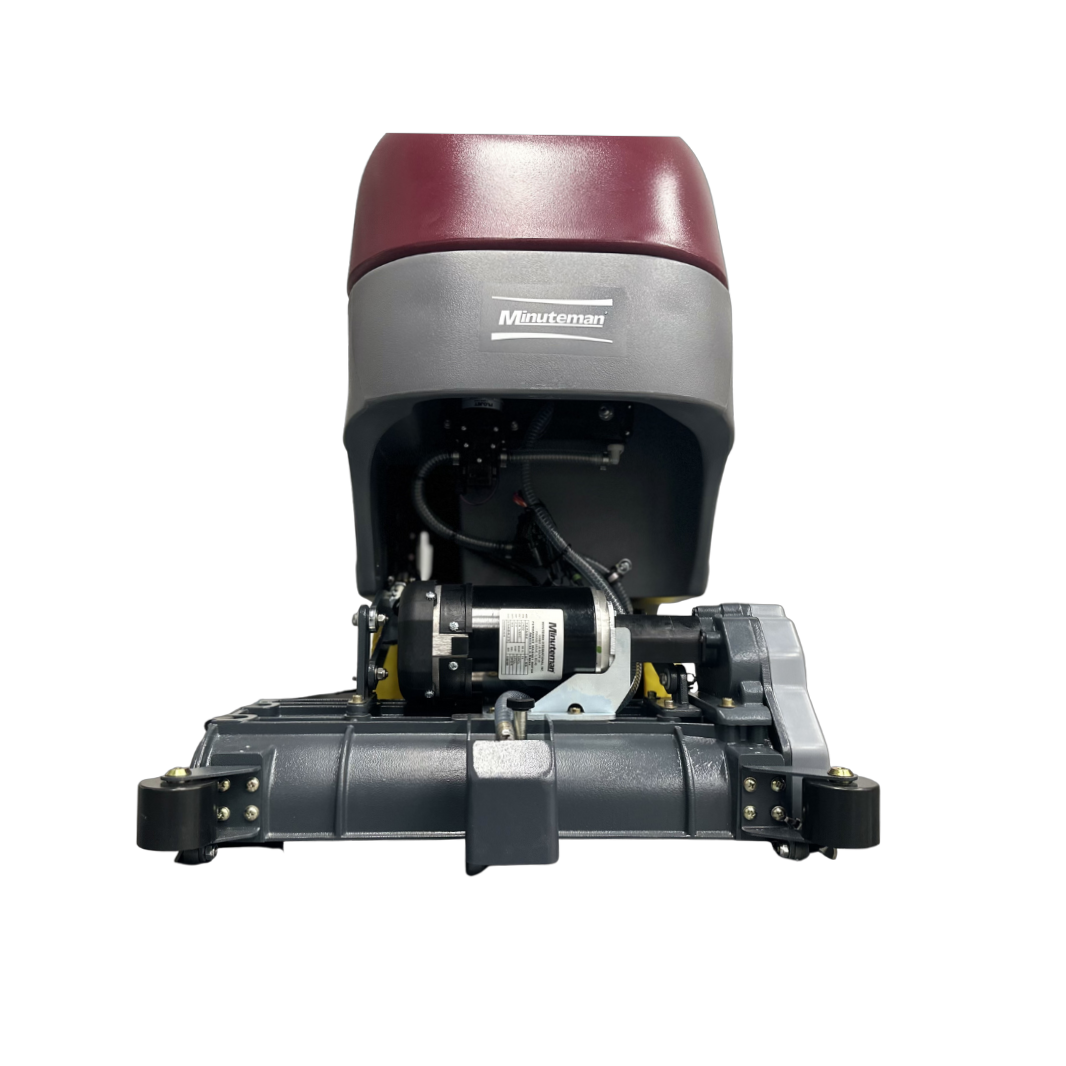

Counter-Rotating Cylindrical Brushes
Two brushes spin in opposite directions at 600 rpm on a 3/4 HP motor, lifting grit out of grout lines and textured surfaces.
Sweeps as It Scrubs
Debris thrown by the brushes lands in a removable tray in the deck that slides out sideways for emptying and rinsing.
Floating Deck
The heavy-duty deck follows uneven or rough floors to keep brush contact across dips and joints.
Less Dust in the Air
Solution wets the floor as the brushes sweep, so fine dust is picked up instead of being thrown into the air.
Traction Drive
A 1/5 HP drive motor and speed dial give a 3.1 mph working speed, rated at 27,280ft²/hr.
No-Tool Brush Change
The cylindrical brushes come out without tools for cleaning or replacement.
On-Board Charger
Charge from any wall outlet; the machine is locked out while the charger is plugged in.
Specifications
-
Model: E20 Cylindrical traction drive (E20CQP, E20CQPG)
-
Cleaning Path: 20"
-
Squeegee Width: 33"
-
Brushes: Two cylindrical, counter-rotating, 600 rpm, 3/4 HP motor
-
Solution Tank: 12 gal
-
Recovery Tank: 13 gal
-
Theoretical Productivity: 27,280ft²/hr
-
Working Speed: 3.1 mph
-
Drive Motor: 1/5 HP (150 W)
-
Vacuum: 0.60 HP (450 W), 65 CFM, 45" water lift
-
Voltage: 24 V (two 12 V batteries)
-
Batteries: Wet lead-acid (140 Ah) or gel, per the option chosen
-
Charger: On-board
-
Maximum Current: 40 amps
-
Sound Level: 69 dBA
-
Maximum Grade: 2%
-
Dimensions: 44.5"L x 24.0"W x 38.0"H
-
Weight with Batteries: 360 lbs
What's Included
- Minuteman E20 Cylindrical walk-behind floor scrubber, traction drive
- On-board battery charger
- Two 12 V batteries (wet lead-acid or gel, per the option chosen)
Resources
Shipping, Returns & Warranty
Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Minuteman equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated machines and special-order items can't be returned.
Covered by Minuteman's Commercial Limited Warranty for battery automatic scrubbers, including the on-board charger: 5 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. Batteries are replaced in full for the first 3 months and pro-rated from months 4 to 12. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The E20 Cylindrical shares its tanks and traction drive with the E20 disc models. For wider aisles, the E24 and E28 use the same counter-rotating brush idea on 24" and 28" paths with larger tanks.
