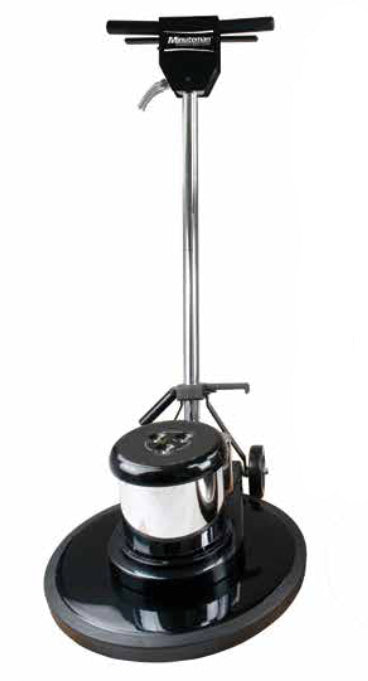

The Minuteman Front Runner 17 is a low-speed rotary floor machine with a 17" head and a 1.5 HP motor driving triple planetary steel gears at 175 rpm. Fit a pad or brush and it scrubs, strips and buffs tile, vinyl, concrete and terrazzo.
At 95 lbs it is the compact size in the series, easier to steer through classrooms, patient rooms, restrooms and offices where furniture and doorways leave less room to swing. A 50' cord lets the Front Runner 17 work a whole room from one standard outlet.
Features
1.5 HP Capacitor-Start Motor
A heavy-duty capacitor-start motor on a 66 frame gives the starting torque that stripping and scrubbing demand, at an average draw of 14.4 amps.
Triple Planetary Steel Gears
Three planetary gear stages bring the motor down to a steady 175 rpm at the pad for smooth, even travel.
Steel and Stainless Steel Build
Powder-coated epoxy paint resists scratches and corrosion, and the handle tubes are coated steel.

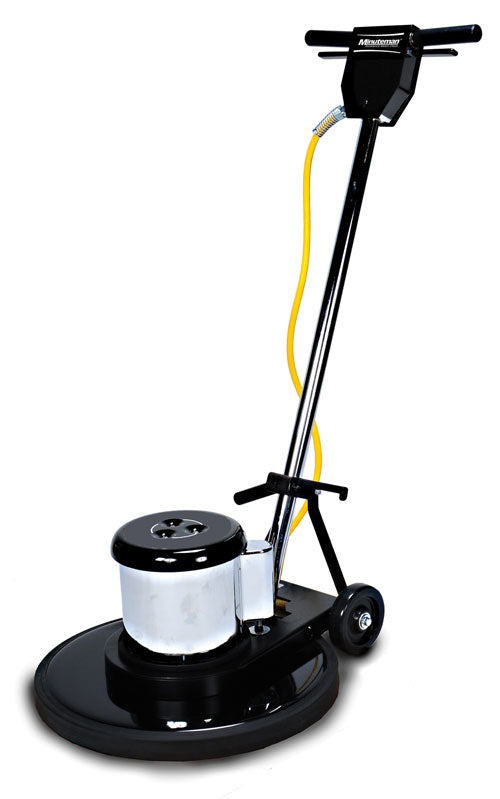

Adjustable Handle, Dual Levers
Set the handle to any height from the operating position with the foot-operated release. Dual metal switch levers work for left- or right-handed operators.
Safety Interlock
The safety button must be pressed before the trigger levers start the motor, a light shows when the machine has power, and every control handle is non-conductive.
Hospital-Grade Cord
A 50' 14-3 water-resistant cord with a hospital-grade plug, a steel strain relief spring and a quick-release cord latch.
Non-Marking Bumper and Wheels
A wraparound PVC bumper protects walls and furniture, and non-marking rear wheels roll the machine between jobs.
Specifications
-
Model: Front Runner 17 (FR17115-11)
-
Pad / Brush Size: 17"
-
Pad Speed: 175 rpm
-
Motor: 1.5 HP, 66 frame, capacitor start
-
Gearbox: Triple planetary steel gears
-
Power: 115 V, 60 Hz; standard 15 A, 120 V circuit
-
Average Current Draw: 14.4 amps
-
Power Cord: 50', 14-3, water-resistant, hospital-grade plug
-
Handle: Foot-operated adjustment, anti-fatigue grips
-
Construction: Steel and stainless steel; black powder-coated brush cover
-
Weight: 95 lbs
What's Included
- Minuteman Front Runner 17 floor machine
- 17" pad driver
Setup & Placement
Plug the 115 V machine into a grounded three-prong outlet on a standard 15 A, 120 V circuit, and unwind the cord fully before you start. Supply voltage below 105 V or above 125 V can damage the motor.
To fit a brush or pad driver, unplug the machine and tip it back so it rests on its handle, set the driver over the lugs under the gear unit and twist it to the left to lock it. Lower the handle to about waist height to operate.
Resources
Warranty & Shipping
Warranty. Covered by Minuteman's Commercial Limited Warranty; see the manufacturer warranty for the terms on this model. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
Shipping. Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect on delivery. Check the carton and the machine when it arrives and note any damage on the delivery receipt before signing.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The Front Runner is Minuteman's low-speed floor machine, offered in 17", 20" and 20" 2-speed versions. For high-speed polishing, the corded Mirage 1500 and Mirage 2000 burnishers share its steel construction and foot-operated handle adjustment, and Minuteman's E series walk-behind scrubbers take over when a floor needs scrubbing and drying in one pass.
