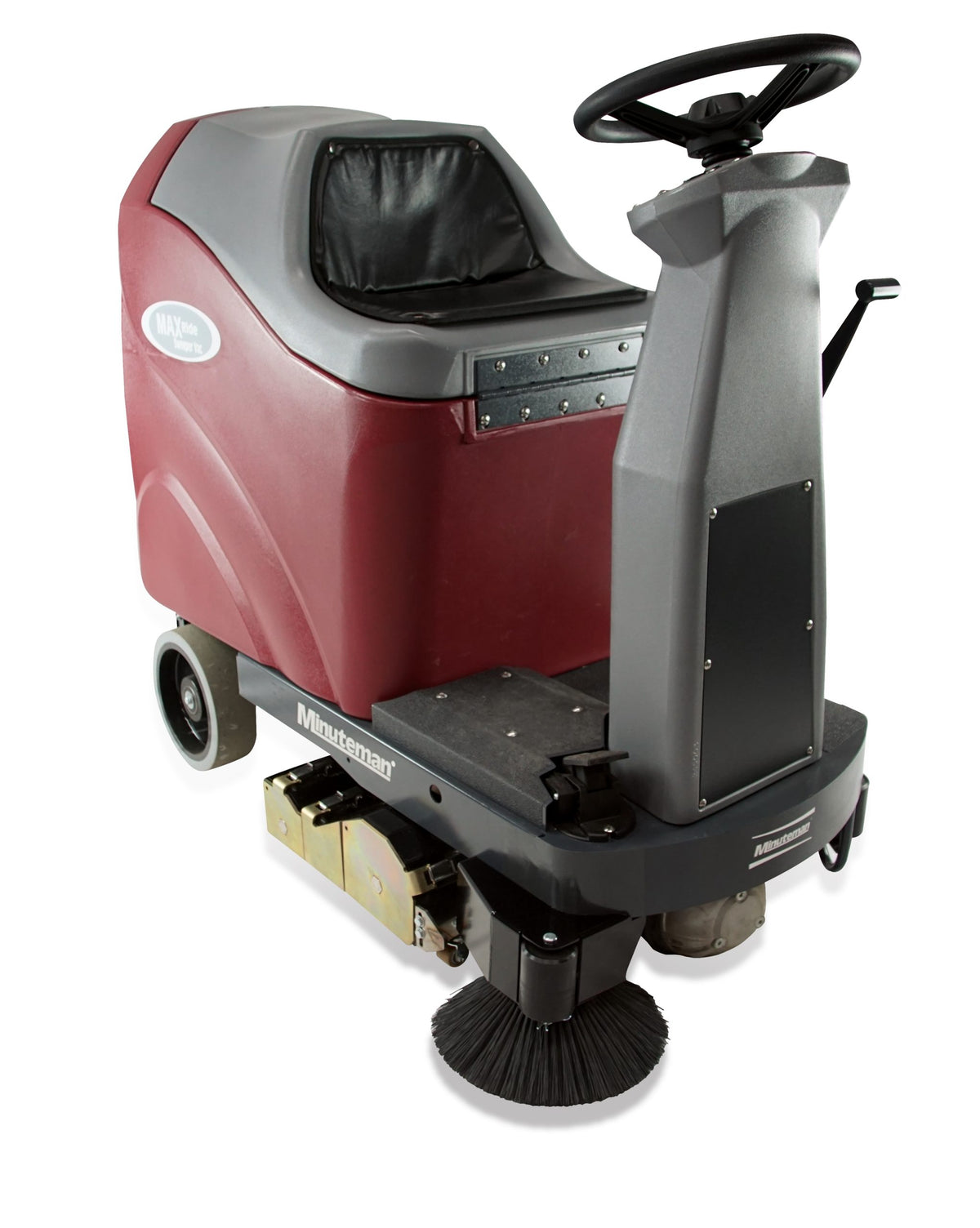

The Minuteman Max Ride 20 Vacuum Sweeper is a compact battery rider that sweeps and vacuums in the same pass. A 6" sweeping brush sends debris to a hopper, a 4" vacuum brush follows with a 67 CFM two-stage vacuum and a HEPA bag, and an 11" side broom works the edges of its 20" path.
At 26.25" wide with a 50.5" turning radius it fits warehouses, manufacturing floors, machine shops, distribution centers and carpeted commercial space, with a rated maximum of 27,200ft²/hr and 2.5 to 4 hours of run time from batteries charged on board.
Features
Sweep, Then Vacuum
The sweeping brush clears heavier debris into a hopper before the vacuum brush picks up fine dust, which keeps the vacuum from clogging.
HEPA Vacuum Bag
A standard HEPA bag holding up to 0.58ft³ sits in an integrated steel bag frame that improves airflow.
Separate Debris Tray
A 190in³ hopper catches the heavy material, so fewer disposable bags are used.
Tool-Free Brush Removal
Each brush comes out without tools for cleaning or replacement.
Micro Rider Footprint
47.5" long and 26.25" wide on an e-coated steel frame, with a 50.5" turning radius.
On-Board Charger
Two 12 V 140 Ah batteries charge on the machine; a 235 Ah AGM pack is available as an option.
Simple Controls
Key switch, battery indicator, forward/reverse, horn, brush deck lever, vacuum button and a turtle mode for slow work.
Specifications
-
Model: Max Ride 20 Vacuum Sweeper (MR20SWQP)
-
Sweep Path: 20"
-
Sweeping Brush: 6" diameter, 700 RPM
-
Vacuum Brush: 4" diameter, 1500 RPM
-
Side Broom: 11" diameter
-
Vacuum Motor: 24 V, 2-stage
-
Vacuum Airflow: 67 CFM
-
Water Lift: 51"
-
Vacuum Bag: HEPA, up to 0.58ft³
-
Hopper Capacity: 190in³
-
Maximum Productivity: 27,200ft²/hr
-
Average Productivity: 22,015ft²/hr
-
Maximum Speed: 3.1 mph
-
Turning Radius: 50.5"
-
Maximum Ramp: 6%
-
Voltage: 24 V DC
-
Batteries: Two 12 V, 140 Ah (235 Ah AGM optional)
-
Charger: On-board
-
Run Time: 2.5 to 4 hours
-
Sound Pressure: 68 dBA
-
Dimensions: 47.5"L x 26.25"W x 45"H
-
Weight: 342 lbs without batteries; 691 lbs with batteries
What's Included
- Minuteman Max Ride 20 Vacuum Sweeper with on-board charger
- Sweeping brush, vacuum brush and 11" side broom
- HEPA vacuum bag
- Two 12 V batteries
- Operations manual
Resources
Shipping, Returns & Warranty
Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Minuteman equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated machines and special-order items can't be returned.
Covered by Minuteman's Commercial Limited Warranty for battery sweepers: 3 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. Batteries are replaced in full for the first 3 months and pro-rated from months 4 to 12. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
Minuteman's micro rider range also includes the Max Ride 20 and Max Ride 26 scrubbers for hard floors, and its sweeper line runs from the Kleen Sweep walk-behinds to the Kleen Sweep 40R and 47R riders.
