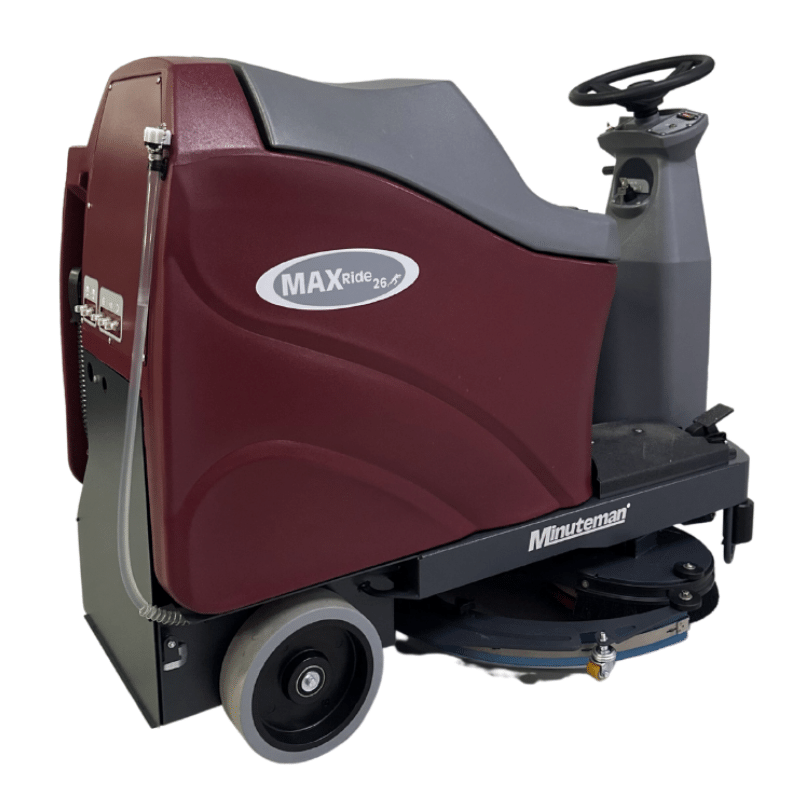

The Minuteman Max Ride 26 is a micro rider floor scrubber with twin 13" disc brushes covering a 26" path and a 31" squeegee behind them. It carries 21 gal of solution and 23.5 gal of recovery capacity, and Minuteman rates it at up to 32,490ft² per hour.
It is sized for warehouses, gyms, schools and big-box aisles where a walk-behind means too many laps, yet it still turns around in a 55" aisle. The Max Ride 26 Quick Pack ships with two 12 V batteries, an on-board charger and two 13" pad drivers.
Features
Twin 13" Discs, 26" Path

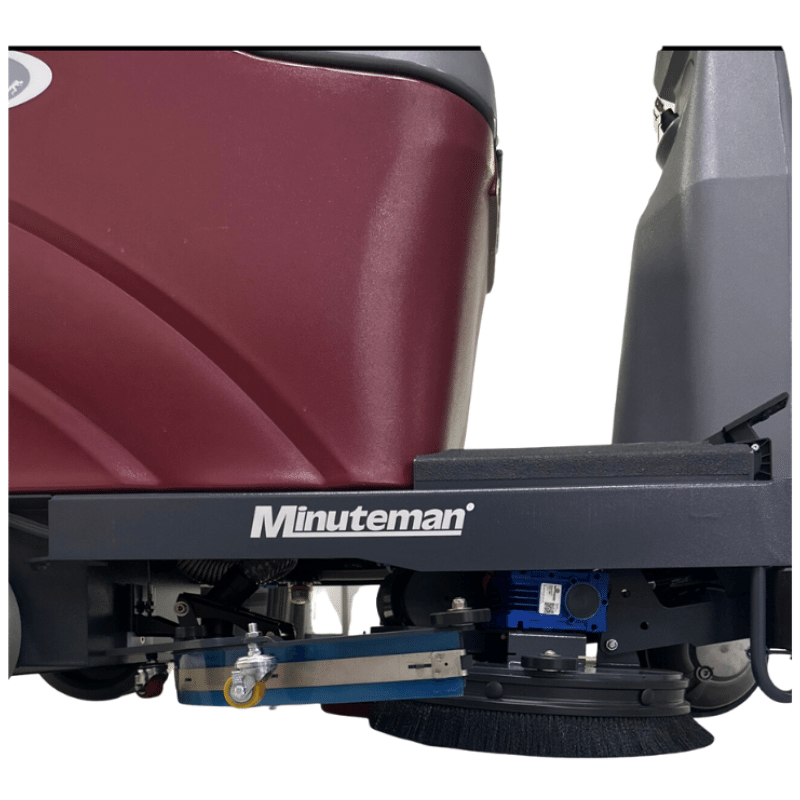

Two 13" disc brushes cover a 26" path under 74 lbs of brush pressure.
Turns on Its Own Axis
The rider pivots 360 degrees in place and turns around in a 55" aisle.
Automatic Brush Loading

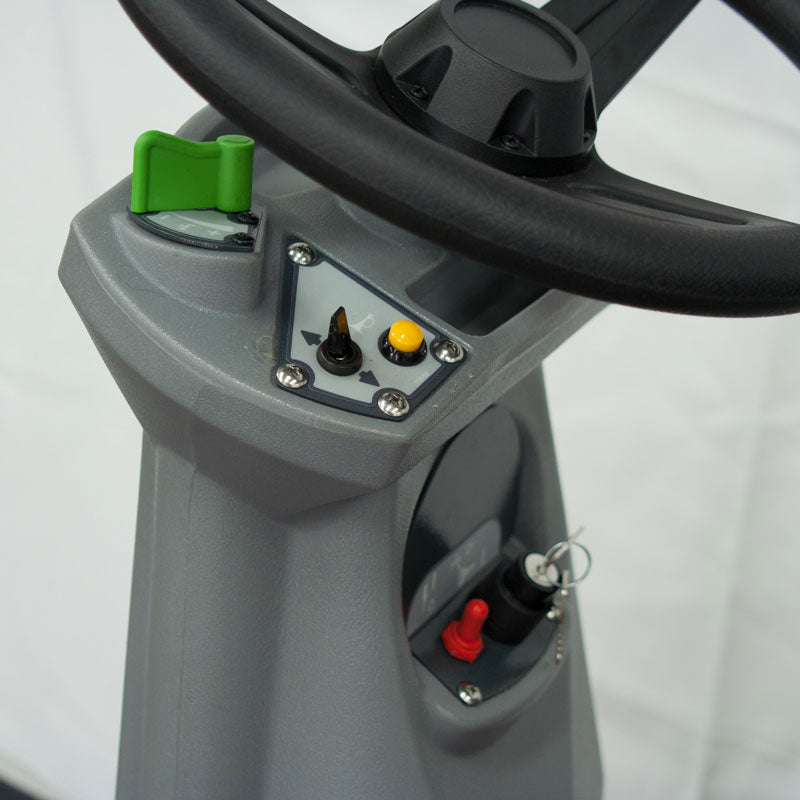

Center the pad drivers or brushes, lower the deck and tap the pedal to load them. Turn the key left past off to drop them again.

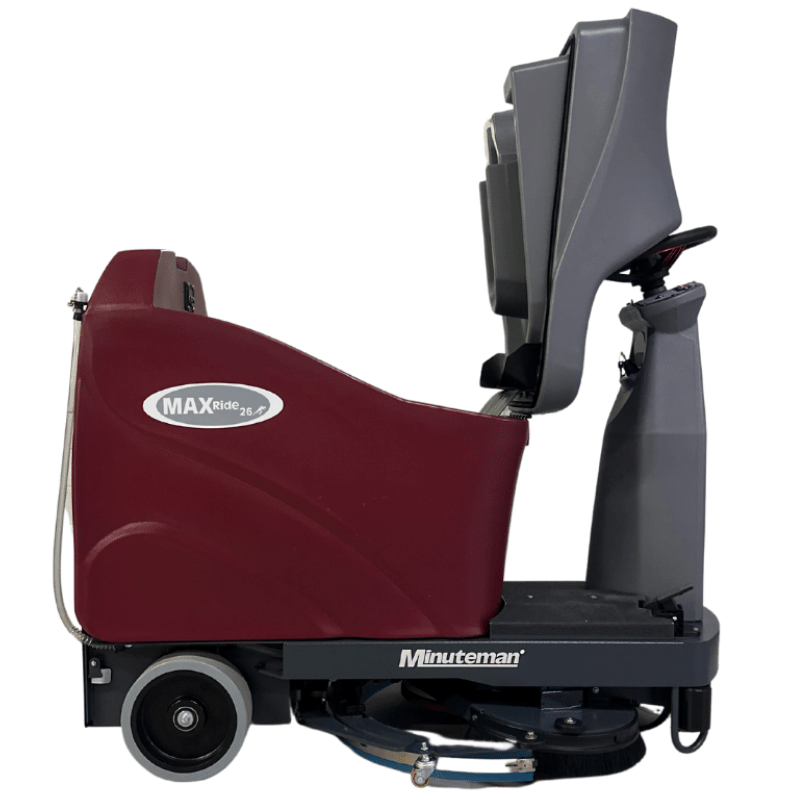

21 Gal Solution, 23.5 Gal Recovery
Large tanks for fewer stops, with solution flowing at 0.45 gpm only while the accelerator pedal is pressed.
Contained 31" Squeegee
The squeegee sits under the machine and follows the brushes for full water pickup. It lifts automatically in reverse and comes off without tools.
Strong Vacuum Recovery
A 550 W vacuum motor pulls 69 CFM at 68" of water lift.
Operator Safety Interlocks
A seat pressure switch and lid switches stop the machine when the operator leaves the seat or the tank is open, and an electromagnetic brake holds it when the pedal is released.
Specifications
-
Model: Max Ride 26 ECO (A-MR26DQP, A-MR26DQPG)
-
Scrub Path: 26" (two 13" disc brushes)
-
Squeegee Width: 31"
-
Solution Tank: 21 gal
-
Recovery Tank: 23.5 gal
-
Maximum Productivity: 32,490ft²/hr
-
Actual Productivity: 24,562ft²/hr
-
Maximum Speed: 3.1 mph
-
Brush Pressure: 74 lbs
-
Vacuum: 550 W, 69 CFM, 68" water lift
-
Solution Flow: 0.45 gpm
-
Minimum Turn-Around Aisle: 55"
-
Maximum Ramp: 2%
-
Voltage: 24 V DC (two 12 V batteries)
-
Batteries: 210 Ah wet lead-acid or 234 Ah AGM
-
Charger: On-board
-
Maximum Run Time: 3 to 3.5 hrs (rated with the 210 Ah pack)
-
Sound Pressure: 68 dBA
-
Water Protection: IPX4
-
Dimensions with Squeegee: 52"L x 31"W x 45"H
-
Weight: 437 lbs without batteries; 882 lbs with 210 Ah batteries and full solution
What's Included
- Minuteman Max Ride 26 rider floor scrubber
- On-board battery charger
- Two 12 V batteries (210 Ah wet lead-acid or 234 Ah AGM, per the option chosen)
- Two 13" pad drivers
Setup & Placement
Charge the batteries fully before the first shift: unwind the on-board charger's cord and plug it into a grounded outlet in a well-ventilated area, away from open flames. With wet lead-acid batteries, check the water level before each use and top up with distilled water to 1/4"-1/2" above the separators, without overfilling.
To load a pad driver or brush, center it under the scrub deck, pull the scrubhead lift lever down and tap the accelerator pedal once the deck is lowered.
Resources
Warranty & Shipping
Warranty. Covered by Minuteman's Commercial Limited Warranty for battery automatic scrubbers, including the on-board charger: 5 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. Batteries are replaced in full for the first 3 months and pro-rated from months 4 to 12. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
Shipping. Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect on delivery. Check the carton and the machine when it arrives and note any damage on the delivery receipt before signing.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The Max Ride 26 is the larger of Minuteman's two micro riders. The Max Ride 20 runs a single 20" disc with 18 gal tanks and turns in a 50.5" aisle, and for bigger areas the Scrubmaster B120 riders carry a 32 gal tank on 28" to 35" platforms.
