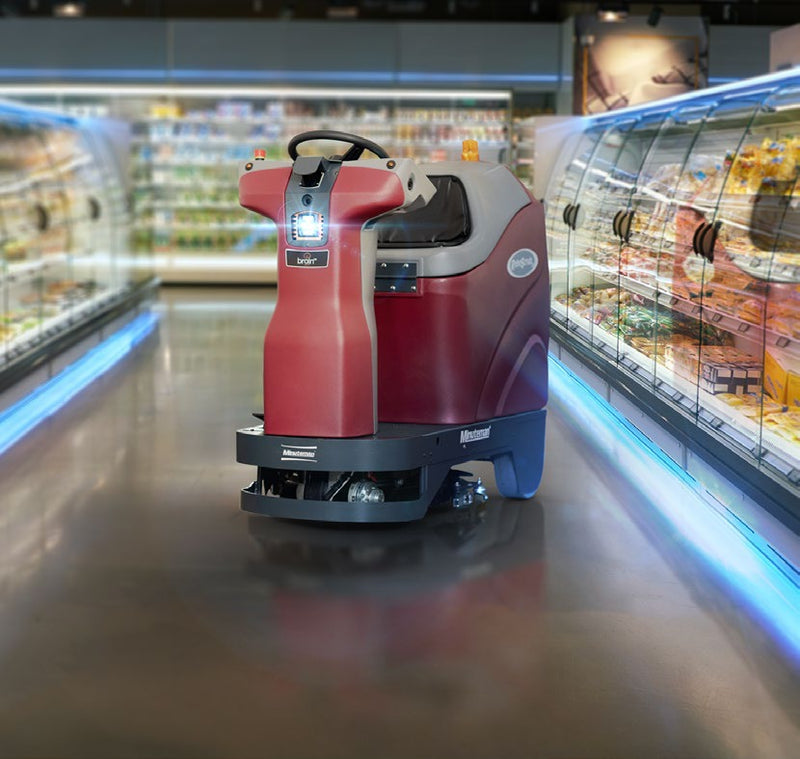

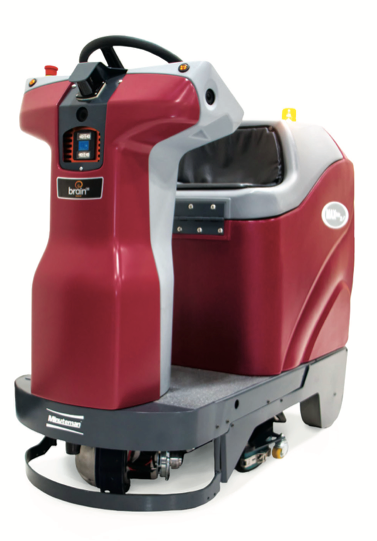

The Minuteman RoboScrub 20 is a ride-on floor scrubber that also drives itself. An operator teaches a route once, then BrainOS software, 2D and 3D cameras and lidar let the machine repeat it on its own, steering around people and obstacles and stopping when it cannot get past. Autonomous operation requires a subscription to Brain Corporation Autonomy Services, and operators must be trained by Brain Corporation or an approved trainer.

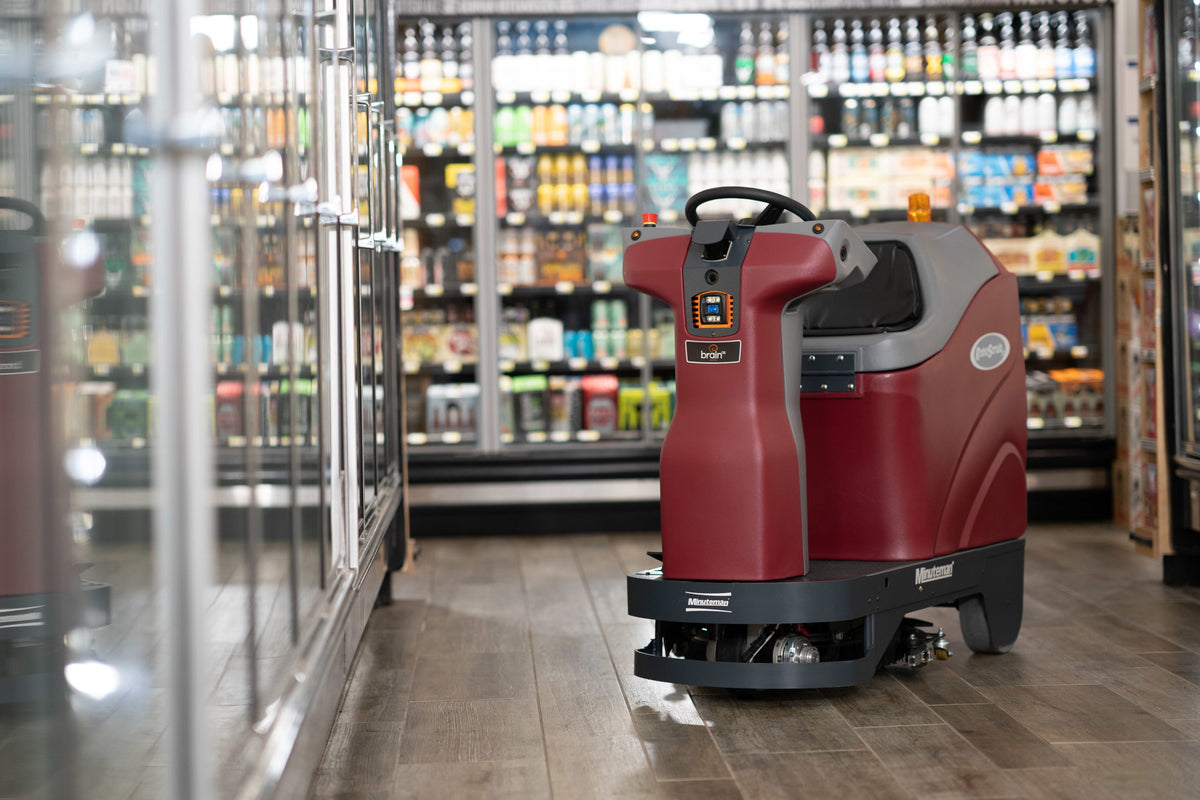

It scrubs a 20" path with 16 gal solution and recovery tanks and runs up to 4 hours on two AGM batteries. Grocery stores, shopping centers, warehouses and production halls use it to take repetitive floor passes off their crews, and anyone trained can take the seat for a quick manual clean.
Features
Teach-and-Repeat Routes

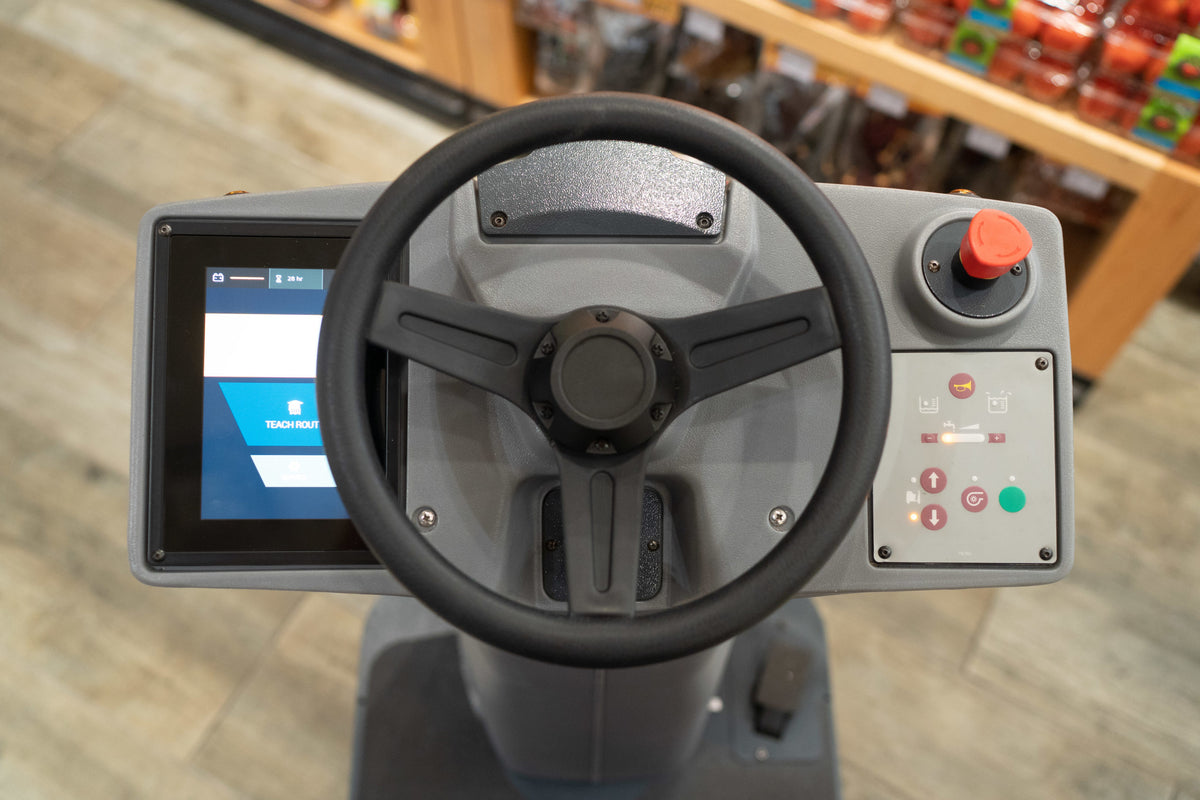

Drive a route once in teach mode and the machine stores it; multiple routes can be repeated on command from the password-protected touchscreen.
Cameras, Lidar and Sensors
Overlapping 2D and 3D cameras and lidar map the surroundings, pick out people and obstacles and plan a way around them.
Safety Built In
Two auto-stop buttons, a horn, anti-joyride detection, turn signals and a flashing beacon protect people when it works alone.
Remote Monitoring
Brain Corp's Robot Operations Center handles mobile alerts, usage tracking, productivity reports and remote diagnostics.
Aqua Stop Brush
A banded disc brush with soft nylon bristles holds the water inside the brush deck, limiting overspray and water use.
Manual Ride-On Mode
The same machine converts to a conventional rider for spills and quick jobs, rated at 24,500ft²/hr and 3 mph when driven.
AGM Batteries for Long Shifts
Two sealed, maintenance-free 234 Ah AGM batteries give up to 4 hours of run time; recharging takes 7 to 8 hours.
Specifications
-
Model: RoboScrub 20 (MR20-AI series)
-
Cleaning Path: 20"
-
Squeegee Width: 25"
-
Productivity: 24,500ft²/hr manual mode; 20,400ft²/hr autonomous mode
-
Speed: 3 mph manual; 1.5 mph autonomous
-
Scrub Head: Disc, 180 rpm, 400-600 W brush motor
-

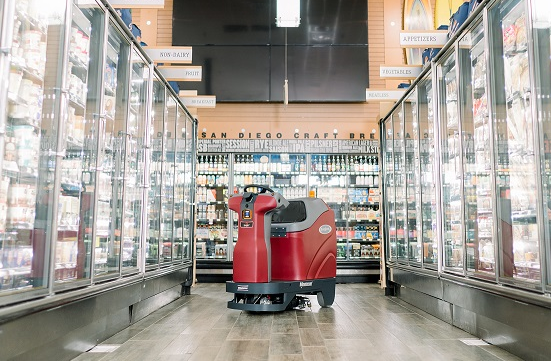

Solution Tank: 16 gal
-
Recovery Tank: 16 gal
-
Solution Flow: 0-0.4 gpm
-
Vacuum: 550 W, 69 CFM, 68" water lift
-
Batteries: Two 12 V, 234 Ah AGM, sealed and maintenance-free (24 V system)
-
Run Time: Up to 4 hours
-
Charger: Off-board (shelf) charger; 7 to 8 hours to full charge
-
Navigation: BrainOS with 2D and 3D cameras, lidar and sensors
-
Safety: Two auto-stop buttons, horn, anti-joyride detection, turn signals, flashing beacon
-
Sound Level: 68 dBA
-
Minimum Aisle Turn: 54"
-
Maximum Grade: 0% autonomous; 2% manual
-
Dimensions (with squeegee): 56"L x 29"W x 45"H
-
Weight: 615 lbs empty with batteries; 691 lbs with batteries and full solution
-
Protection Class: IPX4
What's Included
- Minuteman RoboScrub 20 robotic floor scrubber
- Two 12 V AGM batteries
- Off-board battery charger
- 20" Aqua Stop disc brush (standard)
- Standard home location pack
Setup & Placement
Charge the two AGM batteries fully on the off-board charger before the first shift. Autonomous operation requires an active Brain Corporation Autonomy Services subscription; an operator trained by Brain Corporation or an approved trainer then teaches each route by driving it once in teach mode, and the machine is ready to repeat it on its own.
Resources
Shipping, Returns & Warranty
Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Minuteman equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated machines and special-order items can't be returned.
Covered by Minuteman's Commercial Limited Warranty for autonomous scrubbers: 5 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. The navigation kit/lidar, brain control module, 2D/3D cameras and modem carry 3 years parts and 1 year labor. Batteries are replaced in full for the first 3 months and pro-rated from months 4 to 12. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The RoboScrub 20 is Minuteman's autonomous scrubber, built in the same 20" compact rider class as the Max Ride 20. For a manned rider with larger decks and 32 gal tanks, see the Scrubmaster B120 R.
