The Minuteman Scrubmaster B120 R is a battery ride-on floor scrubber with 32 gal solution and recovery tanks and a choice of four scrub decks: 28" or 33" cylindrical, or 30" or 35" disc. The operator sits at an ergonomic console with every control in reach, and a 90-degree steering angle lets the machine U-turn in narrow aisles.
It is built for mid-sized facilities such as congested warehouses, car dealerships, beverage plants and aircraft hangars. The Quick Pack models arrive with four batteries and an on-board charger, ready to charge and go to work.
Features
Four Scrub Deck Choices
Disc decks turn two brushes at 210 rpm; cylindrical decks spin two brushes at 850 rpm and pick up light debris as they scrub.
Independent 32 Gal Tanks
Separate 120-liter solution and recovery tanks let it cover long runs before it needs water or a dump.

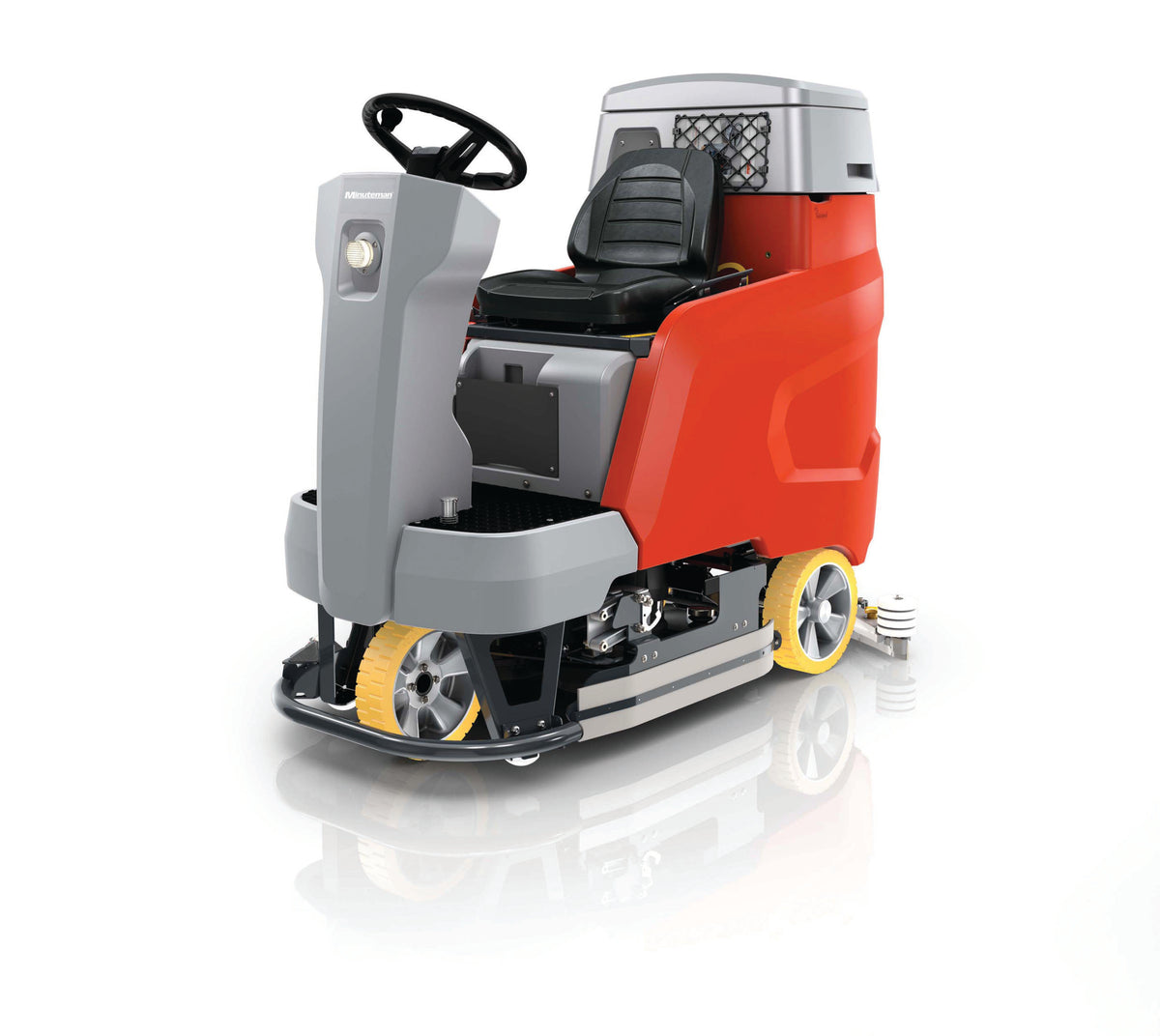

90-Degree Steering
The steering geometry turns the machine inside a 97" circle, so dead-end aisles and corridors are no problem.
Ergonomic Seat and Console
A comfortable seat, a digital display and yellow touch-points on the service parts make daily operation and checks simple.
Linatex Squeegee Blades
The rear squeegee uses 4-sided Linatex blades, so each blade can be turned to a fresh edge before it is replaced.
Spray Hose Option
A spray nozzle for flushing the solution and recovery tanks is listed as an option for the B120 R; confirm it with the order.
Aqua Stop Disc Brushes
On the disc decks, Aqua Stop brush technology can cut water use by up to 50%, per Minuteman.
Specifications
-
Model: Scrubmaster B120 R: SM2832CQPM (28" cylindrical), SM3332CQPM (33" cylindrical), SM3032DQPM (30" disc), SM3532DQPM (35" disc)
-
Brushes: Two per deck; disc decks 210 rpm, cylindrical decks 850 rpm
-
Brush Unit Width: 700 mm (28" cylindrical), 850 mm (33" cylindrical), 750 mm (30" disc), 900 mm (35" disc)
-
Squeegee Width: 37.4" (950 mm) on the 28" cylindrical and 30" disc decks; 43.3" (1,100 mm) on the 33" cylindrical and 35" disc decks
-
Solution Tank: 32 gal (120 L)
-
Recovery Tank: 32 gal (120 L)
-
Brush Pressure (min/max): 26/33 kg (28" cylindrical), 28/35 kg (33" cylindrical), 37/60 kg (30" disc), 50/70 kg (35" disc)
-
Batteries: 24 V system, four batteries; 315 Ah standard, 312 Ah sealed AGM optional
-
Charger: On-board, 1,130 W
-
Total Power (max): 3,260 W disc decks; 3,100 W cylindrical decks
-
Vacuum: 170 mbar maximum, 528 W vacuum motor
-
Transport Speed: 4.2 mph (6.7 km/h) forward; 2.4 mph (3.9 km/h) reverse
-
Maximum Grade: 2% cleaning; 10% in transport (max. 1 minute)
-
Turning Circle: 97" (2,470 mm) with squeegee
-
Wheels: 12" (305 mm), non-marking
-
Sound Pressure at Operator: 66 dBA
-
Dimensions: 65.9"L x 56.7"H (1,675 x 1,440 mm); width with squeegee 37.8" (960 mm) or 44.1" (1,120 mm) by deck
-
Weight Empty, without Batteries: 714 lbs (324 kg) 28" cylindrical; 719 lbs (326 kg) 33" cylindrical; 750 lbs (340 kg) 30" disc; 783 lbs (355 kg) 35" disc
What's Included
- Minuteman Scrubmaster B120 R ride-on floor scrubber with the scrub deck chosen
- Four batteries for the 24 V system
- On-board battery charger
- Squeegee with 4-sided Linatex blades
Setup & Placement
Charge the batteries fully before the first use. Fill the solution tank, then lower the scrub deck and squeegee from the seat and set the water quantity on the display panel. After work, raise the deck and squeegee, empty and rinse the recovery tank, and park the machine indoors on a level floor.
Resources
Shipping, Returns & Warranty
Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Minuteman equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated machines and special-order items can't be returned.
Covered by Minuteman's Commercial Limited Warranty; see the manufacturer warranty for the terms on this model. Batteries are replaced in full for the first 3 months and pro-rated from months 4 to 12. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The Scrubmaster B120 R is Minuteman's mid-size rider, above the Max Ride 20 and Max Ride 26 compact riders, with four scrub decks from 28" to 35" and 32 gal tanks. For autonomous operation on a 20" path, see the RoboScrub 20.
