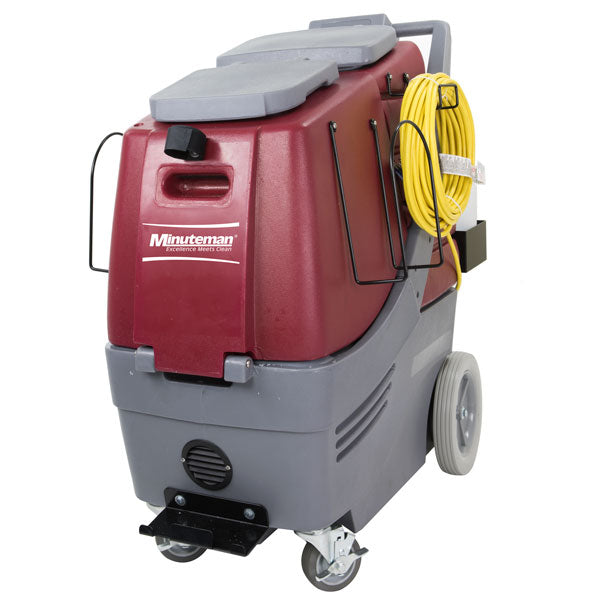

The Minuteman TRS17 Total Restroom System is a touch-free restroom cleaning machine: it sprays cleaning solution at 600 psi, then vacuums the dirty water back into a 15 gal recovery tank. Tile, grout lines, fixtures and floors are cleaned with no mop and bucket in the process.
A 17 gal solution tank, automatic chemical feed and on-board caddies for the wand, gun and hoses let one operator move from restroom to restroom in commercial and institutional buildings. It runs from a standard grounded outlet, draws 14.5 A and has a built-in GFCI.
Features
600 psi Spray
The on-board pump delivers 600 psi at 0.85 GPM, pushing cleaning solution into porous tile, grout lines and corners a mop misses.

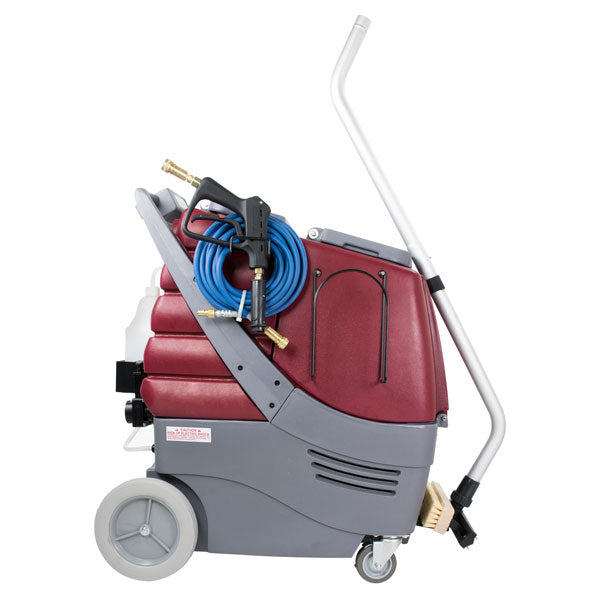

Spray, Then Vacuum
A single 3-stage vacuum motor with 120" of water lift pulls the dirty solution back through the squeegee/brush wand or the Gulper tool into a 15 gal recovery tank.
Automatic Chemical Feed

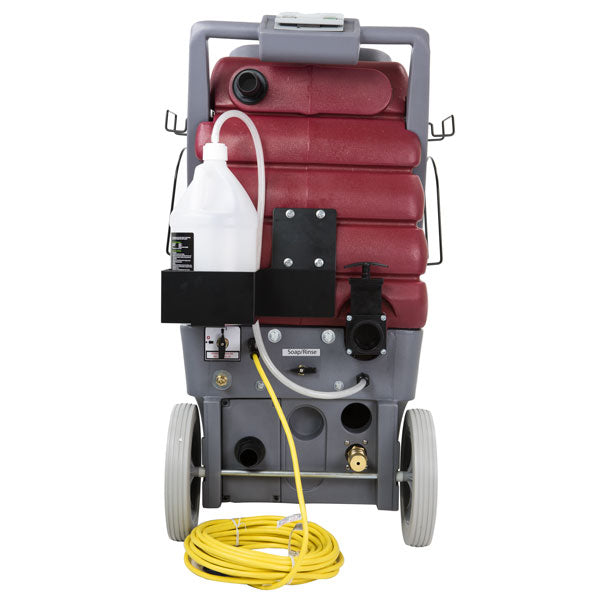

A soap and rinse selector meters chemical from a bottle of up to 1 gal carried on the machine, so concentrate never goes into the solution tank.
17 Gal Solution Tank

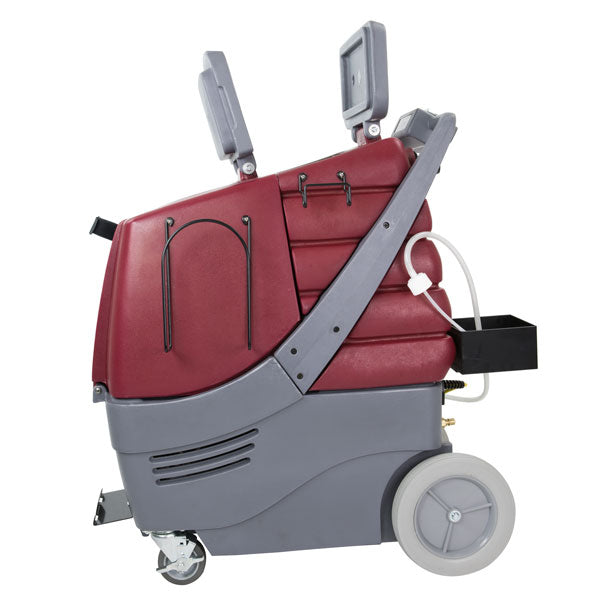

Large lid openings on the solution and recovery tanks make filling and emptying quick between restrooms.
On-Board Caddies

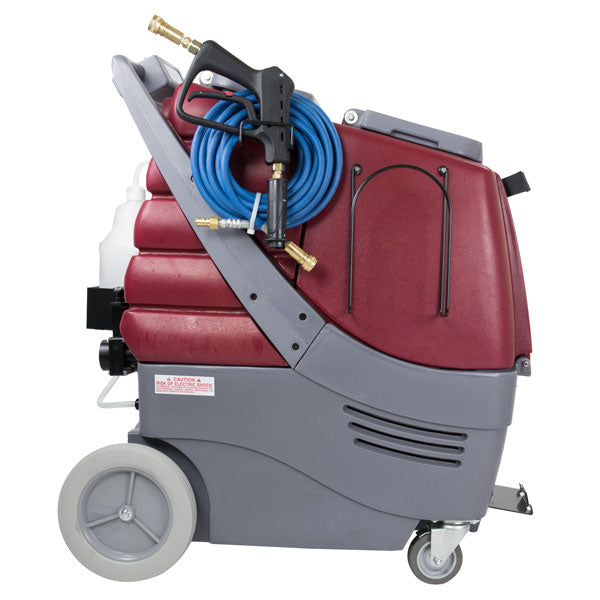

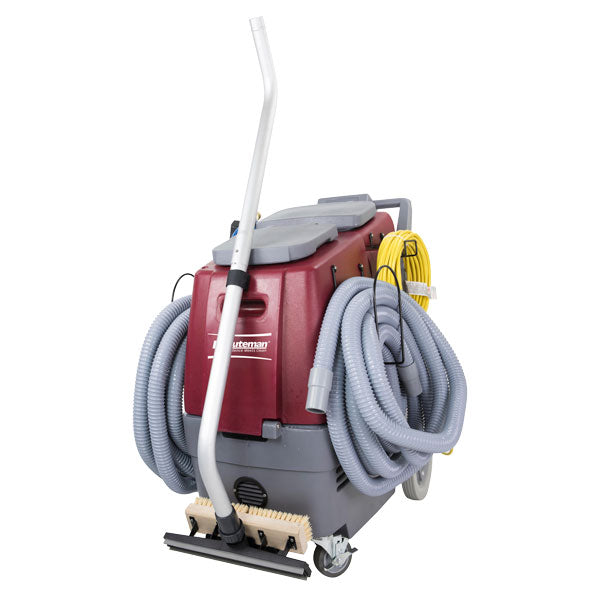

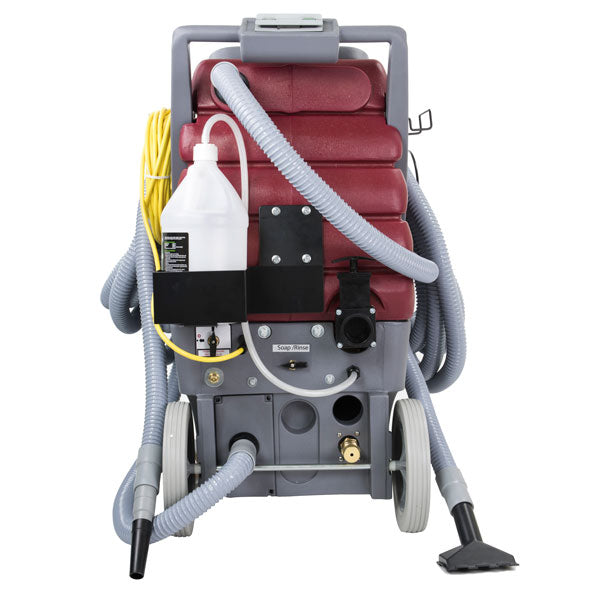

Racks and a wand bracket carry the wand, spray gun, hoses and cord, so the whole kit travels as one unit on 10" non-marking wheels and 4" locking casters.
Two-Screw Service Access

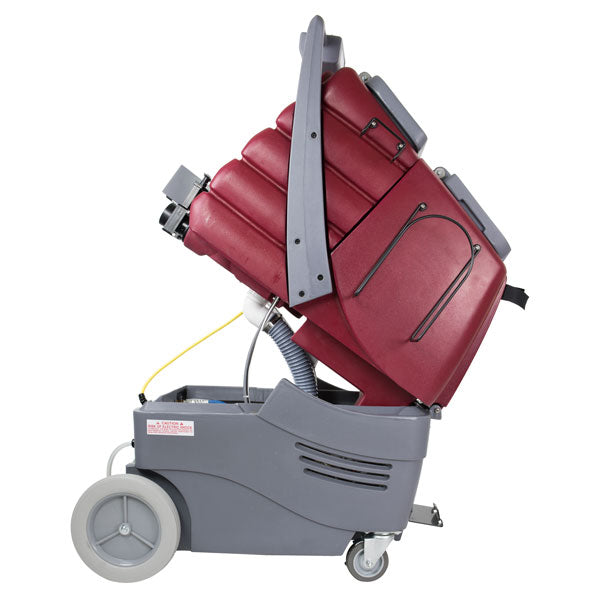

The housing opens with two screws for access to the pump and motors.
Built-In GFCI
A ground fault circuit interrupter cuts power if it senses a ground leak; test it periodically with its TEST and RESET buttons.
Fixture Drying Hose
Connect the drying hose to the exhaust port and the vacuum's airflow blows fixtures and surfaces dry.
Specifications
-
Model: TRS17-115
-
Pump: 600 psi, 0.85 GPM
-
Solution Tank: 17 gal
-
Recovery Tank: 15 gal
-
Vacuum Motor: Single 3-stage, 120" water lift
-
Chemical Feed: Automatic, soap/rinse selector, holds up to a 1 gal chemical bottle
-
Electrical: 115 V, 14.5 A, built-in GFCI
-
Power Cord: 50'
-
Tank Construction: Polyethylene
-
Baseplate: 1/4" aluminum
-

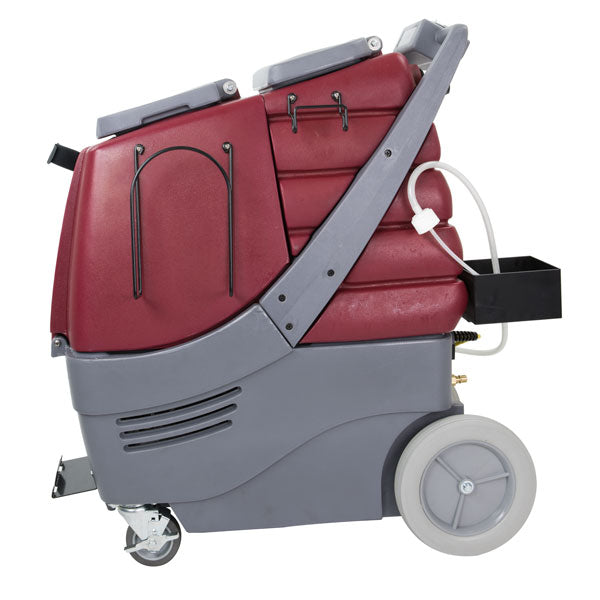

Wheels: 10" non-marking rear wheels, 4" locking casters
-
Dimensions: 39"H x 37"L x 22"W
-
Weight: 108 lbs
-
Maximum Water Temperature: 130°F
-
Accessories: Swivel wand with squeegee/brush head, pressure spray gun, vacuum and solution hoses, fixture drying hose, Gulper tool
What's Included
- Minuteman TRS17-115 Total Restroom System
- Swivel wand with squeegee/brush head

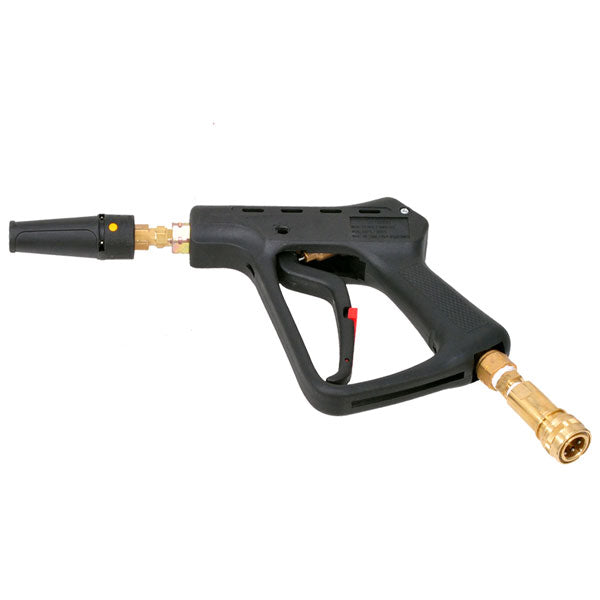

- Pressure spray gun
- Vacuum and solution hoses
- Fixture drying hose
- Gulper tool for liquid recovery
- 50' power cord
Resources
Shipping, Returns & Warranty
Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Minuteman equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated machines and special-order items can't be returned.
Covered by Minuteman's Commercial Limited Warranty; see the manufacturer warranty for the terms on this model. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The Total Restroom System is Minuteman's dedicated restroom machine. For hard floors beyond the restroom, Minuteman builds walk-behind automatic scrubbers such as the E20, and for water pickup the Tsunami 16 gal squeegee vacuum.
