The Minuteman X-839 is a critical filter vacuum for hazardous and toxic dust, nuisance dust and fine powders, where an ordinary vacuum would put particles back into the air. It is offered here in three tanks: a 6 gal stainless steel unit, a 15 gal stainless steel static-conductive unit and a 55 gal painted drum on a dolly.
The stainless units finish with an ULPA filter and the 55 gal drum with a HEPA filter, each behind a disposable bag and pre-filters. It fits abatement work, cleanrooms, computer rooms and healthcare areas, anywhere the dust that goes into the tank has to stay there.
Features
ULPA or HEPA Final Filter
The 6 gal and 15 gal stainless units carry an ULPA final filter, rated 99.999% efficient at 0.12 µm on the 15 gal model. The 55 gal painted drum uses a HEPA final filter behind a pink impact pre-filter.
Staged Filter Stack
Debris is caught in a disposable paper bag, and the air then passes a cloth filter and a pre-filter before it reaches the final filter.

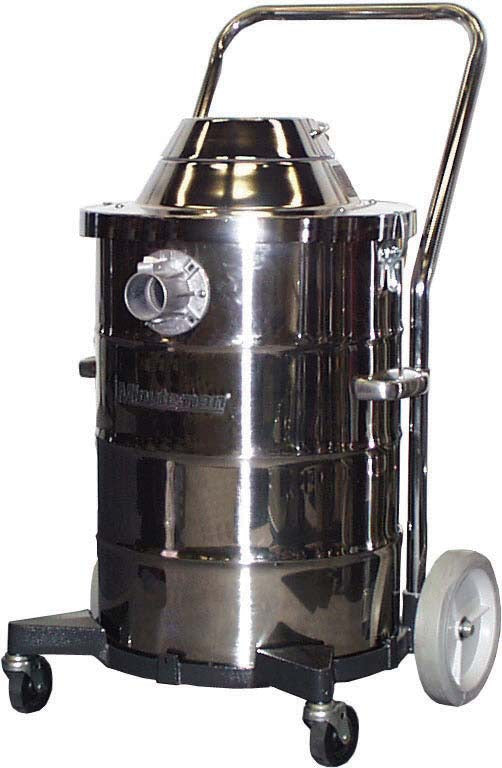

Static-Conductive 15 Gal Model
The C83918-00 adds RFI, EMI and ESD suppression through static-conductive components and a grounded hose, for computer rooms, telecom sites and sensitive electronics areas.
Snap Clamps and Liquid Shut-Off
Snap clamps lock the lid to the tank, and an automatic liquid or foam shut-off protects the motor.
Three Tank Sizes

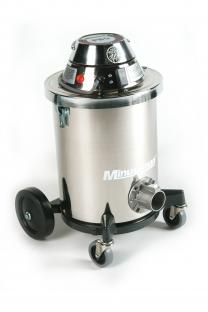

A 6 gal stainless unit for spot work, a 15 gal stainless unit for general hazardous-dust cleanup, and a 55 gal drum on a dolly with a handle for large volumes.
Wet Conversion on the 55 Gal
Fit the 55 gal painted unit with Minuteman's optional 1:1 adapter and water shut-off to recover liquids. The 6 gal and 15 gal stainless units pick up dry material only.
50' Cord, 115 V
Every unit runs on a standard 15 A, 115 V circuit through a 50' 16/3 cord.
Specifications
-
Model: X-839: C80106-01 (6 gal stainless steel), C83918-00 (15 gal stainless steel, static conductive), C83905-55 (55 gal painted)
-
Final Filter: ULPA (C80106-01, C83918-00); HEPA (C83905-55)
-
ULPA Efficiency (C83918-00): 99.999% at 0.12 µm, per IEST-RP-CC0007
-
Tank Size: 6 gal (C80106-01); 15 gal (C83918-00); 55 gal (C83905-55)
-
Pickup: Dry only on the C80106-01 and C83918-00 (particulate material only); the C83905-55 is dry as standard and recovers liquids with an optional 1:1 adapter and water shut-off
-
Dry Capacity: 0.62ft³ (6 gal); 0.82ft³ (15 gal); 7.37ft³ (55 gal)
-
Airflow: 95 CFM (6 gal); 115 CFM (15 gal and 55 gal)
-
Sound Level: 70 dB (6 gal); 72 dB (15 gal and 55 gal)
-
Motor (C80106-01): 1 HP, 85" static lift
-
Motor (C83918-00): 2 HP, 11 A, 105" water lift
-
Static Control (C83918-00): RFI, EMI and ESD suppression; conductive hose and tools
-
Voltage: 115 V
-
Power Cord: 50', 16/3
-
Casters and Wheels (C83918-00): Two 3" swivel casters, two 8" rigid wheels
-
Chassis (C83905-55): Dolly with handle
-
Weight (C83918-00): 65 lbs
What's Included
- Minuteman X-839 vacuum with the tank chosen: 6 gal stainless steel on casters (C80106-01), 15 gal stainless steel on casters and wheels with push handle (C83918-00), or 55 gal painted drum on a dolly with handle (C83905-55)
- Motor lid assembly with its filter set: ULPA final filter on the 6 gal and 15 gal units, HEPA final filter on the 55 gal unit

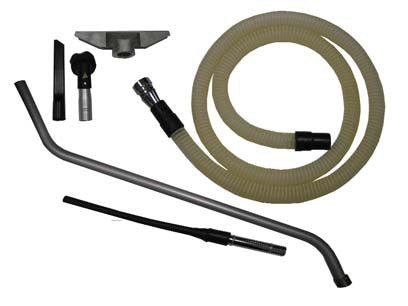

- C83918-00 only: conductive tool kit with 1-1/2" x 10' clear grounded hose, hose coupling, rubber pigtail, 3" round dust brush and 12" crevice tool
Resources
Shipping, Returns & Warranty
Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Minuteman equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated machines and special-order items can't be returned.
Covered by Minuteman's Commercial Limited Warranty; see the manufacturer warranty for the terms on this model. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The X-839 is part of Minuteman's critical filter vacuum range, alongside the Mercury Recovery Vacuum System for mercury spills. For general wet/dry work without hazardous dust, Minuteman offers the 390 Series tank vacuums.
