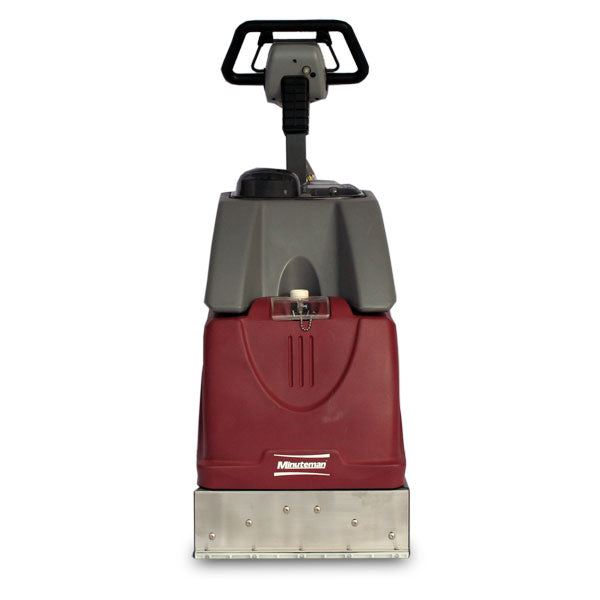

The Minuteman X17 is a self-contained, walk-behind carpet extractor that sprays, scrubs and recovers in one pass across a 17" path. This X17 ECO model (X17115) carries a 50 psi solution pump, a single cylindrical brush at 1,800 RPM and a 2 HP three-stage vacuum motor with 118" of water lift, and it is CRI certified.

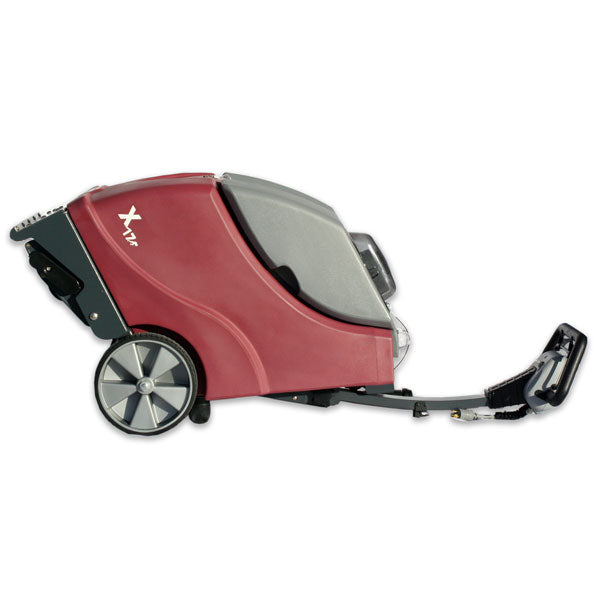

A 9-gallon solution tank and a 7.5-gallon recovery tank in non-corrosive polyethylene, 10" rear wheels and an adjustable handle keep the X17 practical for offices, hotels, schools and medical centers, including trips up and down stairs.
Features
One-Pass Extraction

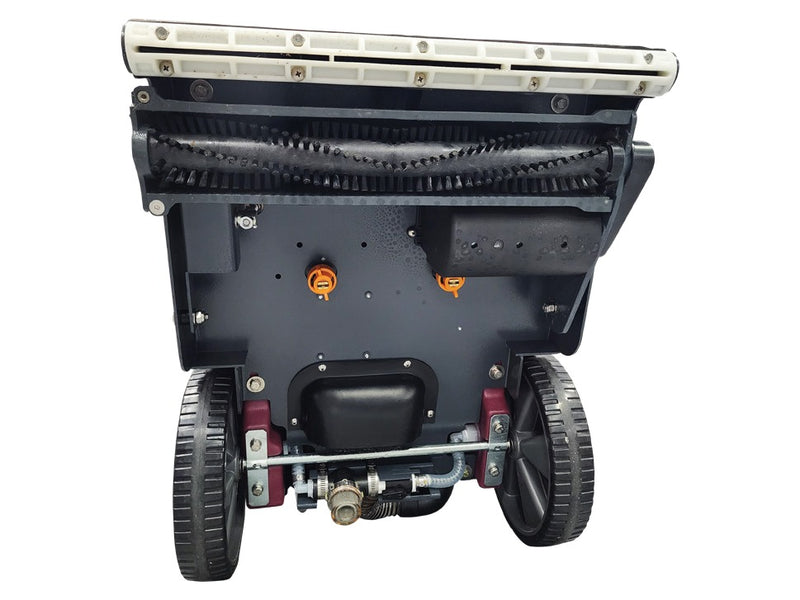

Dual quick-disconnect spray jets, a single adjustable brush and a vacuum shoe clean and recover in the same pass.
50 psi Solution Pump
Delivers solution to the spray jets; push the handle forward for a momentary spray shut-off, or run it continuously.
2 HP Three-Stage Vacuum
118" of water lift and 99 CFM pull solution back so carpet is left close to dry.

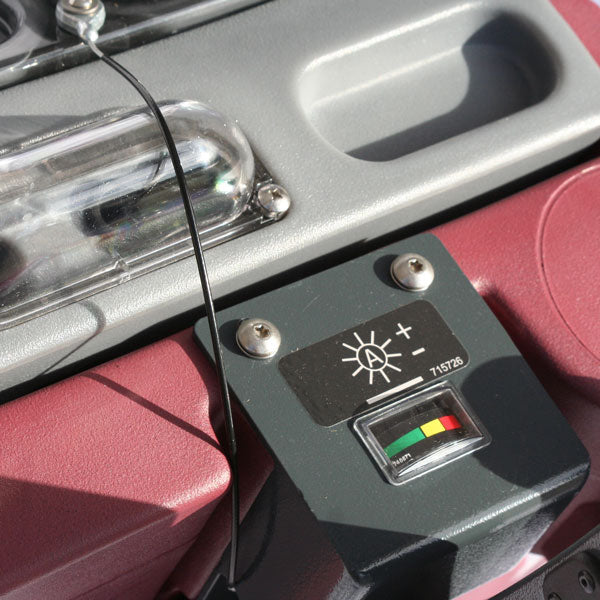

Brush Pressure Gauge
Reads green when brush pressure is in the right range; a knob raises or lowers the brush.
Faucet-Fill Solution Tank
Fill the 9-gallon tank from a faucet with the built-in hose; the clear drain hose doubles as a level indicator.

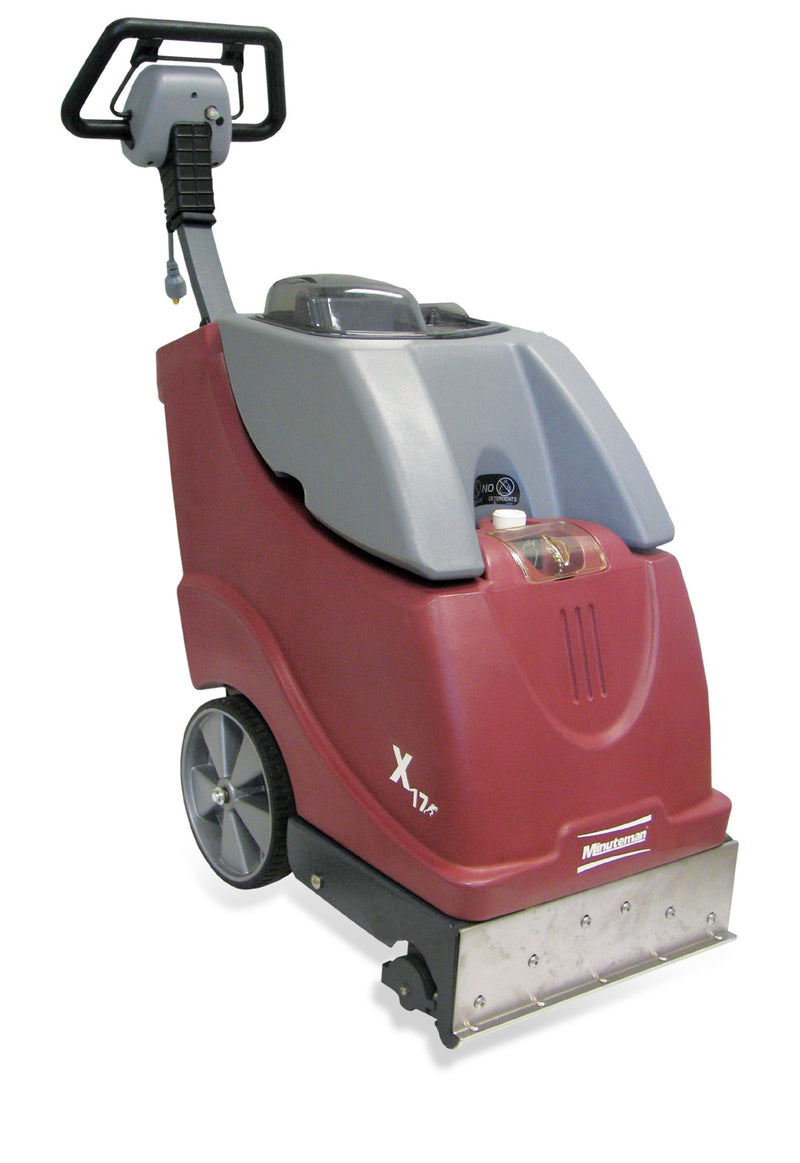

Removable Recovery Tank
7.5 gallons with a clear dome, a dump hose for draining and an automatic float shutoff to protect the vacuum motor.
Auxiliary Tool Outlet
Powers Minuteman's optional motorized tool and runs the pump for an off-aisle wand or upholstery tool.
Built to Move
Polyethylene tanks that will not dent or rust, 10" non-marking wheels and a tool-free adjustable handle.
Specifications
-
Model No.: X17115 (X17 ECO, 115 V)
-
Cleaning Path: 17"
-
Solution Tank: 9 gal
-
Recovery Tank: 7.5 gal
-
Solution Pressure: 50 psi
-
Vacuum Motor: 2 HP, 3-stage
-
Water Lift: 118"
-
Airflow: 99 CFM
-
Brush: Single cylindrical, 1,800 RPM, 1/6 HP motor
-
Spray Jets: Dual, quick-disconnect
-
Electrical: 115 V, 60 Hz, 15 A circuit; 12 A maximum draw
-
Power Cord: 50', twist-lock connector
-
Rear Wheels: 10" non-marking
-
Tank Construction: Polyethylene
-
Noise Level: 72 dB(A) at the operator
-
Weight: 110 lbs
-
Certification: CRI certified
What's Included
- Minuteman X17 carpet extractor with 50 psi pump
- 50' power cord
- Built-in faucet-fill hose
- Recovery tank dump hose and solution drain hose
- User manual
Resources
Warranty & Shipping
Warranty. Covered by Minuteman's Commercial Limited Warranty for its corded electric machines: 5 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
Shipping. Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect on delivery. Check the carton and the machine when it arrives and note any damage on the delivery receipt before signing.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The X17 is Minuteman's 17" portable carpet extractor; the X17 PLUS uses the same path with larger tanks. For daily vacuuming between extractions, Minuteman builds the Phenom 15 and Phenom 18 uprights and the MPV-31 wide-area vacuum.
