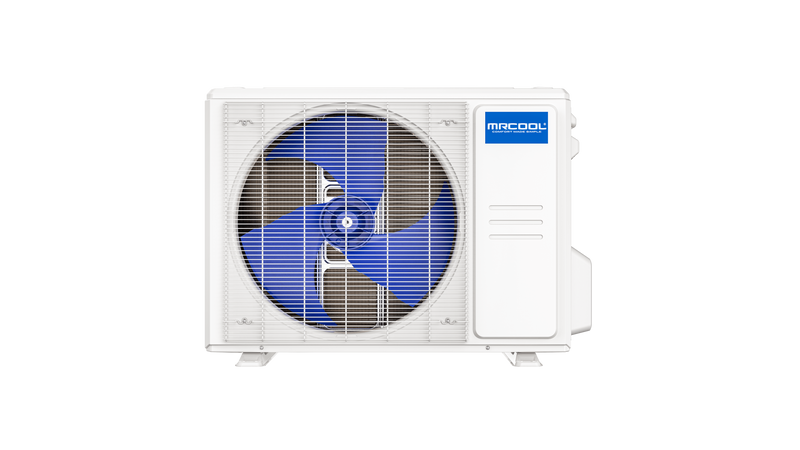

MRCOOL Advantage 5th Gen 9,000 and 12,000 BTU condenser, straight front view with fan guard and side service panel

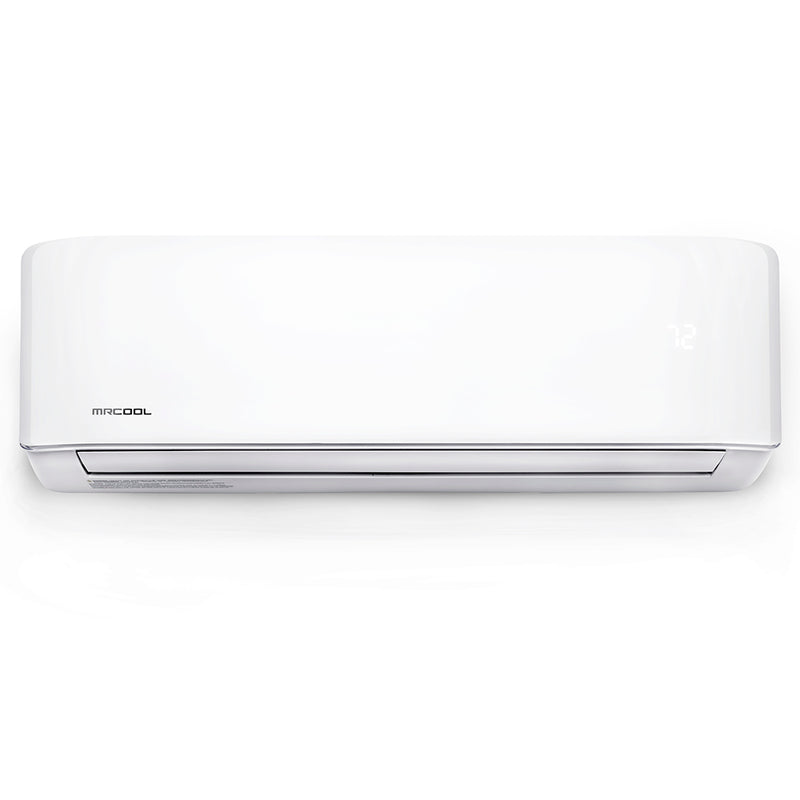

MRCOOL Advantage 5th Gen wall-mount air handler, front view with the louver closed

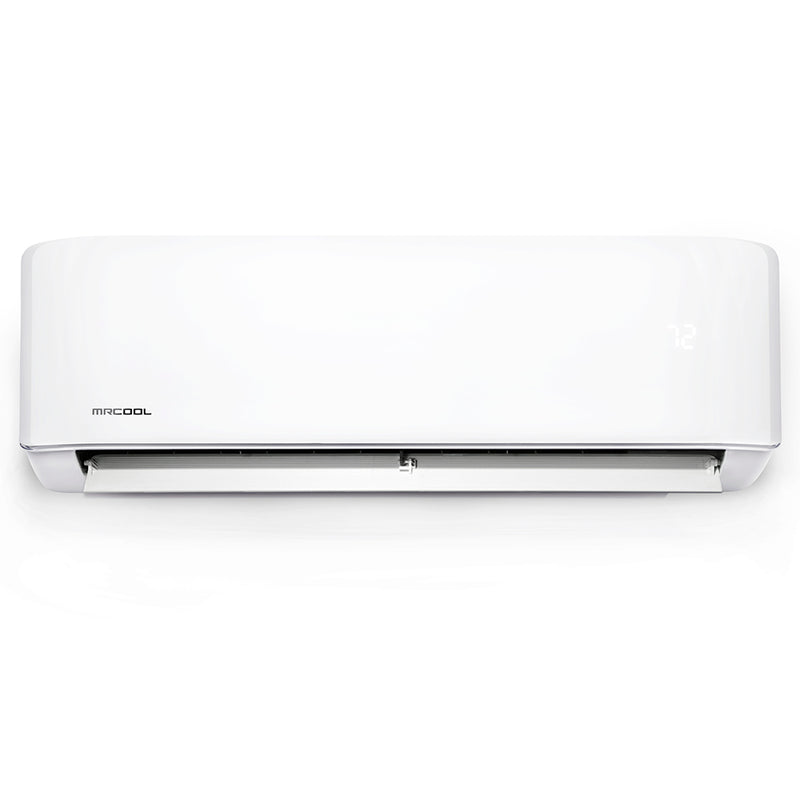

MRCOOL Advantage 5th Gen wall-mount air handler, front view with the air louver open
MRCOOL Advantage 5th Gen outdoor condenser, three-quarter view showing the blue fan blade, MRCOOL badge and service valve cover
MRCOOL Advantage 5th Gen 9,000 and 12,000 BTU condenser, straight front view with fan guard and side service panel
MRCOOL Advantage 5th Gen wall-mount air handler, front view with the louver closed
MRCOOL Advantage 5th Gen wall-mount air handler, front view with the air louver open

MRCOOL Advantage 5th Gen Ductless Mini-Split Heat Pump System

$766.00 - $2,303.00
$799.00
$766.00 - $2,303.00
$799.00
ShippingCalculated at checkout
Only 1 leftIn stock now
 Estimated delivery
American Express Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa
Authorised dealer Factory-direct MRCOOL
No sales tax On every order outside WY
30-day money-back guarantee On unused equipment
My Clean Supplies customer support

Product support & personalised quotes

Monday to Friday 9:00AM to 5:00PM EST

+1 (307) 429-4122 Email Us
Quiet comfort for a single room

Quiet comfort for a single room

The inverter compressor varies its speed to match the room instead of cycling at full power, so temperatures hold steady and the wall unit drops as low as 17.5 dBA. Sizes run from 9,000 to 36,000 BTU/h, up to 21.5 SEER2.

It suits a bedroom, addition or garage that ducts never reached. MRCOOL rates coverage at up to 400 ft² on the 9,000 BTU size and up to 1,550 ft² on the 36,000 BTU size under ideal conditions, so size from a load calculation.

Got Questions?

Find answers below or contact our support team.

Can I install the MRCOOL Advantage myself?

No. The Advantage is not a DIY system. A licensed HVAC technician has to mount both units, connect and leak-test the refrigerant lines, evacuate them with a vacuum pump and open the charge, then wire and start the system. MRCOOL's DIY series with pre-charged Quick Connect lines is the homeowner-installed alternative.

Does the Advantage come with a line set?

The complete system includes a 16' install kit: pre-flared copper line set, communication cable, drain line, wall sleeve and sealing materials. Line sizes are 1/4" x 3/8" on the 9,000 and 12,000 BTU sizes, 1/4" x 1/2" on the 18,000 and 3/8" x 5/8" on the 24,000 and 36,000. If you buy the condenser and air handler separately, plan on your contractor supplying the line set. Runs beyond 24.6' need extra refrigerant.

Will it heat when it is very cold outside?

The 9,000 to 24,000 BTU sizes are rated to heat down to 5°F outdoors, and the 36,000 BTU size down to -13°F. Output drops as it gets colder: the 9,000 BTU 115V unit delivers 6,500 BTU/h at 5°F, for example. In regions that regularly run below those temperatures, plan a backup heat source.

115V or 230V: which should I choose?

The 9,000 and 12,000 BTU sizes come in both. The 115V condensers need a 20A breaker, while the 230V versions run on a 15A breaker and are slightly more efficient at 12,000 BTU. The 18,000 BTU and larger sizes are 208-230V only. Your electrician should confirm the panel capacity either way.

Can I control it from my phone?

Yes. A Smart Controller Kit (a USB Wi-Fi module that plugs in under the front panel) is packed with the air handler. It connects the unit to the MRCOOL SmartHVAC app and works with Amazon Alexa and Google Assistant. The handheld remote with Follow Me temperature sensing is included as well.

How far apart can the indoor and outdoor units be?

Maximum line length is 82' on the 9,000 and 12,000 BTU sizes, 98.4' on the 18,000, 164' on the 24,000 and 213.2' on the 36,000. Maximum height difference runs from 49.2' on the smallest sizes to 98.4' on the 36,000 BTU size.
