The MRCOOL cased coil flange is a low-profile sheet metal frame, under 1" tall, that sits between a MRCOOL gas furnace and a MRCOOL cased evaporator coil so the two cabinets meet squarely. It is made in four sizes to suit MRCOOL's A, B, C and D cabinet widths of 14.5", 17.5", 21" and 24.5".
It saves the installer from cutting and bending a transition piece by hand when the coil and furnace share a cabinet width. Installation is by a licensed HVAC contractor. This is MRCOOL's cased coil furnace flange.
Features
Four Cabinet Widths
Sizes for 14.5", 17.5", 21" and 24.5" cabinets, matching MRCOOL's A, B, C and D furnace and coil widths.
Low Profile
Each flange is 0.9" tall, so it adds almost no height to the stacked furnace and coil.
Matched to MRCOOL Coils
Listed for 1.5-ton to 2-ton coils (14.5"), 1.5-ton to 3-ton coils (17.5") and 4-ton to 5-ton coils (21" and 24.5").
No Field Fabrication
A factory part replaces the hand-made sheet metal transition between the two cabinets.
Light to Handle
The flanges weigh 1.43 lbs to 1.76 lbs depending on size.
MRCOOL Furnaces Only
Designed for MRCOOL furnaces; MRCOOL does not intend it for other brands.
Specifications

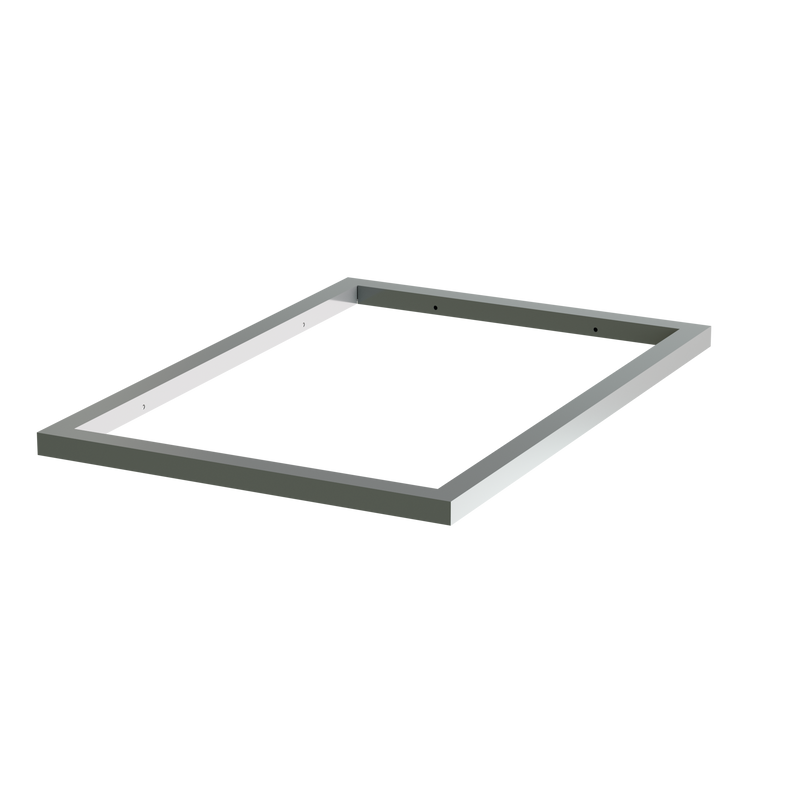

14.5" cased coil
-
Model: MCMP1824A-F
-
Works With: 1.5-ton to 2-ton evaporator coils
-
Dimensions: 21"W x 14.5"D x 0.9"H
-
Weight: 1.43 lbs

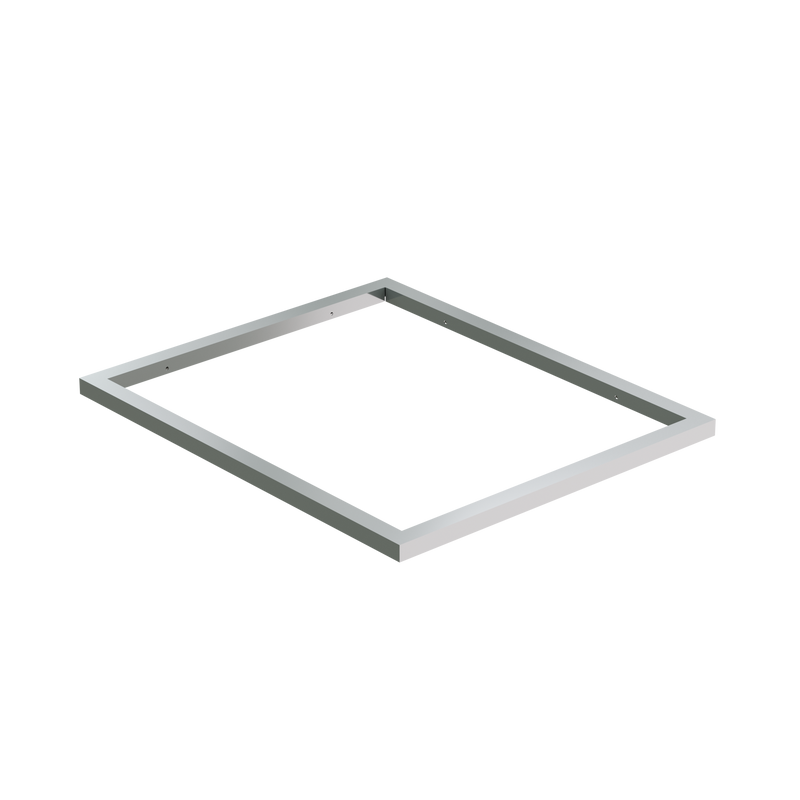

17.5" cased coil
-
Model: MCMP1836B-F
-
Works With: 1.5-ton to 3-ton evaporator coils
-
Dimensions: 21"W x 17.5"D x 0.9"H
-
Weight: 1.43 lbs

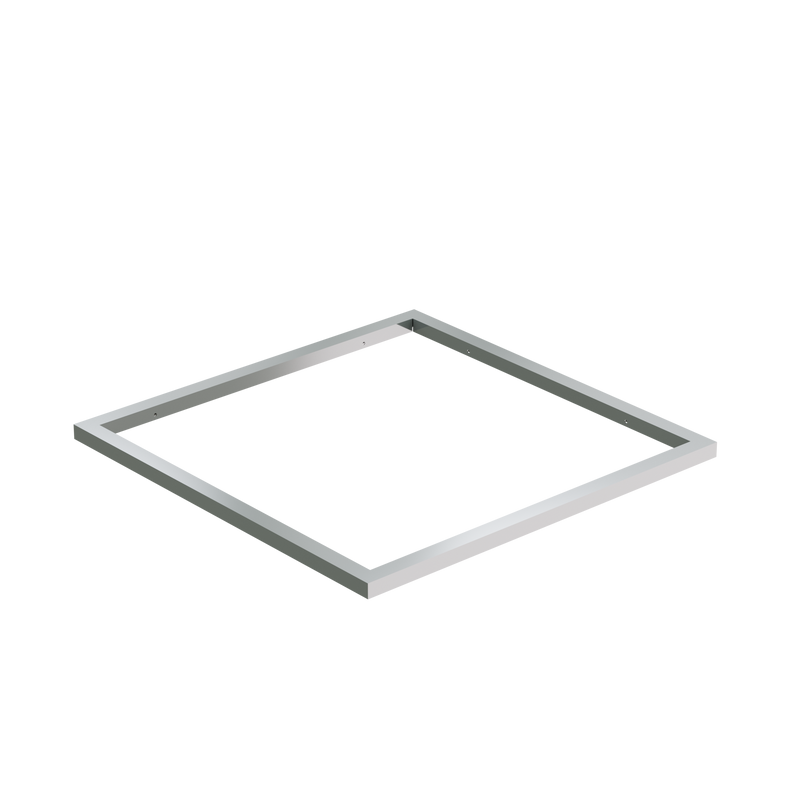

21" cased coil
-
Model: MCMP4860C-F
-
Works With: 4-ton to 5-ton evaporator coils
-
Dimensions: 21"W x 21"D x 0.9"H
-
Weight: 1.65 lbs

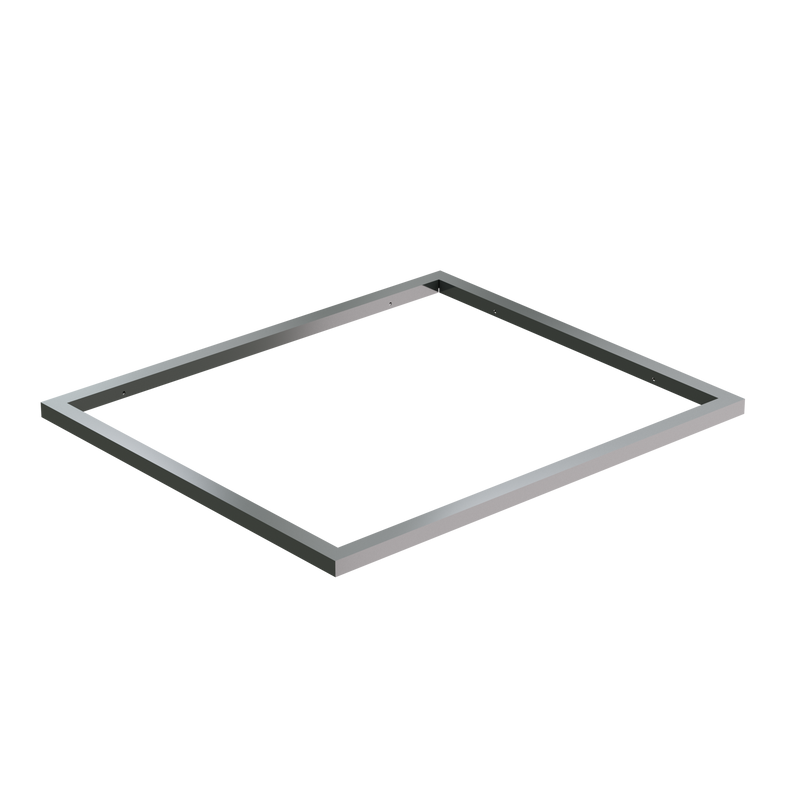

24.5" cased coil
-
Model: MCMP4860D-F
-
Works With: 4-ton to 5-ton evaporator coils
-
Dimensions: 21"W x 24.5"D x 0.9"H
-
Weight: 1.76 lbs
What's Included
- MRCOOL cased coil furnace flange in the selected cabinet width
Installation
Professional installation required. This equipment must be installed by a licensed HVAC contractor (EPA Section 608-certified for any refrigerant work), following MRCOOL's installation manual and all local codes, permits and licensing rules. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Choose the flange that matches the furnace cabinet letter (A 14.5", B 17.5", C 21", D 24.5"). The coil and the furnace should share that width. Where they differ, MRCOOL's coil manual calls for a field-fabricated adapter instead.
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL publishes no warranty document that names this part, and none of the warranty documents we hold lists it; ask MRCOOL for the terms that apply with your system.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
MRCOOL's cased coil flanges join a MRCOOL cased evaporator coil to a MRCOOL gas furnace whose cabinet is the same width. MRCOOL furnaces and coils come in four cabinet widths, A (14.5"), B (17.5"), C (21") and D (24.5"), and there is one flange per width. The furnace and the coil are separate products, sold on their own listings.
