The MRCOOL CoolBlade is an industrial HVLS ceiling fan that turns long magnesium alloy blades slowly on a direct-drive permanent magnet synchronous motor. The 24' model moves up to 15,500 m³/min of air over a rated 5,577 ft², and the 16' model covers 1,640 ft², both at a rated 38 dB(A).
It suits warehouses, workshops, gyms and other high-ceiling buildings where a steady breeze across the floor keeps people comfortable and air from going stale. Installation is by a qualified contractor and licensed electrician. That is the CoolBlade industrial HVLS ceiling fan.
Features
Two Diameters

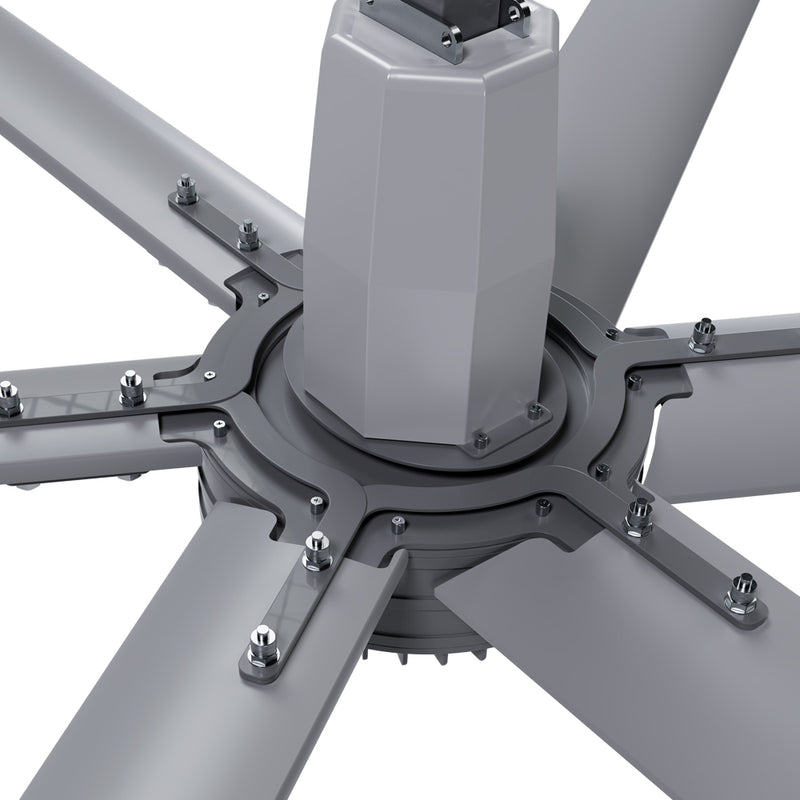

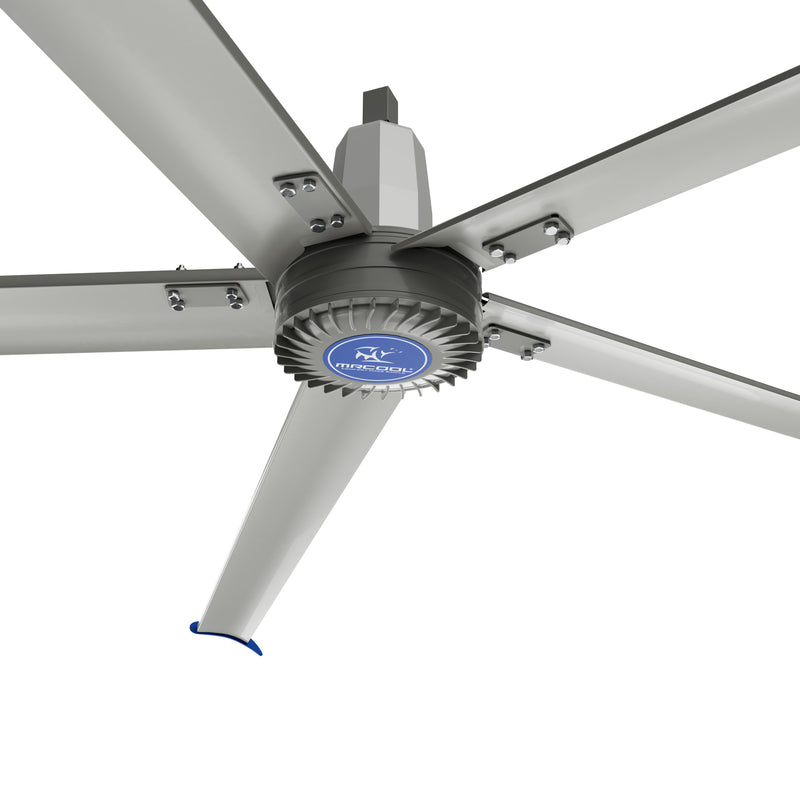

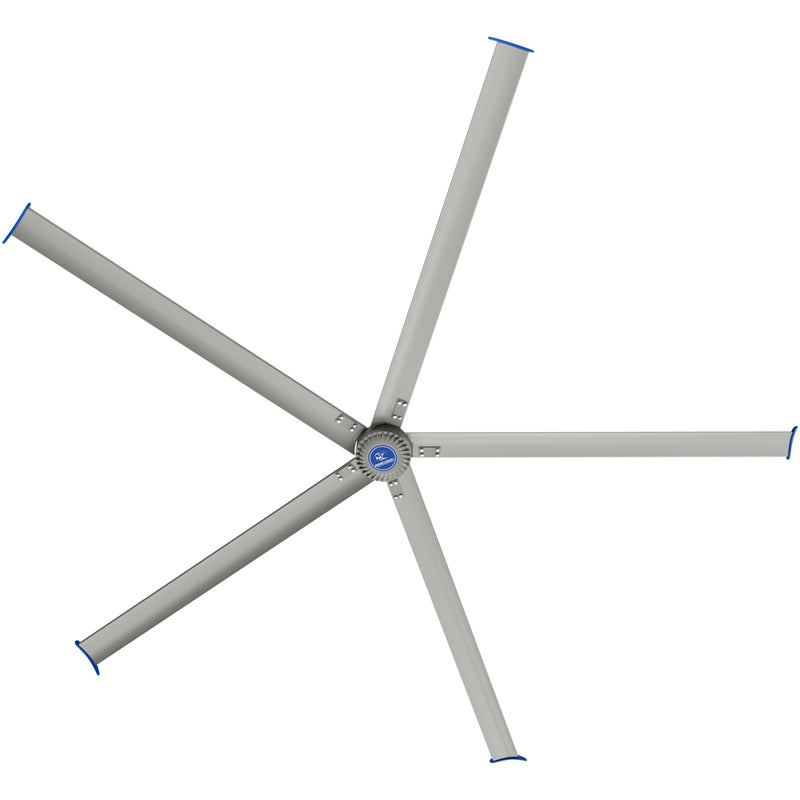

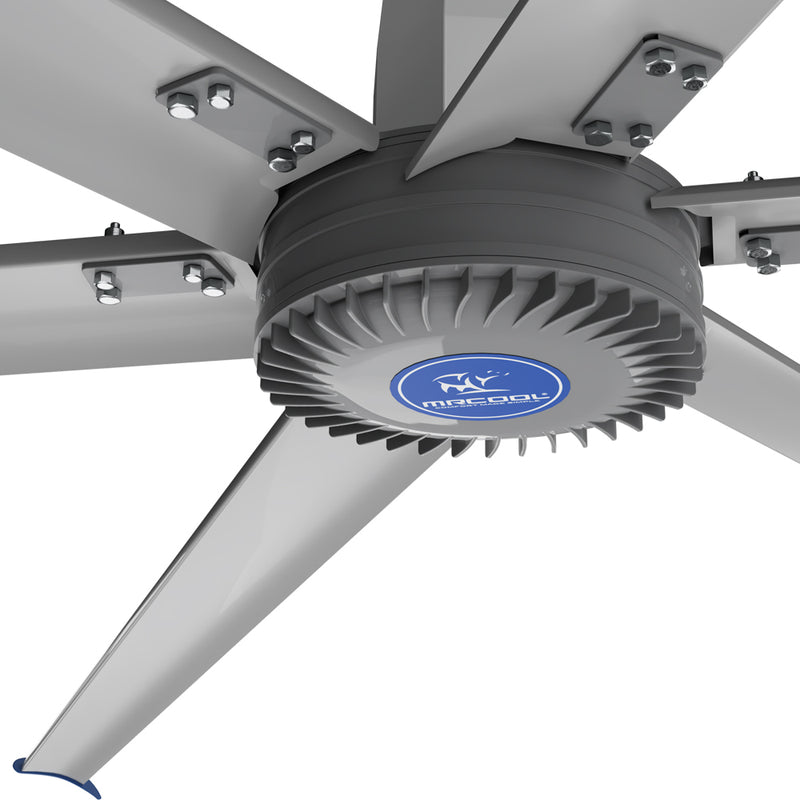

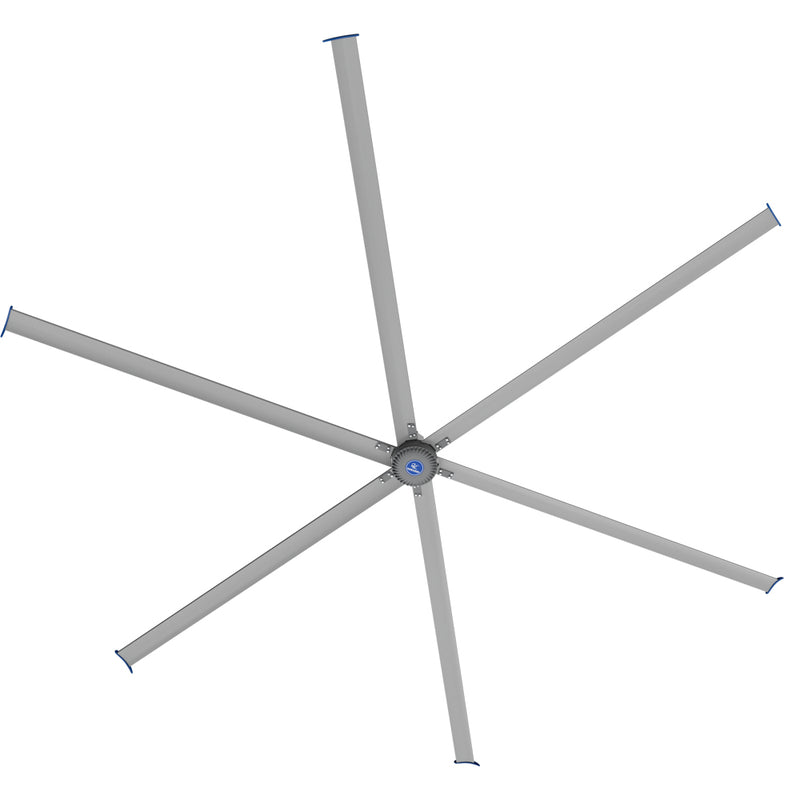

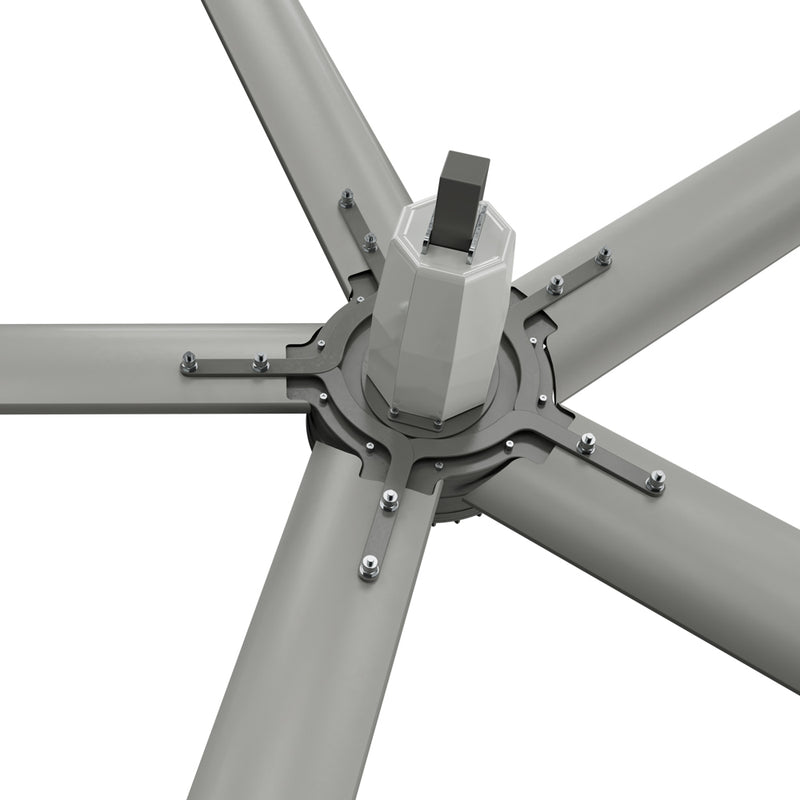

The 16' model has 5 blades and turns at 80 rpm; the 24' model has 6 blades and turns at 60 rpm.
Direct-Drive PMSM Motor

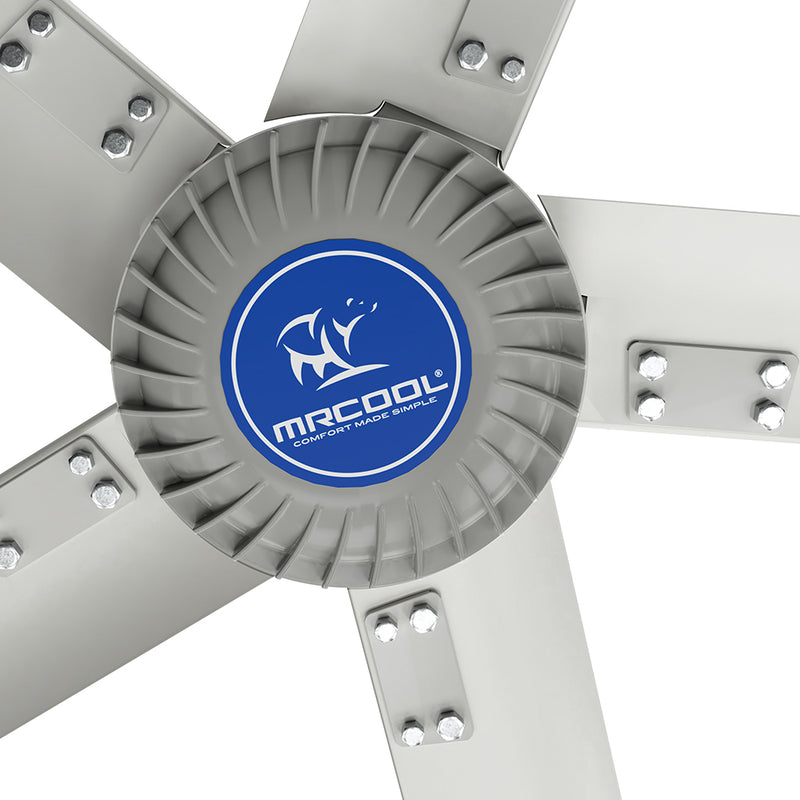

A permanent magnet synchronous motor drives the hub directly, with no belts or gears to wear, drawing 0.75 kW (16') or 1.5 kW (24').
Magnesium Alloy Blades

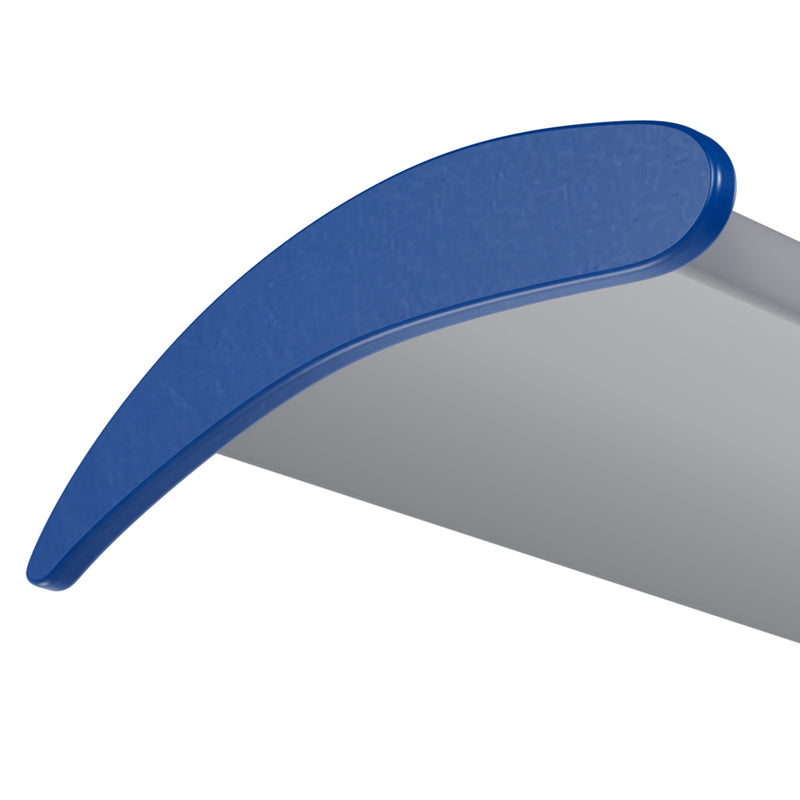

Reinforced magnesium alloy blades with aerodynamic winglets at the tips keep weight down and the airflow even.
Layered Fall Protection
An integrated motor bracket, anti-falling expansion sleeve and steel wire safety rope secure the fan to the structure.
Locking Control Box

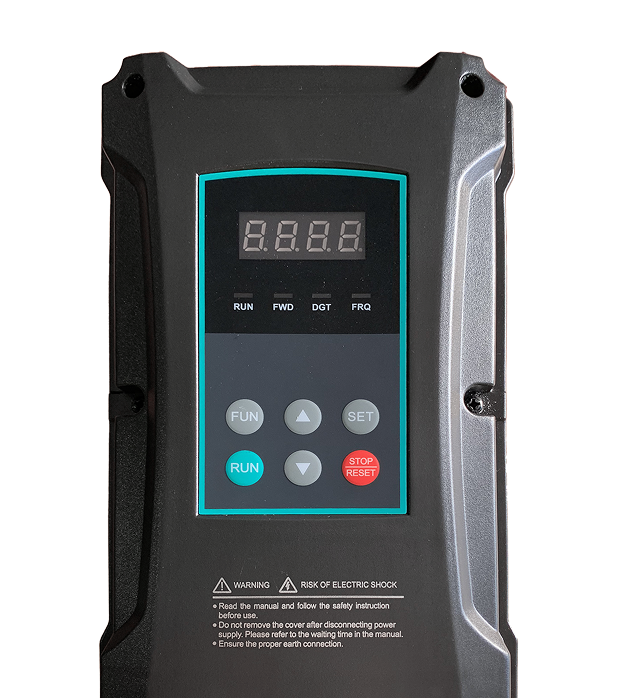

Four-button push-button speed control with a digital display and an emergency stop, in an IP66-rated box.
Rated 38 dB(A)
Slow rotation keeps the rated sound level at 38 dB(A) on both sizes.
ETL Certified
The CoolBlade carries ETL certification and electrical overload protection.
Specifications
-
Voltage: 220-240V
-
Phase: 1
-
Frequency: 60 Hz
-
Sound Level: 38 dBA
16'
-
Model: MCFAN16PBGR
-
Coverage Area: 1,640ft²
-
Fan Weight: 136.7 lbs
24'
-
Model: MCFAN24XBGR
-
Coverage Area: 5,577ft²
-
Fan Weight: 249.1 lbs
What's Included
- MRCOOL CoolBlade HVLS fan with permanent magnet synchronous motor and magnesium alloy blades (5 on the 16', 6 on the 24')
- Mounting bracket with anti-falling expansion sleeve and steel wire safety rope
- Locking control box with digital display, push-button speed control and emergency stop
Installation
Professional installation required. This equipment must be installed by a qualified, licensed electrician or contractor, following MRCOOL's installation manual and all local electrical and building codes and permit requirements. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Mounts to an I-beam, square steel or concrete structure that can carry the fan's weight: 136.7 lbs for the 16' model (48.5 lbs of it motor) and 249.1 lbs for the 24' model (92.6 lbs motor). Power is 220-240V single phase on a 15 A breaker (16') or 20 A breaker (24'), wired to the locking control box.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL backs the CoolBlade with a 2-year all-parts limited warranty. MRCOOL asks owners to register the fan by sending the product registration form in the warranty document to warranty@mrcool.com, warranty service runs through the installing contractor, and labor is not covered. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
