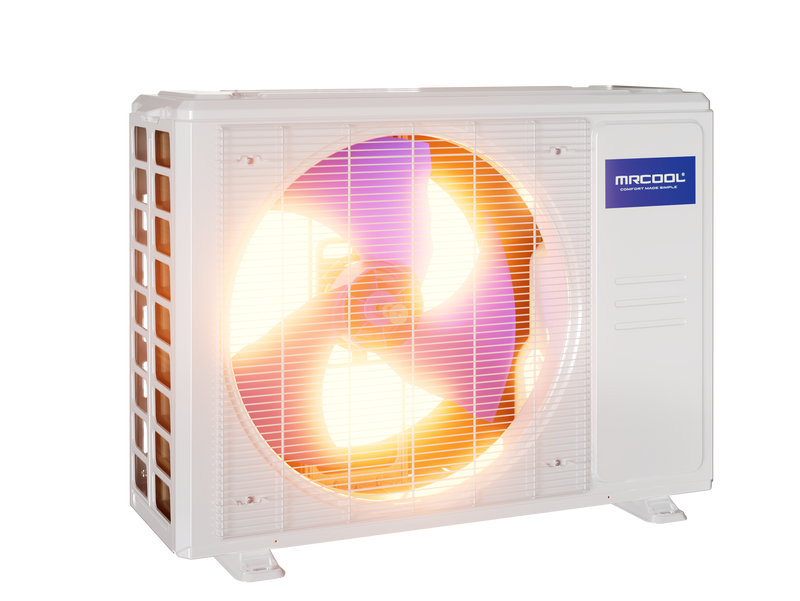

The MRCOOL DIY 5th Gen Hyper Heat condenser is a single-zone outdoor heat pump built for cold climates, rated to operate at outdoor temperatures from -22°F to 122°F. It comes in 12,000 and 18,000 BTU sizes at up to 23.5 SEER2, and ships with a 25' Quick Connect line set pre-charged with R-454B and the DIYPro cable for homeowner installation.
Pair it with a 208/230V DIY 5th Gen wall air handler or OuttaSight ceiling cassette of the same capacity to heat and cool rooms of up to 550ft² or up to 800ft². That is the MRCOOL DIY 5th Gen Hyper Heat condenser.
Features
Rated From -22°F to 122°F
MRCOOL's operating range for the Hyper Heat condenser reaches below the -13°F rating of the standard DIY 5th Gen single-zone units.
Two Sizes
12,000 BTU (23.5 SEER2, 10 HSPF2 Region IV) and 18,000 BTU (21.2 SEER2, 11 HSPF2 Region IV), both on 208/230V.
Line Set and Cable Included
A 25' Quick Connect line set pre-charged with R-454B and the DIYPro cable come with the condenser.

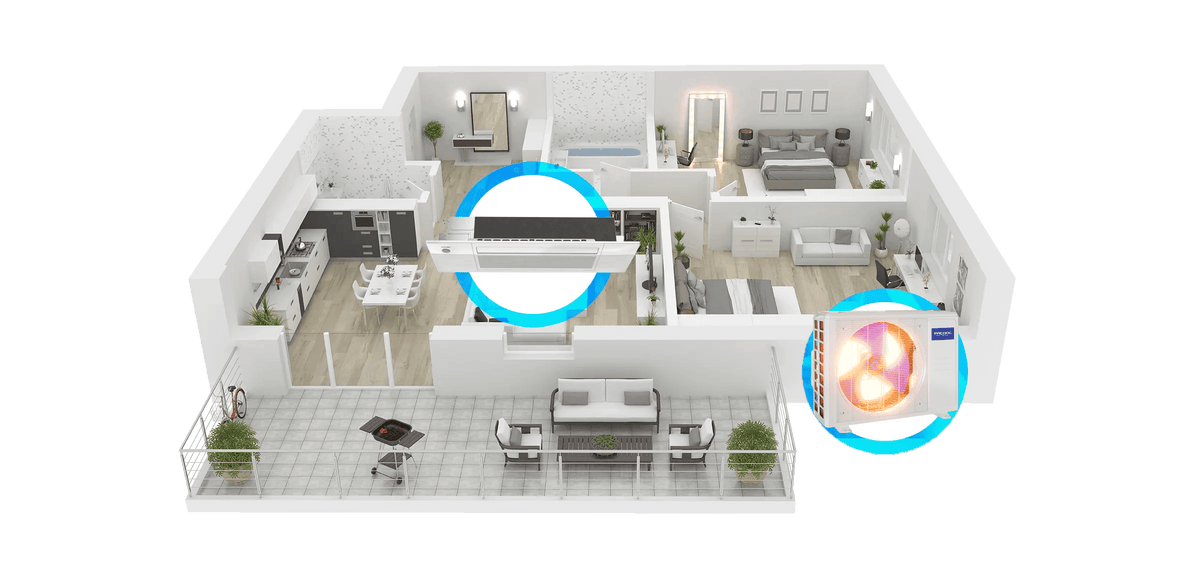

Wall Head or Cassette
Runs a DIY 5th Gen wall air handler or an OuttaSight ceiling cassette of the same capacity.
Turbo and Auto Restart
Turbo mode pushes the system to reach the setpoint faster, and auto restart resumes the last settings after a power cut.
Gold Fin Coil Coating
The outdoor coil carries MRCOOL's Gold Fin coating for inland and coastal installations alike.
Specifications
-
Voltage: 208/230V
-
Phase: 1
-
Frequency: 60 Hz
-
Refrigerant: R-454B
-
Heating Operating Range (outdoor, low): -22°F
-
Cooling Operating Range (outdoor, low): -22°F
-
Included Line Set: 25'
-
Max Line Set Length: 75'
-
Liquid Line: 1/4"
-
Compressor: Rotary
-
Inverter: Yes
-
Metering Device: EEV
-
ENERGY STAR: Yes
-
AHRI Certified: Yes
-
UL Listed: Yes
-
Color: White
12,000 BTU 230V
-
Model: DIYHH-12-HP-C-230D25-O
-
Cooling Capacity: 12,000 BTU/h
-
Heating Capacity: 12,000 BTU/h
-
Nominal Tonnage: 1 ton
-
SEER2: 23.5
-
EER2: 12.8
-
HSPF2 (Region IV): 10
-
HSPF2 (Region V): 8
-
Coverage Area: Up to 550ft²
-
Minimum Circuit Ampacity: 15 A
-
Max Fuse / Breaker: 15 A
-
Refrigerant Charge: 32.1 oz
-
Sound Level: 56.5 dBA
-
Airflow: 1,471.5 CFM
-
Suction Line: 3/8"
-
Works With: DIYCASSETTE12HP-230D25-O, DIY-12-HP-WMAH-230D25-O
-
Dimensions: 31.69"W x 12.99"D x 21.81"H
-
Weight: 72.31 lbs
18,000 BTU 230V
-
Model: DIYHH-18-HP-C-230D25-O
-
Cooling Capacity: 18,000 BTU/h
-
Heating Capacity: 18,000 BTU/h
-
Nominal Tonnage: 1.5 ton
-
SEER2: 21.2
-
EER2: 12.5
-
HSPF2 (Region IV): 11
-
HSPF2 (Region V): 8.5
-
Minimum Circuit Ampacity: 19 A
-
Max Fuse / Breaker: 25 A
-
Refrigerant Charge: 52.21 oz
-
Sound Level: 58 dBA
-
Airflow: 1,765.8 CFM
-
Suction Line: 1/2"
-
Works With: DIYCASSETTE18HP-230D25-O, DIY-18-HP-WMAH-230D25-O
-
Dimensions: 35.04"W x 13.46"D x 26.5"H
-
Weight: 99.87 lbs
-
Coverage Area: Up to 800ft²
What's Included
- MRCOOL DIY 5th Gen Hyper Heat condenser
- 25' Quick Connect pre-charged line set
- DIYPro cable
Installation
Designed for homeowner installation. The Quick Connect line set arrives pre-charged with refrigerant, so no vacuum pump, gauges or refrigerant handling is needed. Each fitting is tightened with two wrenches to the torque in MRCOOL's manual and then leak-checked. Electrical work still has to meet local code: the 230V models need a dedicated 230V circuit, and some areas require a permit or a licensed electrician for that part of the job. Check your local rules before you start.
Line sizes are 1/4" x 3/8" for the 12,000 BTU model and 1/4" x 1/2" for the 18,000 BTU model. The indoor unit (wall air handler or ceiling cassette of the same capacity) is purchased separately.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's DIY 5th Gen limited warranty covers parts for 5 years and the compressor for 7 years from the proof-of-purchase date, with no registration required. It does not cover labor, diagnosis or shipping costs. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
The DIY 5th Gen Hyper Heat condenser is the cold-climate member of MRCOOL's DIY 5th Gen line. It uses the same pre-charged Quick Connect installation as the standard single-zone systems, pairs with a 12,000 or 18,000 BTU DIY 5th Gen 208/230V wall air handler or OuttaSight ceiling cassette (sold separately), and is rated to run from -22°F to 122°F outdoors. For milder climates, the standard DIY 5th Gen single-zone systems cover 9,000 to 36,000 BTU.
