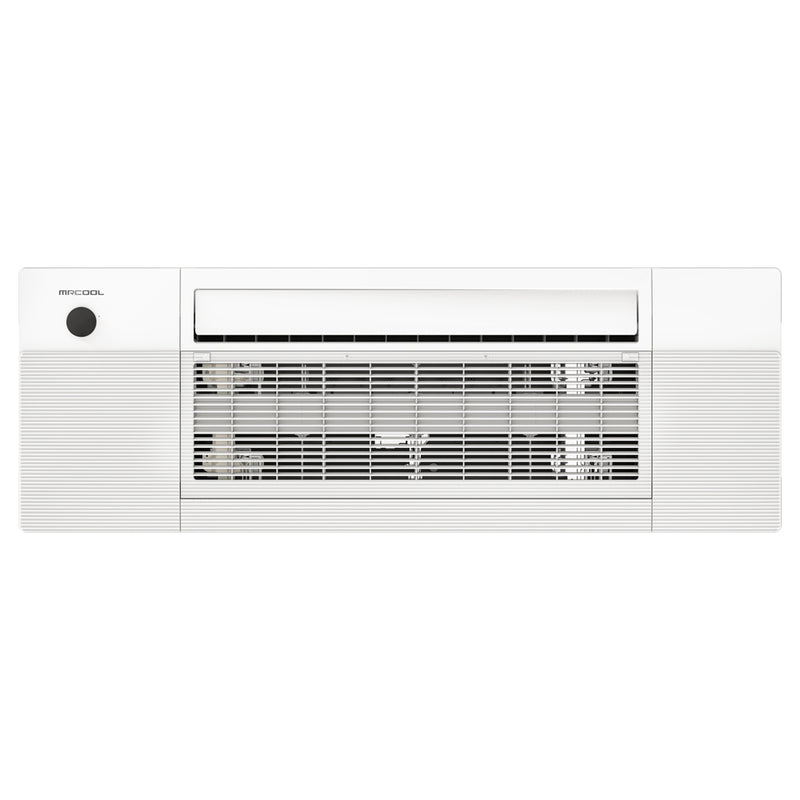

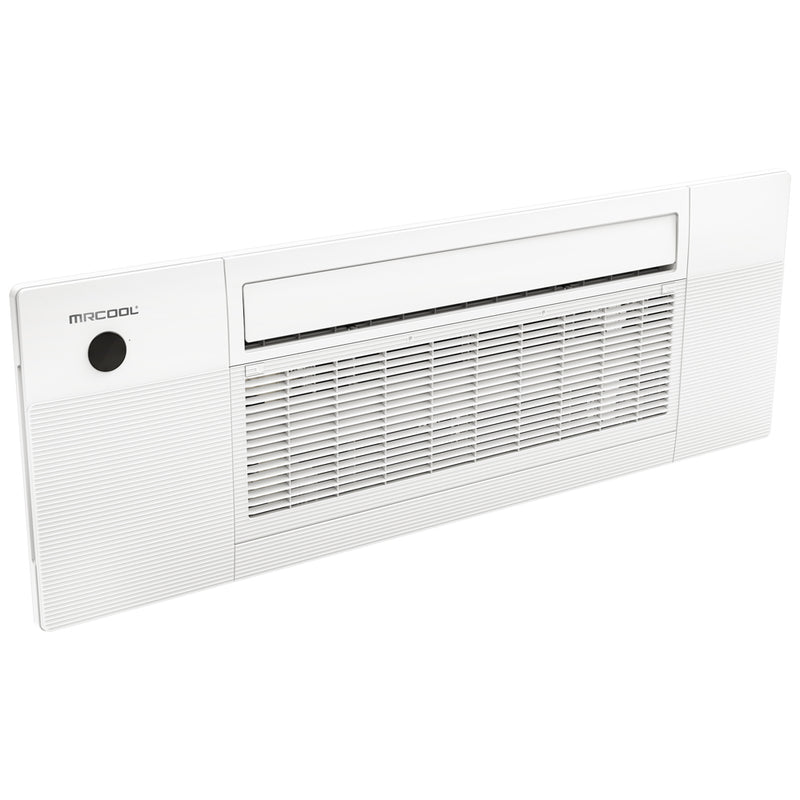

The MRCOOL DIY 5th Gen OuttaSight is a one-way ceiling cassette that recesses between ceiling joists on 16" centers, giving ductless heating and cooling without using wall space. Four sizes run from 6,000 to 18,000 BTU, rated for areas from up to 250ft² (6,000 BTU) to up to 800ft² (18,000 BTU), and all run on 208/230V.
It works as a head on DIY 5th Gen multi-zone condensers and on the 12,000 and 18,000 BTU DIY Hyper Heat condensers, which suits bedrooms, basements and finished rooms where a wall unit would be in the way. That is the MRCOOL DIY 5th Gen OuttaSight ceiling cassette.
Features

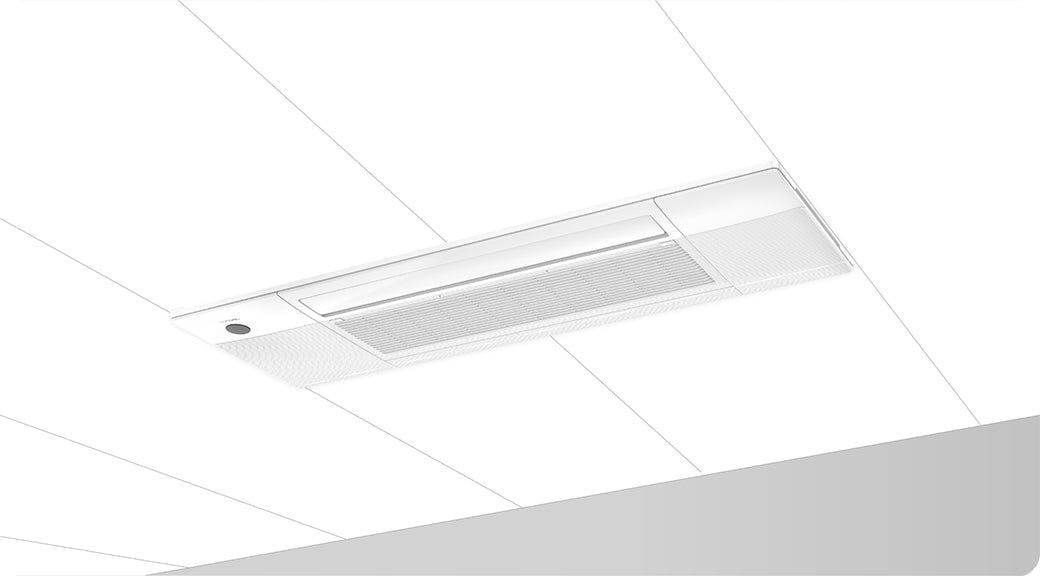

Joist-Friendly Fit

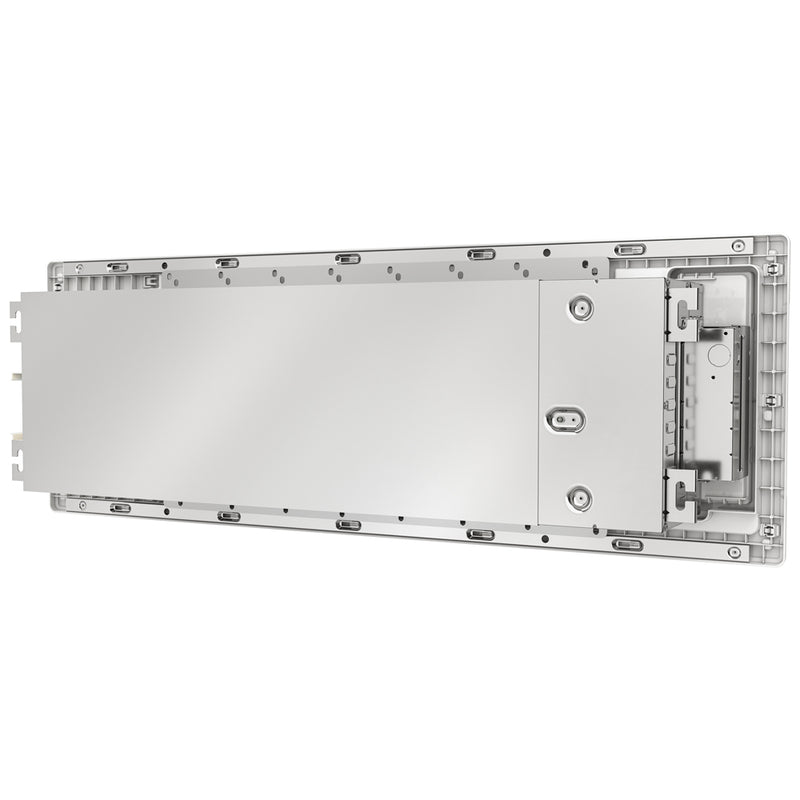

Recesses between joists on 16" centers, including manufactured I-joists, with a body height of 8.9".

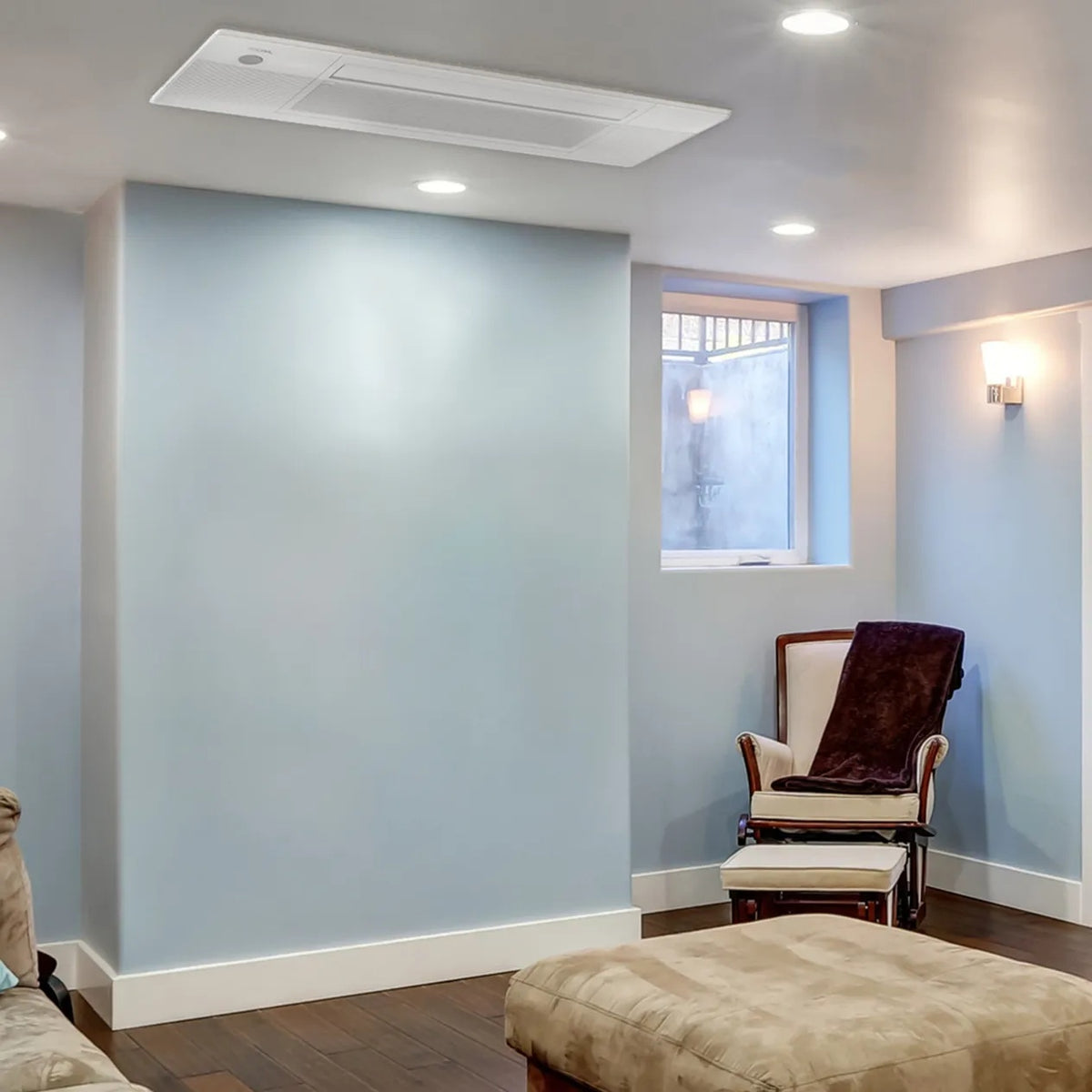

Lowering Filter Panel
The Elevation function brings the filter panel down from the ceiling for cleaning at the touch of a remote button.
Four Capacities
6,000, 9,000, 12,000 and 18,000 BTU sizes, all on 208/230V single phase.
Two-Stage DC Fan
Five fan speeds, up to 400 CFM on the 18,000 BTU model.

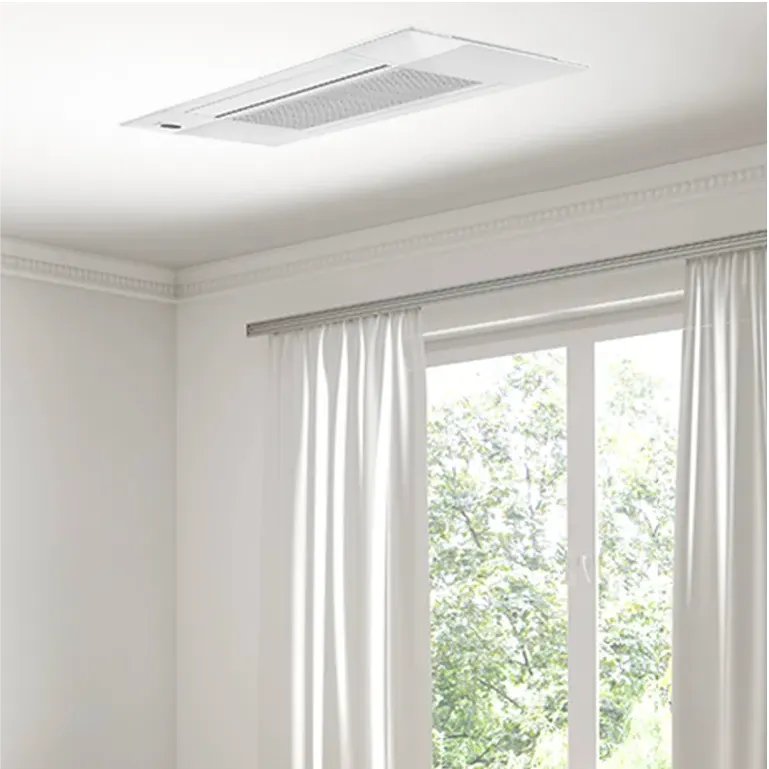

Quiet Operation
Rated at 23.5 to 26 dBA on the lowest fan setting, depending on size.
Swing Louver
The louver swings to spread air across the room from the one-way outlet.
Remote and Smart Control
A remote control and smart controller kit are included for app and voice control.
Specifications
-
Voltage: 208-230V
-
Phase: 1
-
Frequency: 60 Hz
-
Minimum Circuit Ampacity: 3 A
-
Max Fuse / Breaker: 15 A
-
Refrigerant: R-454B
-
Liquid Line: 1/4"
-
Mount: Ceiling
-
Airflow Direction: 1-Way
-
Filter: Reusable
-
Wi-Fi: Yes
-
Works With: DIY 5th Gen Systems
-
Color: White
-
Dimensions: 50.3"W x 13.1"D x 8.9"H
-
Weight: 45 lbs
6,000 BTU
-
Model: DIYCASSETTE06HP-230D25-O
-
Coverage Area: Up to 250ft²
-
Indoor Sound (low): 23.5 dBA
-
Indoor Sound (high): 46.5 dBA
-
Sound Level: 35.5 dBA
-
Airflow: 341 / 294 / 259 / 235 / 235 CFM
-
Suction Line: 3/8"
9,000 BTU
-
Model: DIYCASSETTE09HP-230D25-O
-
Coverage Area: Up to 400ft²
-
Indoor Sound (low): 24 dBA
-
Indoor Sound (high): 38 dBA
-
Sound Level: 36 dBA
-
Airflow: 341 / 294 / 259 / 235 / 235 CFM
-
Suction Line: 3/8"
12,000 BTU
-
Model: DIYCASSETTE12HP-230D25-O
-
Coverage Area: Up to 550ft²
-
Indoor Sound (low): 24 dBA
-
Indoor Sound (high): 41 dBA
-
Sound Level: 37 dBA
-
Airflow: 353 / 312 / 283 / 247 / 177 CFM
-
Suction Line: 3/8"
18,000 BTU
-
Model: DIYCASSETTE18HP-230D25-O
-
Cooling Capacity: 18,800 BTU/h
-
Heating Capacity: 22,700 BTU/h
-
Coverage Area: Up to 800ft²
-
Indoor Sound (low): 26 dBA
-
Indoor Sound (high): 44 dBA
-
Sound Level: 41.5 dBA
-
Airflow: 400 / 352 / 300 / 207 / 207 CFM
-
Suction Line: 1/2"
What's Included
- MRCOOL OuttaSight ceiling cassette
- Decorative panel
- Remote control with holder and 2 AAA batteries
- Smart controller kit
- DIYPro cable
- Cardboard ceiling template
- Screw kit, cable ties, drainpipe adapter, water receiver and rubber ring
- Plastic wall sleeve and cap, neoprene, drain joint and seal
- Insulation sleeves and sound-absorbent pads
- Installation and remote control manuals
Installation
Designed for homeowner installation. The Quick Connect line set arrives pre-charged with refrigerant, so no vacuum pump, gauges or refrigerant handling is needed. Each fitting is tightened with two wrenches to the torque in MRCOOL's manual and then leak-checked. Electrical work still has to meet local code: the 230V models need a dedicated 230V circuit, and some areas require a permit or a licensed electrician for that part of the job. Check your local rules before you start.

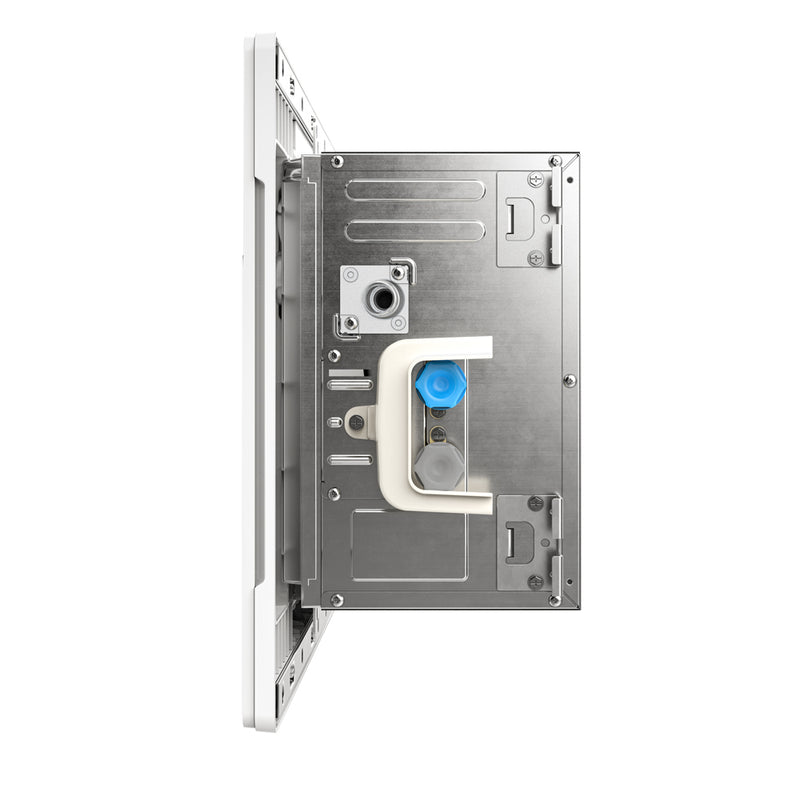

Install on a flat, horizontal ceiling, between standard joists or I-joists on 16" centers, and secure with screws. Fit the decorative panel only after wiring and piping are complete. Line sizes: 1/4" x 3/8" for 6,000 to 12,000 BTU and 1/4" x 1/2" for 18,000 BTU (line set sold separately).
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's DIY 5th Gen limited warranty covers parts for 5 years and the compressor for 7 years from the proof-of-purchase date, with no registration required. It does not cover labor, diagnosis or shipping costs. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
The OuttaSight ceiling cassette is the ceiling-mounted indoor unit in MRCOOL's DIY 5th Gen line. It takes the place of a wall air handler on the DIY 5th Gen multi-zone condensers and, in the 12,000 and 18,000 BTU sizes, on the DIY Hyper Heat single-zone condensers. Condensers, Quick Connect line sets and coupler kits are sold separately.
