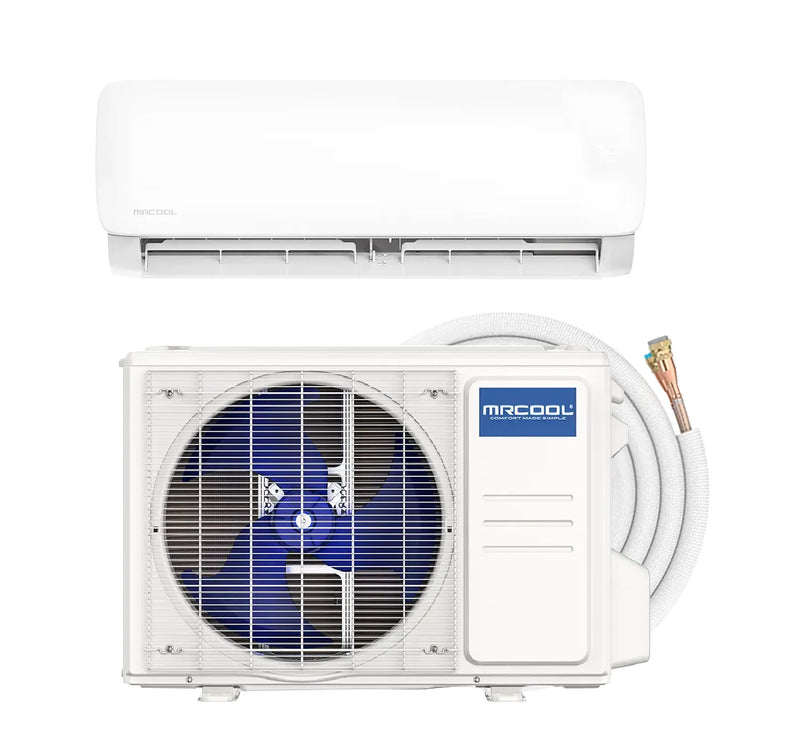

The MRCOOL DIY Easy Pro 5th Gen is a single-zone ductless heat pump kit: a wall-mounted air handler, an outdoor condenser and a 16' Quick Connect line set charged with R-454B, so the two units connect without a vacuum pump or refrigerant gauges. The 9,000 BTU kit is rated 20.2 SEER2, and the four sizes cover areas from up to 400ft² to up to 1,050ft² under ideal conditions.
The 9,000 and 12,000 BTU kits run on 115V, which suits a bedroom, office or garage without a 230V run; the 18,000 and 24,000 BTU kits need 208-230V. That is the MRCOOL DIY Easy Pro 5th Gen system.
Features
16' Pre-Charged Line Set

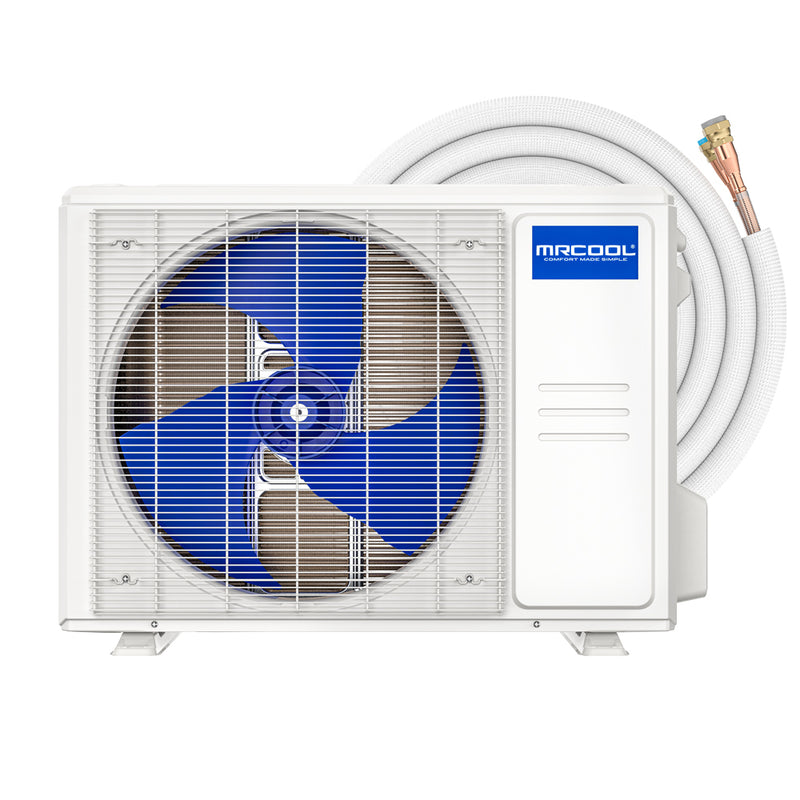

The kit includes a 16' Quick Connect line set charged with R-454B, joined with screw-on fittings and two wrenches instead of brazing or vacuuming.
Efficiency Up to 20.2 SEER2
Ratings run from 20.2 SEER2 on the 9,000 BTU kit to 18.9 SEER2 on the 24,000 BTU kit, with up to 9.3 HSPF2 (Region IV) in heating.
Four Sizes, Two Voltages
9,000 and 12,000 BTU kits on 115V; 18,000 and 24,000 BTU kits on 208-230V. Every outdoor unit lists a 20 A maximum breaker.
Quiet Indoor Unit
On the silent fan setting the air handlers are rated from 17.5 dBA (12,000 BTU) to 21.5 dBA (24,000 BTU).
Smart Controller Kit Included
A smart controller kit ships in the box for MRCOOL app control, alongside the wireless remote with Follow Me.
Gold Fin Condenser Coil
The outdoor coil carries MRCOOL's Gold Fin coating for corrosion resistance, and the system includes refrigerant leakage detection.
Specifications
-
Refrigerant: R-454B
-
Zones: 1
-
Phase: 1
-
Frequency: 60 Hz
-
Included Line Set: 16'
-
Outdoor Max Fuse / Breaker: 20 A
-
Indoor Max Fuse / Breaker: 15 A
-
Indoor Minimum Circuit Ampacity: 3 A
-
Color: White
9,000 BTU 115V
-
Model: EZPRO-09-HP-11516D-O
-
Cooling Capacity: 9,000 BTU/h
-
Heating Capacity: 10,000 BTU/h
-
SEER2: 20.2
-
EER2: 11.3
-
HSPF2 (Region IV): 9.2
-
HSPF2 (Region V): 7.1
-
Coverage Area: Up to 400ft²
-
Voltage: 115V
-
Outdoor Minimum Circuit Ampacity: 17 A
-
Refrigerant Charge: 17.28 oz
-
Liquid Line: 1/4"
-
Suction Line: 3/8"
-
Max Line Set Length: 75'
-
Indoor Sound (Turbo / High / Mid / Low / Silent): 43 / 35 / 31 / 22 / 18 dBA
-
Outdoor Sound: 54 dBA
-
Indoor Unit Dimensions: 28.70"W x 7.87"D x 11.50"H
-
Indoor Unit Weight: 23.81 lbs
-
Outdoor Unit Dimensions: 28.35"W x 10.63"D x 19.49"H
-
Outdoor Unit Weight: 54.67 lbs
12,000 BTU 115V
-
Model: EZPRO-12-HP-11516D-O
-
Cooling Capacity: 12,000 BTU/h
-
Heating Capacity: 12,000 BTU/h
-
SEER2: 19.5
-
EER2: 9
-
HSPF2 (Region IV): 9.3
-
HSPF2 (Region V): 7
-
Coverage Area: Up to 550ft²
-
Voltage: 115V
-
Outdoor Minimum Circuit Ampacity: 19.5 A
-
Refrigerant Charge: 21.52 oz
-
Liquid Line: 1/4"
-
Suction Line: 3/8"
-
Max Line Set Length: 75'
-
Indoor Sound (Turbo / High / Mid / Low / Silent): 44.5 / 40 / 35 / 25.5 / 17.5 dBA
-
Outdoor Sound: 54 dBA
-
Indoor Unit Dimensions: 31.57"W x 7.87"D x 11.61"H
-
Indoor Unit Weight: 24.91 lbs
-
Outdoor Unit Dimensions: 28.35"W x 10.63"D x 19.49"H
-
Outdoor Unit Weight: 54.89 lbs
18,000 BTU 230V
-
Model: EZPRO-18-HP-23016D-O
-
Cooling Capacity: 17,000 BTU/h
-
Heating Capacity: 18,000 BTU/h
-
SEER2: 20.0
-
EER2: 9.8
-
HSPF2 (Region IV): 8.5
-
HSPF2 (Region V): 6.6
-
Coverage Area: Up to 800ft²
-
Voltage: 208-230V
-
Outdoor Minimum Circuit Ampacity: 15 A
-
Refrigerant Charge: 34.92 oz
-
Liquid Line: 1/4"
-
Suction Line: 1/2"
-
Max Line Set Length: 65.6'
-
Indoor Sound (Turbo / High / Mid / Low / Silent): 46.5 / 43 / 36.5 / 30 / 18.5 dBA
-
Outdoor Sound: 55 dBA
-
Indoor Unit Dimensions: 38.23"W x 8.98"D x 12.64"H
-
Indoor Unit Weight: 30.64 lbs
-
Outdoor Unit Dimensions: 30.12"W x 11.93"D x 21.85"H
-
Outdoor Unit Weight: 62.61 lbs
24,000 BTU 230V
-
Model: EZPRO-24-HP-23016D-O
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 25,000 BTU/h
-
SEER2: 18.9
-
EER2: 9.7
-
HSPF2 (Region IV): 8.7
-
HSPF2 (Region V): 6.9
-
Coverage Area: Up to 1,050ft²
-
Voltage: 208-230V
-
Outdoor Minimum Circuit Ampacity: 19 A
-
Refrigerant Charge: 50.44 oz
-
Liquid Line: 3/8"
-
Suction Line: 5/8"
-
Max Line Set Length: 75'
-
Indoor Sound (Turbo / High / Mid / Low / Silent): 51.5 / 45.5 / 40.5 / 26.5 / 21.5 dBA
-
Outdoor Sound: 61 dBA
-
Indoor Unit Dimensions: 42.60"W x 9.21"D x 13.27"H
-
Indoor Unit Weight: 35.49 lbs
-
Outdoor Unit Dimensions: 35.04"W x 13.46"D x 26.50"H
-
Outdoor Unit Weight: 95.90 lbs
What's Included

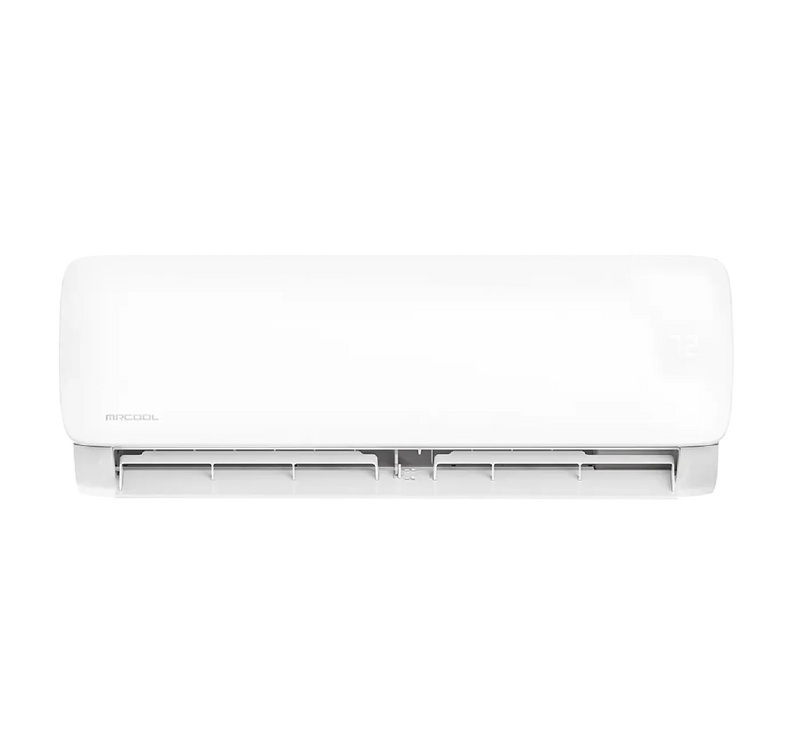

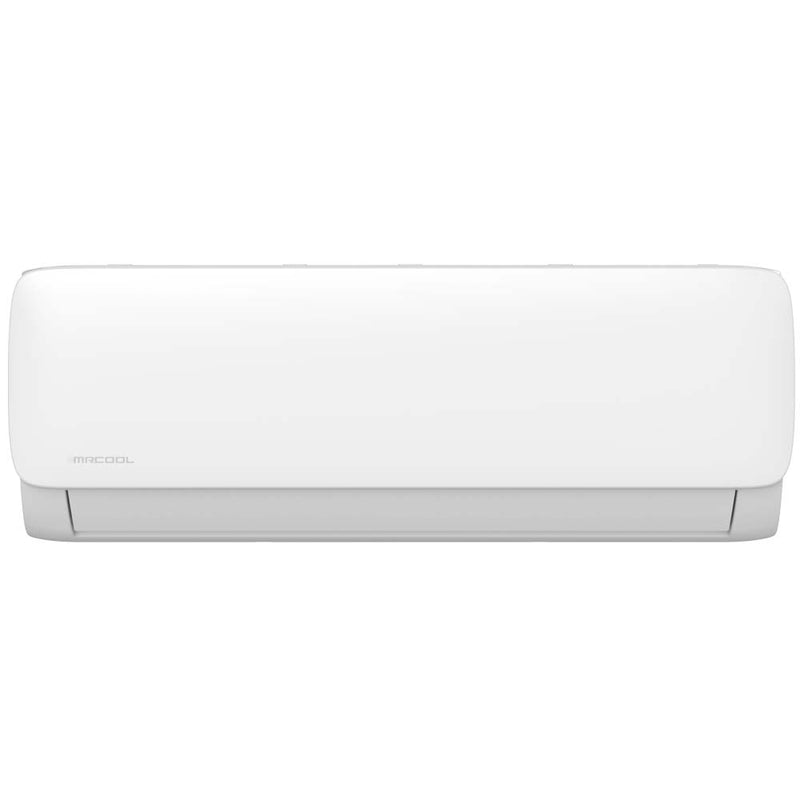

- MRCOOL DIY Easy Pro 5th Gen wall-mounted air handler

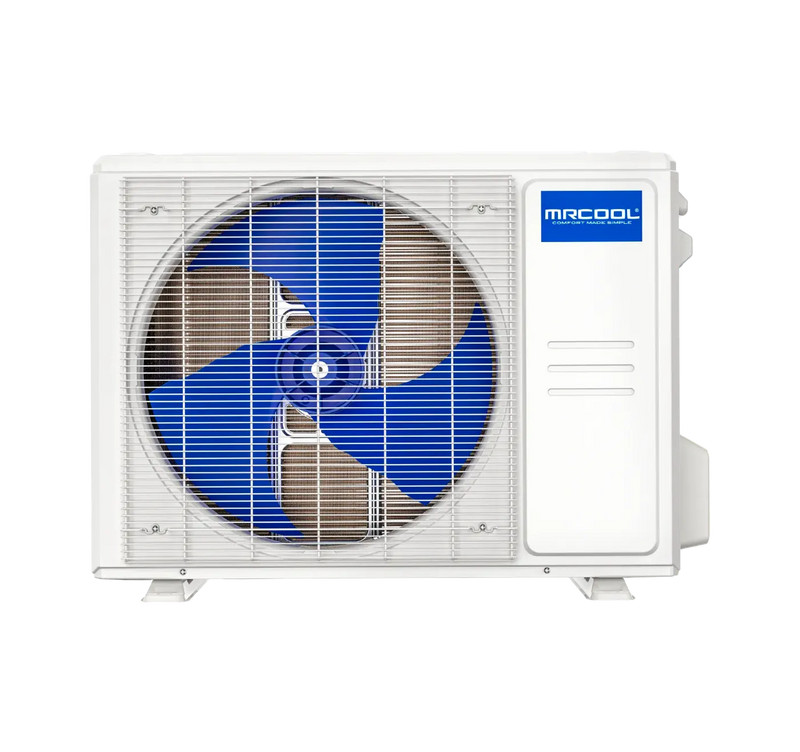

- MRCOOL DIY Easy Pro 5th Gen condenser
- 16' Quick Connect pre-charged line set
- DIYPro cable
- Smart controller kit
- Remote control with holder, fixing screws and 2 AAA batteries
- Metal mounting plate and cardboard template, anchors and mounting plate screws
- Plastic wall sleeve and cap, neoprene, drain pipe, drain joint and seal
- Insulation sleeves, sound-absorbent pads, non-adhesive tape, small filter and Allen wrench
- Installation and remote control manuals
Installation
Designed for homeowner installation. The Quick Connect line set arrives pre-charged with refrigerant, so no vacuum pump, gauges or refrigerant handling is needed. Each fitting is tightened with two wrenches to the torque in MRCOOL's manual and then leak-checked. Electrical work still has to meet local code: the 230V models need a dedicated 230V circuit, and some areas require a permit or a licensed electrician for that part of the job. Check your local rules before you start.
Line sizes are 1/4" x 3/8" (9,000 and 12,000 BTU), 1/4" x 1/2" (18,000 BTU) and 3/8" x 5/8" (24,000 BTU). The standard run is the included 16' set; MRCOOL's manual lists a maximum run of 75' for the 9,000, 12,000 and 24,000 BTU kits and 65.6' for the 18,000 BTU kit, with up to 49.2' of elevation. Tighten the Quick Connect fittings with two wrenches to the torque in the manual and leak-check every joint.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's Easy Pro 5th Gen limited warranty covers parts for 1 year and the compressor for 2 years from the proof-of-purchase date, is non-transferable, and does not cover labor. MRCOOL's brochure adds a 2-year full unit replacement for compressor failure and lifetime compressor replacement when the original, registered owner stays enrolled in the MRCOOL Care Program every year. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
The DIY Easy Pro 5th Gen is MRCOOL's homeowner-installed single-zone heat pump kit in 9,000, 12,000, 18,000 and 24,000 BTU sizes, charged with R-454B and supplied with a 16' pre-charged Quick Connect line set. It uses the same indoor and outdoor cabinets MRCOOL lists for the DIY Easy Pro sold with an 11.5' set, and sits beside the DIY Select and the DIY 5th Gen in the DIY range. Longer Quick Connect line sets, coupler kits and the LineGuard cover kit are sold separately.
