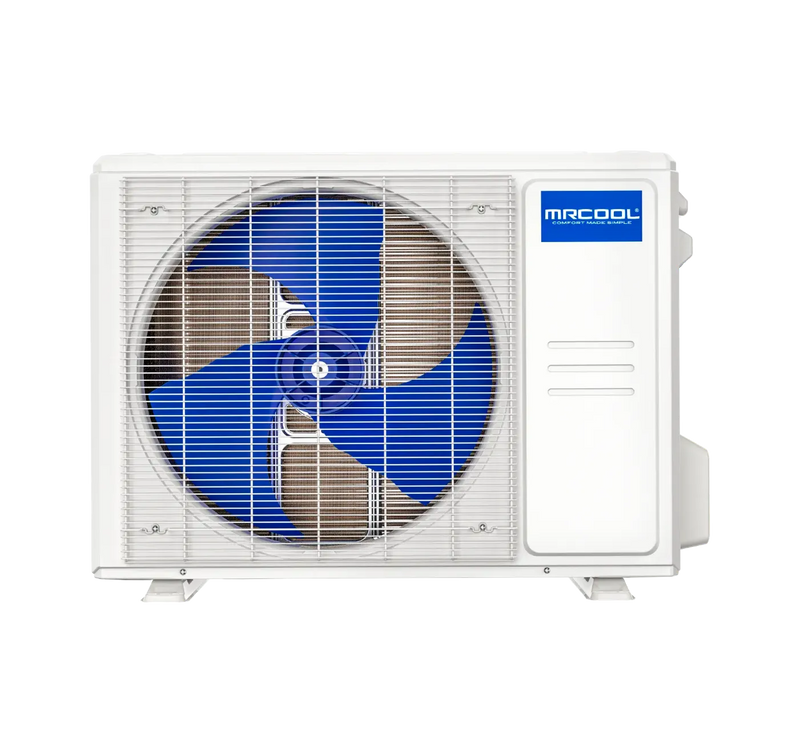

This is the outdoor heat pump unit of the MRCOOL DIY Easy Pro 5th Gen single-zone system, sold on its own to replace a condenser or to pair with a 5th Gen Easy Pro wall air handler of the same capacity. It ships with a 16' Quick Connect line set factory charged with R-454B, and the 9,000 BTU unit is rated 20.2 SEER2 and 9.2 HSPF2 (Region IV).
The 9,000 and 12,000 BTU units run on 115V and the 18,000 and 24,000 BTU units on 208-230V, and all four keep cooling down to 5°F outdoors. Match the capacity to your indoor unit exactly. That is the MRCOOL DIY Easy Pro 5th Gen condenser.
Features

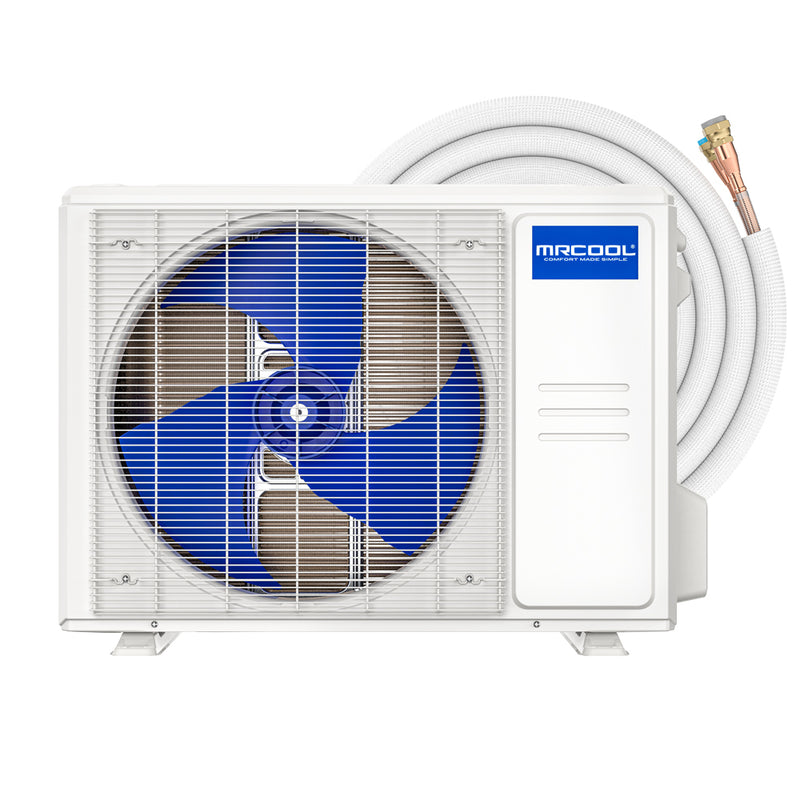

16' Line Set in the Box
The carton includes a 16' Quick Connect line set charged with R-454B, so the joints thread together without a vacuum pump or gauges.
Rated Efficiency
From 20.2 SEER2 on the 9,000 BTU unit to 18.9 SEER2 on the 24,000 BTU unit, with up to 9.3 HSPF2 (Region IV) in heating.
115V or 230V Sizes
9,000 and 12,000 BTU on 115V; 18,000 and 24,000 BTU on 208-230V, each with a 20 A maximum breaker.
Low-Ambient Cooling
Keeps cooling at outdoor temperatures down to 5°F, useful for a server closet or a greenhouse.
Gold Fin Coil
The outdoor coil carries MRCOOL's Gold Fin coating against corrosion, and the system includes refrigerant leakage detection.
Inverter Rotary Compressor
A DC inverter rotary compressor changes speed with the load instead of cycling fully on and off.
Specifications
-
Zones: 1
-
Phase: 1
-
Frequency: 60 Hz
-
Max Fuse / Breaker: 20 A
-
Refrigerant: R-454B
-
Cooling Operating Range (outdoor, low): 5°F
-
Included Line Set: 16'
-
Compressor: Rotary
-
Inverter: DC
-
AHRI Certified: Yes
-
UL Listed: Yes
-
ETL Listed: Yes
-
CSA Listed: Yes
-
Color: White
9,000 BTU 115V
-
Model: EZPRO-09-HP-C-11516D-O
-
Cooling Capacity: 9,000 BTU/h
-
Heating Capacity: 10,000 BTU/h
-
Nominal Tonnage: 0.75 ton
-
SEER2: 20.2
-
EER2: 11.3
-
HSPF2 (Region IV): 9.2
-
HSPF2 (Region V): 7.1
-
Voltage: 115V
-
Minimum Circuit Ampacity: 17 A
-
Refrigerant Charge: 17.28 oz
-
Max Line Set Length: 75'
-
Liquid Line: 1/4"
-
Suction Line: 3/8"
-
Dimensions: 28.35"W x 10.63"D x 19.49"H
-
Weight: 54.67 lbs
-
Outdoor Sound: 54 dBA
12,000 BTU 115V
-
Model: EZPRO-12-HP-C-11516D-O
-
Cooling Capacity: 12,000 BTU/h
-
Heating Capacity: 12,000 BTU/h
-
Nominal Tonnage: 1 ton
-
SEER2: 19.5
-
EER2: 9
-
HSPF2 (Region IV): 9.3
-
HSPF2 (Region V): 7
-
Voltage: 115V
-
Minimum Circuit Ampacity: 19.5 A
-
Refrigerant Charge: 21.52 oz
-
Max Line Set Length: 75'
-
Liquid Line: 1/4"
-
Suction Line: 3/8"
-
Dimensions: 28.35"W x 10.63"D x 19.49"H
-
Weight: 54.89 lbs
-
Outdoor Sound: 54 dBA
18,000 BTU 230V
-
Model: EZPRO-18-HP-C-23016D-O
-
Cooling Capacity: 17,000 BTU/h
-
Heating Capacity: 18,000 BTU/h
-
Nominal Tonnage: 1.5 ton
-
SEER2: 20
-
EER2: 9.8
-
HSPF2 (Region IV): 8.5
-
HSPF2 (Region V): 6.6
-
Voltage: 208/230V
-
Minimum Circuit Ampacity: 15 A
-
Refrigerant Charge: 34.92 oz
-
Max Line Set Length: 65.6'
-
Liquid Line: 1/4"
-
Suction Line: 1/2"
-
Dimensions: 30.12"W x 11.93"D x 21.85"H
-
Weight: 62.61 lbs
-
Outdoor Sound: 55 dBA
24,000 BTU 230V
-
Model: EZPRO-24-HP-C-23016D-O
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 25,000 BTU/h
-
Nominal Tonnage: 2 ton
-
SEER2: 18.9
-
EER2: 9.7
-
HSPF2 (Region IV): 8.7
-
HSPF2 (Region V): 6.9
-
Voltage: 208/230V
-
Minimum Circuit Ampacity: 19 A
-
Refrigerant Charge: 50.44 oz
-
Max Line Set Length: 75'
-
Liquid Line: 3/8"
-
Suction Line: 5/8"
-
Dimensions: 35.04"W x 13.46"D x 26.5"H
-
Weight: 95.9 lbs
-
Outdoor Sound: 61 dBA
What's Included
- MRCOOL DIY Easy Pro 5th Gen condenser
- 16' Quick Connect pre-charged line set
Installation
Designed for homeowner installation. The Quick Connect line set arrives pre-charged with refrigerant, so no vacuum pump, gauges or refrigerant handling is needed. Each fitting is tightened with two wrenches to the torque in MRCOOL's manual and then leak-checked. Electrical work still has to meet local code: the 230V models need a dedicated 230V circuit, and some areas require a permit or a licensed electrician for that part of the job. Check your local rules before you start.
Set the condenser on a level pad, riser or wall bracket with the clearances in the manual. Line sizes are 1/4" x 3/8" (9,000 and 12,000 BTU), 1/4" x 1/2" (18,000 BTU) and 3/8" x 5/8" (24,000 BTU). MRCOOL's manual lists a maximum run of 75' for the 9,000, 12,000 and 24,000 BTU units and 65.6' for the 18,000 BTU unit. The circuit must meet local electrical code.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's Easy Pro 5th Gen limited warranty covers parts for 1 year and the compressor for 2 years from the proof-of-purchase date, is non-transferable, and does not cover labor. MRCOOL's brochure adds a 2-year full unit replacement for compressor failure and lifetime compressor replacement when the original, registered owner stays enrolled in the MRCOOL Care Program every year. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
The DIY Easy Pro 5th Gen is MRCOOL's homeowner-installed single-zone heat pump kit in 9,000, 12,000, 18,000 and 24,000 BTU sizes, charged with R-454B and supplied with a 16' pre-charged Quick Connect line set. It uses the same indoor and outdoor cabinets MRCOOL lists for the DIY Easy Pro sold with an 11.5' set, and sits beside the DIY Select and the DIY 5th Gen in the DIY range. Longer Quick Connect line sets, coupler kits and the LineGuard cover kit are sold separately.
