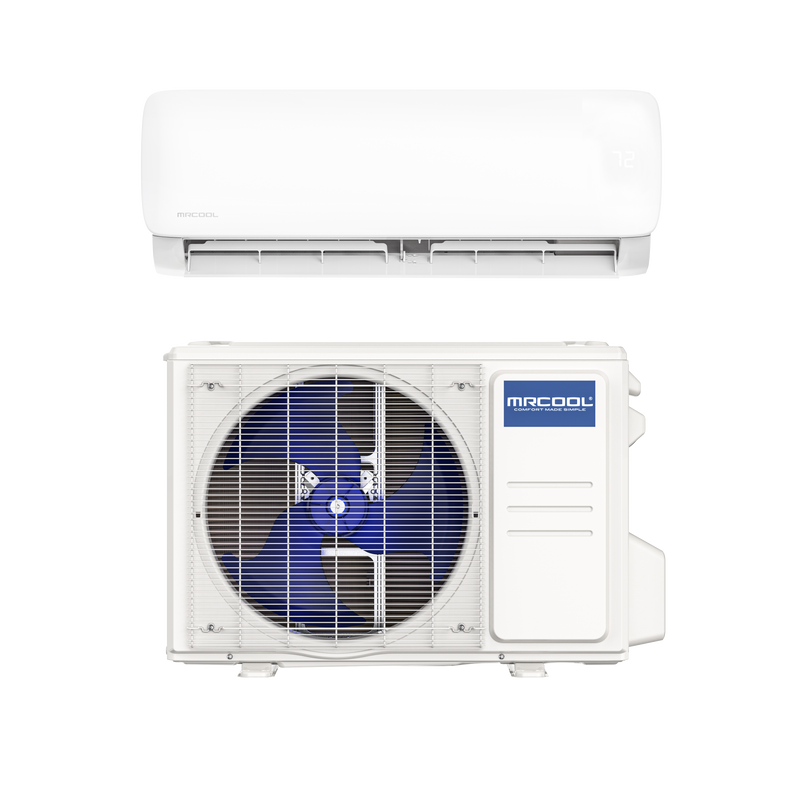

The MRCOOL DIY Easy Pro system pairs a wall-mounted air handler with an outdoor heat pump and an 11.5' Quick Connect line set charged with R-454B, so it installs without a vacuum pump or refrigerant gauges. The 9,000 BTU size is rated 20.2 SEER2, and the system is rated to operate from -13°F to 122°F outdoors.
Four capacities cover rooms from up to 400ft² to up to 1,050ft², which makes it a fit for a garage, bedroom, office or bonus room off the main system. That is the MRCOOL DIY Easy Pro single-zone system.
Features
Pre-Charged Quick Connect Line Set
The 11.5' line set comes charged with R-454B and joins the units with screw-on fittings, so no vacuuming or brazing is required.
Efficiency Up to 20.2 SEER2
Ratings run from 20.2 SEER2 (9,000 BTU) to 18.9 SEER2 (24,000 BTU), with heating up to 9.3 HSPF2 (Region IV).
Wide Operating Range
Rated to operate at outdoor temperatures from -13°F to 122°F.
Four Sizes, Two Voltages
The 9,000 and 12,000 BTU systems run on 115V; the 18,000 and 24,000 BTU systems run on 208/230V.
App, Voice and Follow Me
Control it with the MRCOOL Comfort app, Amazon Alexa, Google Assistant or the included remote, whose Follow Me mode senses the temperature where you are.
Washable Filters
The indoor filters wash and refit, keeping routine maintenance to a rinse.
Gold Fin Coil Coating
MRCOOL's Gold Fin coating on the condenser coil adds corrosion resistance in humid or coastal climates.
Specifications
-
Zones: 1
-
Phase: 1
-
Frequency: 60 Hz
-
Max Fuse / Breaker: 20 A
-
Refrigerant: R-454B
-
Included Line Set: 11.5'
-
Compressor: Rotary
-
Inverter: Yes
-
Metering Device: EEV
-
AHRI Certified: Yes
-
UL Listed: Yes
-
ETL Listed: Yes
-
CSA Listed: Yes
-
Color: White
-
Filter: Reusable
9,000 BTU 115V
-
Model: EZPRO-09-HP-11511DE-O
-
Cooling Capacity: 9,000 BTU/h
-
Heating Capacity: 10,000 BTU/h
-
Nominal Tonnage: 0.75 ton
-
SEER2: 20.2
-
EER2: 11.3
-
HSPF2 (Region IV): 9.2
-
HSPF2 (Region V): 7.1
-
Voltage: 115V
-
Minimum Circuit Ampacity: 17 A
-
Refrigerant Charge: 17.28 oz
-
Sound Level: 54 dBA
-
Max Line Set Length: 75'
-
Liquid Line: 1/4"
-
Suction Line: 3/8"
-
ENERGY STAR: Yes
-
Outdoor Unit Dimensions: 28.35"W x 10.63"D x 19.49"H
-
Outdoor Unit Weight: 54.67 lbs
-
Indoor Sound (low): 18 dBA
-
Indoor Sound (high): 43 dBA
-
Airflow: 312 / 235.4 / 170.7 / 135.4 CFM
-
Indoor Unit Dimensions: 28.7"W x 7.87"D x 11.5"H
-
Indoor Unit Weight: 23.81 lbs
12,000 BTU 115V
-
Model: EZPRO-12-HP-11511DE-O
-
Cooling Capacity: 12,000 BTU/h
-
Heating Capacity: 12,000 BTU/h
-
Nominal Tonnage: 1 ton
-
SEER2: 19.5
-
EER2: 9
-
HSPF2 (Region IV): 9.3
-
HSPF2 (Region V): 7
-
Voltage: 115V
-
Minimum Circuit Ampacity: 19.5 A
-
Refrigerant Charge: 21.52 oz
-
Sound Level: 54 dBA
-
Max Line Set Length: 75'
-
Liquid Line: 1/4"
-
Suction Line: 3/8"
-
ENERGY STAR: No
-
Outdoor Unit Dimensions: 28.35"W x 10.63"D x 19.49"H
-
Outdoor Unit Weight: 54.89 lbs
-
Indoor Sound (low): 17.5 dBA
-
Indoor Sound (high): 44.5 dBA
-
Airflow: 353.2 / 294.3 / 235.4 / 176.6 / 129.5 CFM
-
Indoor Unit Dimensions: 31.57"W x 7.87"D x 11.61"H
-
Indoor Unit Weight: 24.91 lbs
18,000 BTU 230V
-
Model: EZPRO-18-HP-23011DE-O
-
Cooling Capacity: 17,000 BTU/h
-
Heating Capacity: 18,000 BTU/h
-
Nominal Tonnage: 1.5 ton
-
SEER2: 20
-
EER2: 9.8
-
HSPF2 (Region IV): 8.5
-
HSPF2 (Region V): 6.6
-
Voltage: 208/230V
-
Minimum Circuit Ampacity: 15 A
-
Refrigerant Charge: 34.92 oz
-
Sound Level: 55 dBA
-
Max Line Set Length: 65.6'
-
Liquid Line: 1/4"
-
Suction Line: 1/2"
-
ENERGY STAR: No
-
Outdoor Unit Dimensions: 30.12"W x 11.93"D x 21.85"H
-
Outdoor Unit Weight: 62.61 lbs
-
Indoor Sound (low): 18.5 dBA
-
Indoor Sound (high): 46.5 dBA
-
Airflow: 470.9 / 400.2 / 329.6 / 270.8 CFM
-
Indoor Unit Dimensions: 38.23"W x 8.98"D x 12.64"H
-
Indoor Unit Weight: 30.64 lbs
24,000 BTU 230V
-
Model: EZPRO-24-HP-23011DE-O
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 25,000 BTU/h
-
Nominal Tonnage: 2 ton
-
SEER2: 18.9
-
EER2: 9.7
-
HSPF2 (Region IV): 8.7
-
HSPF2 (Region V): 6.9
-
Voltage: 208/230V
-
Minimum Circuit Ampacity: 19 A
-
Refrigerant Charge: 50.44 oz
-
Sound Level: 61 dBA
-
Max Line Set Length: 75'
-
Liquid Line: 3/8"
-
Suction Line: 5/8"
-
ENERGY STAR: No
-
Outdoor Unit Dimensions: 35.04"W x 13.46"D x 26.5"H
-
Outdoor Unit Weight: 95.9 lbs
-
Indoor Sound (low): 21.5 dBA
-
Indoor Sound (high): 51.5 dBA
-
Airflow: 729.9 / 547.4 / 400.2 / 329.6 CFM
-
Indoor Unit Dimensions: 42.6"W x 9.21"D x 13.27"H
-
Indoor Unit Weight: 35.49 lbs
What's Included

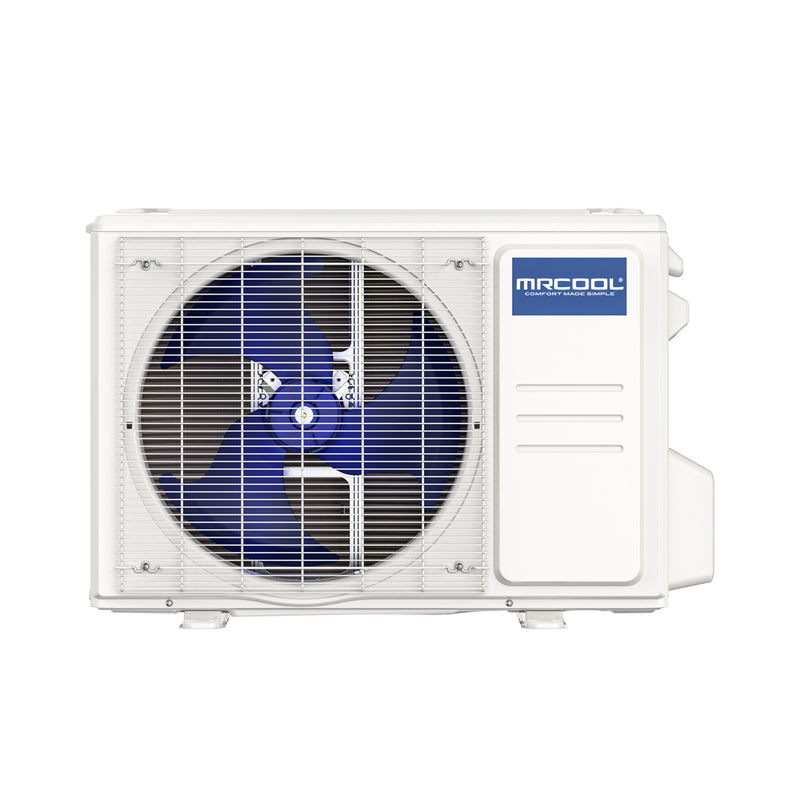

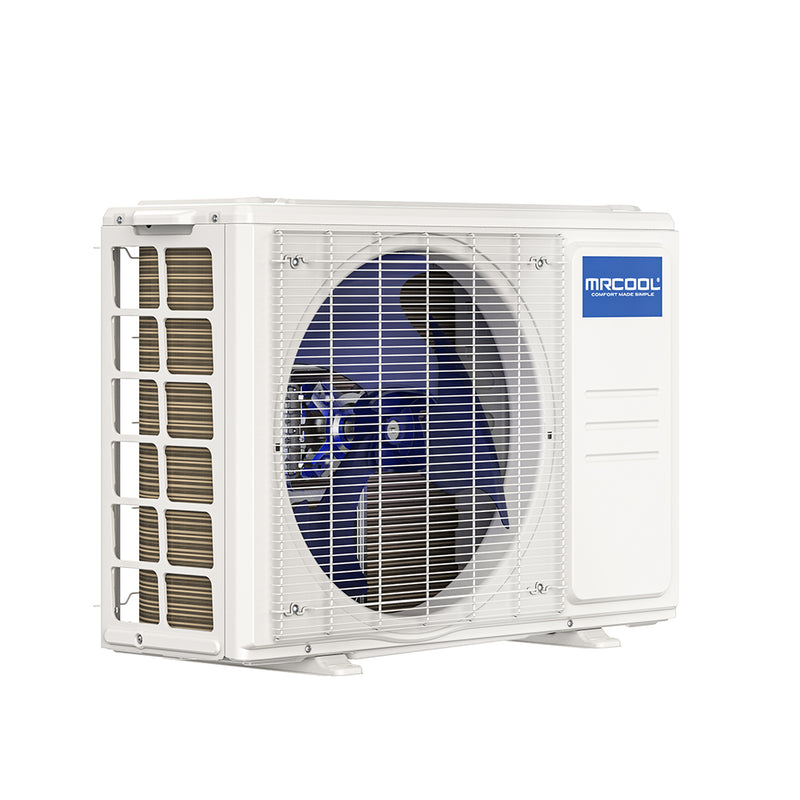

- MRCOOL DIY Easy Pro condenser

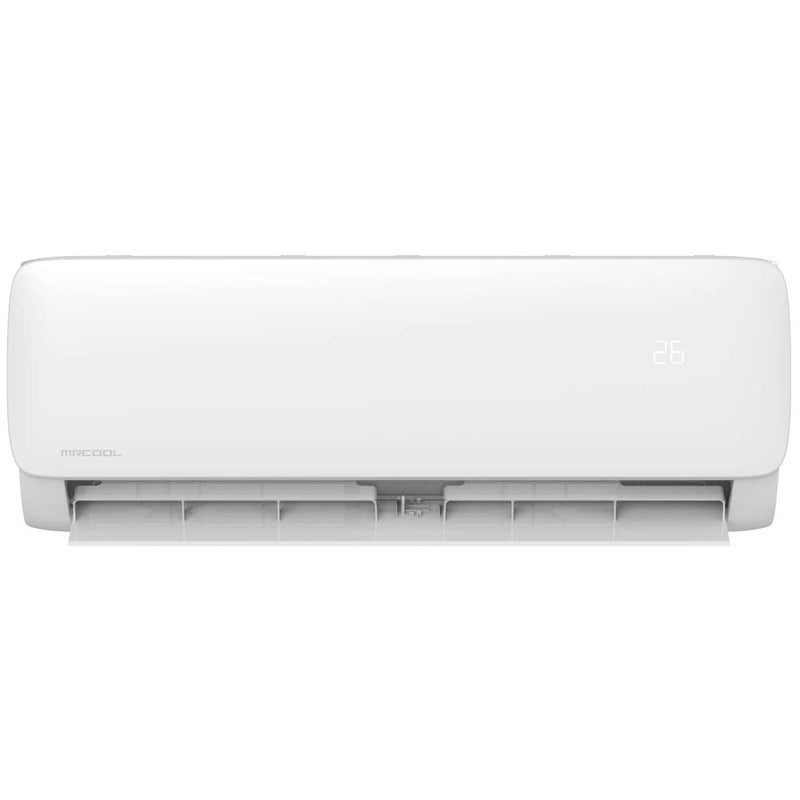

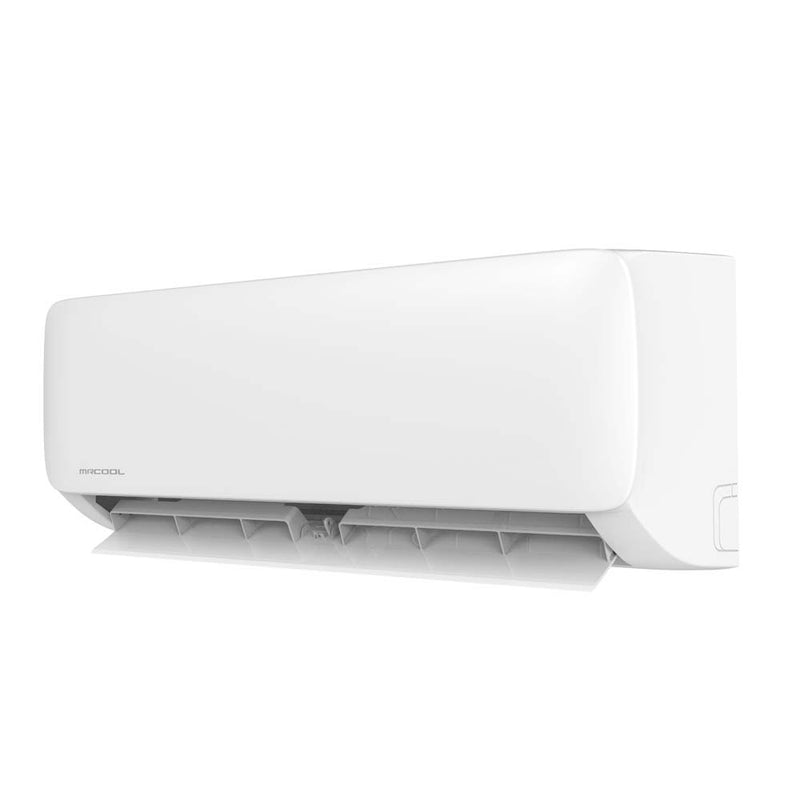

- MRCOOL DIY Easy Pro wall-mounted air handler
- 11.5' Quick Connect pre-charged line set
- DIYPro cable
- MRCOOL Comfort smart module (WMK-25)
- Remote control with holder, fixing screws and 2 AAA batteries

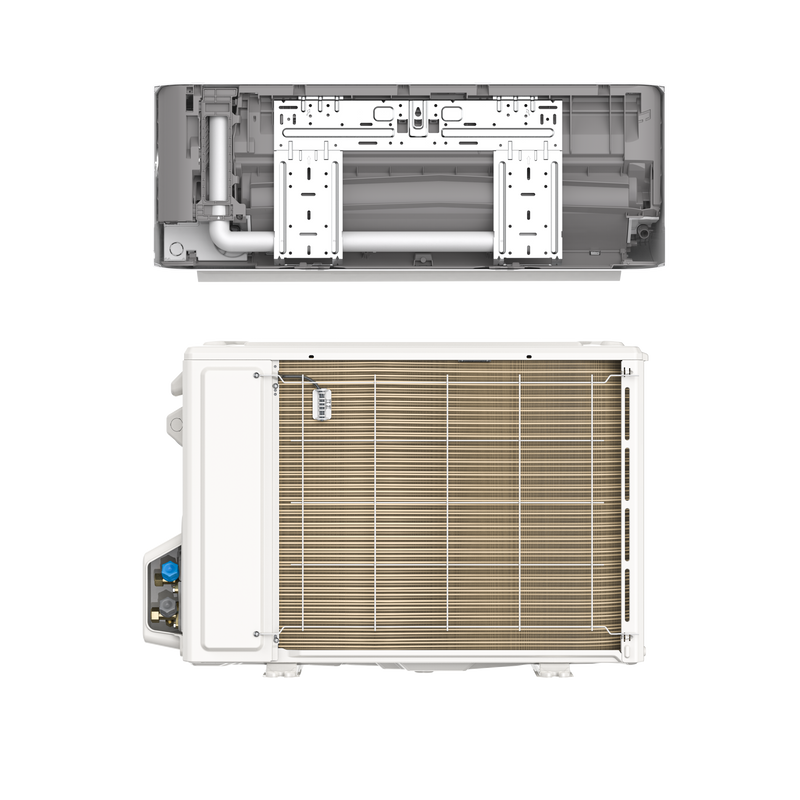

- Metal mounting plate and cardboard template, anchors and mounting screws
- Plastic wall sleeve and cap, neoprene, drain pipe, drain joint and seal
- Insulation sleeves, sound-absorbent pads, non-adhesive tape, small filter and Allen wrench
- Installation and remote control manuals
Installation
Designed for homeowner installation. The Quick Connect line set arrives pre-charged with refrigerant, so no vacuum pump, gauges or refrigerant handling is needed. Each fitting is tightened with two wrenches to the torque in MRCOOL's manual and then leak-checked. Electrical work still has to meet local code: the 230V models need a dedicated 230V circuit, and some areas require a permit or a licensed electrician for that part of the job. Check your local rules before you start.
Mount the indoor unit at least 6' above the floor in a room no lower than 7.3'. The wall hole is 2.5" for the 9,000, 12,000 and 18,000 BTU sizes and 3.54" for the 24,000 BTU size, drilled at a slight downward angle. Line sizes are 1/4" x 3/8" (9,000 and 12,000 BTU), 1/4" x 1/2" (18,000 BTU) and 3/8" x 5/8" (24,000 BTU). The outdoor unit power cable is purchased separately.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's DIY Easy Pro limited warranty covers parts for 3 years and the compressor for 5 years from the proof-of-purchase date, with no registration required; line sets are not counted as covered parts. An extended limited lifetime replacement warranty is available only through MRCOOL's paid Care Kit Program when its conditions are met. The warranty is non-transferable, assigned to the original, registered owner, and does not cover labor. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
DIY Easy Pro is the higher-efficiency member of MRCOOL's homeowner-installed single-zone range, rated up to 20.2 SEER2 in four sizes from 9,000 to 24,000 BTU and charged with R-454B. Each system pairs a wall air handler with its matched condenser and an 11.5' pre-charged Quick Connect line set. MRCOOL's DIY Select covers the same sizes with simpler ratings, and the DIY 5th Gen adds larger capacities and multi-zone condensers. Longer Quick Connect line sets in 16', 25', 35' and 50' lengths, coupler kits and the LineGuard cover kit are sold separately.
