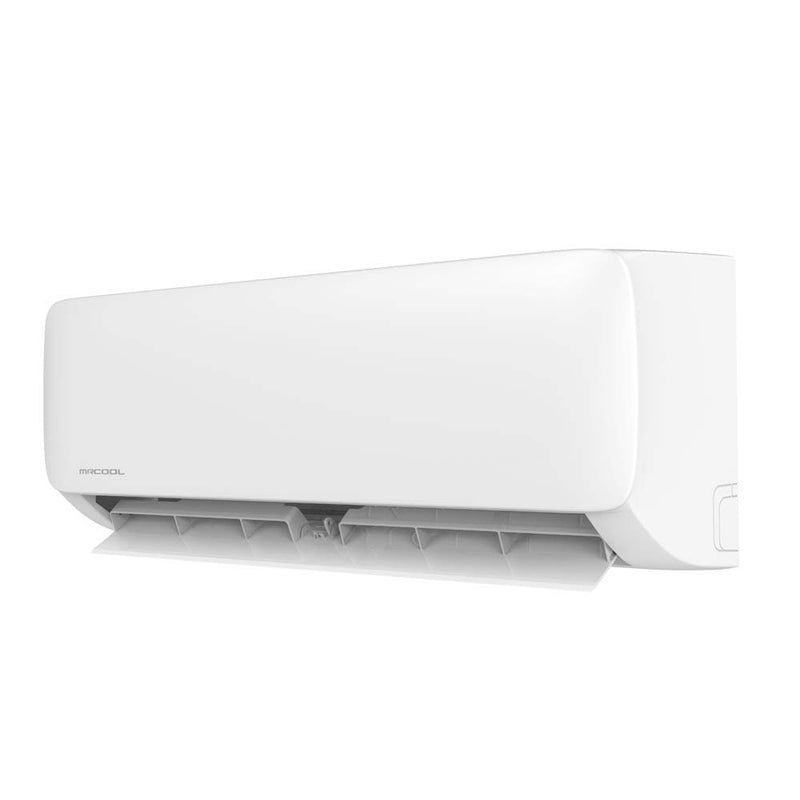

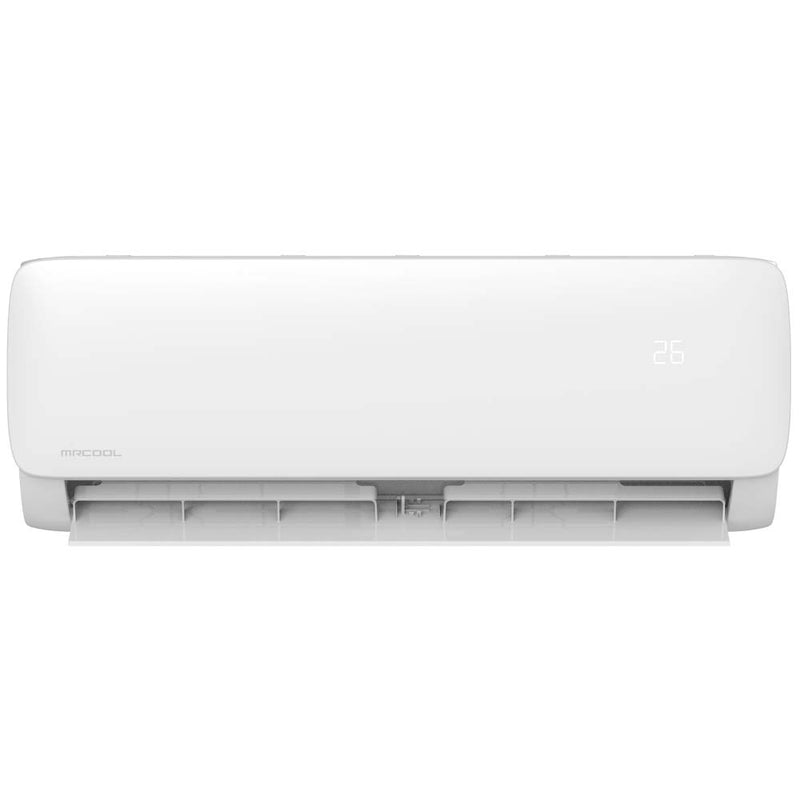

This is the indoor wall unit of the MRCOOL DIY Easy Pro single-zone system, sold separately for pairing with the DIY Easy Pro condenser of the same capacity. It comes with a 13' DIYPro communication cable, and on its silent fan setting the 12,000 BTU head is rated at 17.5 dBA.
The four sizes cover rooms from up to 400ft² to up to 1,050ft², and the remote, MRCOOL Comfort app and voice assistants all control it. That is the MRCOOL DIY Easy Pro air handler.
Features
DIYPro Cable Included
A 13' DIYPro communication cable links the air handler to the condenser and is designed to replace separate electrical conduit for that run.
Quiet on the Lowest Setting
Rated 18 dBA (9,000 BTU), 17.5 dBA (12,000 BTU), 18.5 dBA (18,000 BTU) and 21.5 dBA (24,000 BTU) on the silent fan setting.
Sized by Room
Coverage from up to 400ft² for the 9,000 BTU head to up to 1,050ft² for the 24,000 BTU head, based on ideal conditions.
Washable Filters
The filters rinse clean and go back in, with no replacement cartridge needed for routine care.
Remote, App and Voice
Use the wireless remote with Follow Me, the MRCOOL Comfort app, or Amazon Alexa and Google Assistant.
Specifications
-
Zones: 1
-
Phase: 1
-
Frequency: 60 Hz
-
Minimum Circuit Ampacity: 3 A
-
Max Fuse / Breaker: 15 A
-
Refrigerant: R-454B
-
Blower Motor: DC
-
Filter: Reusable
-
Wi-Fi: Yes
-
Color: White
9,000 BTU 115V
-
Model: EZPRO-09-HP-WMAH-115DE-O
-
Nominal Tonnage: 0.75 ton
-
Coverage Area: 400ft².
-
Voltage: 115V
-
Indoor Sound (low): 18 dBA
-
Indoor Sound (high): 43 dBA
-
Airflow: 312 / 235.4 / 170.7 / 135.4 CFM
-
Dimensions: 28.7"W x 7.87"D x 11.5"H
-
Weight: 23.81 lbs
12,000 BTU 115V
-
Model: EZPRO-12-HP-WMAH-115DE-O
-
Nominal Tonnage: 1 ton
-
Coverage Area: 550ft².
-
Voltage: 115V
-
Indoor Sound (low): 17.5 dBA
-
Indoor Sound (high): 44.5 dBA
-
Airflow: 353.2 / 294.3 / 235.4 / 176.6 / 129.5 CFM
-
Dimensions: 31.57"W x 7.87"D x 11.61"H
-
Weight: 24.91 lbs
18,000 BTU 230V
-
Model: EZPRO-18-HP-WMAH-230DE-O
-
Nominal Tonnage: 1.5 ton
-
Coverage Area: 800ft².
-
Voltage: 208/230V
-
Indoor Sound (low): 18.5 dBA
-
Indoor Sound (high): 46.5 dBA
-
Airflow: 470.9 / 400.2 / 329.6 / 270.8 CFM
-
Dimensions: 38.23"W x 8.98"D x 12.64"H
-
Weight: 30.64 lbs
24,000 BTU 230V
-
Model: EZPRO-24-HP-WMAH-230DE-O
-
Nominal Tonnage: 2 ton
-
Coverage Area: 1,050ft².
-
Voltage: 208/230V
-
Indoor Sound (low): 21.5 dBA
-
Indoor Sound (high): 51.5 dBA
-
Airflow: 729.9 / 547.4 / 400.2 / 329.6 CFM
-
Dimensions: 42.6"W x 9.21"D x 13.27"H
-
Weight: 35.49 lbs
What's Included
- MRCOOL DIY Easy Pro wall-mounted air handler
- 13' DIYPro communication cable
- Wireless remote control
- Wall mounting plate and hardware
Installation
Designed for homeowner installation. The Quick Connect line set arrives pre-charged with refrigerant, so no vacuum pump, gauges or refrigerant handling is needed. Each fitting is tightened with two wrenches to the torque in MRCOOL's manual and then leak-checked. Electrical work still has to meet local code: the 230V models need a dedicated 230V circuit, and some areas require a permit or a licensed electrician for that part of the job. Check your local rules before you start.
Mount the air handler at least 6' above the floor in a room no lower than 7.3'. The wall hole is 2.5" for the 9,000, 12,000 and 18,000 BTU sizes and 3.54" for the 24,000 BTU size. Use the Quick Connect line set size that matches: 1/4" x 3/8" (9,000 and 12,000 BTU), 1/4" x 1/2" (18,000 BTU) or 3/8" x 5/8" (24,000 BTU).
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's DIY Easy Pro limited warranty covers parts for 3 years and the compressor for 5 years from the proof-of-purchase date, with no registration required; line sets are not counted as covered parts. An extended limited lifetime replacement warranty is available only through MRCOOL's paid Care Kit Program when its conditions are met. The warranty is non-transferable, assigned to the original, registered owner, and does not cover labor. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
DIY Easy Pro is the higher-efficiency member of MRCOOL's homeowner-installed single-zone range, rated up to 20.2 SEER2 in four sizes from 9,000 to 24,000 BTU and charged with R-454B. Each system pairs a wall air handler with its matched condenser and an 11.5' pre-charged Quick Connect line set. MRCOOL's DIY Select covers the same sizes with simpler ratings, and the DIY 5th Gen adds larger capacities and multi-zone condensers. Longer Quick Connect line sets in 16', 25', 35' and 50' lengths, coupler kits and the LineGuard cover kit are sold separately.
