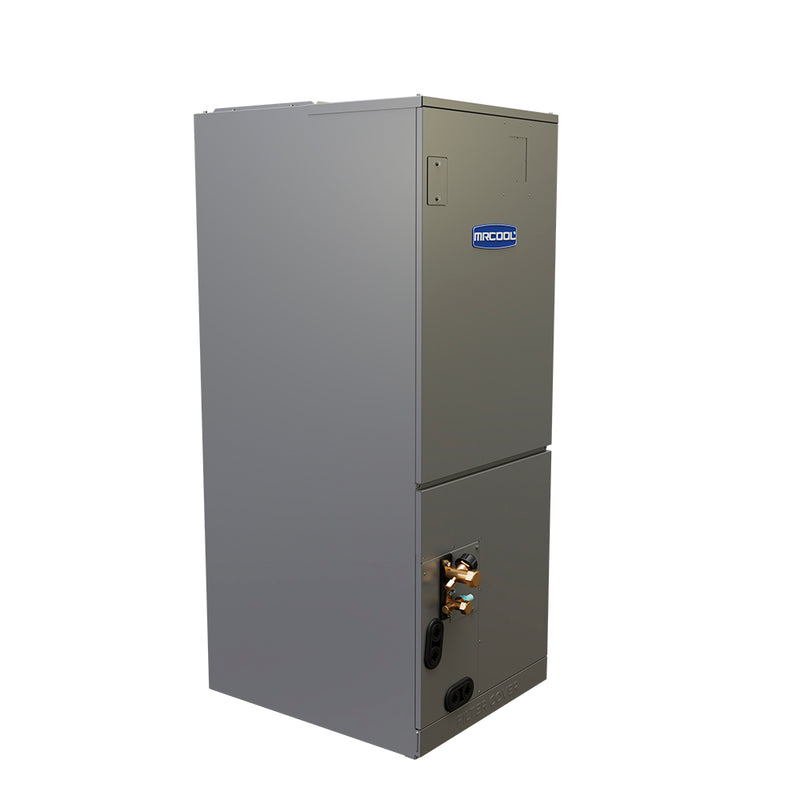

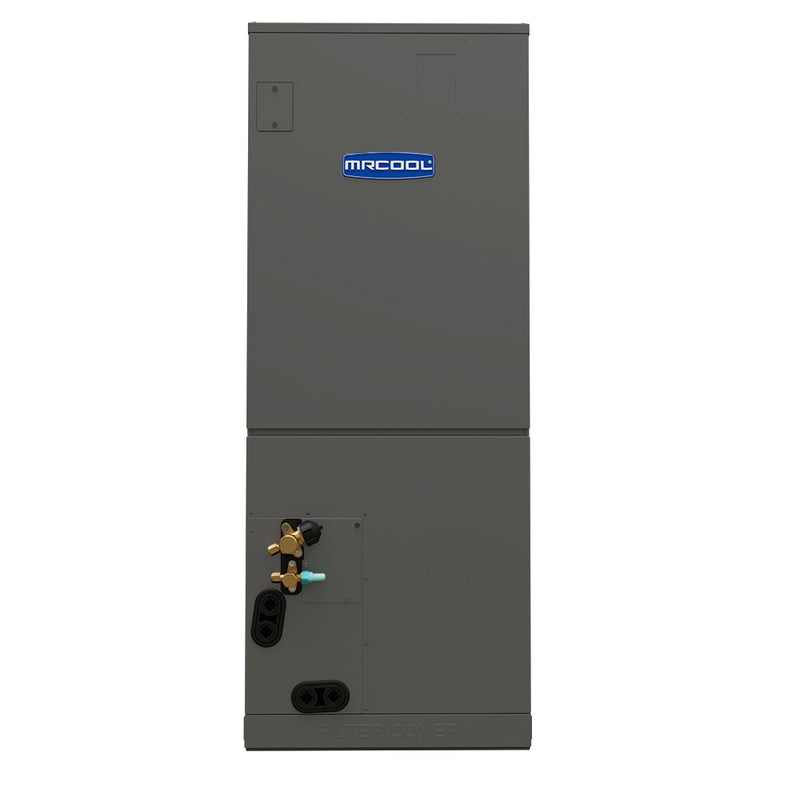

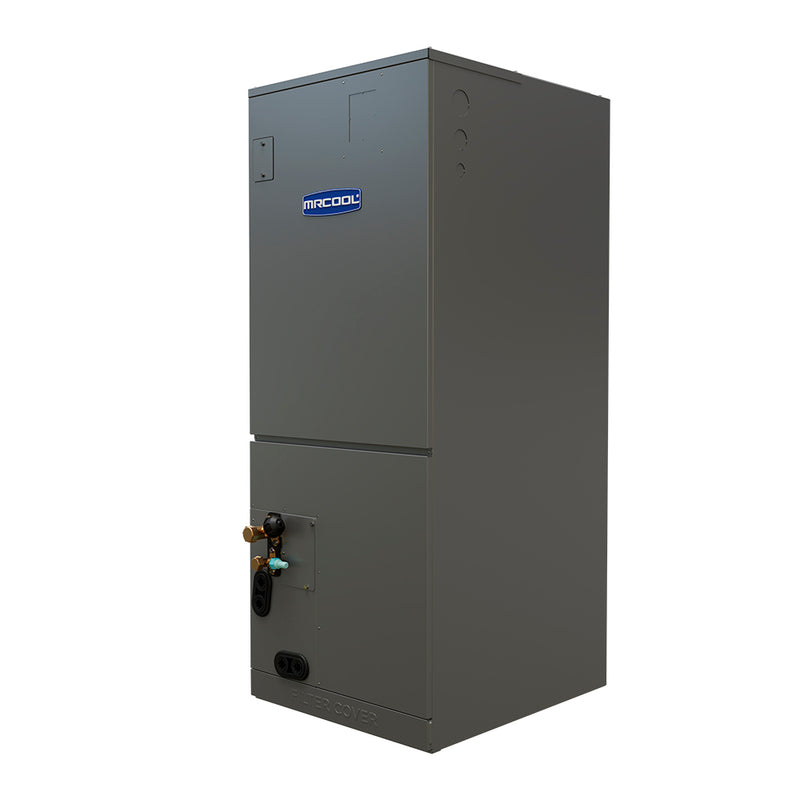

The MRCOOL DIY Hybrid is a multi-position ducted air handler that connects to MRCOOL DIY condensers through pre-charged Quick Connect line sets, bringing the DIY install method to homes with existing ductwork. It comes in 24,000 and 36,000 BTU sizes, rated for areas up to 1,050ft² and 1,550ft², and installs upflow, downflow or horizontal.
It fits a retrofit where the old ducts are worth keeping, while wall heads or ceiling cassettes on the same multi-zone condenser handle rooms the ducts never reached. A MRCOOL Smart Thermostat is included. That is the MRCOOL DIY Hybrid air handler.
Features
Multi-Position Cabinet
Installs upflow, downflow or horizontal left or right to suit the space.
Works With DIY Condensers
Pairs with the matching DIY 5th Gen single-zone condenser or with the 5- and 6-zone multi-zone condensers listed on MRCOOL's match-up chart.
Smart Thermostat Included
The MRCOOL Smart Thermostat controls the system from its touchscreen or the MRCOOL app.
Quiet Inverter Operation
Rated as low as 29 dBA on the 24,000 BTU model's lowest fan setting.
Slide-Out Fan
The fan motor slides out of the cabinet for maintenance.
All-Aluminum Coil
The indoor coil is all aluminum for corrosion resistance.
Built-In Diagnostics
An accessible display shows error codes to speed up troubleshooting.

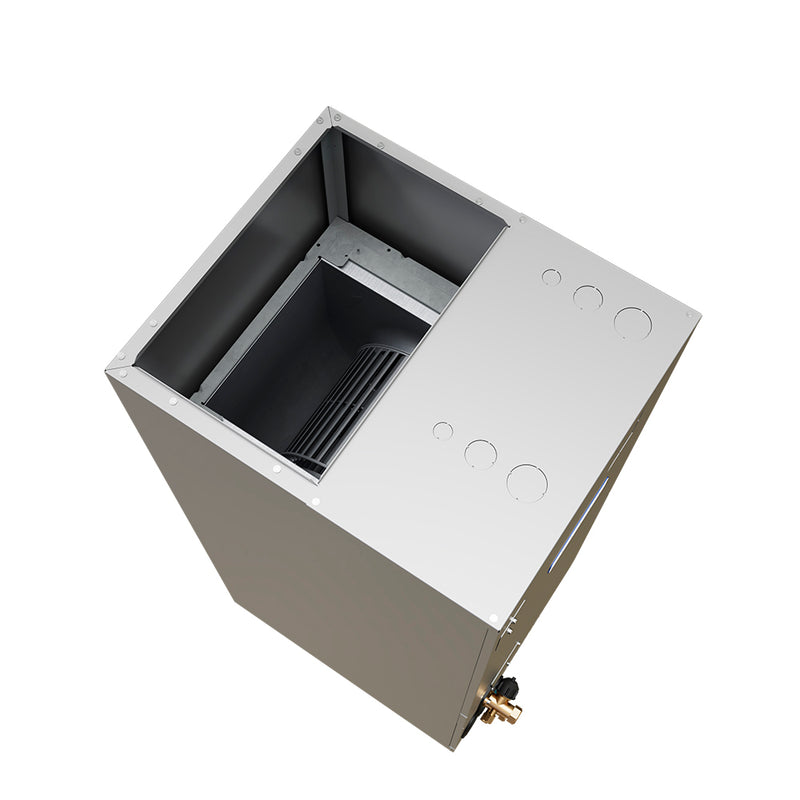

Galvanized Steel Cabinet
The painted galvanized steel cabinet has a filter rack with a removable magnetic cover.
Specifications
-
Voltage: 208/230V
-
Phase: 1
-
Frequency: 60 Hz
-
Max Fuse / Breaker: 15 A
-
Refrigerant: R-454B
-
Liquid Line: 3/8"
-
Suction Line: 5/8"
-
Configuration: Multi-Position
-
Metering Device: EEV
-
Filter: Replaceable
-
Filter Size: Refer to Installation Manual
-
Wi-Fi: Yes
-
AHRI Certified: Yes
-
UL Listed: Yes
-
Color: Gray
24,000 BTU
-
Model: DIY-24-HP-MUAH-230D25-O
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 24,000 BTU/h
-
Nominal Tonnage: 2 ton
-
Coverage Area: Up to 1,050ft²
-
Minimum Circuit Ampacity: 4 A
-
Indoor Sound (low): 29 dBA
-
Indoor Sound (high): 44 dBA
-
Sound Level: 42.5 dBA
-
Airflow: 824 / 759.3 / 694.5 / 629.8 CFM
-
Max Line Set Length: 164'
-
Works With: DIY 5th Gen 24K single-zone condenser, or the 36K 5-zone and 6-zone multi-zone condensers
-
ENERGY STAR: Yes
-
Dimensions: 17.52"W x 21.02"D x 45"H
-
Weight: 104.72 lbs
36,000 BTU
-
Model: DIY-36-HP-MUAH-230D25-O
-
Cooling Capacity: 36,000 BTU/h
-
Heating Capacity: 37,000 BTU/h
-
Nominal Tonnage: 3 ton
-
Coverage Area: Up to 1,550ft²
-
Minimum Circuit Ampacity: 6 A
-
Indoor Sound (low): 31 dBA
-
Indoor Sound (high): 48 dBA
-
Sound Level: 45 dBA
-
Airflow: 1,189 / 1,083 / 971.2 / 865.2 CFM
-
Max Line Set Length: 246'
-
Works With: DIY 5th Gen 36K single-zone condenser, or the 6-zone multi-zone condensers
-
ENERGY STAR: No
-
Dimensions: 21.02"W x 21.02"D x 49.02"H
-
Weight: 128.31 lbs
What's Included
- MRCOOL DIY Hybrid air handler
- MRCOOL Smart Thermostat (Wi-Fi required for setup)
- DIYPro cable
- Two quick-connect pipes
- Insulation pipe and four foam insulators
- Two cable ties
- MRCOOL screwdriver
- Installation and owner's manual
Installation
Designed for homeowner installation. The Quick Connect line set arrives pre-charged with refrigerant, so no vacuum pump, gauges or refrigerant handling is needed. Each fitting is tightened with two wrenches to the torque in MRCOOL's manual and then leak-checked. Electrical work still has to meet local code: the 230V models need a dedicated 230V circuit, and some areas require a permit or a licensed electrician for that part of the job. Check your local rules before you start.
Supports upflow, downflow and horizontal left or right installation. The installation manual specifies a 208/230V single-phase supply for the indoor unit. Buy a standard air filter that meets UL900 in the size listed in the manual; no remote control is included. Electric heat kits up to 20kW are optional.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only, by freight carrier for the larger cartons. Shipping cost is calculated at checkout, and the carrier may call ahead to book a delivery window.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's DIY 5th Gen limited warranty covers parts for 5 years and the compressor for 7 years from the proof-of-purchase date, with no registration required. It does not cover labor, diagnosis or shipping costs. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
The DIY Hybrid is MRCOOL's ducted air handler for its DIY condensers. It connects with pre-charged Quick Connect line sets like the ductless heads, so a home can run ducts on the main floor and wall air handlers or OuttaSight cassettes elsewhere from one DIY 5th Gen multi-zone condenser, or run the Hybrid alone on the 24,000 or 36,000 BTU DIY 5th Gen single-zone condenser.
