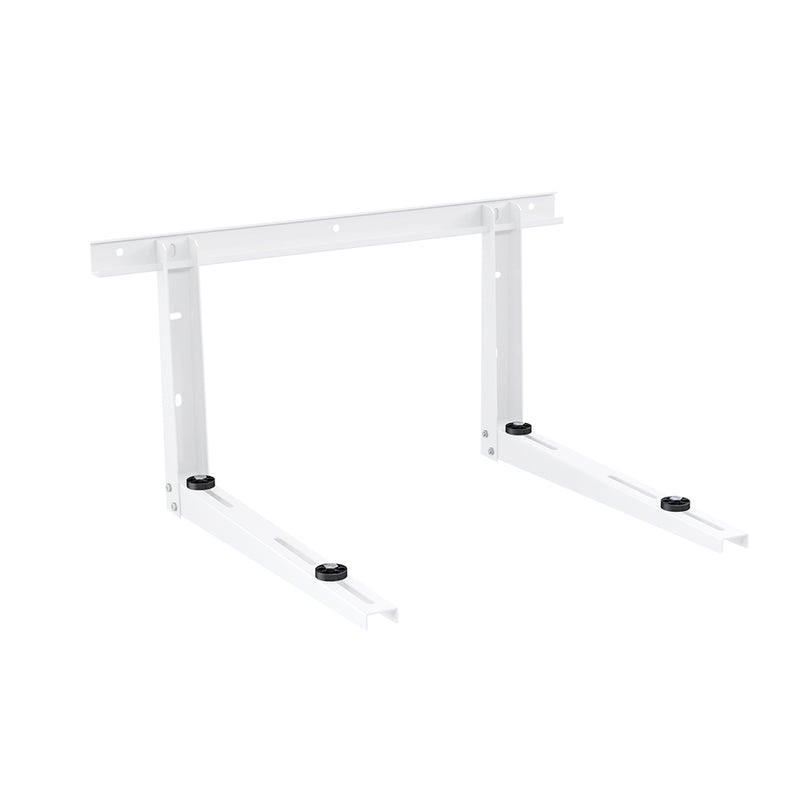

The MRCOOL condenser wall mounting bracket hangs a ductless outdoor unit on the side of the house, off the ground and clear of snow, standing water and foot traffic. The MB176 suits 9,000, 12,000 and 18,000 BTU condensers and is rated to 176 lbs; the MB440A suits 24,000 and 36,000 BTU condensers and is rated to 440 lbs.
Both use a wall plate with sliding arms that adjust to the condenser's feet, rubber isolation pads and leveling screws for uneven siding. That is the MRCOOL condenser wall mounting bracket.
Features
Sized to the Condenser
MB176 for 9,000 to 18,000 BTU units, MB440A for 24,000 and 36,000 BTU units.
Rated Load
176 lbs on the MB176 and 440 lbs on the MB440A.
Sliding Arms

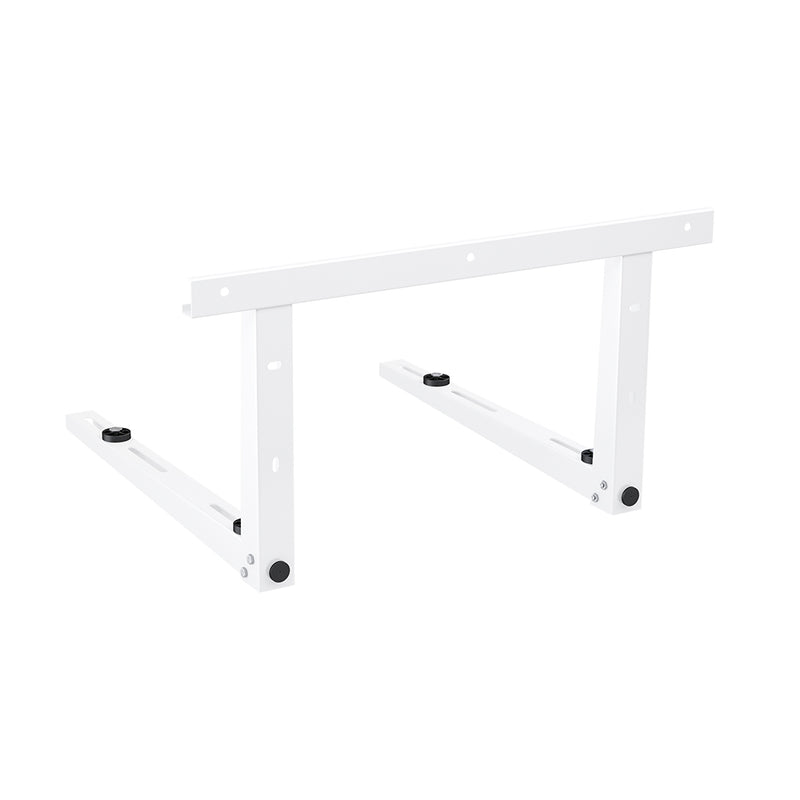

The support arms slide along the wall plate so they line up with the condenser's mounting feet.
Vibration Isolation
Rubber pads on the arms take the place of the condenser's own foot pads and damp vibration into the wall.
Leveling Screws
An adjustable screw at the base of each upright squares the bracket on vinyl siding or uneven walls.
Hardware Included
Ships with the wall plate, both arms, bolts, washers, nuts and wall anchors.
Specifications
9K, 12K and 18K condensers
-
Model: MB176
-
Dimensions: 30.75"W x 18"D x 14.5"H
-
Weight: 10 lbs
-
Weight Capacity: 176 lbs

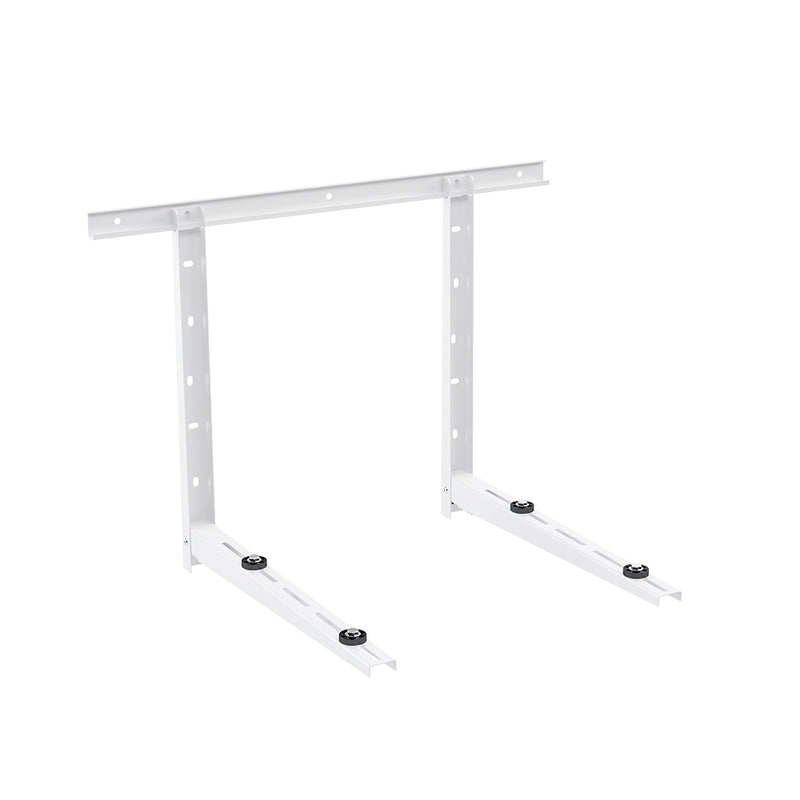

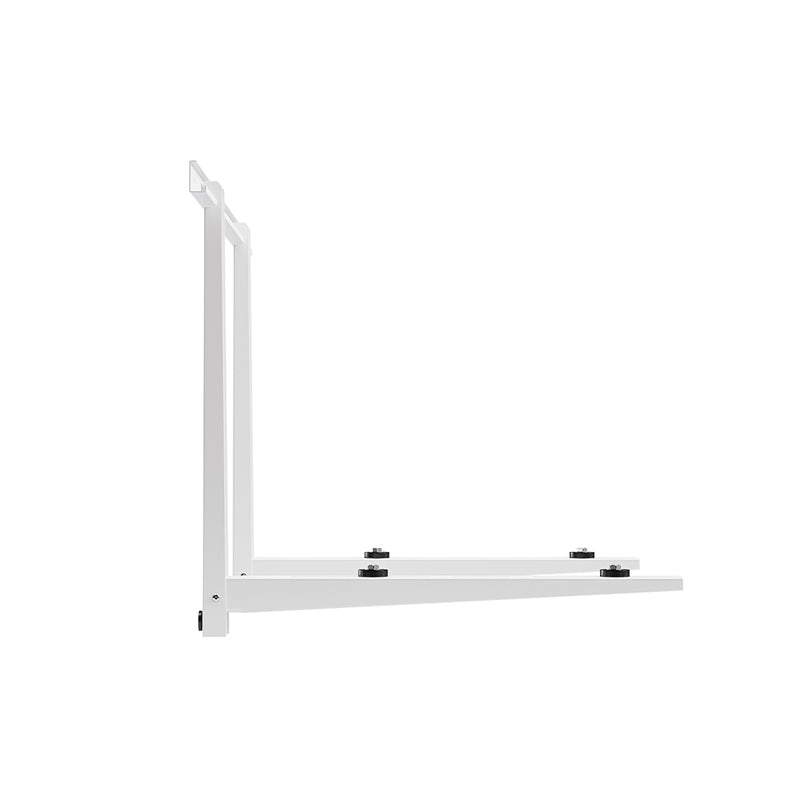

24K and 36K condensers
-
Model: MB440A
-
Weight Capacity: 440 lbs

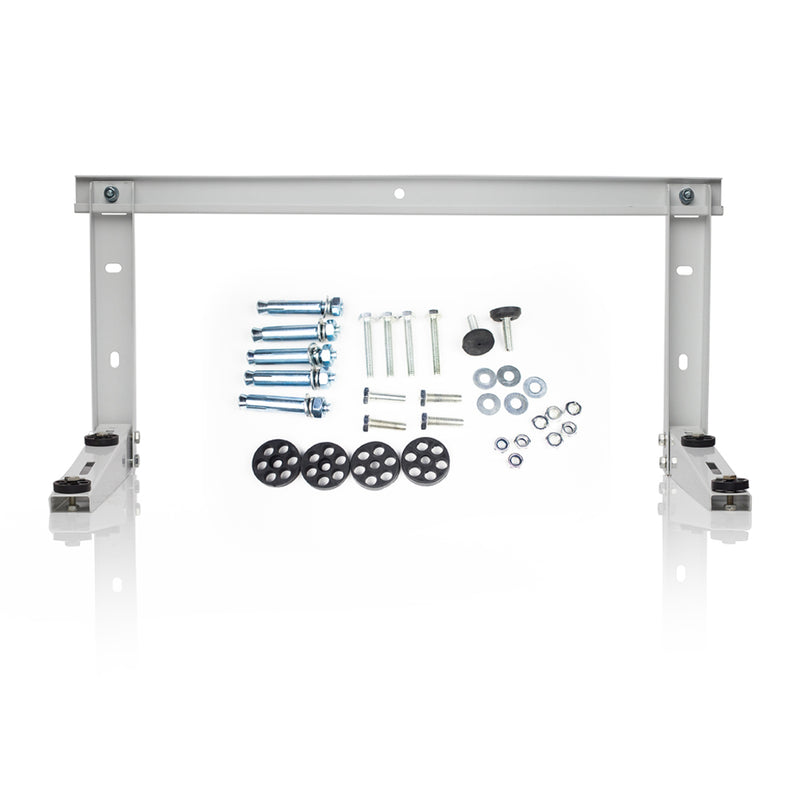

What's Included
- Wall plate
- Two support arms with uprights
- Rubber isolation pads and leveling screws
- Bolts, washers, nuts and wall bolts
- Installation manual
Installation
Homeowner-installable. This accessory is part of MRCOOL's DIY range and is installed following the instructions in MRCOOL's manual, including any wrench, torque or leak-check steps it lists. Check local electrical and building codes for any wiring or wall penetrations.
Level the wall plate, mark and drill 5/16" holes about 2-3/4" deep (masonry bit for concrete or brick), and bolt it to the wall, aligning with studs on a framed wall. Assemble the arms, slide them to match the condenser feet, bolt them through, then lower the condenser on with a helper. Don't overtighten any hardware.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL does not publish a separate warranty document for its condenser wall mounting brackets. Keep your proof of purchase for any claim to MRCOOL.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
Outdoor supports for mini-split and other side-discharge condensers, from MRCOOL and from CoolGuard, a line MRCOOL distributes. MRCOOL's wall brackets hang the condenser on the house wall, the CoolGuard Weldbracket stand and MRCOOL's rubber risers raise it off the ground, and the CoolGuard equipment pad gives it a flat, level base on soil or gravel. None of them includes the condenser.
