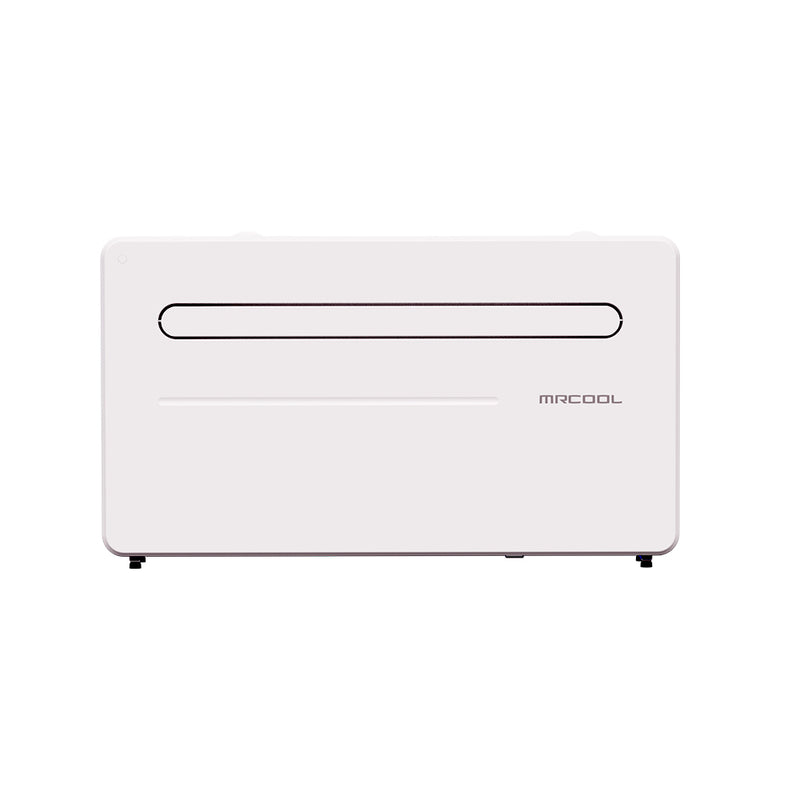

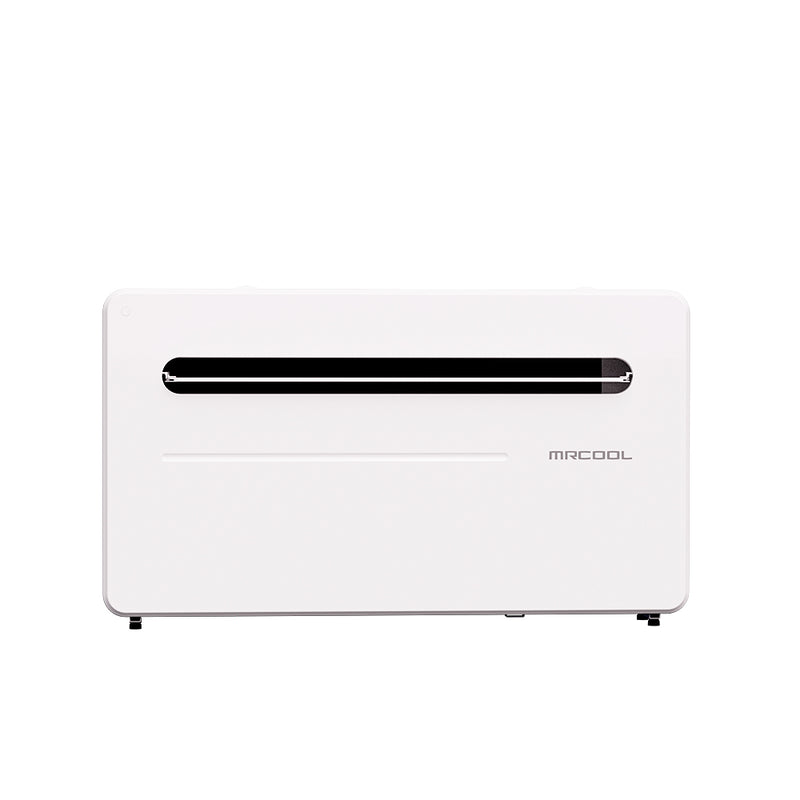

The MRCOOL Monoblock is a 10,000 BTU through-wall heat pump that heats, cools, dehumidifies and circulates air from one cabinet on an exterior wall, with no outdoor unit. Its DC inverter compressor is rated 10,000 BTU/h cooling at 95°F and 9,000 BTU/h heating at 47°F, at 15 SEER2, on a standard 115V circuit.
It suits a single room, addition or apartment where a mini-split condenser cannot be placed outside, as long as the wall can take two 8" vent holes. Installation is by a licensed technician. That is the MRCOOL Monoblock MTHP Series.
Features
No Outdoor Unit

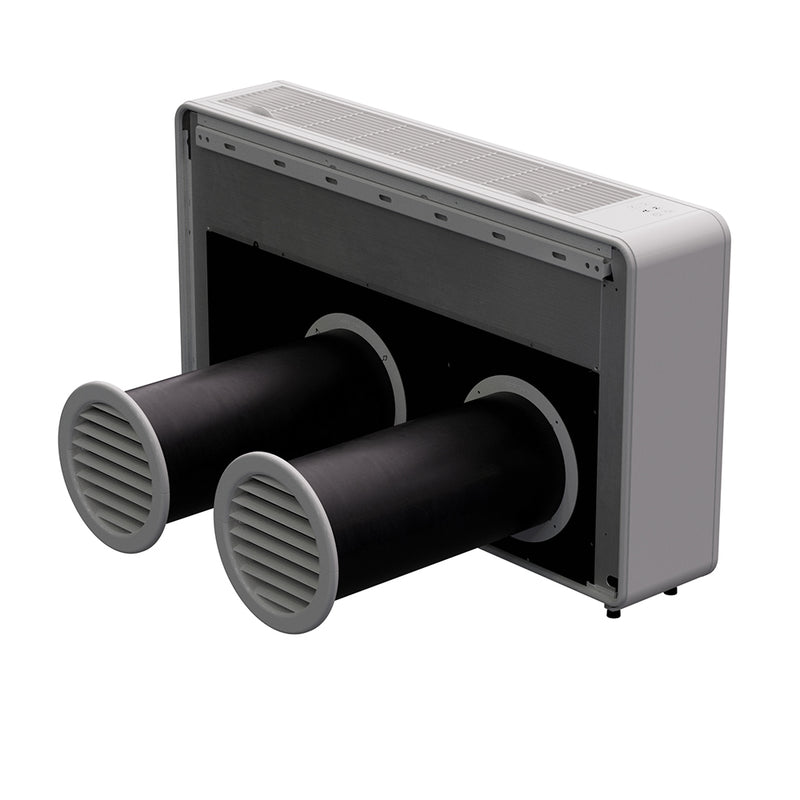

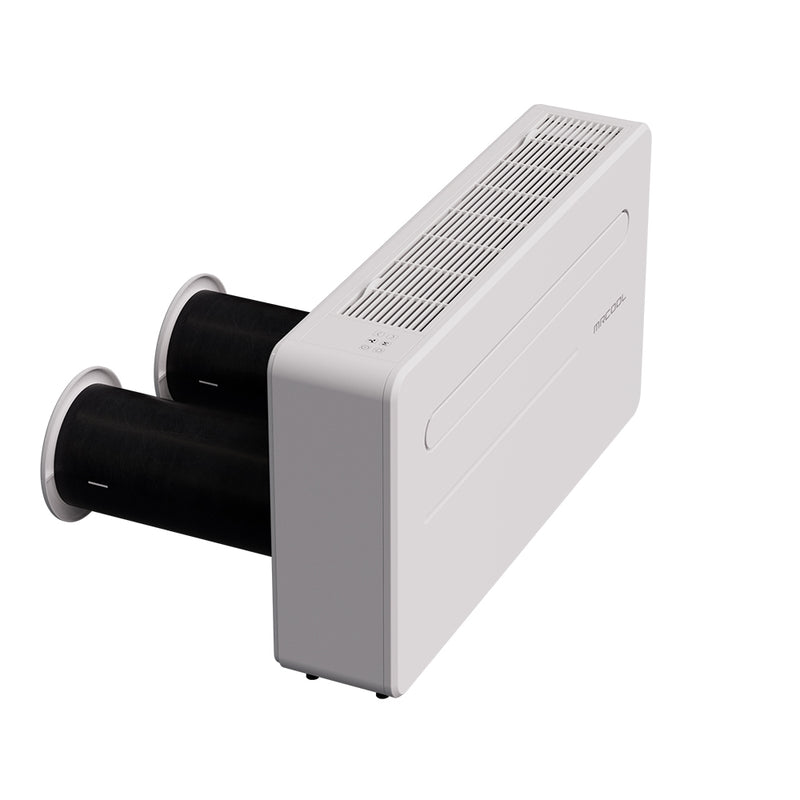

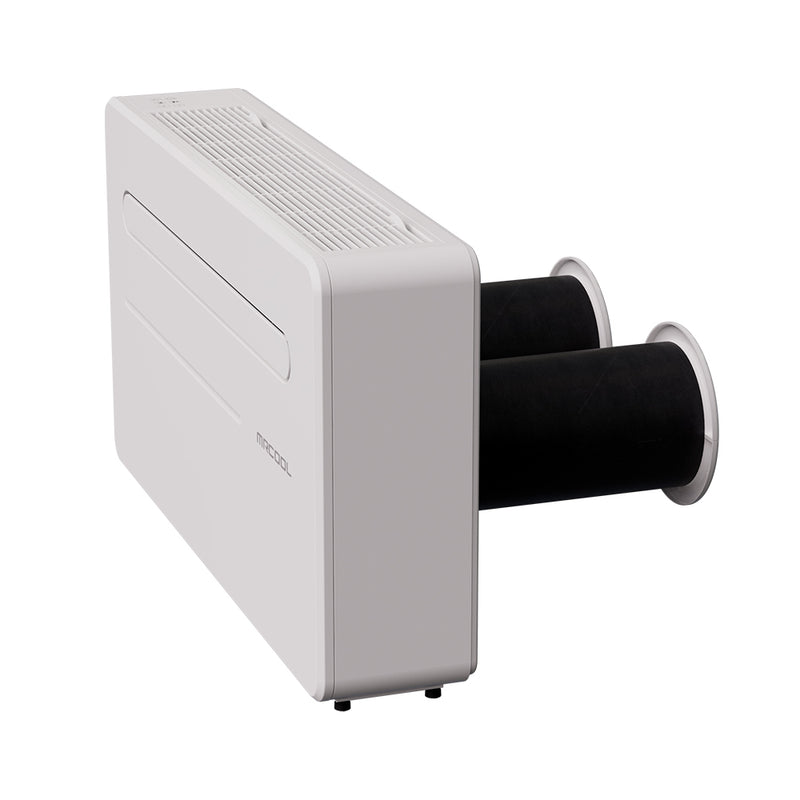

Compressor, coils and fans share one 39.4" W x 23.1" H x 8.07" D cabinet that vents through the wall behind it.
Four Modes
Cool, heat, fan and dry, with dry mode removing up to 2.5 pints/hr of moisture.
DC Inverter Compressor
Output varies from 3,000 to 12,000 BTU/h, rated 15 SEER2, 9.9 EER2 and 7.5 HSPF2.
Heats Down to 5°F
Heating runs in outdoor temperatures from 5°F to 75°F, with 6,500 BTU/h still available at 17°F.
Quiet Indoors
Rated sound pressure runs from 32 dBA on its lowest setting to 46 dBA at its highest.
Sealed R-32 Circuit
Factory charged with 19.4 oz of R-32, so no refrigerant lines are run or charged on site.
Remote, Display and App

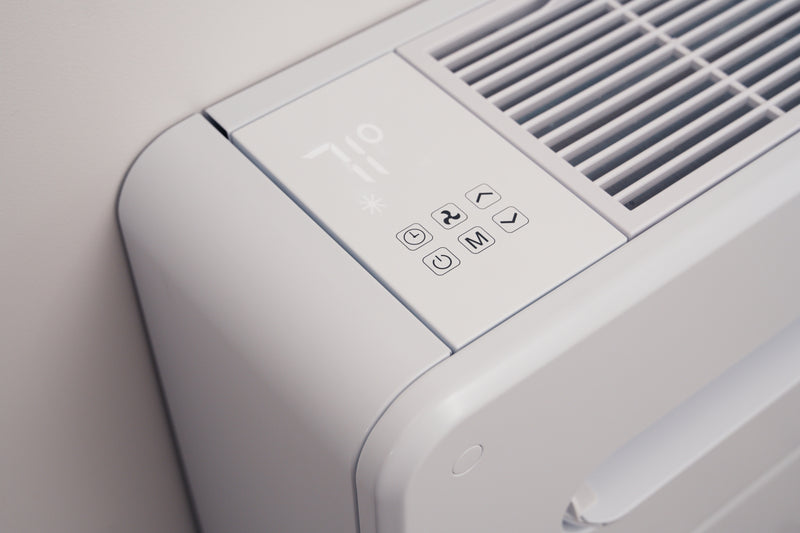

Control it from the LED panel or the included remote, with a 24-hour on/off timer; MRCOOL lists smartphone app control over Wi-Fi as an optional feature.
Water-Full Protection
A water-full alarm with auto-stop shuts the unit down before the internal tray can overflow.
Specifications
-
Model: MDM10115D
-
Cooling Capacity: 10,000 BTU/h
-
Heating Capacity: 9,000 BTU/h
-
Nominal Tonnage: 0.83 ton
-
SEER2: 15
-
EER2: 9.9
-
HSPF2: 7.5
-
Voltage: 115V
-
Phase: 1
-
Frequency: 60 Hz
-
Minimum Circuit Ampacity: 13 A
-
Max Fuse / Breaker: 20 A
-
Refrigerant: R-32
-
Refrigerant Charge: 19.4 oz
-
Indoor Sound (low): 32 dBA
-
Indoor Sound (high): 46 dBA
-
Mount: Wall
-
Blower Motor: DC
-
Compressor: Rotary
-
Inverter: Yes
-
Filter: Reusable
-
Wi-Fi: Optional (app control)
-
Color: White
-
Dimensions: 39.4"W x 8.07"D x 23.1"H
-
Weight: 93.5 lbs
What's Included
- MRCOOL Monoblock MTHP 10,000 BTU unit, factory charged with R-32

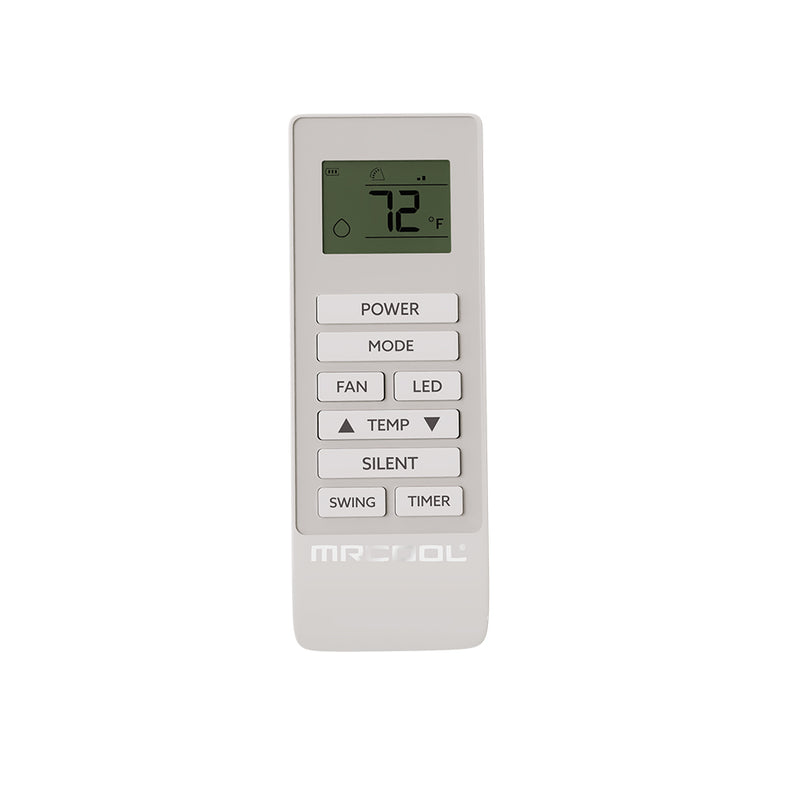

- Remote control
- Wall bracket (hanging rail) and fixed plate
- Wall template
- 2 plastic ducting sheets that roll into vent tubes
- 2 vent cover assemblies (chain, indoor ring and outdoor cover)
- Sealing strip, 7 screws, 7 wall plugs and 2 tapping screws
- Installation and owner's manual
Installation
Professional installation required. This equipment must be installed by a qualified, licensed electrician or contractor, following MRCOOL's installation manual and all local electrical and building codes and permit requirements. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.

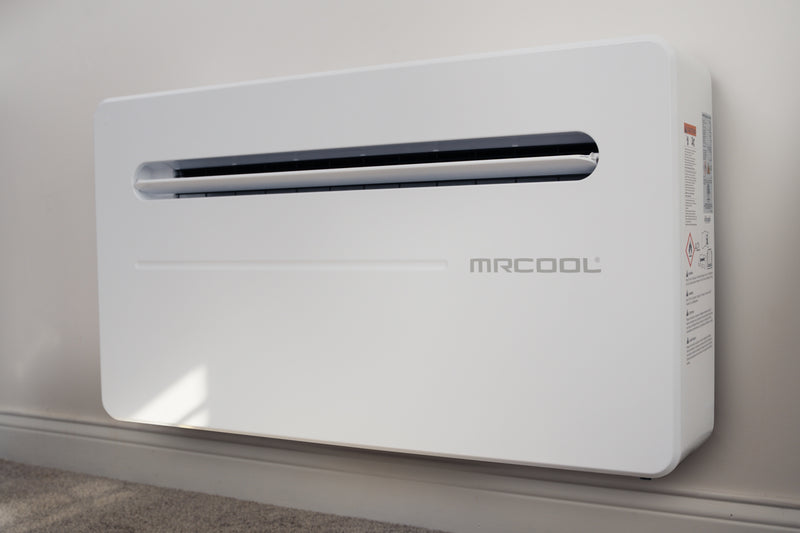

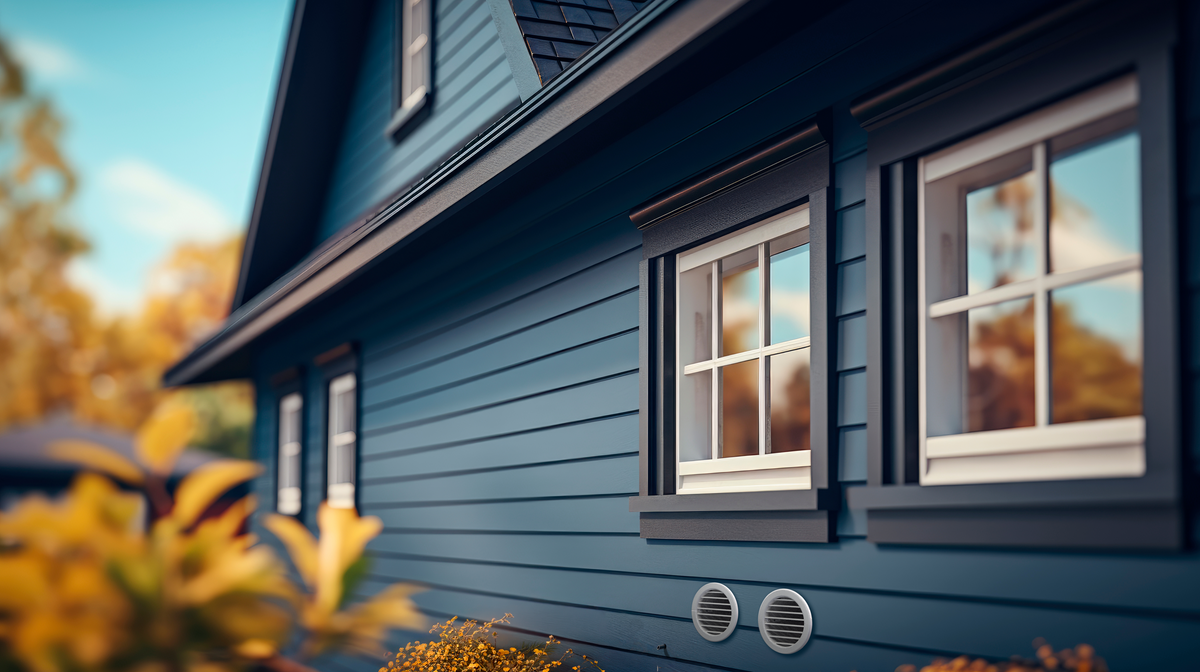

Mounts on a flat, solid exterior wall that can carry 93.5 lbs, ideally no thicker than 9.5". Two 8" ventilation holes are core-drilled at a 5° downward angle toward the outside, avoiding studs, plus a 1" drain hole at the same slope; the drain line must end in open air or a dedicated drain. Clearances: 4" on the left, right and below, 8" above, and away from curtains, furniture and plants. Do not install in laundry or wet rooms, or in an unventilated room smaller than 43 ft². Power is a grounded 115V outlet on a 15 A breaker, with no extension cord. Clean the filters about every three weeks.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's limited warranty covers parts for 1 year and the compressor for 1 year, with no registration required. If a failure in the first 12 months is verified and documented by a licensed HVAC professional, the unit qualifies for full replacement. It is non-transferable, assigned to the original, registered owner, and does not cover labor. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.

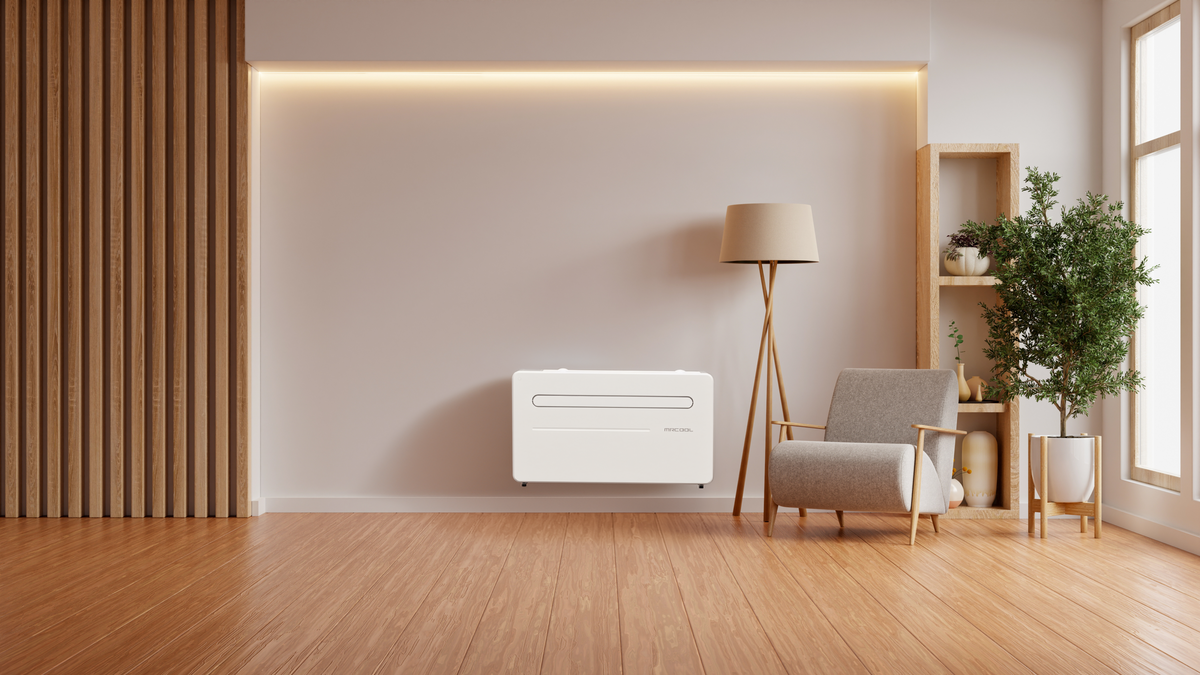

The Monoblock MTHP Series is MRCOOL's single-room heat pump with no outdoor unit: the whole refrigeration system sits in one cabinet on an exterior wall and breathes through two holes in that wall. It sits beside MRCOOL's ductless mini-splits as the option for rooms where a condenser cannot be placed outside, and it runs on a standard 115V circuit.
