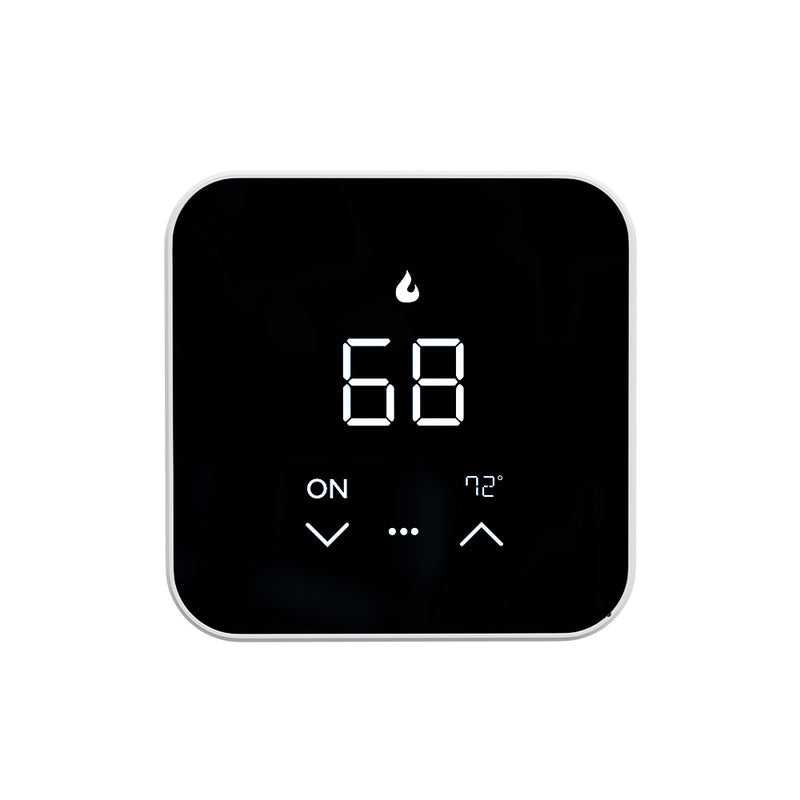

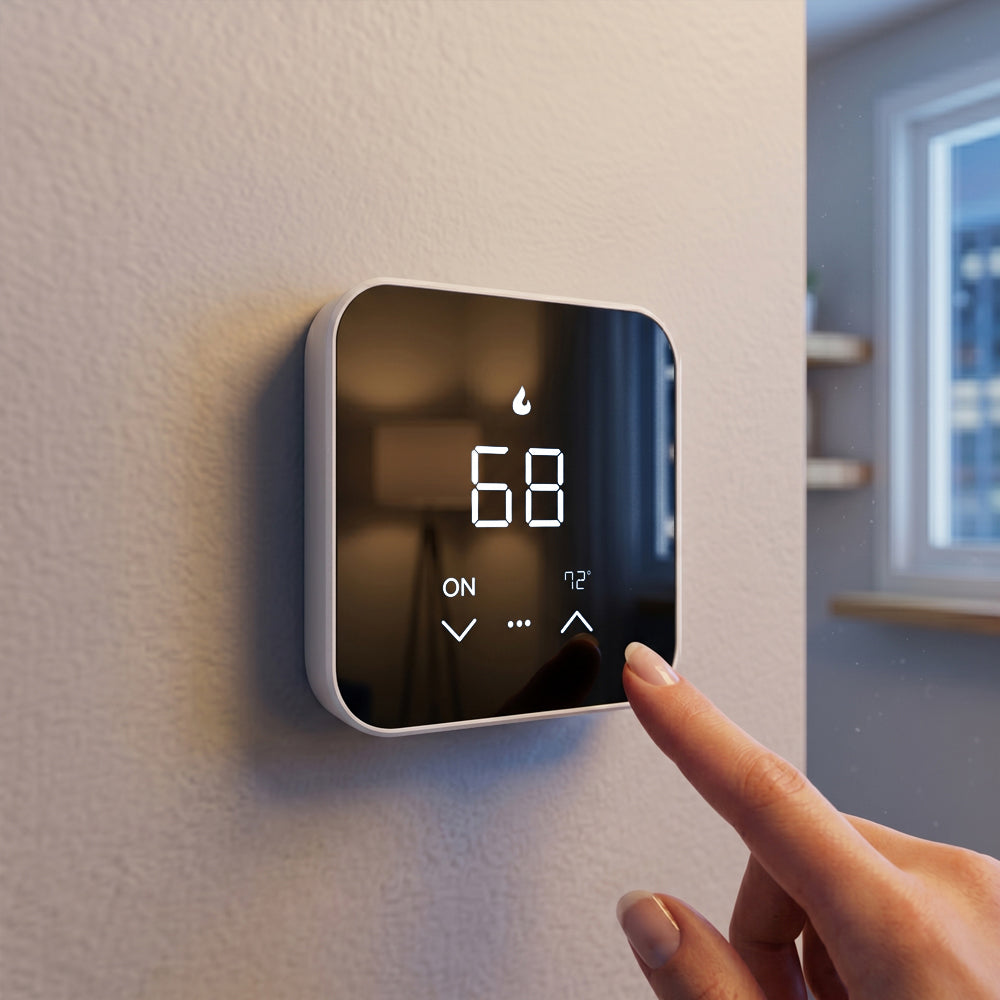

The MRCOOL MST07 Smart Wi-Fi Thermostat replaces a 24V wall thermostat on furnaces, boilers, air conditioners and heat pumps, with support for dual fuel and up to four heating and two cooling stages. It is powered by the C wire and set up through the MRCOOL Connect app, which adds schedules, geofencing and energy tracking.
Add up to ten Remote Room Sensors to steer comfort toward the rooms you use, or start with a bundle that includes one or two sensors. That is the MRCOOL MST07 Smart Wi-Fi Thermostat.
Features
Broad 24V Compatibility
Works with most 24V systems, including furnaces, boilers, air conditioners and heat pumps with forced air or radiant delivery.
Dual Fuel and Multi-Stage
Supports dual fuel switching and up to four heating stages (two heat pump, two auxiliary) with two cooling stages.

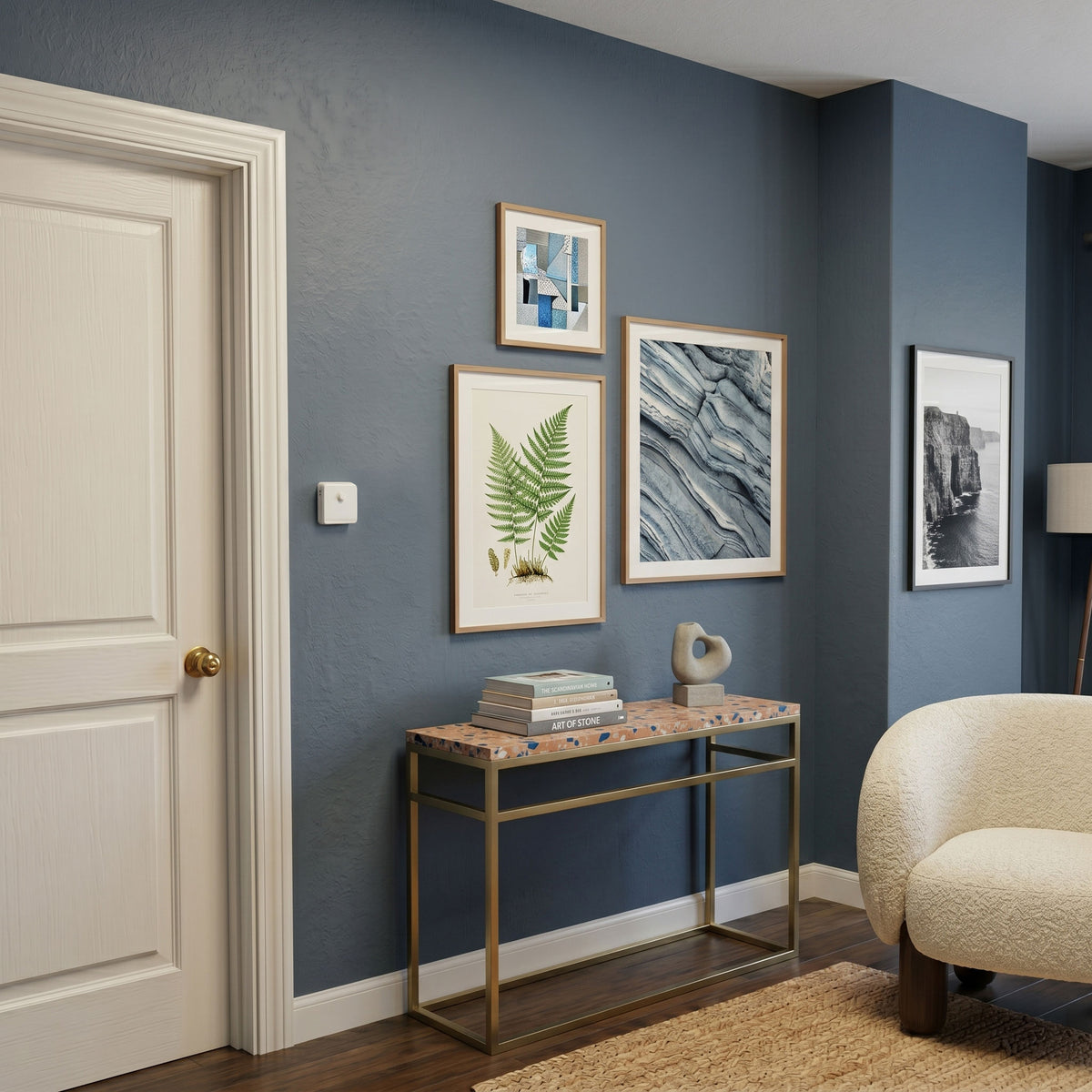

Up to 10 Room Sensors
Pair optional Remote Room Sensors and prioritize heating and cooling toward specific rooms; bundles with one or two sensors are offered.
7-Day Programming and Holds
Schedule fan, temperature and sensors across seven days, with permanent hold, temporary hold or follow schedule.

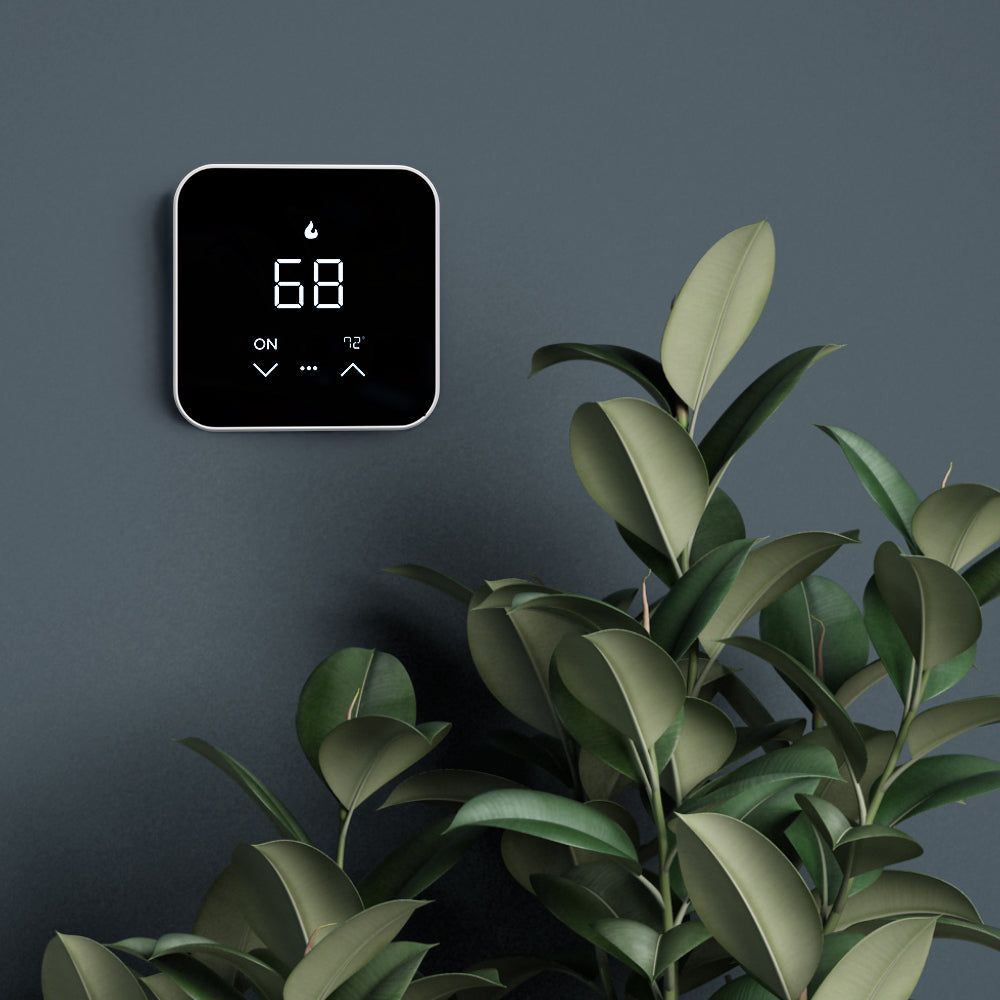

Preheat and Precool
Starts early so the house reaches the scheduled temperature on time.
Energy Reports
The app shows daily, weekly and monthly energy use.
Adjustable Temperature Swing
Widen the swing to cut short cycling, and lock the controls against accidental changes.
Voice and Reminders
Works with Amazon Alexa and Google Assistant, and sends maintenance reminders.
Specifications
-
Voltage: 24V
-
Mount: Wall
-
Wi-Fi: Yes
-
Works With: Most 24V residential HVAC systems
-
Color: White
-

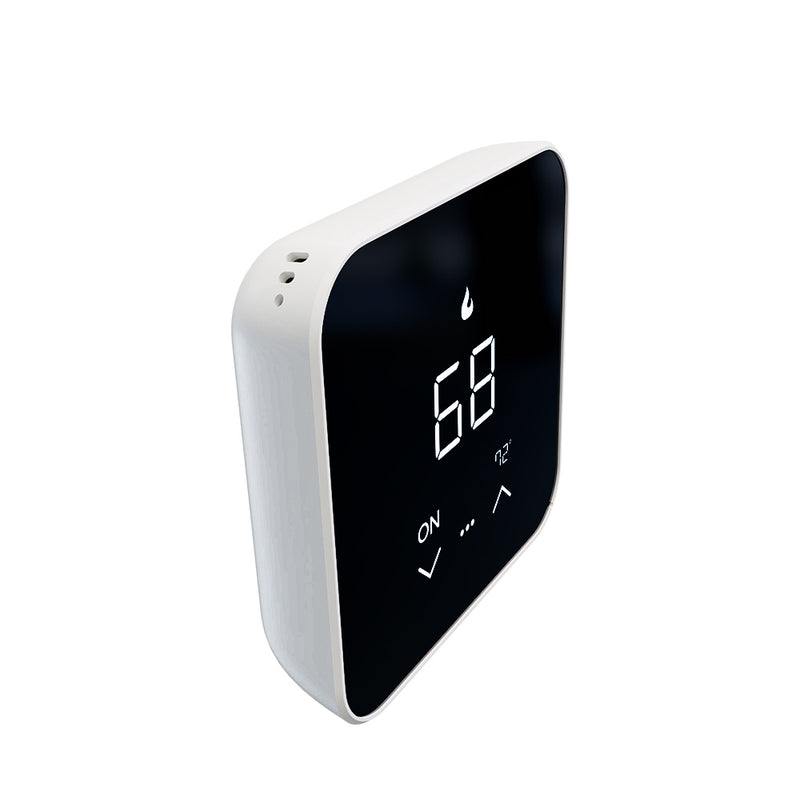

Dimensions: 3.77"W x 3.77"H x 0.94"D
Thermostat only

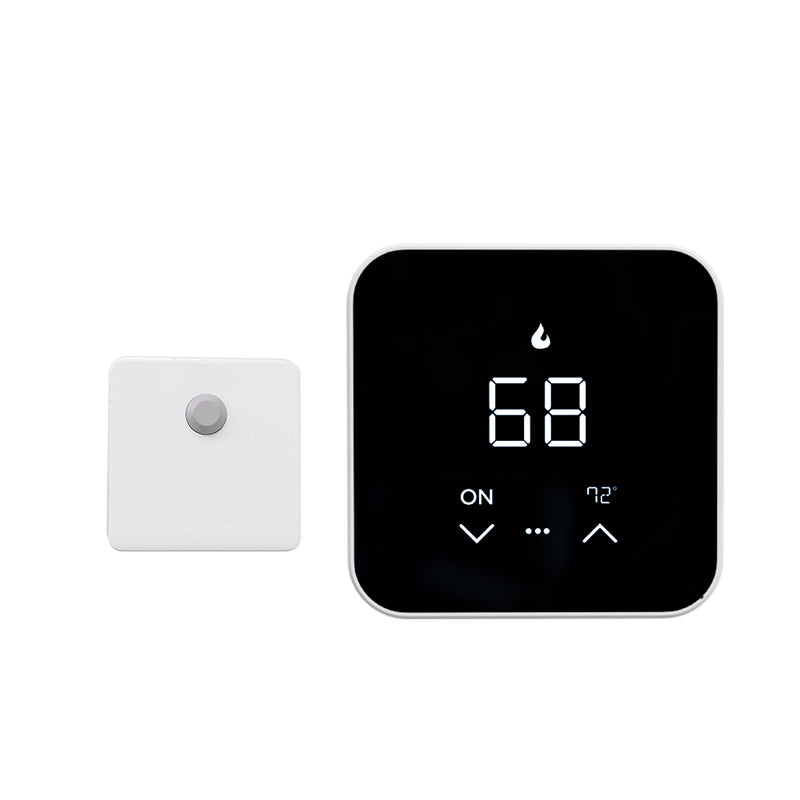

Thermostat + 1 room sensor

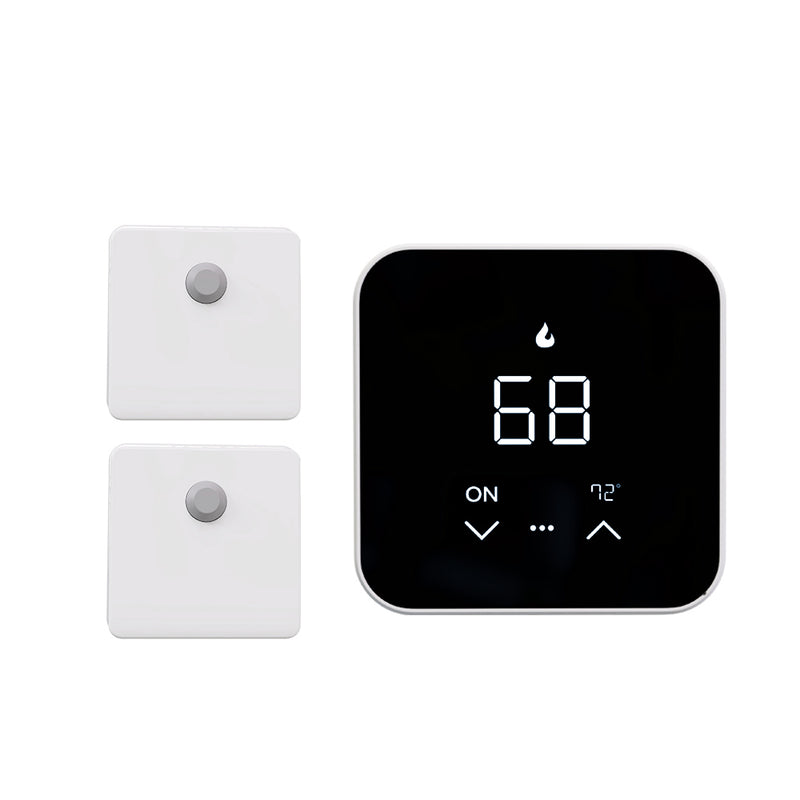

Thermostat + 2 room sensors
What's Included
- MRCOOL MST07 Smart Wi-Fi Thermostat
- Remote Room Sensor: one with MST07S-1, two with MST07S-2
- Backplate and trim plate
- 2 screws and 2 drywall plugs
- Wire labels
- Phillips and flat-head screwdrivers
- Manual
Installation
Homeowner-installable. This accessory is part of MRCOOL's DIY range and is installed following the instructions in MRCOOL's manual, including any wrench, torque or leak-check steps it lists. Check local electrical and building codes for any wiring or wall penetrations.

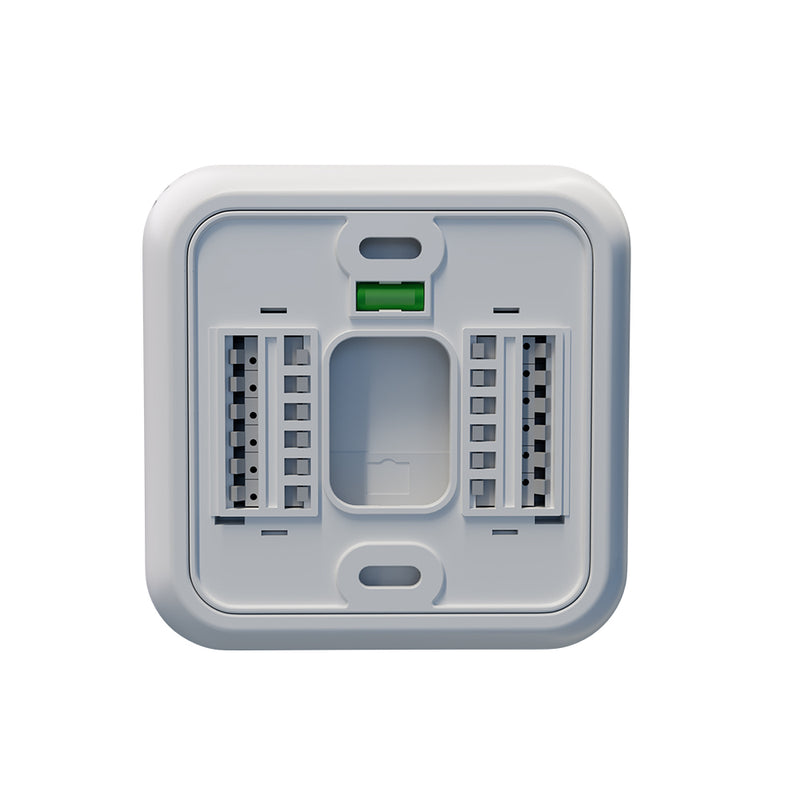

Confirm a C wire is connected at your old thermostat before you start. Turn off power to the HVAC system, photograph and label the old wiring, then mount the backplate with the included plugs and screws (a 3/16" drill bit for the anchors) and insert each labeled wire into its matching terminal.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's limited warranty covers the MST07 against defects in materials and workmanship for 1 year from the date of delivery following the original retail purchase. It is non-transferable from the original purchaser to later owners.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
The MST07 Smart Wi-Fi Thermostat is MRCOOL's wall thermostat for 24V central heating and cooling, run through the MRCOOL Connect app, with up to ten optional Remote Room Sensors that feed it readings from other rooms. For MRCOOL ductless mini-splits, the matching controller is the Smart Wi-Fi Mini-Stat.
