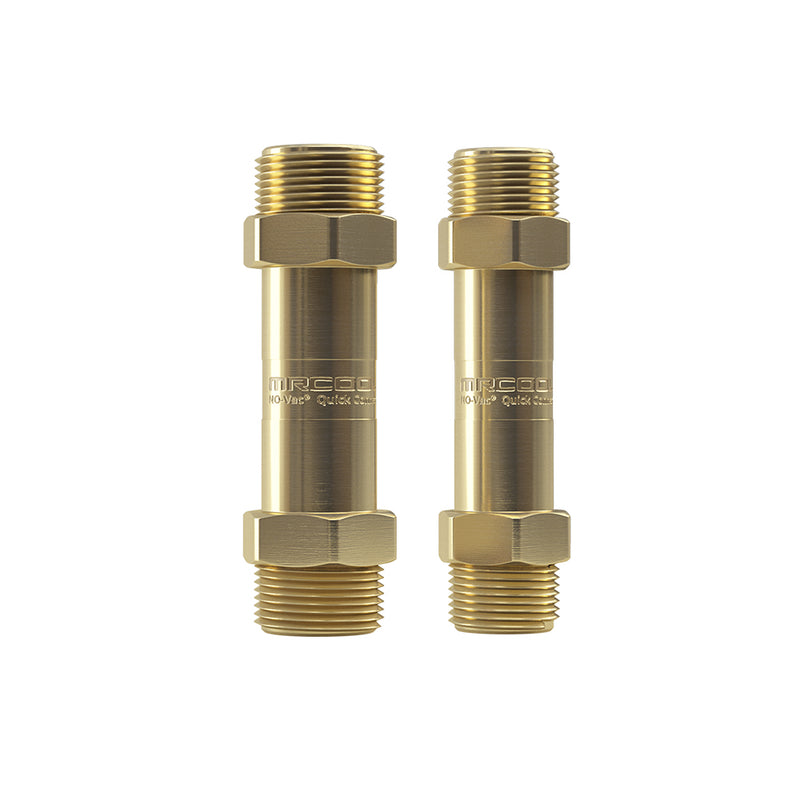

The MRCOOL No-Vac coupler pair joins two No-Vac Quick Connect pre-charged line sets end to end when one standard length will not reach. It contains a 3/8" coupler for the liquid line and a 3/4" coupler for the suction line, each with threaded ends that accept the Quick Connect fittings directly.
Use it with MRCOOL's R-454B No-Vac sets on Universal, VersaPro and Hyper Heat Central Ducted systems, and check the joined length against the condenser's maximum line length. The connection is made by the licensed HVAC contractor installing the system.
Features
Extends a No-Vac Run
Joins two No-Vac Quick Connect line sets so the lines reach farther than any single 15' to 50' set.
Both Line Sizes in One Pack
One 3/8" coupler for the liquid line and one 3/4" coupler for the suction line.
Threaded Quick Connect Ends

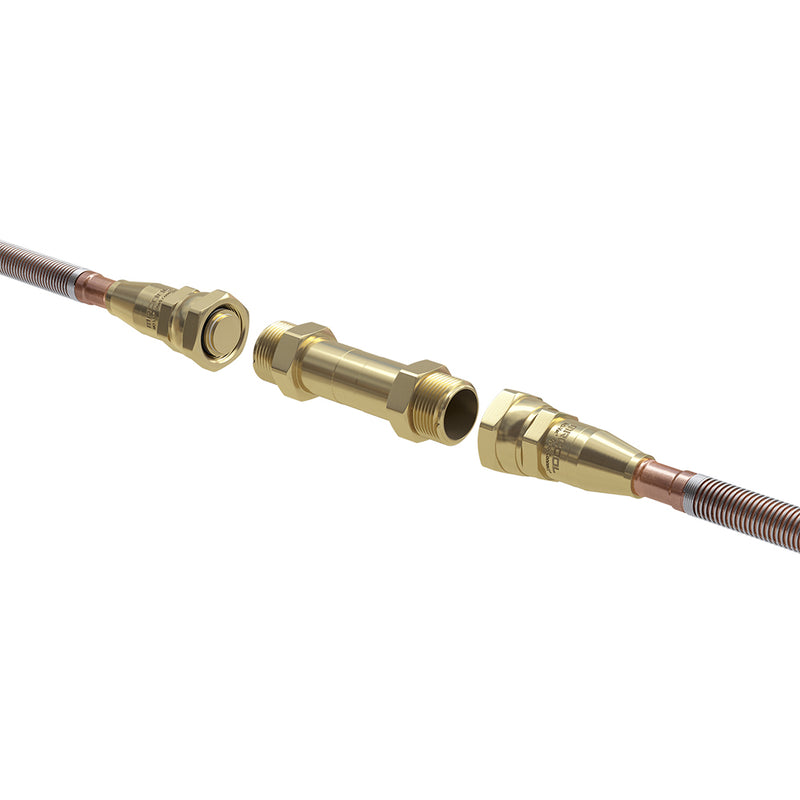

Each coupler threads onto the Quick Connect fittings of both line sets, with no brazing or flaring.
Keeps the System Sealed
Because both sets are pre-charged, joining them with the couplers needs no vacuum or added refrigerant for the line sets.
Made for No-Vac Sets
The couplers match the No-Vac Quick Connect fittings on the 3/8" x 3/4" ducted-system sets; MRCOOL DIY line sets use their own DIY couplers.
Specifications
-
Model: NVCOUPLER3834
-
Color: Copper
-
Dimensions: 6"W x 4.5"D x 2"H
-
Weight: 6 lbs
What's Included
- MRCOOL No-Vac 3/8" coupler
- MRCOOL No-Vac 3/4" coupler
Installation
Professional installation required. This equipment must be installed by a licensed HVAC contractor (EPA Section 608-certified for any refrigerant work), following MRCOOL's installation manual and all local codes, permits and licensing rules. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Thread each coupler onto the matching Quick Connect fittings of the two line sets, using the wrench sizes and torque values in MRCOOL's No-Vac Quick Connect instructions. Leak-check both joints with soapy water after the service valves are opened, then insulate the couplers to prevent condensation. Confirm the total joined length is within the condenser's maximum line length.
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL publishes no separate warranty document for the No-Vac Quick Connect line sets and couplers, and none of the warranty documents we hold names them; ask MRCOOL for the terms that apply with your system. MRCOOL's No-Vac instructions state that not following them voids any warranty.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
No-Vac Quick Connect line sets are MRCOOL's factory-charged refrigerant lines for its contractor-installed ducted systems on R-454B: the Universal split, VersaPro 2nd Gen and Central Ducted Hyper Heat condensers, and MRCOOL's pre-charged evaporator coils. Each set carries 3/8" and 3/4" lines in 15', 25', 35' or 50' lengths, and the matching No-Vac coupler pair joins two sets for a longer run. They are a different product from the DIY Quick Connect line sets used with MRCOOL DIY mini-splits.
