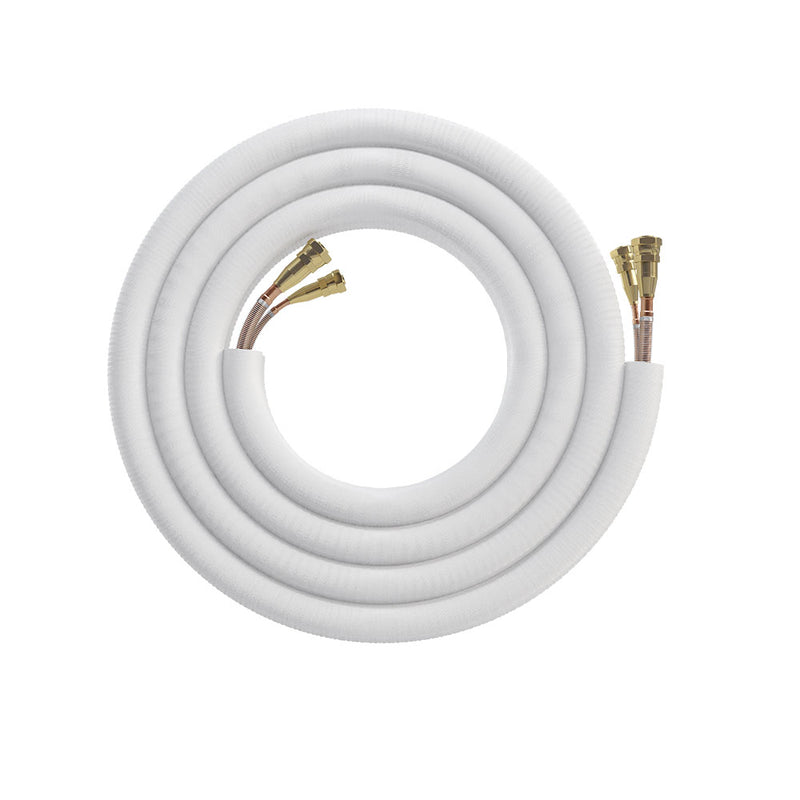

The MRCOOL No-Vac Quick Connect line set is a factory-charged pair of 3/8" and 3/4" refrigerant lines with screw-on Quick Connect fittings at both ends. It comes charged with R-454B for MRCOOL's Universal, VersaPro and Hyper Heat Central Ducted condensers and pre-charged evaporator coils, so the run between outdoor and indoor units needs no brazing, vacuuming or field charging.
Lengths of 15', 25', 35' and 50' cover most runs, and a coupler pair joins two sets for more. The UV-protective insulation sleeve suits outdoor runs. Connection is part of the system install by a licensed HVAC contractor.
Features
Factory-Charged With R-454B
Each set holds the measured R-454B charge for its length, so the lines need no vacuum pump or refrigerant scale at install.

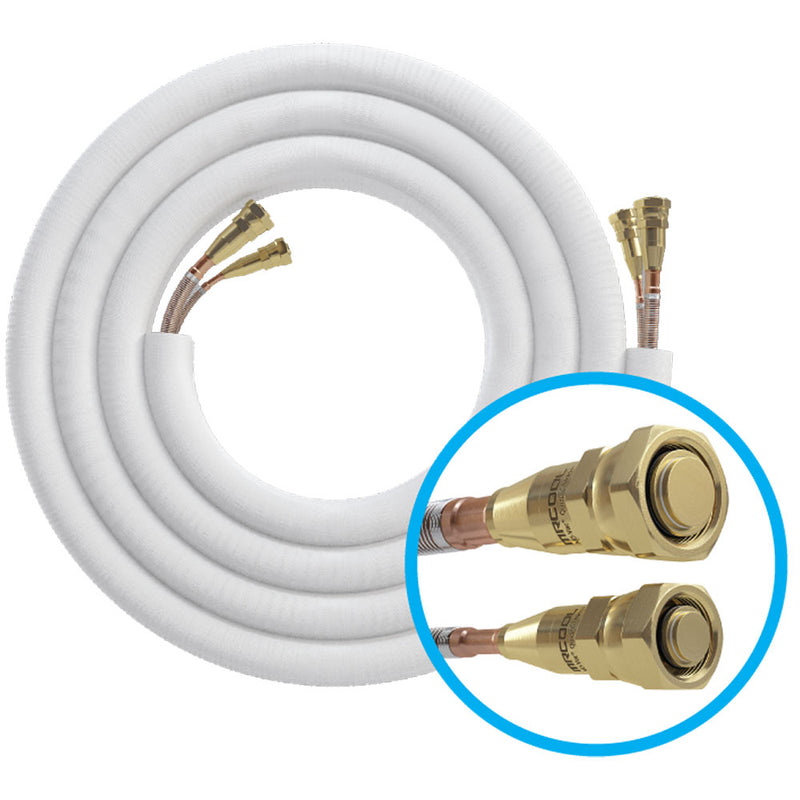

Screw-On Quick Connect Fittings

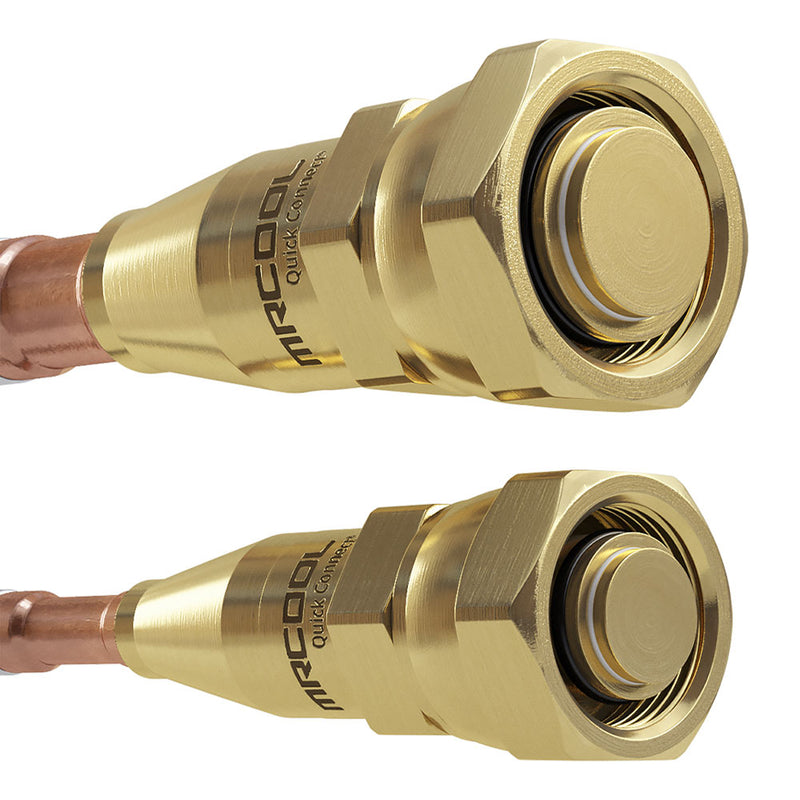

Brass Quick Connect fittings thread onto matching connectors at the condenser and the coil or air handler, then the service valves are opened to release refrigerant.
Sized for Ducted Systems
A 3/8" liquid line and a 3/4" suction line match MRCOOL's Universal, VersaPro and Hyper Heat Central Ducted condensers.
UV-Protective Insulation
A 3/4" Gator-Flextra insulation sleeve guards the copper against sun, weather and animal damage on outdoor runs.
Hand-Bendable Copper
MRCOOL rates the copper as kink resistant, so the set bends by hand around obstacles; bend gradually and avoid sharp turns.
Four Lengths, Extendable
Sets come in 15', 25', 35' and 50' lengths, and the No-Vac coupler pair joins two sets for a longer run.
Specifications
-
Refrigerant: R-454B
-
Liquid Line: 3/8"
-
Suction Line: 3/4"
15'
-
Model: NV15-3834-O
-
Refrigerant Charge: 2.11 oz
-
Included Line Set: 15'
-
Weight: 14 lbs
25'
-
Model: NV25-3834-O
-
Refrigerant Charge: 2.11 oz
-
Included Line Set: 25'
-
Weight: 22 lbs
35'
-
Model: NV35-3834-O
-
Refrigerant Charge: 5.73 oz
-
Included Line Set: 35'
-
Weight: 32 lbs
50'
-
Model: NV50-3834-O
-
Refrigerant Charge: 17.19 oz
-
Included Line Set: 49.2'
-
Weight: 45 lbs
What's Included
- MRCOOL No-Vac Quick Connect pre-charged line set (3/8" and 3/4" lines, insulated)
Installation
Professional installation required. This equipment must be installed by a licensed HVAC contractor (EPA Section 608-certified for any refrigerant work), following MRCOOL's installation manual and all local codes, permits and licensing rules. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Thread the male connectors onto the condenser service valves (37 ft/lb on the 3/8" side, 52 ft/lb on the 3/4" side) and repeat at the air handler or coil. Route the set, then tighten each line set valve to its connector at 33 ft/lb. Open the stop valves with a hex key only after all connections are made and before the system is switched on, and leak-check each joint with soapy water. Cover the joints with the insulating sleeve afterward to prevent condensation.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL publishes no separate warranty document for the No-Vac Quick Connect line sets, and none of the warranty documents we hold names them; ask MRCOOL for the terms that apply with your system. MRCOOL's No-Vac instructions state that not following them voids any warranty.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
No-Vac Quick Connect line sets are MRCOOL's factory-charged refrigerant lines for its contractor-installed ducted systems on R-454B: the Universal split, VersaPro 2nd Gen and Central Ducted Hyper Heat condensers, and MRCOOL's pre-charged evaporator coils. Each set carries 3/8" and 3/4" lines in 15', 25', 35' or 50' lengths, and the matching No-Vac coupler pair joins two sets for a longer run. They are a different product from the DIY Quick Connect line sets used with MRCOOL DIY mini-splits.
