The MRCOOL Olympus Multi-Zone mini-split heat pump condenser runs several Olympus indoor heads from one outdoor unit: the 18,000 BTU model serves up to three zones and the 48,000 BTU model up to six. It uses an inverter compressor and R-454B refrigerant, reaches up to 25.1 SEER2, and works with Olympus wall-mount, ceiling cassette and ducted air handlers in any combination on MRCOOL's match-up table.
It fits a home where several rooms need their own temperature without new ductwork. Installation is by a licensed HVAC contractor.
Features
Three to Six Zones
Choose 18,000 BTU for up to three heads, 27,000 for four, 36,000 for five or 48,000 for six.
Mix Head Styles
Olympus wall-mount, four-way ceiling cassette and concealed ducted heads from 9,000 to 24,000 BTU can share one condenser within MRCOOL's match-up table.
Inverter Efficiency
Up to 25.1 SEER2 on the 18,000 BTU model and up to 10.3 HSPF2 in Region IV on the 48,000.
Cold-Weather Heating
MRCOOL's submittal lists heating down to -13°F; the 36,000 BTU model is rated for 26,000 BTU/h at 5°F.
Long Total Line Runs
Up to 262.4' of total piping on the 27,000 to 48,000 BTU models, with 114.8' to any one head.
Self-Cleaning Outdoor Coil
After shutdown the outdoor fan runs in reverse for 70 seconds to blow loose dust off the coil, which carries MRCOOL's Gold Fin anti-corrosion coating.
Specifications
-
Voltage: 208/230V
-
Phase: 1
-
Frequency: 60 Hz
-
Refrigerant: R-454B
-
Inverter: DC
-
ENERGY STAR: Yes
-
AHRI Certified: Yes
-
UL Listed: Yes
-
ETL Listed: Yes
-
CSA Listed: Yes
-
Color: White
18,000 BTU, up to 3 zones
-
Model: MULTI3-18HP230C-O
-
Cooling Capacity: 18,000 BTU/h
-
Heating Capacity: 19,000 BTU/h
-
Nominal Tonnage: 1.5 ton
-
SEER2: Up to 25.1
-
EER2: Up to 14
-
HSPF2 (Region IV): 9.8
-
HSPF2 (Region V): 7.8
-
Zones: 3
-
Minimum Circuit Ampacity: 16 A
-
Max Fuse / Breaker: 20 A
-
Refrigerant Charge: 61.73 oz
-
Sound Level: 59.5 dBA
-
Max Line Set Length: 196.8 total'
-
Liquid Line: 3 x 1/4"
-
Suction Line: 3 x 3/8"
-
Compressor: Twin-Rotary
-
Metering Device: EXV + Capillary
-
Works With: O-09-HP-WMAH-230C-O
DUCT-09HP-230B-O
CASSETTE09HP-230C-O
O-12-HP-WMAH-230C-O
DUCT-12HP-230B-O
CASSETTE12HP-230C-O
-
Dimensions: 35.04"W x 13.46"D x 26.5"H
-
Weight: 100.53 lbs

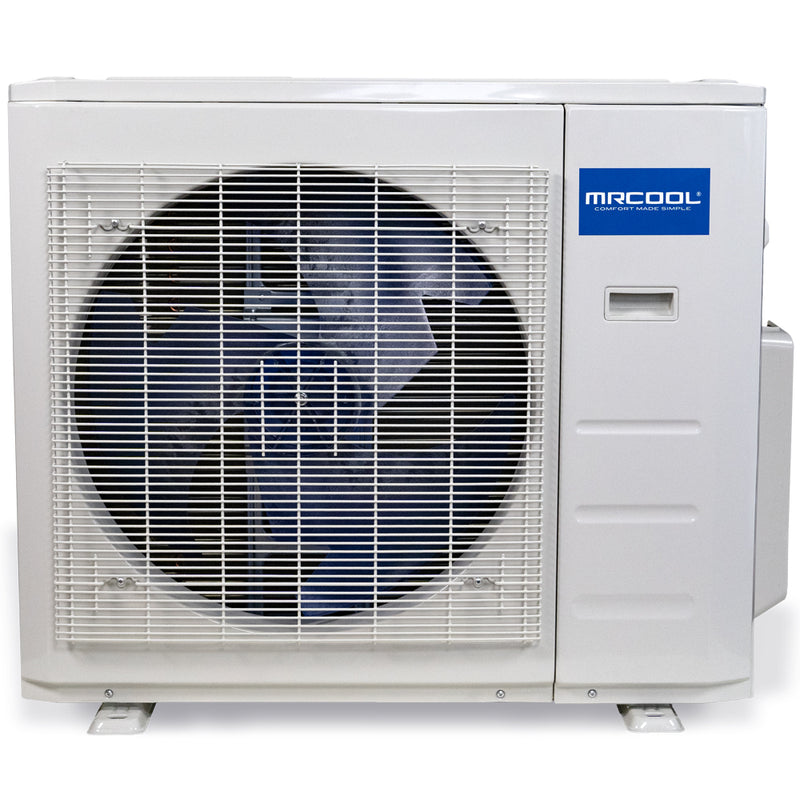

27,000 BTU, up to 4 zones
-
Model: MULTI4-27HP230C-O
-
Cooling Capacity: 27,000 BTU/h
-
Heating Capacity: 27,000 BTU/h
-
Nominal Tonnage: 2.25 ton
-
SEER2: Up to 25
-
EER2: Up to 13
-
HSPF2 (Region IV): 9.5
-
HSPF2 (Region V): 7
-
Coverage Area: Up to 1,125 ft²
-
Zones: 4
-
Minimum Circuit Ampacity: 23 A
-
Max Fuse / Breaker: 25 A
-
Refrigerant Charge: 84.66 oz
-
Sound Level: 61 dBA
-
Max Line Set Length: 262.4 total'
-
Liquid Line: 4 x 1/4"
-
Suction Line: 3 x 3/8 + 1 x 1/2"
-
Compressor: Rotary
-
Metering Device: EXV
-
Works With: O-09-HP-WMAH-230C-O
DUCT-09HP-230B-O
CASSETTE09HP-230C-O
O-12-HP-WMAH-230C-O
DUCT-12HP-230B-O
CASSETTE12HP-230C-O
O-18-HP-WMAH-230C-O
DUCT-18HP-230B-O
CASSETTE18HP-230C-O
O-24-HP-WMAH-230C-O
DUCT-24HP-230B-O
CASSETTE24HP-230C-O
-
Dimensions: 37.24"W x 16.14"D x 31.89"H
-
Weight: 138.89 lbs
36,000 BTU, up to 5 zones
-
Model: MULTI5-36HP230C-O
-
Cooling Capacity: 36,000 BTU/h
-
Heating Capacity: 37,000 BTU/h
-
Nominal Tonnage: 3 ton
-
SEER2: Up to 24
-
EER2: Up to 12
-
HSPF2 (Region IV): 9.5
-
HSPF2 (Region V): 7
-
Coverage Area: Up to 1,500 ft²
-
Zones: 5
-
Minimum Circuit Ampacity: 30.5 A
-
Max Fuse / Breaker: 35 A
-
Refrigerant Charge: 120.63 oz
-
Sound Level: 64.5 dBA
-
Max Line Set Length: 262.4 total'
-
Liquid Line: 5 x 1/4"
-
Suction Line: 4 x 3/8 + 1 x 1/2"
-
Compressor: Rotary
-
Metering Device: EXV
-
Works With: O-09-HP-WMAH-230C-O
DUCT-09HP-230B-O
CASSETTE09HP-230C-O
O-12-HP-WMAH-230C-O
DUCT-12HP-230B-O
CASSETTE12HP-230C-O
O-18-HP-WMAH-230C-O
DUCT-18HP-230B-O
CASSETTE18HP-230C-O
O-24-HP-WMAH-230C-O
DUCT-24HP-230B-O
CASSETTE24HP-230C-O
-
Dimensions: 37.24"W x 16.14"D x 31.89"H
-
Weight: 168.87 lbs

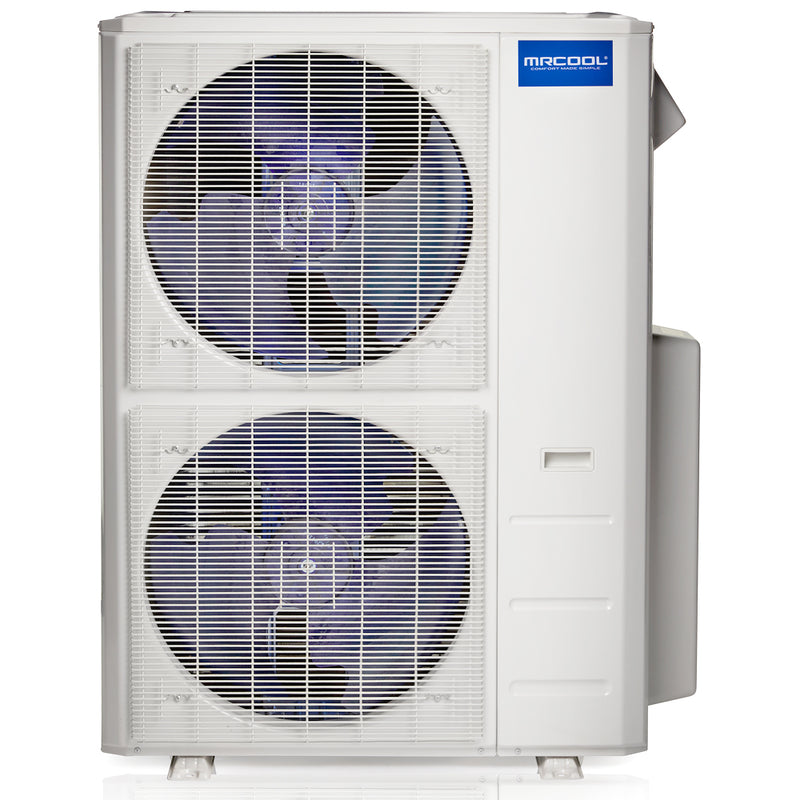

48,000 BTU, up to 6 zones
-
Model: MULTI6-48HP230C-O
-
Cooling Capacity: 47,000 BTU/h
-
Heating Capacity: 48,000 BTU/h
-
Nominal Tonnage: 4 ton
-
SEER2: Up to 24
-
EER2: Up to 12.5
-
HSPF2 (Region IV): 10.3
-
HSPF2 (Region V): 8
-
Coverage Area: Up to 2,000 ft²
-
Zones: 6
-
Minimum Circuit Ampacity: 34 A
-
Max Fuse / Breaker: 40 A
-
Refrigerant Charge: 148.15 oz
-
Sound Level: 63 dBA
-
Max Line Set Length: 262.4 total'
-
Liquid Line: 6 x 1/4"
-
Suction Line: 4 x 3/8 + 2 x 1/2"
-
Compressor: Rotary
-
Metering Device: EXV
-
Works With: O-09-HP-WMAH-230C-O
DUCT-09HP-230B-O
CASSETTE09HP-230C-O
O-12-HP-WMAH-230C-O
DUCT-12HP-230B-O
CASSETTE12HP-230C-O
O-18-HP-WMAH-230C-O
DUCT-18HP-230B-O
CASSETTE18HP-230C-O
O-24-HP-WMAH-230C-O
DUCT-24HP-230B-O
CASSETTE24HP-230C-O
-
Dimensions: 37.48"W x 16.34"D x 52.48"H
-
Weight: 222 lbs
What's Included
- MRCOOL Olympus Multi-Zone outdoor condenser
Installation
Professional installation required. This equipment must be installed by a licensed HVAC contractor (EPA Section 608-certified for any refrigerant work), following MRCOOL's installation manual and all local codes, permits and licensing rules. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Needs at least two Olympus indoor heads in a combination listed on MRCOOL's match-up table. Line sets are not included; each zone port takes 1/4" liquid line, with 3/8" or 1/2" suction by port. Maximum total piping is 196.8' (18,000 BTU) or 262.4' (27,000 to 48,000 BTU), with 98.4' or 114.8' to any one head, 49.2' of height between condenser and head and 33' between heads. The factory charge covers 24.6' per zone. Power is 208/230V single phase; circuit sizes are in the Specifications tab.
