The MRCOOL pre-charged cased evaporator coil adds heat pump cooling and heating to a gas furnace, arriving factory charged with R-454B and fitted with a hard shut-off TXV. Five sizes cover 1.5 to 5 tons in 14.5", 17.5", 21.62" and 24.5" wide cabinets, matched to MRCOOL's VersaPro 2nd Gen and Central Ducted Hyper Heat 2nd Gen heat pump condensers.

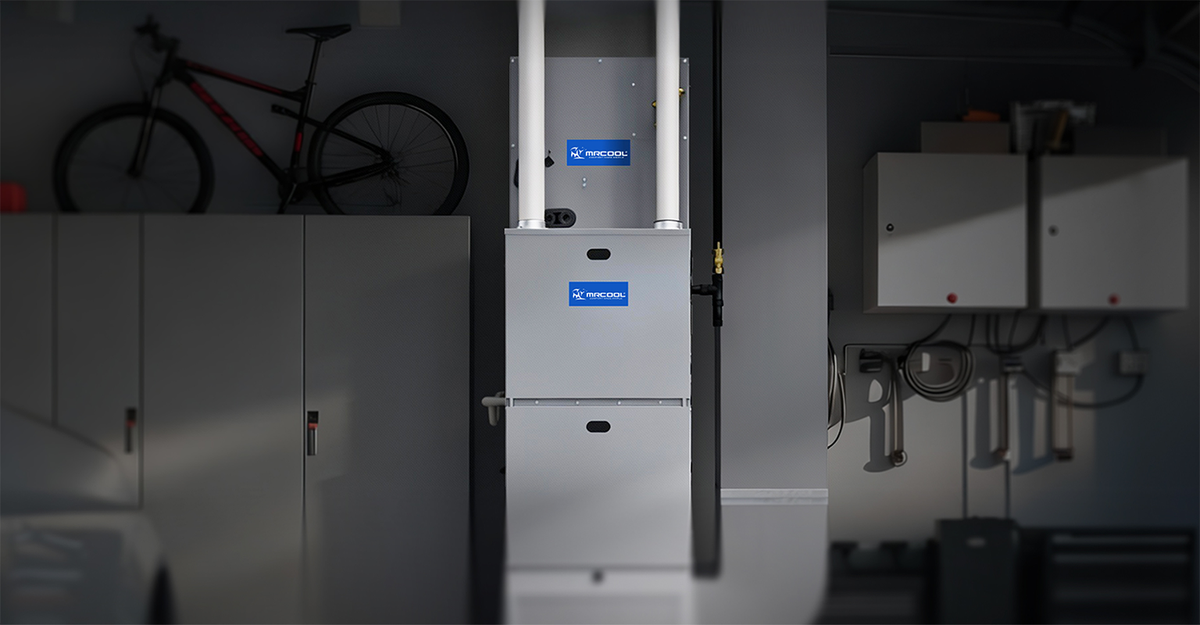

It is the coil for a dual-fuel upgrade, where the heat pump carries most of the year and the furnace covers the deep cold. Installation is by a licensed HVAC contractor. This is MRCOOL's pre-charged evaporator coil.
Features
Arrives Charged With R-454B
The coil ships holding refrigerant and joins the condenser through No Vac Quick Connect lines from MRCOOL or through flare-to-sweat fittings.
Matched to MRCOOL Heat Pumps
MRCOOL's manual pairs each size with VersaPro MVP and Central Ducted Hyper Heat condensers from 1.5 to 5 tons.
Four Installation Positions
Install it upflow, downflow, horizontal left or horizontal right, and horizontal units have their own side drain pan built in.
Factory-Installed TXV
A hard shut-off expansion valve with a preset superheat setting comes fitted for R-454B.
A2L Leak Detection
A built-in refrigerant sensor shuts the compressor down and runs the indoor fan if it detects a leak.
CoolGuard Coil Protection
MRCOOL's CoolGuard corrosion-resistant coil is built for a long service life.
Dual Drain Fittings
Two 3/4" female threaded condensate connections in the pan let the contractor drain from either side.
Specifications
-
Refrigerant: R-454B
-
Liquid Line: 3/8"
-
Suction Line: 3/4"
-
Configuration: Multi-Position
-
Metering Device: TXV
-
Works With: VersaPro 2nd Gen and Central Ducted Hyper Heat 2nd Gen heat pump condensers (see the matching table in the manual); sits on VersaPro 2nd Gen gas furnaces
-
Color: Grey
1.5-2 Ton, 14.5" cabinet
-

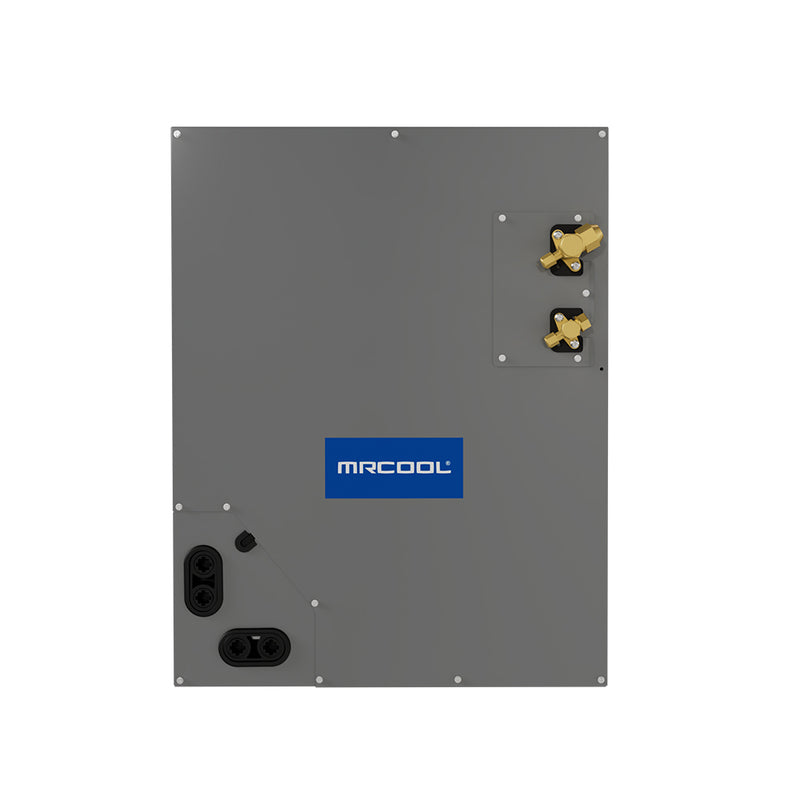

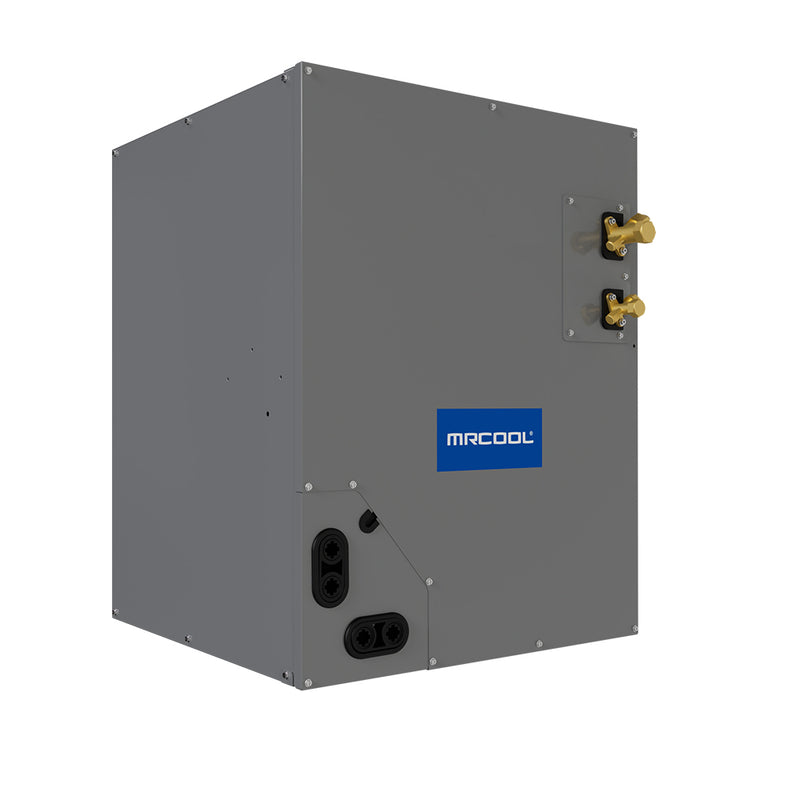

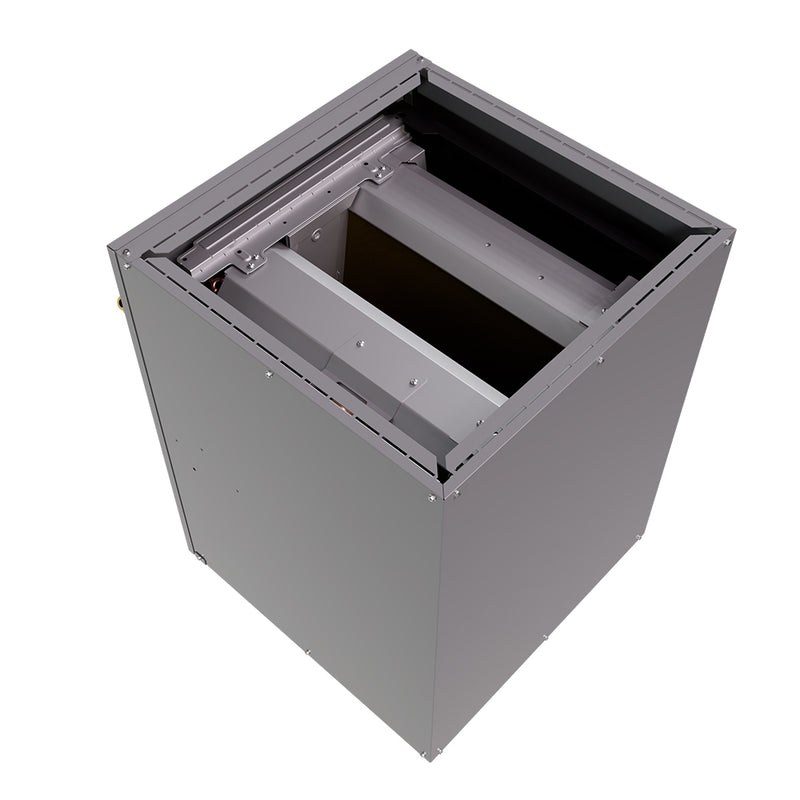

Model: MCMP1824AOTB
-
Nominal Tonnage: 1.5 to 2 tons
-
Dimensions: 14.5"W x 21"D x 18"H
-
Weight: 42 lbs
1.5-2 Ton, 17.5" cabinet
-

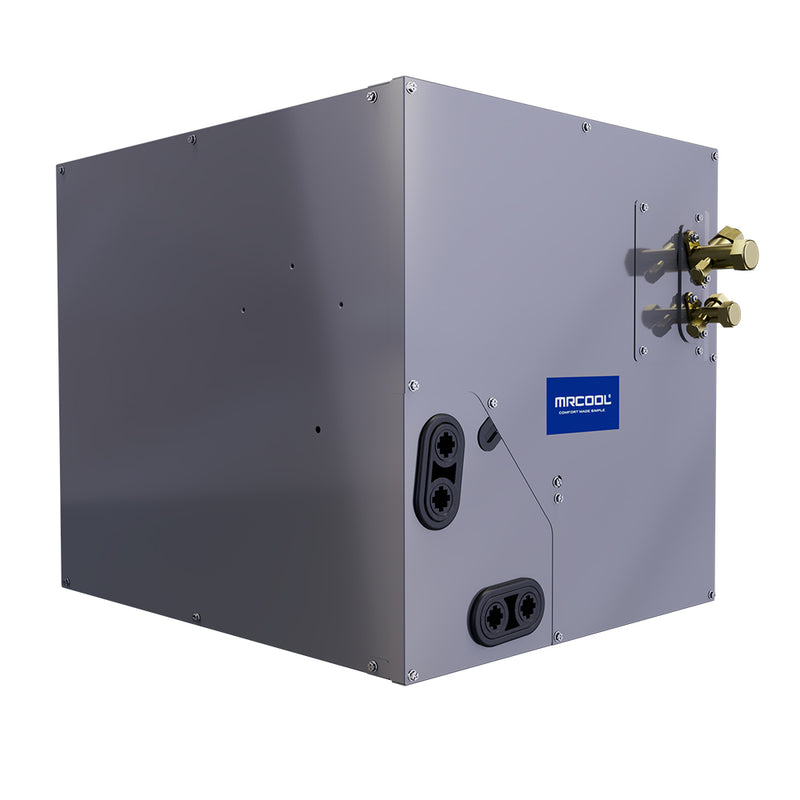

Model: MCMP1824BOTB
-
Nominal Tonnage: 1.5 to 2 tons
-
Dimensions: 17.5"W x 21"D x 18"H
-
Weight: 42 lbs

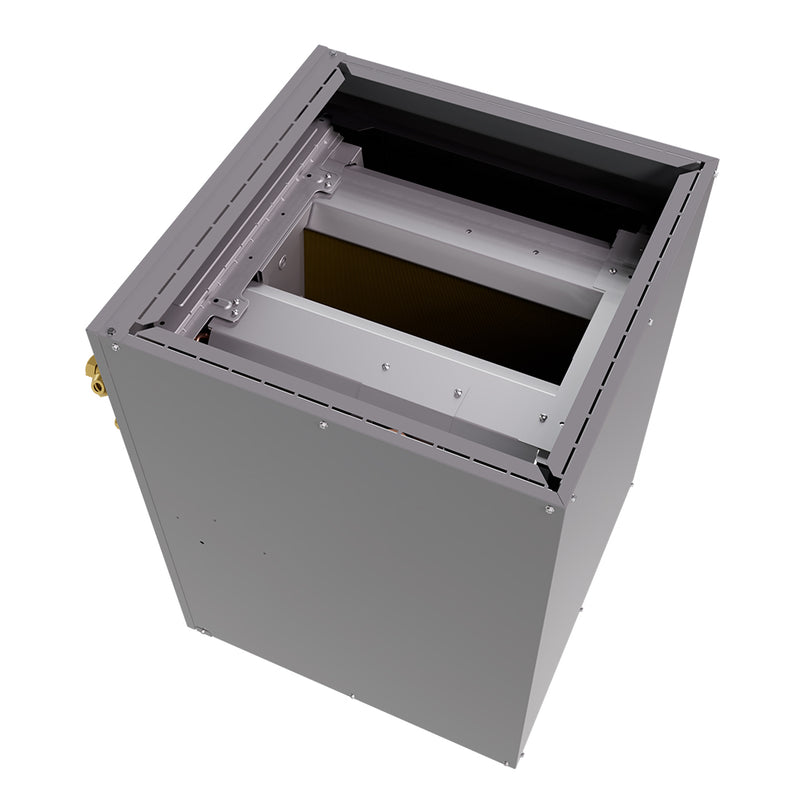

2.5-3 Ton, 17.5" cabinet
-

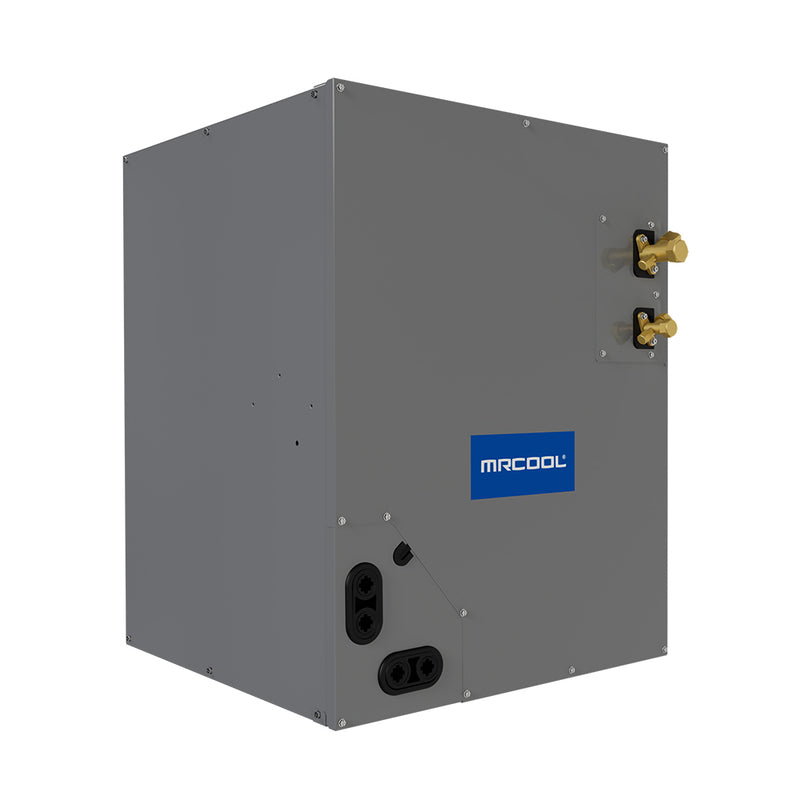

Model: MCMP3036BOTB
-
Nominal Tonnage: 2.5 to 3 tons
-
Dimensions: 17.5"W x 21"D x 23.5"H
-
Weight: 59.5 lbs

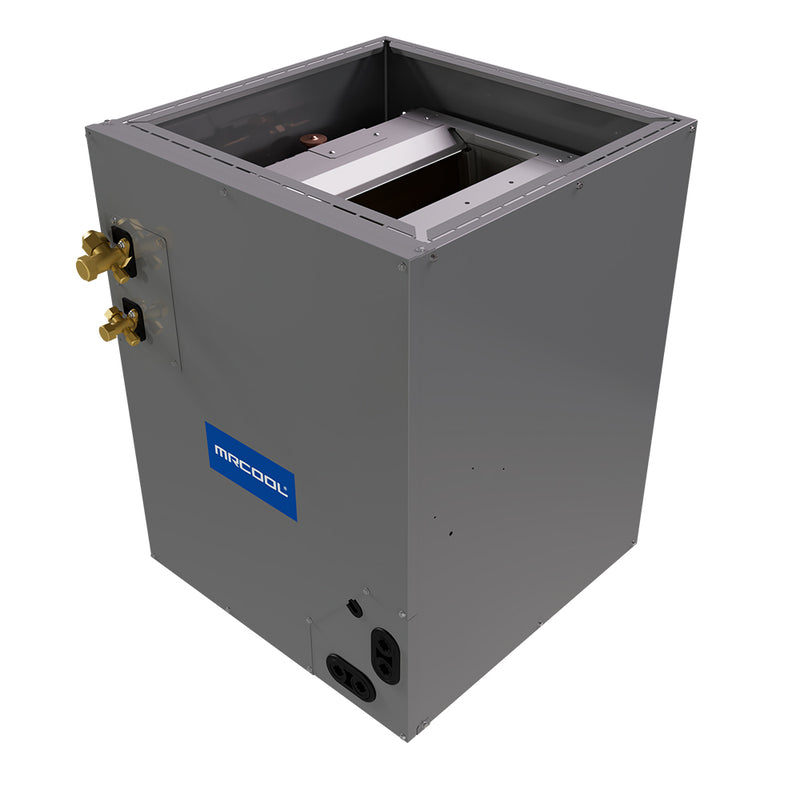

4-5 Ton, 21.62" cabinet
-
Model: MCMP4860COTB
-
Nominal Tonnage: 4 to 5 tons
-
Dimensions: 21.62"W x 21.5"D x 27.75"H
-
Weight: 97 lbs
4-5 Ton, 24.5" cabinet
-

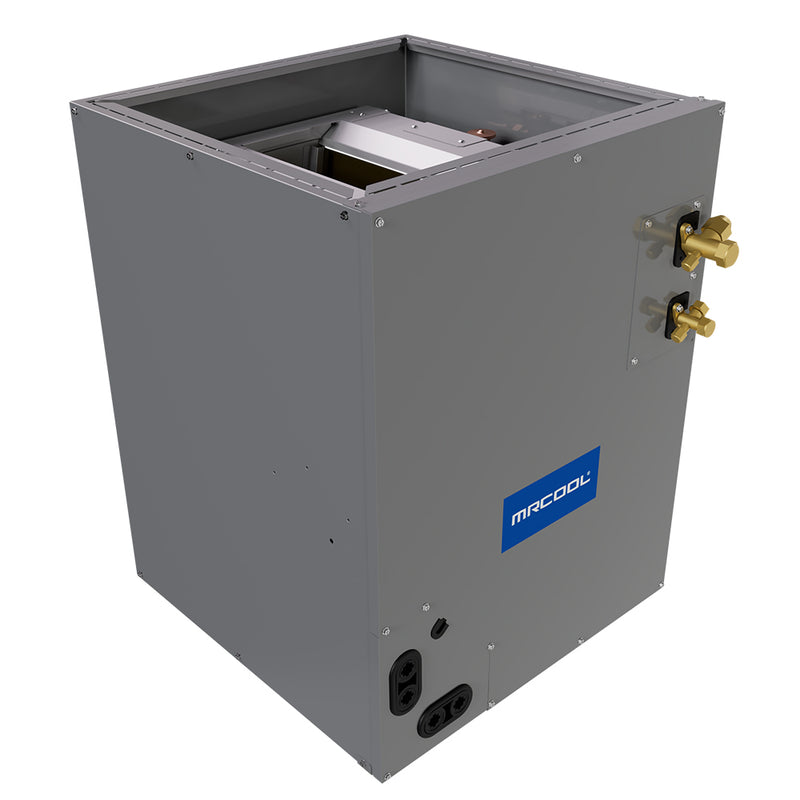

Model: MCMP4860DOTB
-
Nominal Tonnage: 4 to 5 tons
-
Dimensions: 24.5"W x 21"D x 28"H
-
Weight: 81 lbs
What's Included
- MRCOOL pre-charged cased evaporator coil in the selected size
- Coil interface (packed separately)
- Room temperature sensor (T1) with cable
- Mounting screws and anchors for the interface
- Installation and owner's manual
Installation
Professional installation required. This equipment must be installed by a licensed HVAC contractor (EPA Section 608-certified for any refrigerant work), following MRCOOL's installation manual and all local codes, permits and licensing rules. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Refrigerant connections are 3/8" liquid and 3/4" suction on every size. Set the coil level on the furnace discharge opening and seal the joint; it does not need to be screwed to the furnace. Install a trap at least 3" deep in the condensate line close to the coil, and fit a field-made secondary drain pan under the whole unit above a finished ceiling. The coil interface runs on 24V. Use only with R-454B outdoor units.
