The MRCOOL TravelCool is a 15,000 BTU rooftop RV inverter heat pump: a DC inverter compressor in a 10.63"-tall shell that cools and, in mild weather, heats the coach at up to 10,236 BTU/h. It runs on 115V power, holds a factory charge of R-32, and is rated 55 dB(A) on eco and 59 dB(A) on turbo.
It suits motorhomes, trailers and campers replacing an older rooftop air conditioner or adding one, in black or white, as a rooftop unit alone or bundled with a ducted or ductless ceiling kit. Installation is by a qualified RV or HVAC professional. That is the TravelCool RV inverter heat pump.
Features

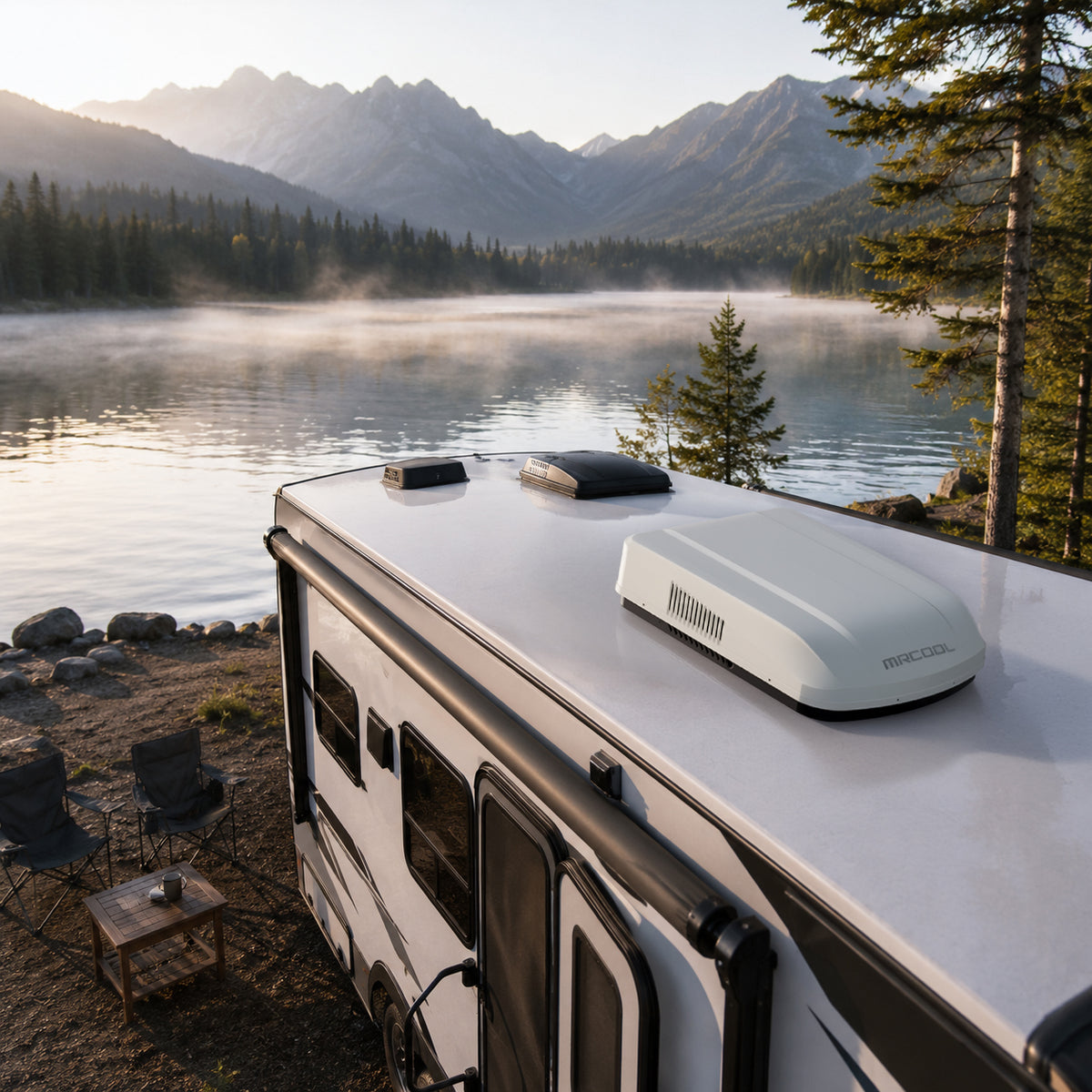

Cooling and Heat Pump Heating
Rated 15,000 BTU/h of cooling and 10,236 BTU/h of heating, from one rooftop unit.
DC Inverter Compressor
Output follows the load instead of cycling on and off at full power, for a steadier draw on generator or solar setups.

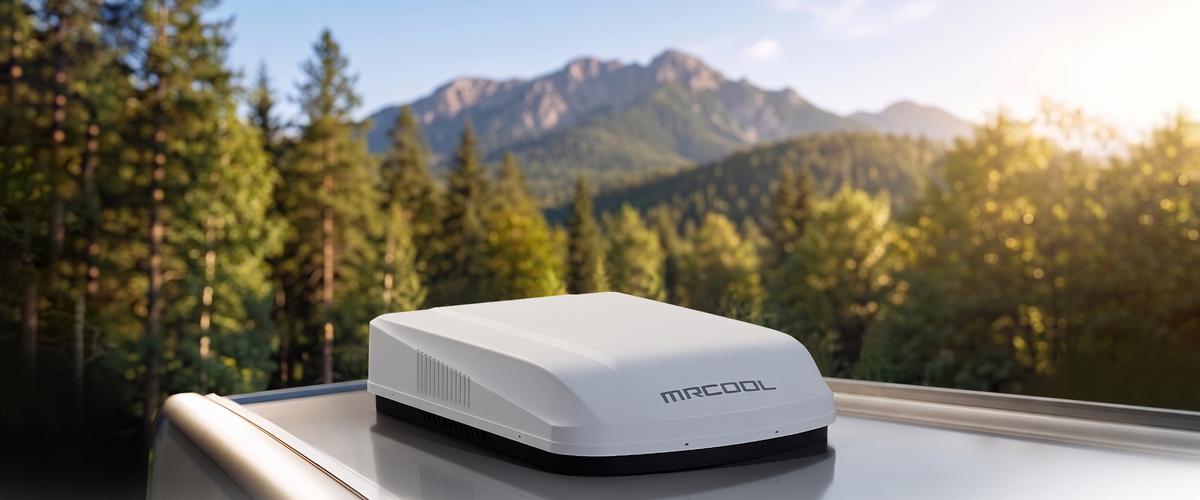

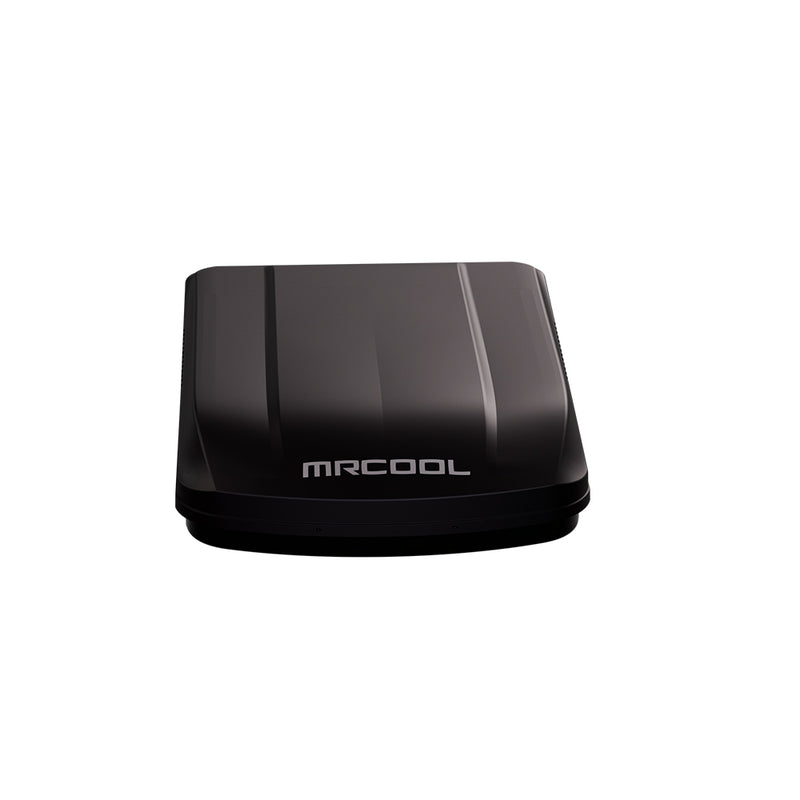

10.63" Low Profile
The 40.95" x 29.72" shell stands 10.63" tall to cut wind drag and roof height.

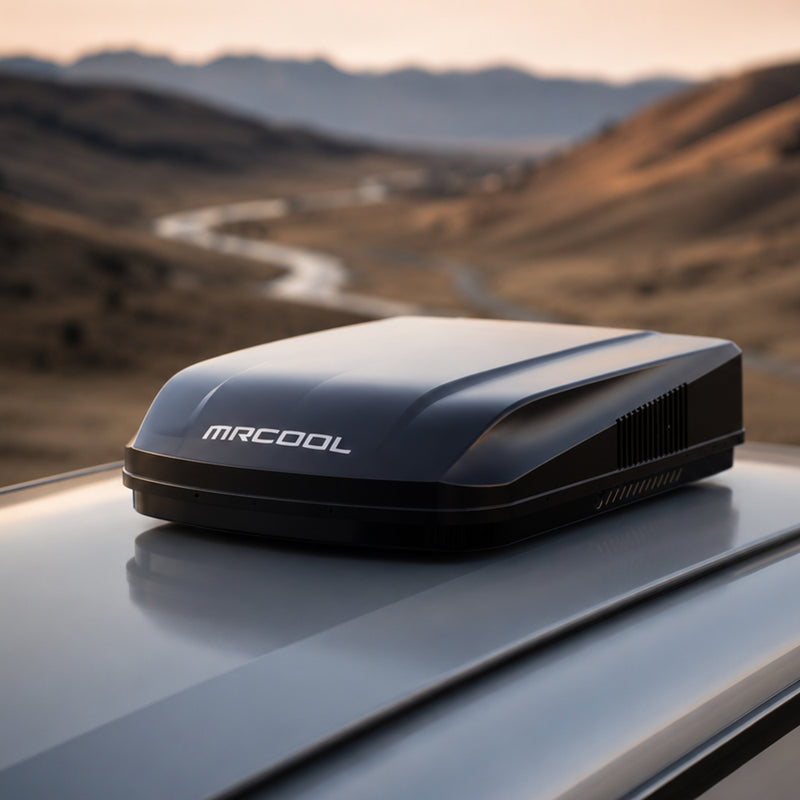

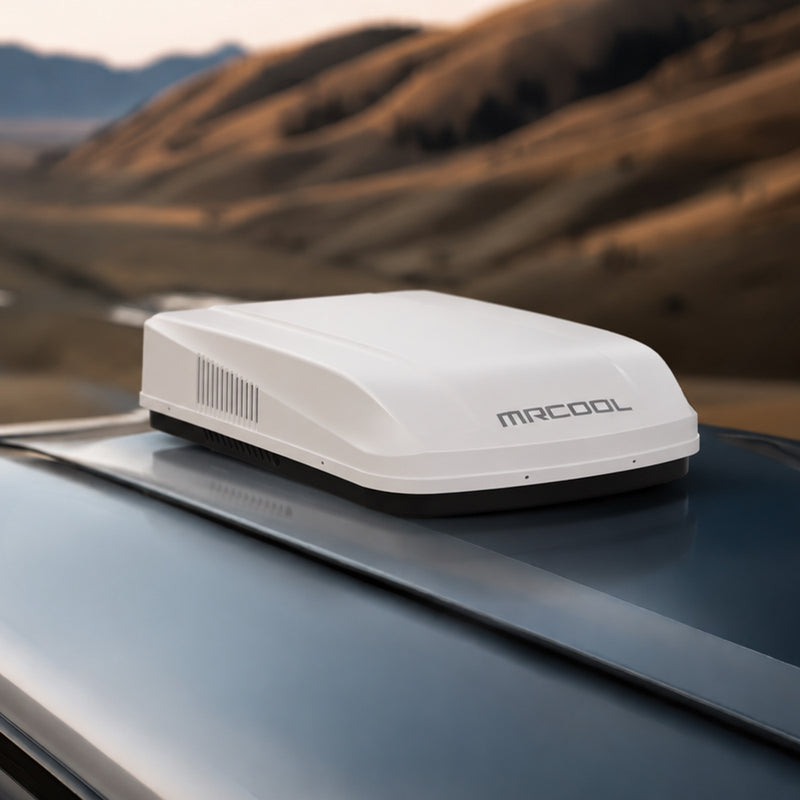

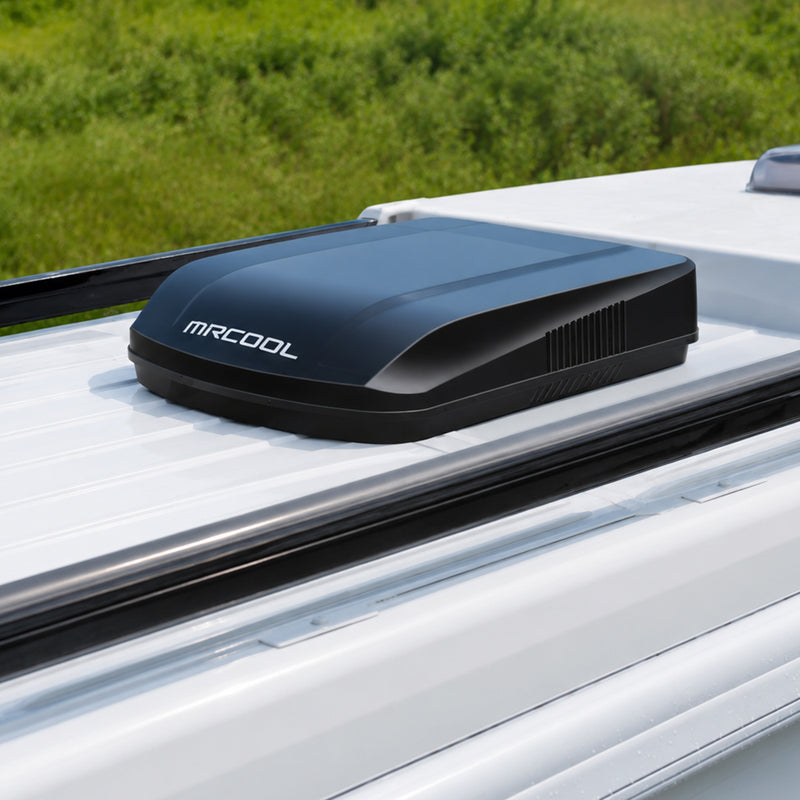

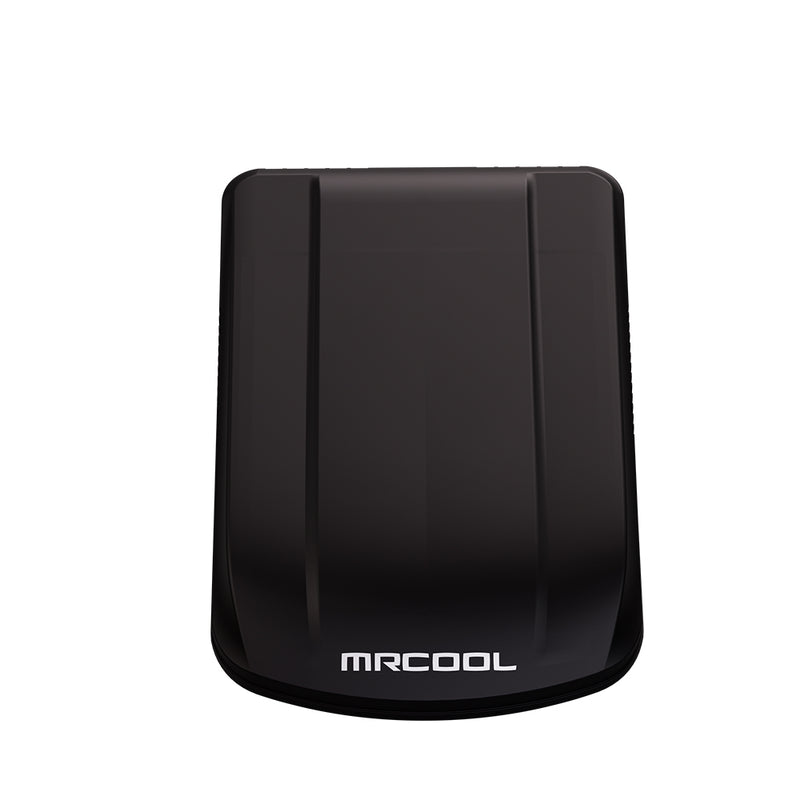

Black or White Shell
Choose the rooftop color that matches the coach's paint scheme.
Ducted or Ductless
Pairs with the MDRDK ducted kit for existing ceiling ducts or the MLRDK ductless plenum for non-ducted spaces.
Remote, Panel and App
Includes a remote, with built-in Wi-Fi for the MRCOOL Connect app and an optional MRDCW wired wall controller.
Washable Filter
The filter screen slides out of the ceiling assembly for rinsing with water.
R-32 Refrigerant
Factory charged with 25.4 oz of R-32, sealed in the rooftop unit.
Specifications
-
Cooling Capacity: 15,000 BTU/h
-
Heating Capacity: 10,236 BTU/h
-
Nominal Tonnage: 1.25 ton
-
Voltage: 115V
-
Phase: 1
-
Frequency: 60 Hz
-
Minimum Circuit Ampacity: 16 A
-
Max Fuse / Breaker: 25 A
-
Refrigerant: R-32
-
Refrigerant Charge: 25.39 oz
-
Heating Operating Range (outdoor, low): 41°F
-
Cooling Operating Range (outdoor, low): 63°F
-
Airflow: 323.72 CFM
-
Mount: Roof
-
Blower Motor: Brushless DC
-
Inverter: Yes
-
Filter: Reusable
-
Wi-Fi: Yes
-
Dimensions: 29.72"W x 40.95"D x 10.63"H

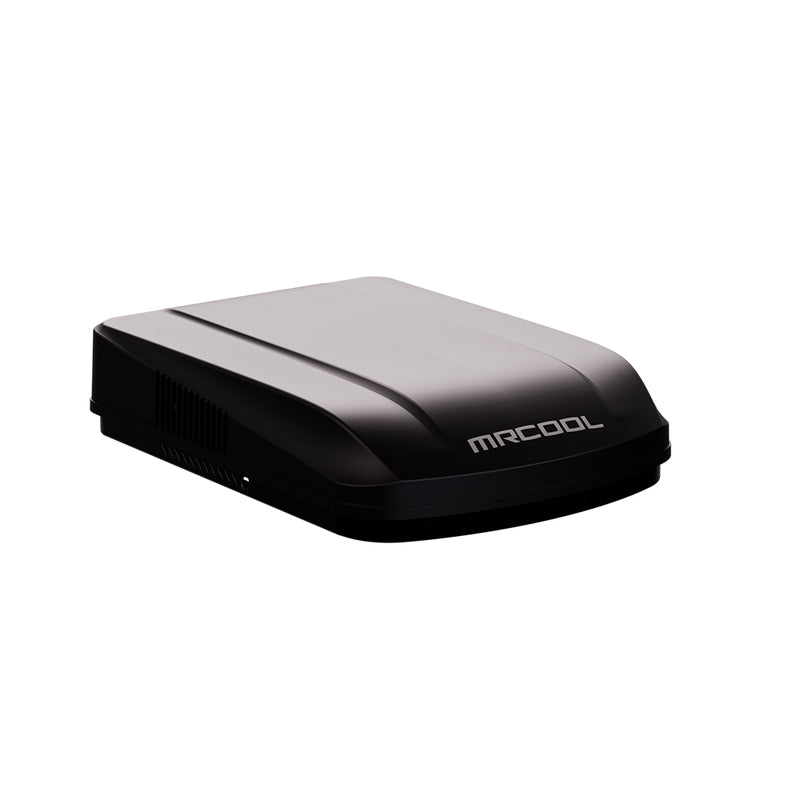

Rooftop unit only, Black
-
Model: MRDHP15K-D
-
Color: Black
-
Weight: 95.24 lbs

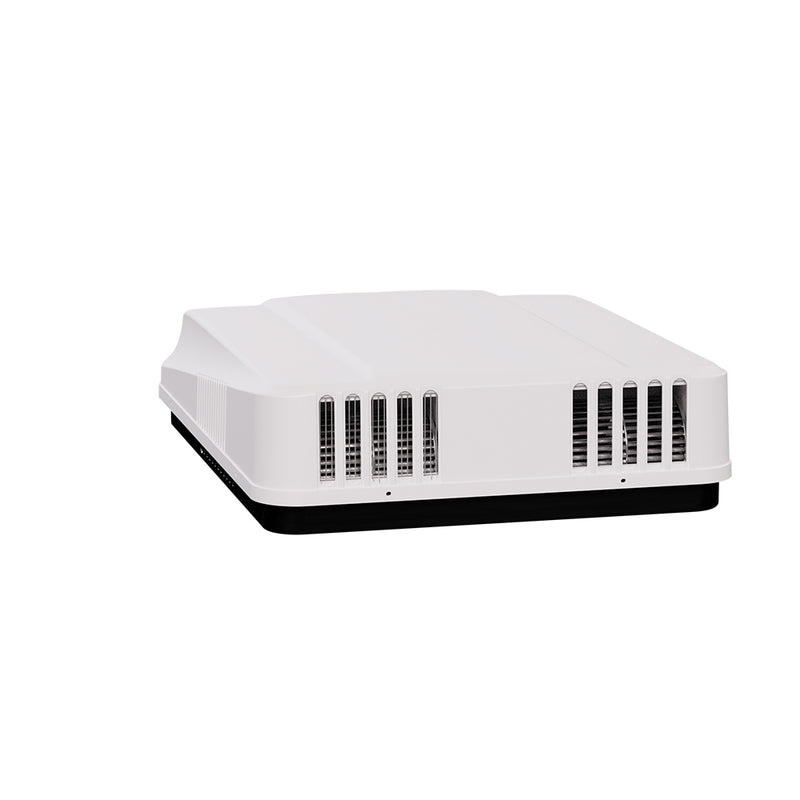

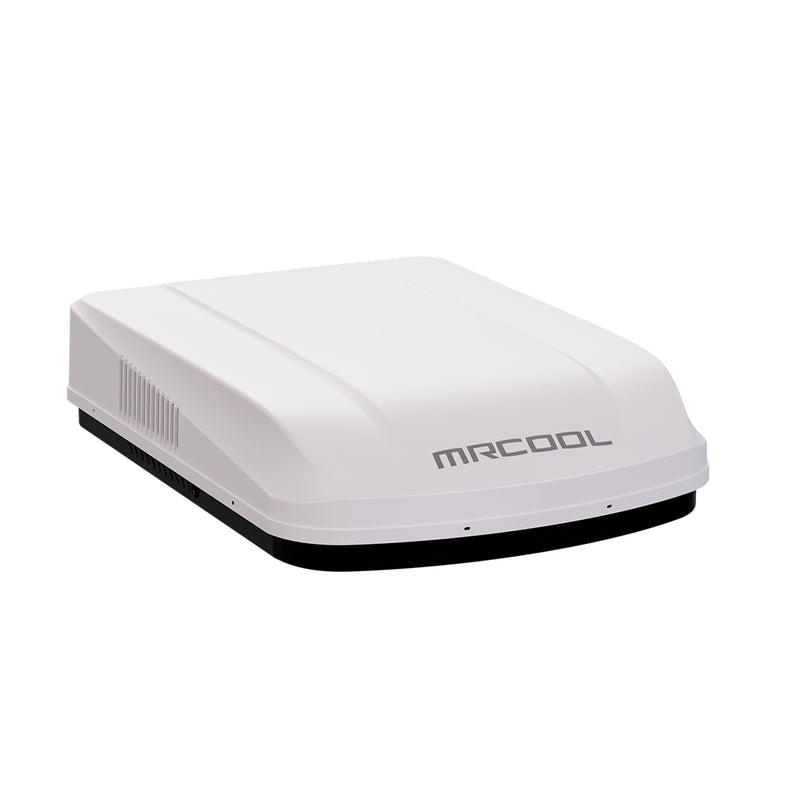

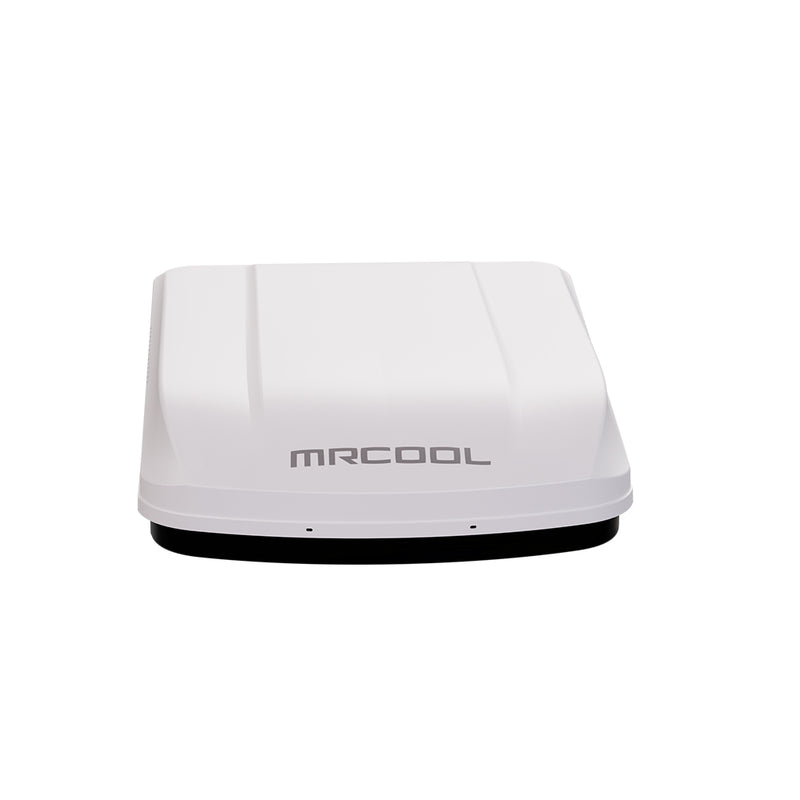

Rooftop unit only, White
-
Model: MRDHP15W-D
-
Color: White
-
Weight: 95.24 lbs
Ductless ceiling kit, Black
-
Model: MRDHP15KD-LCW
-
Weight: 95.24 lbs (rooftop unit)
-
Color: Black
-
Ceiling Kit: MLRDK ductless ceiling assembly
-
Ceiling Kit Weight: 9.92 lbs
Ductless ceiling kit, White
-
Model: MRDHP15WD-LCW
-
Weight: 95.24 lbs (rooftop unit)
-
Color: White
-
Ceiling Kit: MLRDK ductless ceiling assembly
-
Ceiling Kit Weight: 9.92 lbs
Ducted ceiling kit, Black
-
Model: MRDHP15KD-DCW
-
Weight: 95.24 lbs (rooftop unit)
-
Color: Black
-
Ceiling Kit: MDRDK ducted ceiling assembly
-
Ceiling Kit Weight: 6.6 lbs
Ducted ceiling kit, White
-
Model: MRDHP15WD-DCW
-
Weight: 95.24 lbs (rooftop unit)
-
Color: White
-
Ceiling Kit: MDRDK ducted ceiling assembly
-
Ceiling Kit Weight: 6.6 lbs
What's Included
- MRCOOL TravelCool rooftop inverter heat pump, black or white, factory charged with R-32
- Remote controller with battery
- 4 long fixing bolts
- Ductless kit configurations: MLRDK ceiling assembly (ADB panel, central panel and 5 air duct sections)
- Ducted kit configurations: MDRDK ceiling assembly (control panel component, mounting plate, adjustable baffle, mounting buckles, foil and 12 screws)
- Installation and user manual
Installation
Professional installation required. This equipment must be installed by a qualified, licensed electrician or contractor, following MRCOOL's installation manual and all local electrical and building codes and permit requirements. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Mounts centered on the roof between its two lengthwise members, on a flat area sloped no more than 10°, over a 14.17" x 14.25" ceiling opening; an existing roof hatch or old air conditioner opening can be reused, and a new opening must be reinforced with a support frame. Confirm with the vehicle manufacturer that the roof can carry 95.24 lbs while traveling. Keep the unit at least 19.68" from combustible materials. Power is 115V, 60 Hz single phase through a breaker in the fixed wiring, and the unit must be grounded to the vehicle. The ducted kit includes duct sections that are stacked to match roof thickness.
