MRCOOL TravelCool accessories are the interior parts of the TravelCool rooftop RV heat pump system: the MLRDK ductless ceiling kit, the MDRDK ducted ceiling kit, the MRDCW wired wall controller and the MRDRC remote. The ductless plenum is just 2.57" deep to save headroom, and the ducted assembly ties the rooftop unit into existing ceiling ducts.
Choose a ceiling kit when you buy a TravelCool rooftop unit on its own, add the wired controller for fixed wall control, or replace a lost remote. Installation of the ceiling kits and wired controller is by a licensed professional. These are the TravelCool RV air conditioner accessories.
Features

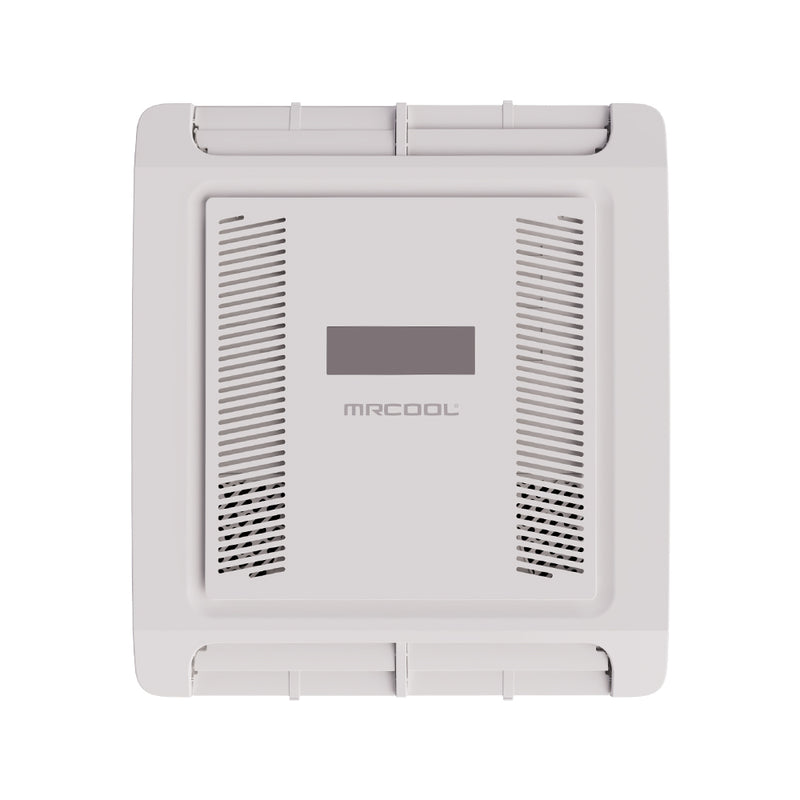

Ductless Ceiling Kit (MLRDK)
A 2.57"-deep plenum that delivers air straight into the living area of rigs without ducts, at 9.92 lbs.

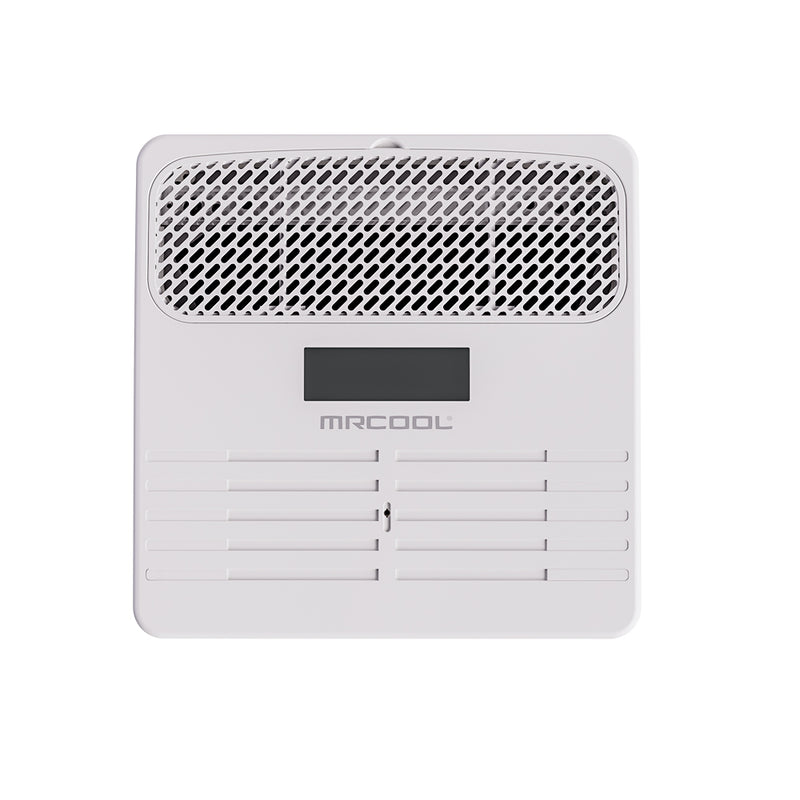

Ducted Ceiling Kit (MDRDK)
A 17.08" square assembly that feeds the coach's existing ceiling ducts for air across several rooms.
Washable Filter Screen
The ceiling assembly's filter screen pulls out for rinsing with water and slides back in once dry.

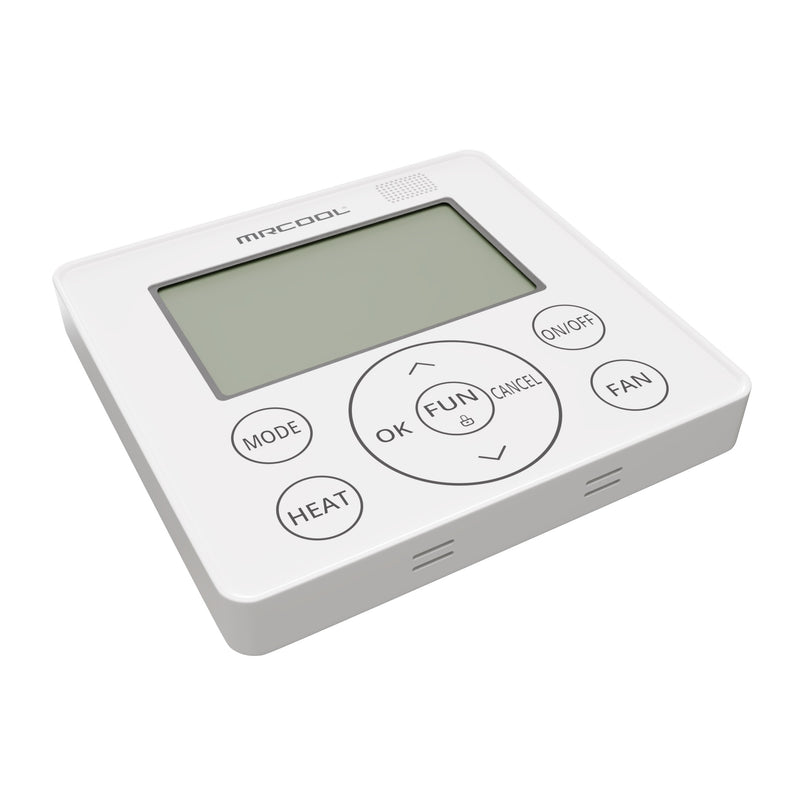

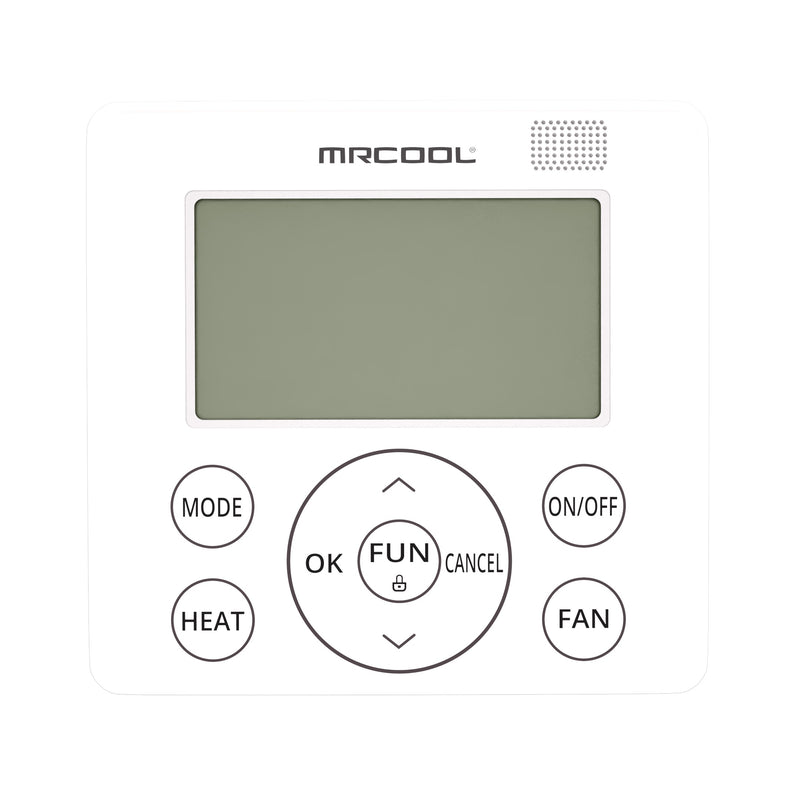

Wired Wall Controller (MRDCW)
An LCD wall controller on 12V DC, wired to the unit's display board with up to 49.21' of 4-core shielded cable.

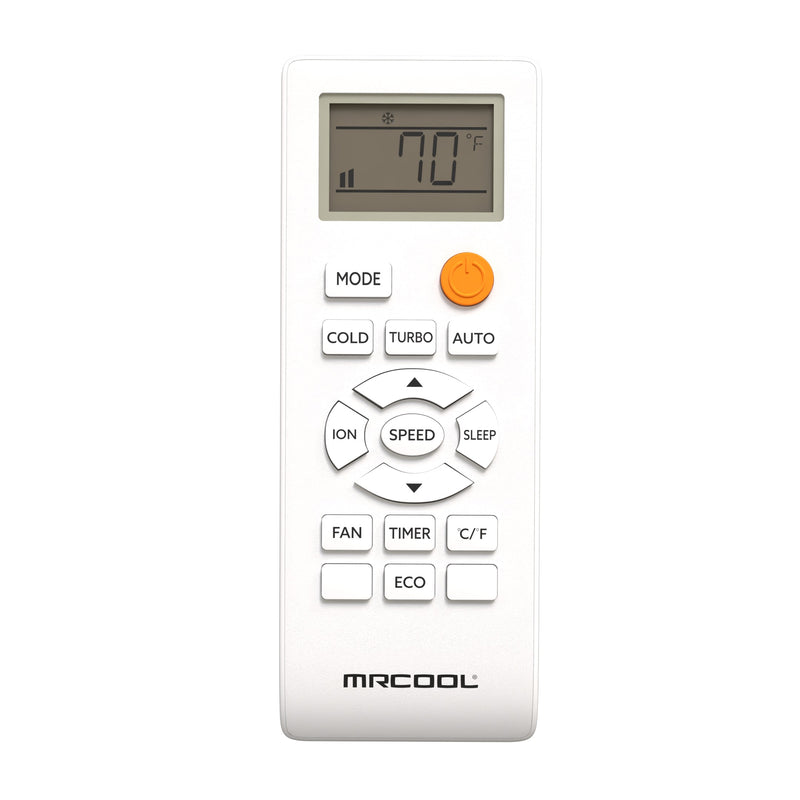

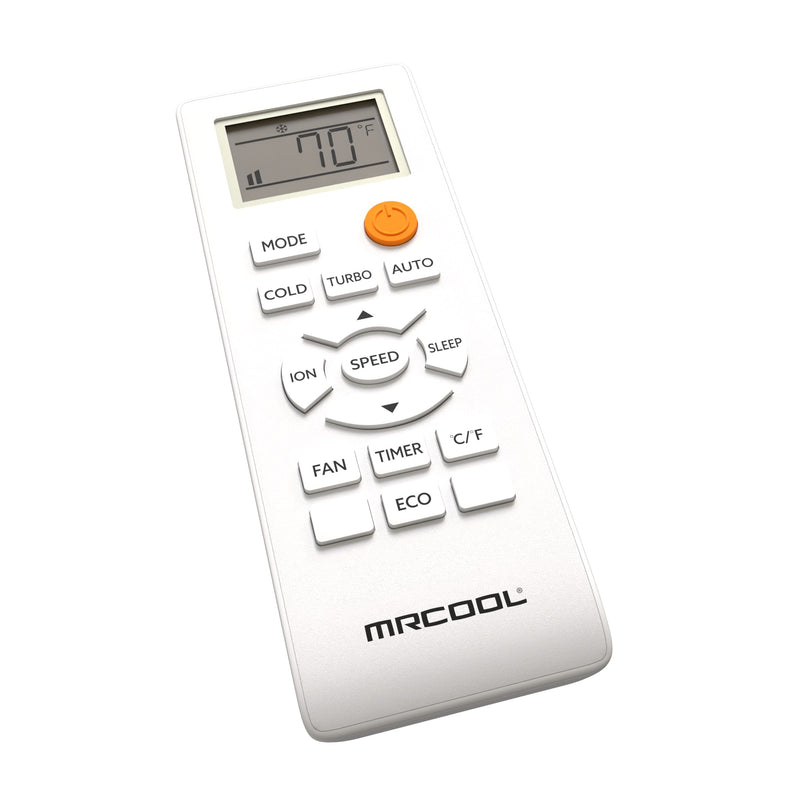

Handheld Remote (MRDRC)
Sets mode, fan speed, timer, eco and turbo, and switches the display between °F and °C.
Made for TravelCool
Matched to the black MRDHP15K-D and white MRDHP15W-D rooftop units.
Specifications
Ductless ceiling kit
-
Model: MLRDK
-
Dimensions: 20.39"W x 22.78"D x 2.57"H
-
Weight: 9.92 lbs
Ducted ceiling kit
-
Model: MDRDK
-
Dimensions: 17.08"W x 17.08"D x 3.87"H
-
Weight: 6.61 lbs
Wired wall controller
-
Model: MRDCW
-
Voltage: 12V
Remote control
What's Included
- Ductless ceiling kit: MLRDK ADB panel, central panel and 5 air duct sections
- Ducted ceiling kit: MDRDK control panel component, mounting plate, adjustable baffle, 2 mounting buckles, foil and 12 screws
- Wired controller: MRDCW controller, controller cable assembly, main board cable, ferrite core, 2 screws, 2 plastic screw columns and manual
- Remote: MRDRC handheld remote control
Installation
Professional installation required. This equipment must be installed by a qualified, licensed electrician or contractor, following MRCOOL's installation manual and all local electrical and building codes and permit requirements. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
The ceiling kits mount inside the coach beneath the TravelCool rooftop unit over its 14.17" x 14.25" opening and are installed with it; the ducted kit's duct sections stack to suit roof thickness. The MRDCW wired controller mounts on a standard electrical box with a field-supplied 4-core shielded cable (RVVP-0.5mm² x 4) in conduit up to 49.21' long; keep it 11.81" to 19.68" away from high-voltage conduit and do not splice the cable.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's non-transferable TravelCool limited warranty covers parts for 2 years from the proof-of-purchase date, for the original owner. Coverage ends if the unit is removed from the RV it was first installed in, and labor is not covered. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
These parts complete or extend a MRCOOL TravelCool rooftop RV heat pump. Every rooftop unit needs one ceiling assembly inside the coach, either the MLRDK ductless plenum or the MDRDK ducted kit. The MRDCW wired controller adds a fixed wall control, and the MRDRC is the handheld remote that ships with the system, sold here as a replacement.
