The MRCOOL Universal packaged unit heat kit adds electric resistance heat inside the Universal 2nd Gen inverter packaged heat pump, for backup on the coldest days and during defrost. Nickel chromium heating elements sit on a steel element plate that slides into a slot in the cabinet, with overheat protection built in, and the kit runs on the same 208/230V single-phase supply as the unit.
MRCOOL lists the MDPHK06D, MDPHK09D and MDPHK12D kits as the only heat kits approved for the MDPH18036D, MDPH18048D and MDPH18060D packaged heat pumps. A licensed electrician or HVAC contractor installs it, sizing the circuit for the kit. That is the Universal packaged unit heat kit.
Features
Matched to the Universal Packaged Unit
Built for the Universal 2nd Gen inverter packaged heat pumps, and the only electric heat MRCOOL approves for them.
Nickel Chromium Elements
Open-coil nickel chromium elements are made for long service life under repeated heating cycles.
Overheat Protection
Built-in overheat protection cuts the elements if temperatures climb too high.
Slide-In Installation

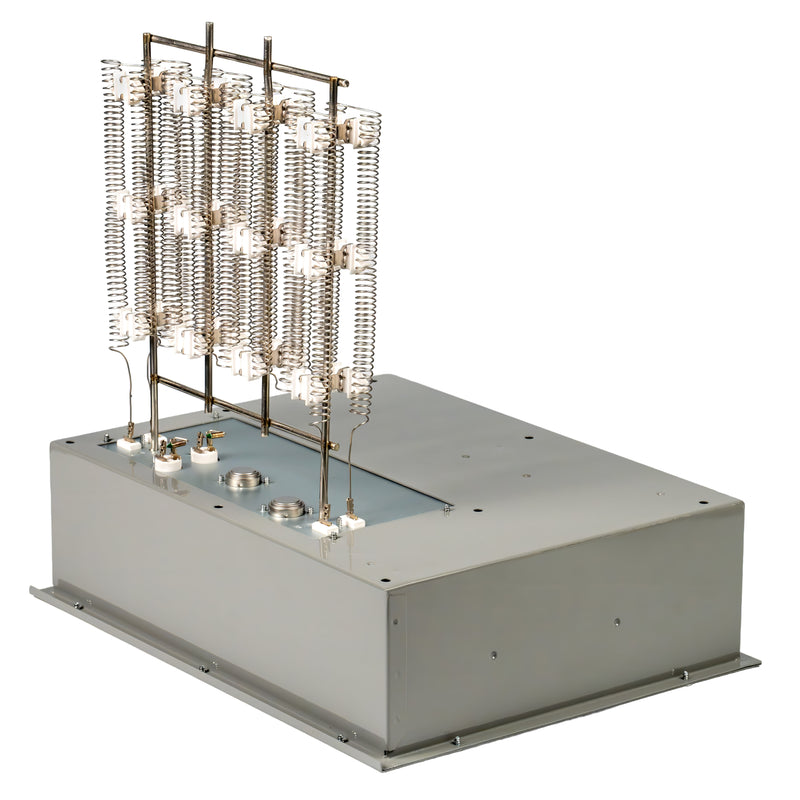

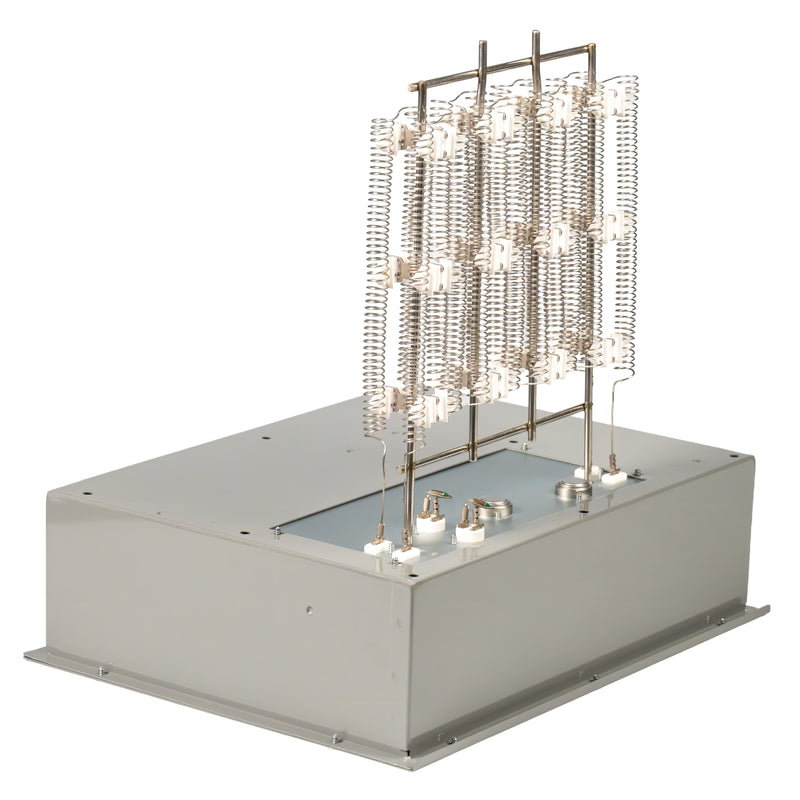

The element plate slides into its slot in the cabinet and fastens with the screws removed from the cover, with no external cabinet to mount.
Thermostat-Controlled Backup
The kit is staged by the unit's thermostat control, adding heat when the heat pump alone cannot hold the set point.
Three Output Sizes
Choose by the home's heat loss and the circuit capacity available: the 9kW and 12kW kits deliver more backup heat and draw more current.
Specifications
-
Voltage: 208/230V
-
Phase: 1
-
Frequency: 60 Hz
-
Dimensions: 16.5"W x 16.5"D x 13.8"H

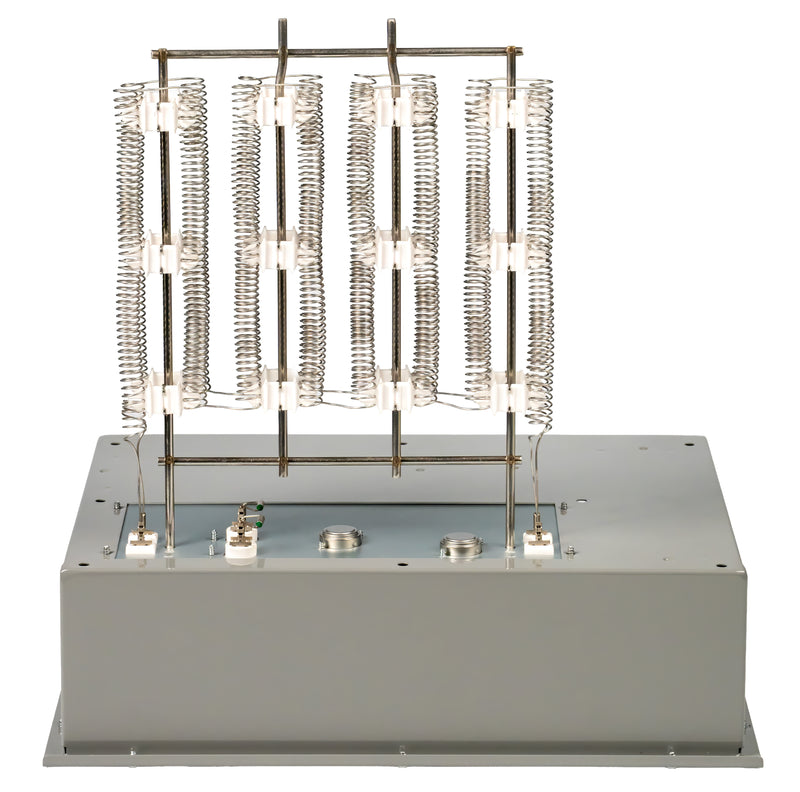

6 kW
-
Model: MDPHK06D
-
Weight: 10.58 lbs

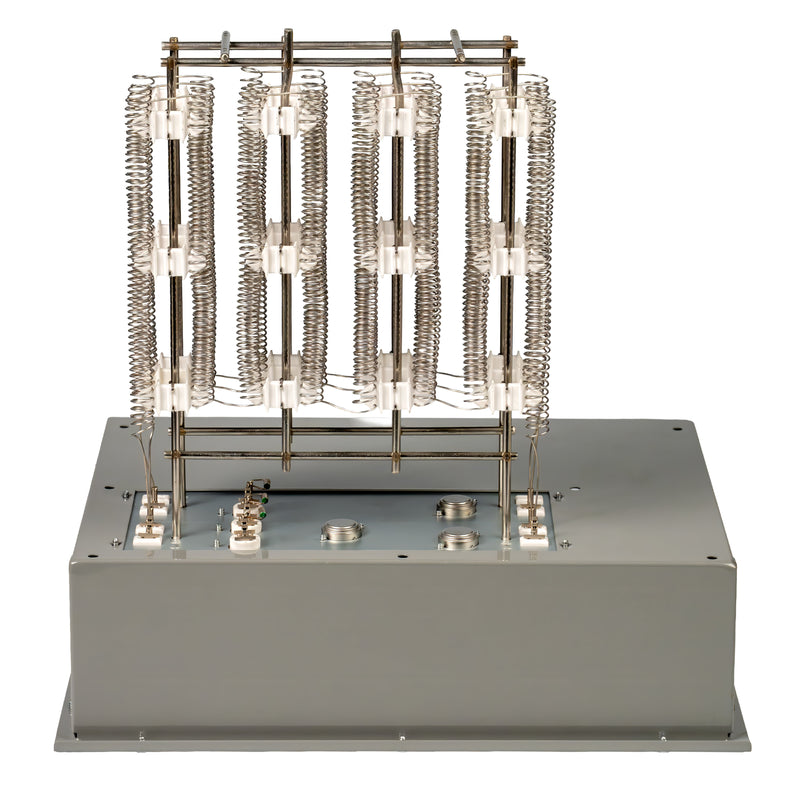

9 kW
-
Model: MDPHK09D
-
Weight: 13.67 lbs

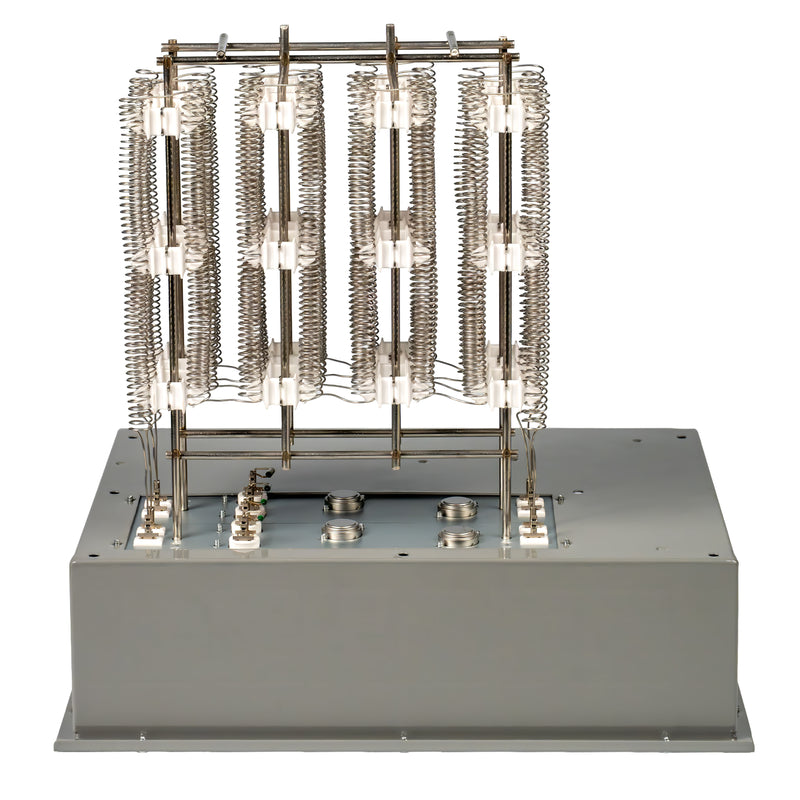

12 kW
-
Model: MDPHK12D
-
Weight: 14.55 lbs
What's Included
- MRCOOL Universal packaged unit electric heat kit (element plate assembly)
Installation
Professional installation required. This equipment must be installed by a qualified, licensed electrician or contractor, following MRCOOL's installation manual and all local electrical and building codes and permit requirements. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Disconnect power before installing. The heat kit's electrical characteristics must match the packaged unit and its supply (208/230V single phase). Check the kit for shipping damage, slide it into the heat kit slot and secure the element plate with the screws removed earlier, then follow the wiring steps in the packaged unit manual and the instructions shipped with the kit. The circuit feeding the unit must be sized for the kit installed.
