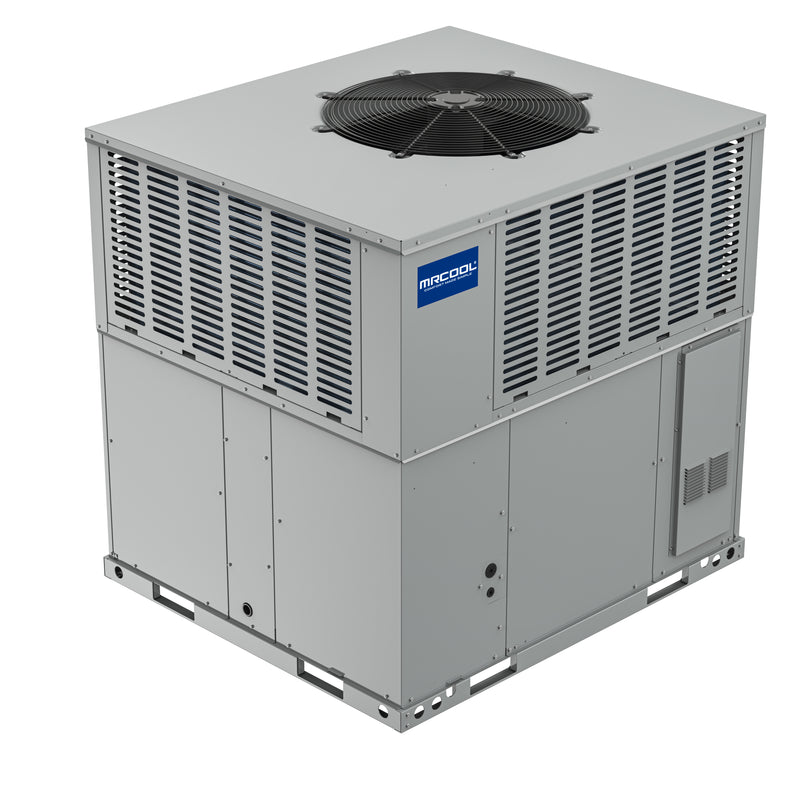

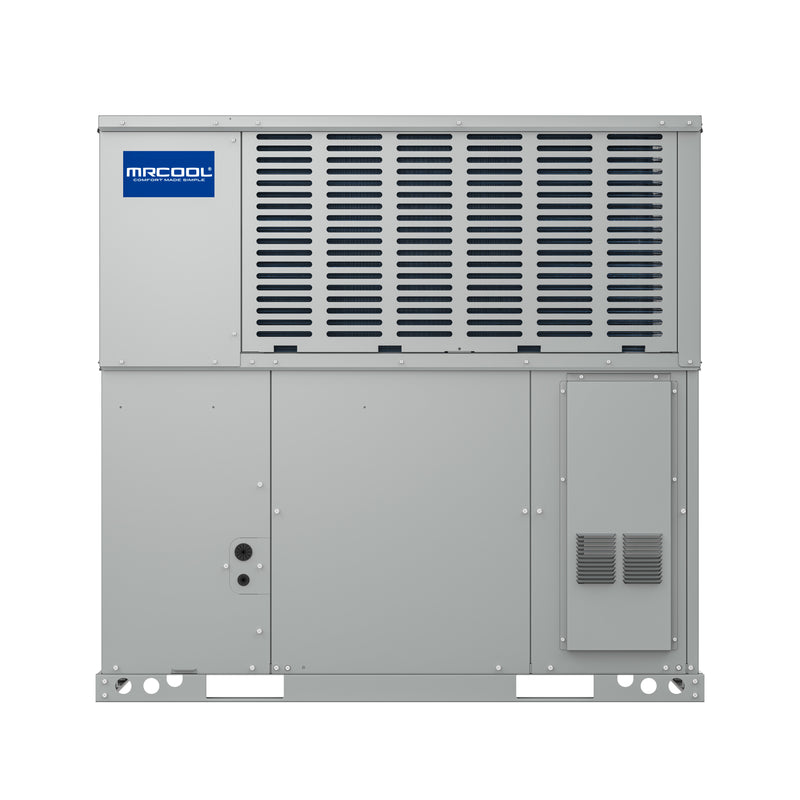

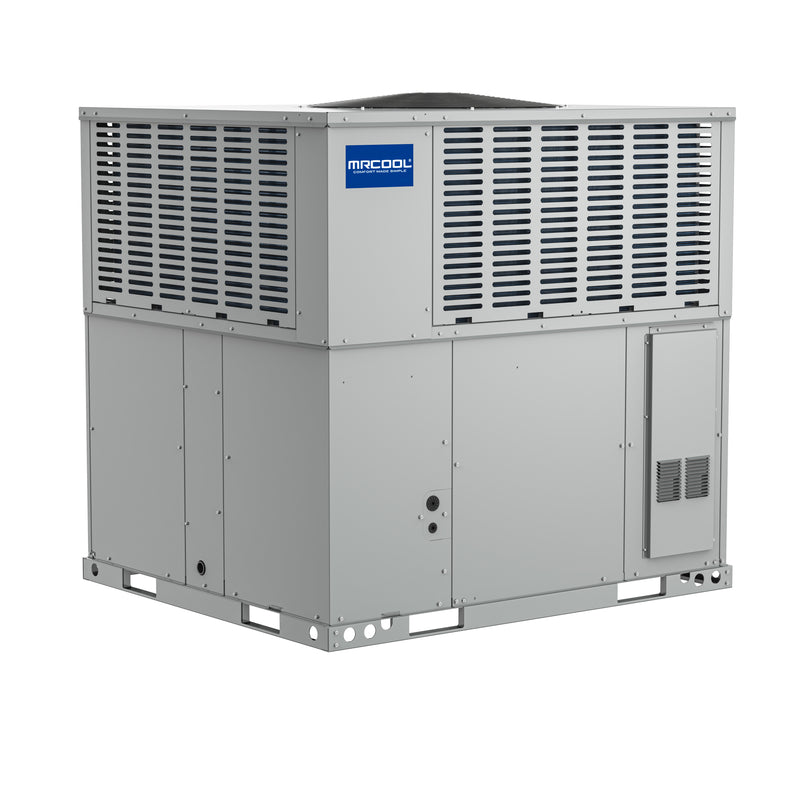

The MRCOOL VersaPro gas/electric packaged unit combines a central air conditioner and a gas furnace in one outdoor cabinet. Cooling runs from 2 to 5 tons at 13.4 SEER2 on R-454B refrigerant, and the gas section delivers up to 88,000 BTU/h of heat at 81% AFUE on the 5 ton model. It fits homes with ducts but no room indoors for a furnace and coil.
The cabinet installs horizontal or downflow, on a slab beside the house or on a roof curb, and MRCOOL includes an LP conversion kit for propane homes. Installation, gas piping and refrigerant checks are work for a licensed HVAC contractor.
Features
Two Systems in One Cabinet
A 13.4 SEER2 air conditioner and an 81% AFUE gas furnace share one outdoor cabinet and one duct connection, so no furnace or coil takes up space inside the house.

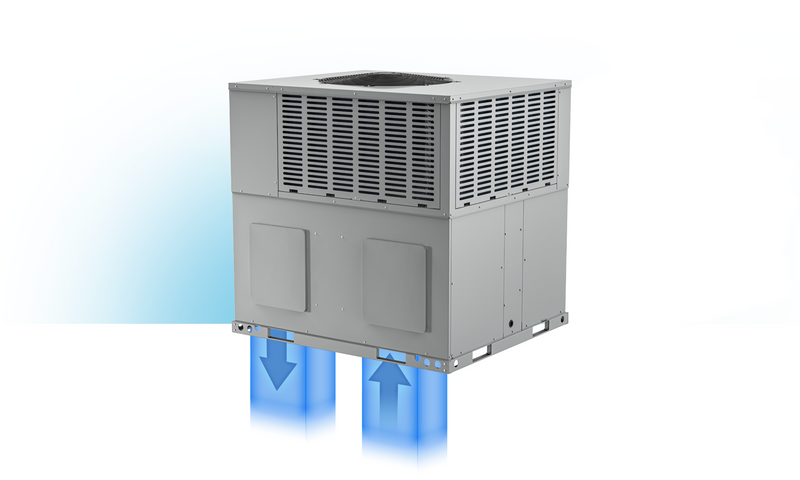

Horizontal or Downflow

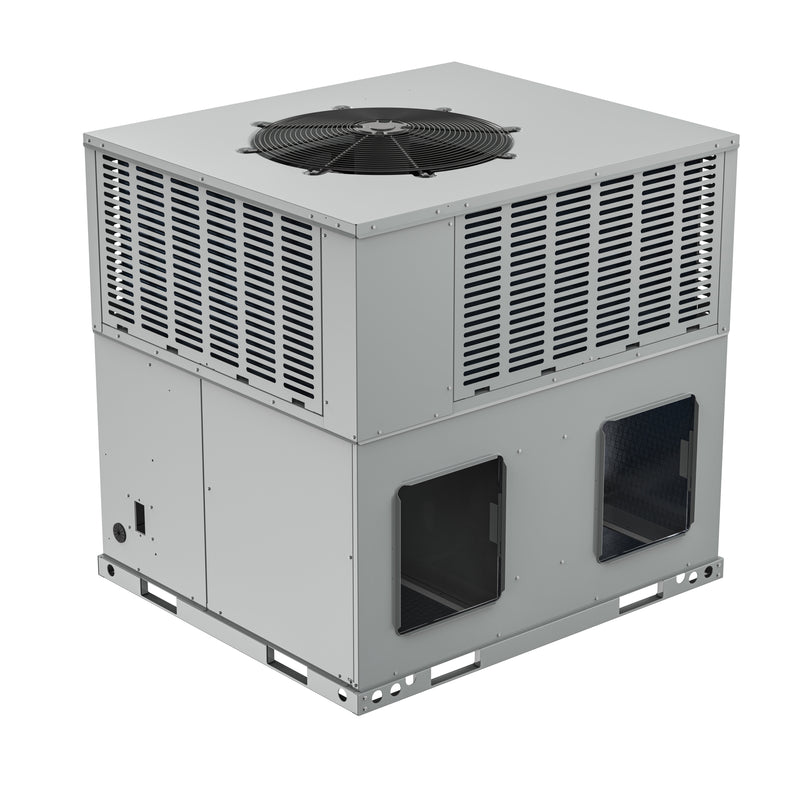

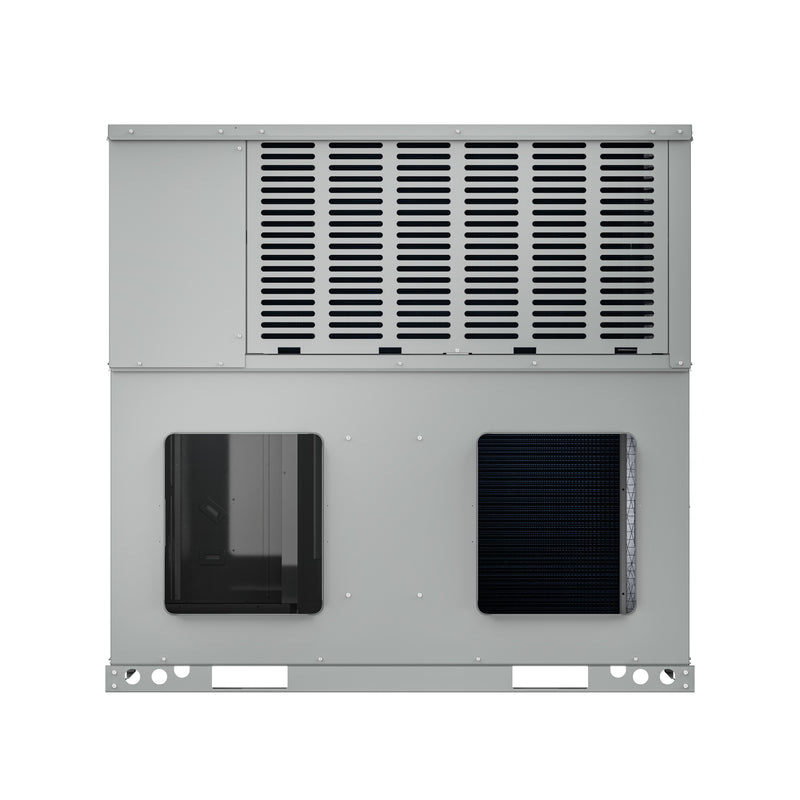

The multi-position cabinet connects to ducts through the side or through the base, covering slab-mounted and roof-curb installs.
Propane Ready
MRCOOL packs an LP conversion kit with every gas/electric unit, so a propane home has the parts on hand at install.
Direct Spark Ignition
A spark igniter lights the burners on demand, with no standing pilot, and the heat output ranges from 48,000 to 88,000 BTU/h across the line.
Microchannel Condenser Coil
The outdoor coil is a microchannel design, which MRCOOL uses to keep the flammable R-454B charge small for the heat it moves.
ECM Indoor Blower
The indoor blower runs on an ECM motor, rated from 800 CFM on the 2 ton model to 1,800 CFM on the 5 ton model.
Galvanized Steel Cabinet
A painted galvanized steel cabinet with access panels protects the components and opens for service.
Specifications
-
AFUE: 81%
-
SEER2: 13.4
-
EER2: 11
-
Voltage: 208/230V
-
Phase: 1
-
Frequency: 60 Hz
-
Refrigerant: R-454B
-
Fuel: Natural Gas / Propane (LP conversion kit included)
-
Stages: 1
-
Ignition: Direct Spark Ignition
-
Blower Motor: ECM
-
Inverter: No
-
Metering Device: Piston
-
AHRI Certified: Yes
-
UL Listed: Yes
-
ETL Listed: Yes
-
CSA Listed: Yes
-
Color: Grey
-
Cooling Operating Range (outdoor): 64.4°F to 118.4°F
2 Ton cooling, 60,000 BTU heat
-
Model: MPG24S060MO13C
-
Cooling Capacity: 22,800 BTU/h
-
Nominal Tonnage: 2 ton
-
Heat Input: 60,000 BTU/h
-
Heat Output: 48,000 BTU/h
-
Minimum Circuit Ampacity: 18.8 A
-
Max Fuse / Breaker: 25 A
-
Refrigerant Charge: 42 oz
-
Airflow: 800 CFM
-
Compressor: Rotary
-
Dimensions: 50.68"W x 35.06"D x 46.43"H
-
Weight: 422 lbs
-
Sound Power: 79 dB(A)
2.5 Ton cooling, 60,000 BTU heat
-
Model: MPG30S060MO13C
-
Cooling Capacity: 28,400 BTU/h
-
Nominal Tonnage: 2.5 ton
-
Heat Input: 60,000 BTU/h
-
Heat Output: 48,000 BTU/h
-
Minimum Circuit Ampacity: 21.5 A
-
Max Fuse / Breaker: 30 A
-
Refrigerant Charge: 44 oz
-
Airflow: 930 CFM
-
Compressor: Rotary
-
Dimensions: 50.68"W x 35.06"D x 46.43"H
-
Weight: 432 lbs
-
Sound Power: 79 dB(A)
3 Ton cooling, 90,000 BTU heat
-
Model: MPG36S090MO13C
-
Cooling Capacity: 34,000 BTU/h
-
Nominal Tonnage: 3 ton
-
Heat Input: 90,000 BTU/h
-
Heat Output: 72,000 BTU/h
-
Minimum Circuit Ampacity: 25.2 A
-
Max Fuse / Breaker: 40 A
-
Refrigerant Charge: 46 oz
-
Airflow: 1,050 CFM
-
Compressor: Rotary
-
Dimensions: 50.68"W x 35.06"D x 46.43"H
-
Weight: 444 lbs
-
Sound Power: 79 dB(A)
3.5 Ton cooling, 90,000 BTU heat
-
Model: MPG42S090MO13C
-
Cooling Capacity: 40,000 BTU/h
-
Nominal Tonnage: 3.5 ton
-
Heat Input: 90,000 BTU/h
-
Heat Output: 72,000 BTU/h
-
Minimum Circuit Ampacity: 29.9 A
-
Max Fuse / Breaker: 45 A
-
Refrigerant Charge: 60 oz
-
Airflow: 1,400 CFM
-
Compressor: Rotary
-
Dimensions: 51.56"W x 44.81"D x 49.75"H
-
Weight: 539 lbs
-
Sound Power: 80 dB(A)
4 Ton cooling, 90,000 BTU heat
-
Model: MPG48S090MO13C
-
Cooling Capacity: 47,000 BTU/h
-
Nominal Tonnage: 4 ton
-
Heat Input: 90,000 BTU/h
-
Heat Output: 72,000 BTU/h
-
Minimum Circuit Ampacity: 36.4 A
-
Max Fuse / Breaker: 50 A
-
Refrigerant Charge: 60 oz
-
Airflow: 1,700 CFM
-
Compressor: Scroll
-
Dimensions: 51.56"W x 44.81"D x 49.75"H
-
Weight: 560 lbs
-
Sound Power: 80 dB(A)
5 Ton cooling, 110,000 BTU heat
-
Model: MPG60S110MO13C
-
Cooling Capacity: 57,000 BTU/h
-
Nominal Tonnage: 5 ton
-
Heat Input: 110,000 BTU/h
-
Heat Output: 88,000 BTU/h
-
Minimum Circuit Ampacity: 41.4 A
-
Max Fuse / Breaker: 60 A
-
Refrigerant Charge: 60 oz
-
Airflow: 1,800 CFM
-
Compressor: Scroll
-
Dimensions: 51.56"W x 44.81"D x 49.75"H
-
Weight: 562 lbs
-
Sound Power: 80 dB(A)
What's Included
- MRCOOL VersaPro gas/electric packaged unit
- LP conversion kit
Installation
Professional installation required. Gas appliances must be installed by a licensed HVAC or gas contractor, following MRCOOL's installation manual, the fuel-gas and venting codes that apply where you live, and any permit requirements. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Install on a level concrete slab that extends 3" beyond each side of the unit, pitched about 1/2" toward the drain, or on a roof curb where the structure can carry the weight. The unit must not sit directly on wood flooring or roof covering. Gas connection is 1/2" NPT. Power is 208/230V single phase. Duct openings support horizontal or downflow supply and return.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only, by freight carrier for the larger cartons. Shipping cost is calculated at checkout, and the carrier may call ahead to book a delivery window.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's warranty for the VersaPro gas packaged series gives the original owner a non-transferable limited warranty of 10 years on parts and a lifetime warranty on the heat exchanger. It covers replacement parts only, not labor. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
VersaPro packaged units put the whole heating and cooling system in one outdoor cabinet that connects to the home's supply and return ducts, set on a ground slab or a roof curb. MRCOOL builds the range as a gas/electric model, which pairs an air conditioner with a gas furnace section, and as an all-electric packaged heat pump for homes without gas. Both use R-454B refrigerant and are rated at 13.4 SEER2.
