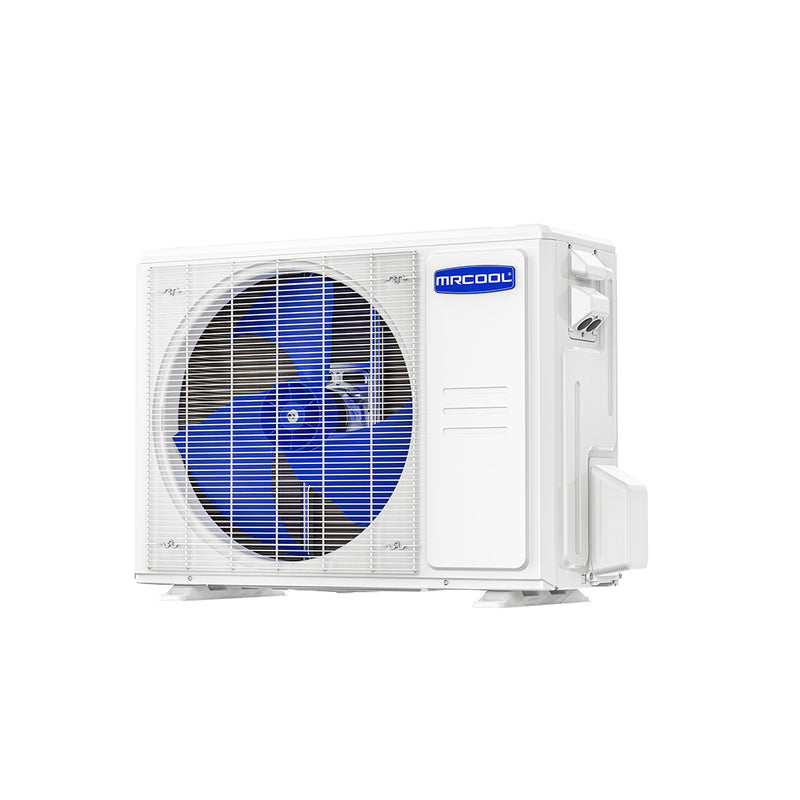

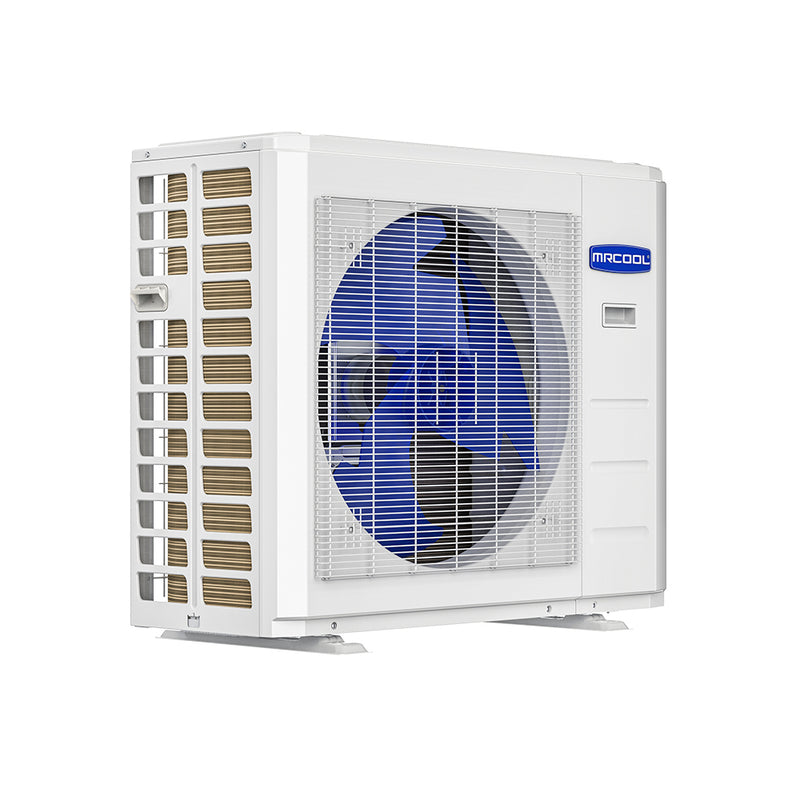

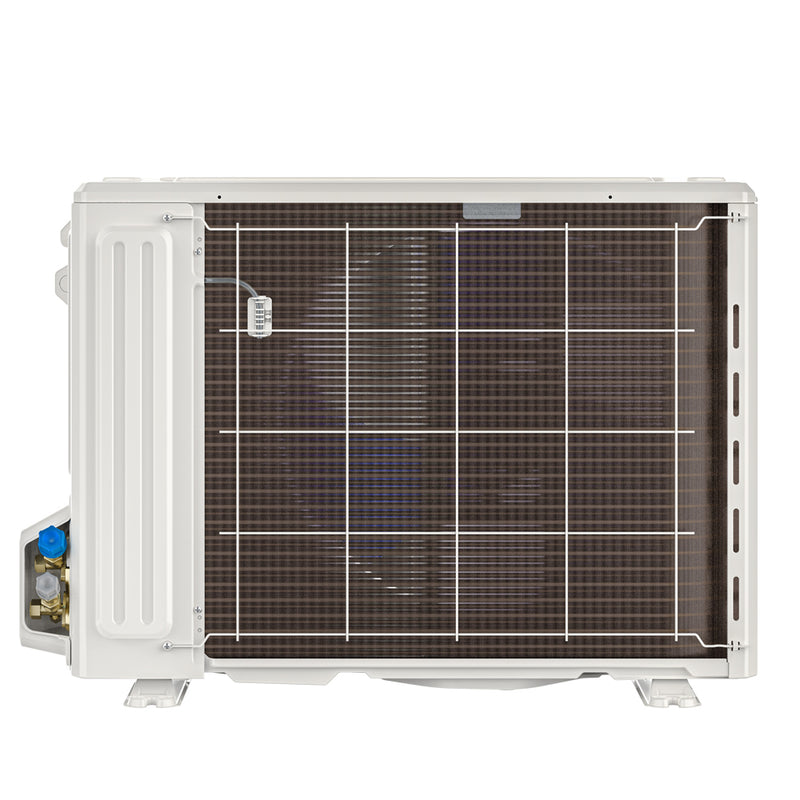

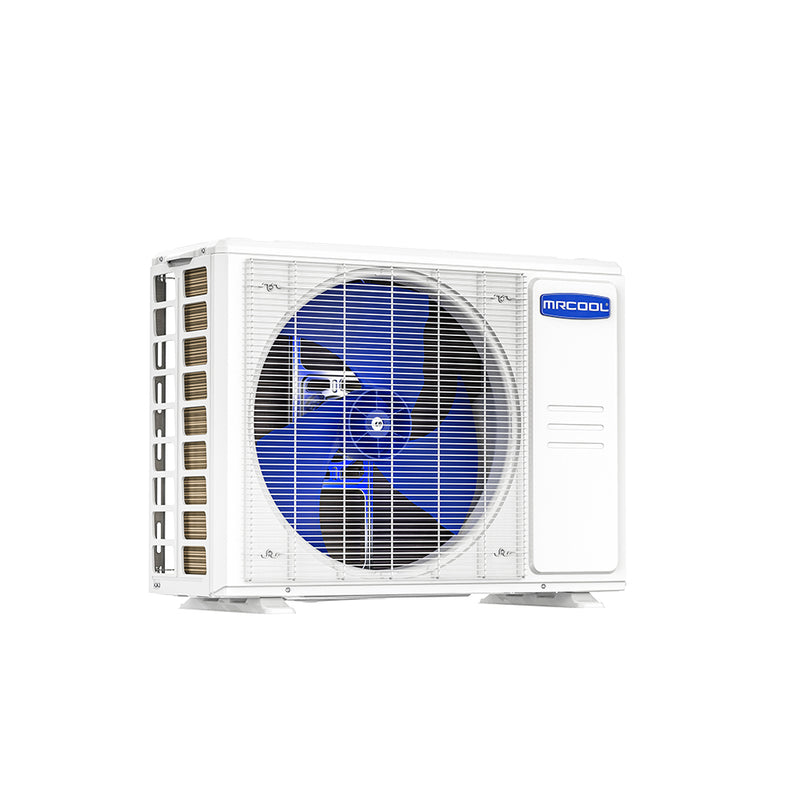

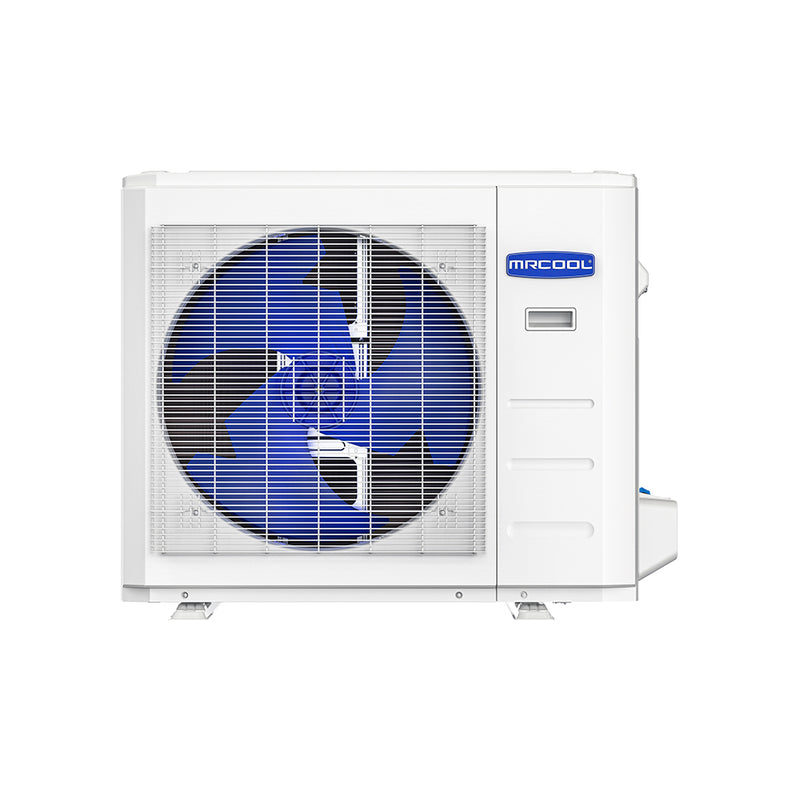

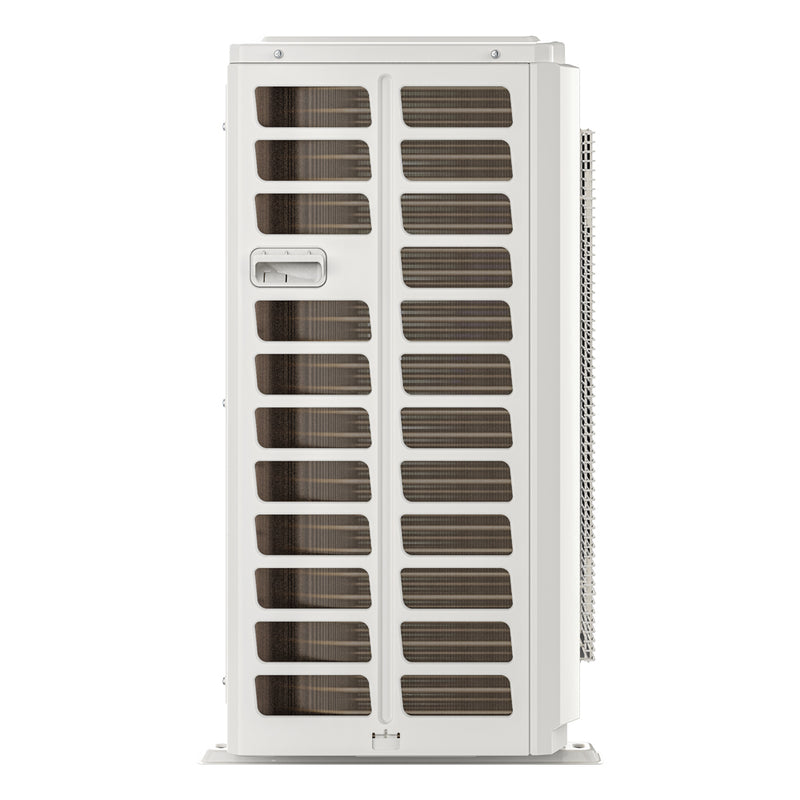

The MRCOOL VersaPro 2nd Gen heat pump condenser is the outdoor half of a VersaPro central ducted system, built around a variable-speed DC inverter compressor and R-454B refrigerant. It is matched to the VersaPro MVP multi-position air handler of the same capacity, from the MVP-18 at 1.5 tons to the MVP-60 at 5 tons, and reaches up to 18.8 SEER2 with the 18K air handler.
Order it on its own when the matching VersaPro air handler is already on site or bought separately. Installation is by a licensed HVAC contractor.
Features
Matched to the VersaPro Air Handler
Each condenser is rated with the VersaPro air handler of the same capacity, for example MVP-36-HP-C-230A00-O with MVP-36-HP-MUAH-230A00-O.
Inverter Compressor
The variable-speed DC inverter compressor follows the load instead of cycling on and off, and runs at 55 to 65 dBA depending on size.
Gold Fin Coil Protection
MRCOOL's Gold Fin coating on the coil and a painted galvanized steel cabinet help resist salt air and industrial pollution.
Compact Side-Discharge Cabinet
The side-discharge design keeps the unit low: the 18K cabinet is 21.81" tall and the largest 48K and 60K cabinets are 38.39" tall.
Long Line Runs
Line sets can reach 246' on the 36K, 48K and 60K sizes, with up to 98.4' of drop between indoor and outdoor units.
Pre-Charged Line Option
Accepts MRCOOL's optional No Vac Quick Connect line sets, which arrive charged with R-454B, or contractor-supplied copper using the included braze-to-flare adapters.
Specifications
-
Voltage: 208-230V
-
Phase: 1
-
Frequency: 60 Hz
-
Refrigerant: R-454B
-
Liquid Line: 3/8"
-
Suction Line: 3/4"
-
AHRI Certified: Yes
-
Color: Gray
18,000 BTU
-
Model: MVP-18-HP-C-230A00-O
-
Cooling Capacity: 18,000 BTU/h
-
Heating Capacity: 18,000 BTU/h
-
Nominal Tonnage: 1.5 ton
-
SEER2: 18.8
-
EER2: 11
-
Minimum Circuit Ampacity: 16 A
-
Max Fuse / Breaker: 20 A
-
Refrigerant Charge: 51.15 oz
-
Sound Level: 55 dBA
-
Airflow: 1,450.9 CFM
-
ENERGY STAR: No
-
Dimensions: 31.69"W x 12.99"D x 21.81"H
-
Weight: 77 lbs
24,000 BTU
-
Model: MVP-24-HP-C-230A00-O
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 26,000 BTU/h
-
Nominal Tonnage: 2 ton
-
SEER2: 18.1
-
EER2: 11
-
Minimum Circuit Ampacity: 19 A
-
Max Fuse / Breaker: 20 A
-
Refrigerant Charge: 74.08 oz
-
Sound Level: 60 dBA
-
Airflow: 1,765.7 CFM
-
ENERGY STAR: Yes
-
Dimensions: 35.04"W x 13.46"D x 26.5"H
-
Weight: 102 lbs
30,000 BTU
-
Model: MVP-30-HP-C-230A00-O
-
Cooling Capacity: 30,000 BTU/h
-
Heating Capacity: 31,000 BTU/h
-
Nominal Tonnage: 2.5 ton
-
SEER2: 17
-
EER2: 10.7
-
Minimum Circuit Ampacity: 22.5 A
-
Max Fuse / Breaker: 25 A
-
Refrigerant Charge: 91.71 oz
-
Sound Level: 60 dBA
-
Airflow: 3,001.8 CFM
-
ENERGY STAR: No
-
Dimensions: 37.24"W x 16.14"D x 31.89"H
-
Weight: 141.76 lbs
36,000 BTU
-
Model: MVP-36-HP-C-230A00-O
-
Cooling Capacity: 36,000 BTU/h
-
Heating Capacity: 36,000 BTU/h
-
Nominal Tonnage: 3 ton
-
SEER2: 16.1
-
EER2: 10
-
Minimum Circuit Ampacity: 24 A
-
Max Fuse / Breaker: 30 A
-
Refrigerant Charge: 116.4 oz
-
Sound Level: 63 dBA
-
Airflow: 2,413.2 CFM
-
ENERGY STAR: Yes
-
Dimensions: 37.24"W x 16.14"D x 31.89"H
-
Weight: 153.22 lbs
48,000 BTU
-
Model: MVP-48-HP-C-230A00-O
-
Cooling Capacity: 48,000 BTU/h
-
Heating Capacity: 48,000 BTU/h
-
Nominal Tonnage: 4 ton
-
SEER2: 16
-
EER2: 10
-
Minimum Circuit Ampacity: 36 A
-
Max Fuse / Breaker: 40 A
-
Refrigerant Charge: 134.04 oz
-
Sound Level: 65 dBA
-
Airflow: 3,037.1 CFM
-
ENERGY STAR: Yes
-
Dimensions: 38.58"W x 16.34"D x 38.39"H
-
Weight: 192.9 lbs
60,000 BTU
-
Model: MVP-60-HP-C-230A00-O
-
Cooling Capacity: 54,000 BTU/h
-
Heating Capacity: 54,000 BTU/h
-
Nominal Tonnage: 5 ton
-
SEER2: 15.2
-
EER2: 8.6
-
Minimum Circuit Ampacity: 39 A
-
Max Fuse / Breaker: 40 A
-
Refrigerant Charge: 134.04 oz
-
Sound Level: 65 dBA
-
Airflow: 3,037.1 CFM
-
ENERGY STAR: Yes
-
Dimensions: 38.58"W x 16.34"D x 38.39"H
-
Weight: 192.9 lbs
What's Included
- MRCOOL VersaPro 2nd Gen heat pump condenser
- Braze-to-flare adapters (2)
- Flare nuts (4)
- Drain joint, plus a seal ring on all sizes except the 48K and 60K
- Rubber installation pads (4)
- Allen key
Installation
Professional installation required. This equipment must be installed by a licensed HVAC contractor (EPA Section 608-certified for any refrigerant work), following MRCOOL's installation manual and all local codes, permits and licensing rules. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Pairs with the VersaPro 2nd Gen multi-position air handler of the same capacity, which carries the Smart Thermostat. Refrigerant lines are 3/8" liquid and 3/4" suction and are not included. Maximum line length is 98.4' (18K), 164' (24K and 30K) or 246' (36K, 48K and 60K), with a maximum drop of 65.6', 82' and 98.4' respectively. Power is 208-230V single phase; circuit sizes are in the Specifications tab.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only, by freight carrier for the larger cartons. Shipping cost is calculated at checkout, and the carrier may call ahead to book a delivery window.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's VersaPro 2nd Gen brochure lists a 10-year limited warranty on parts and the compressor. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
VersaPro 2nd Gen is MRCOOL's contractor-installed central ducted heat pump: a variable-speed outdoor condenser matched to a multi-position indoor air handler, in six sizes from 1.5 to 5 tons, running on R-454B refrigerant. Each MVP condenser is rated with the MVP air handler of the same capacity (MVP-36-HP-C-230A00-O with MVP-36-HP-MUAH-230A00-O, for example), and the pair is also sold together as a complete system. Electric heat kits, coupler kits and MRCOOL's No Vac Quick Connect line sets (which arrive charged with refrigerant) are optional extras, sold separately.
