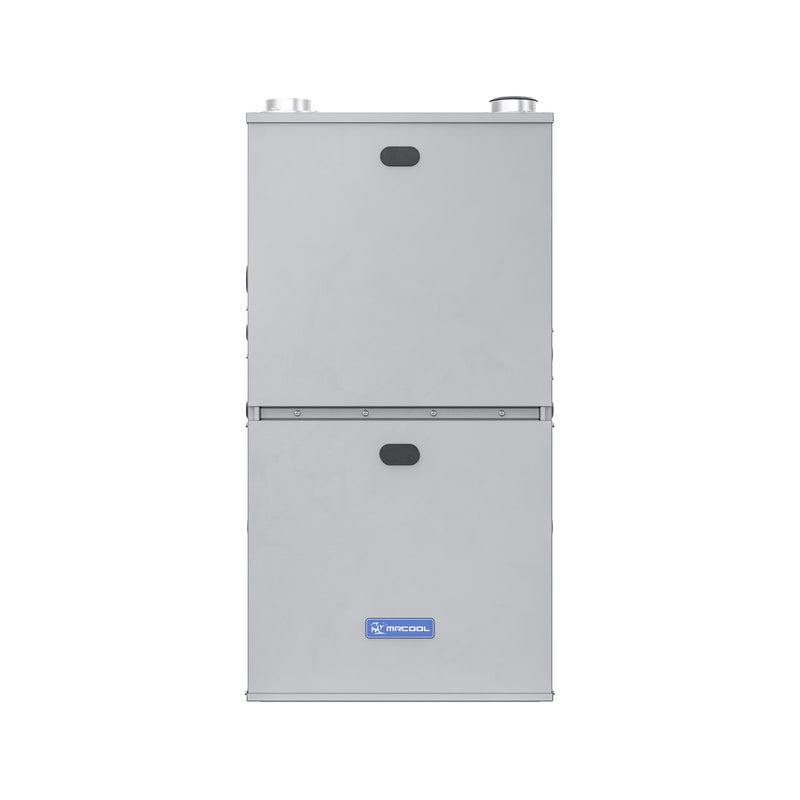

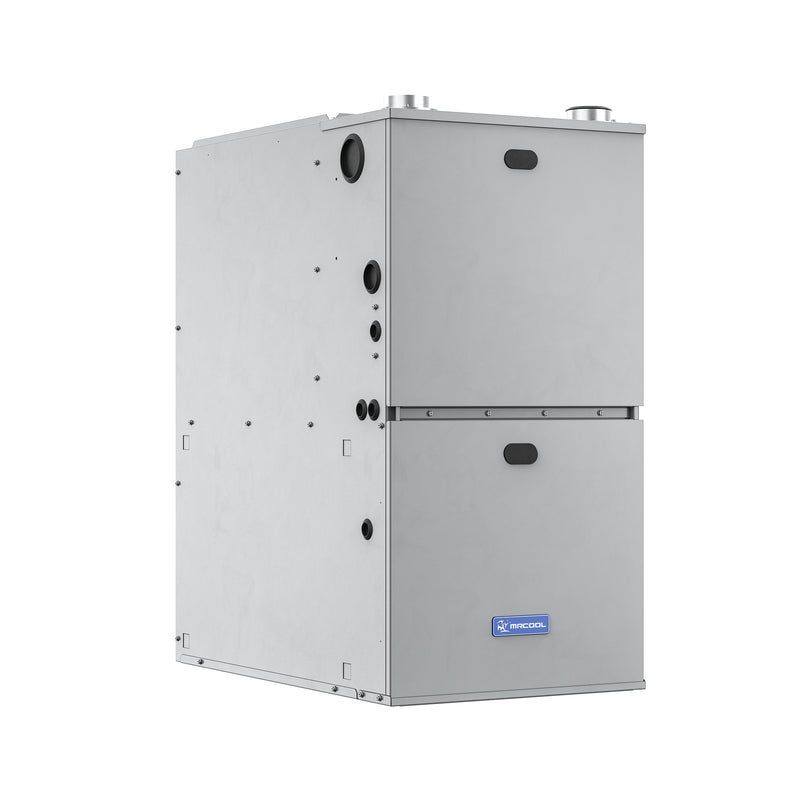

The MRCOOL VersaPro 96% AFUE gas furnace is a two-stage condensing furnace for homes that want more heat from every therm. Inputs run from 60,000 to 120,000 BTU/h, and at 96% AFUE the 100,000 BTU model delivers 95,000 BTU/h into the ducts. A two-stage gas valve runs at low fire through most of the season and steps up on the coldest days.
A stainless steel secondary heat exchanger recovers heat from the exhaust, which is why it vents through 2" or 3" pipe rather than a metal chimney. The cabinet installs upflow or horizontal. Installation is by a licensed gas or HVAC contractor, and it pairs with a cased coil and condenser for cooling.
Features
Two-Stage Gas Valve
The burners run at a reduced rate for mild weather and full rate on cold days, which means longer, steadier cycles than a single-stage furnace.
96% AFUE Condensing Design
A stainless steel secondary heat exchanger behind the aluminized steel primary pulls extra heat from the flue gases, giving 115,000 BTU/h of output from the 120,000 BTU/h model.
Five-Speed DC Blower Motor
A constant-torque DC motor drives the circulating blower with 5 speeds, so heating and cooling airflow can be set separately.
Upflow or Horizontal Cabinet

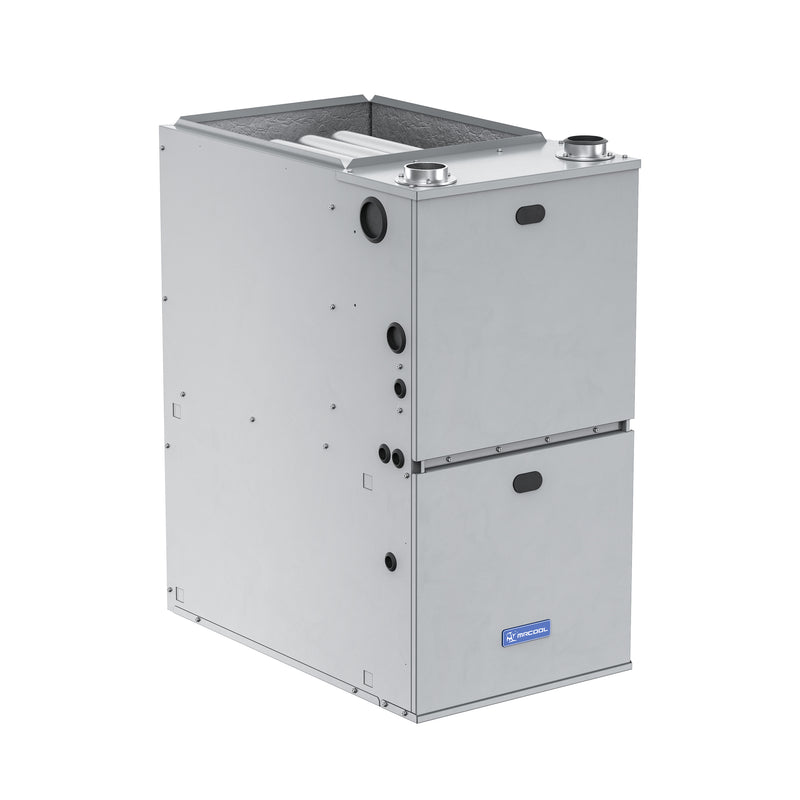

The cabinet installs upflow or horizontal, with left or right gas and electric connections and a removable bottom panel for a side or bottom return.
Plastic Vent Pipe

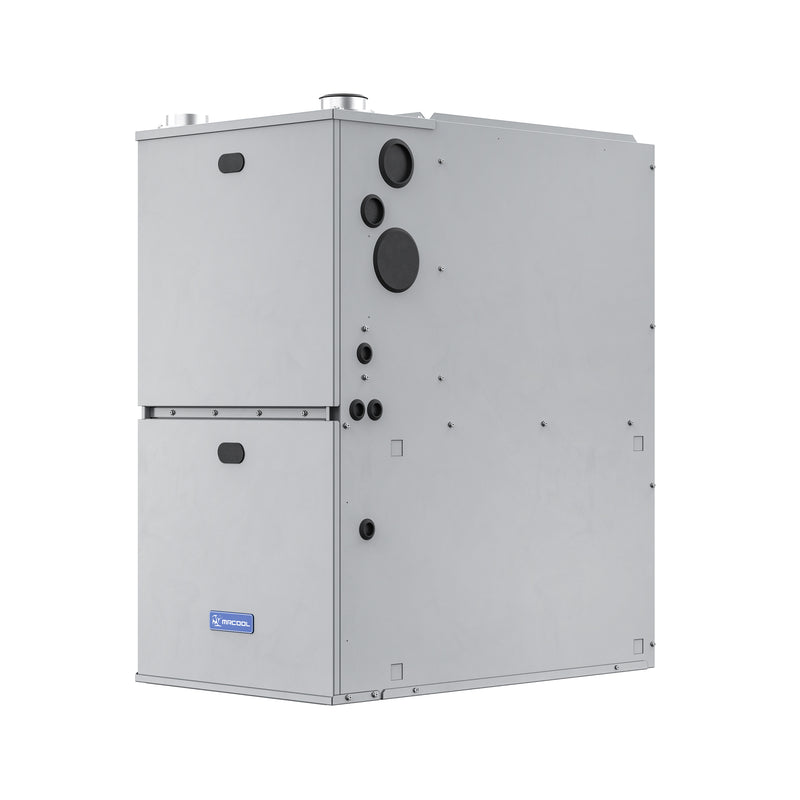

Condensing operation vents through 2" or 3" pipe, and MRCOOL's concentric vent kit can run intake and exhaust through a single roof or wall opening.
Propane Capable
The furnace ships for natural gas, and MRCOOL's catalog lists an LP conversion kit as included for the gas contractor to fit.
Certified Ratings
Ratings are AHRI certified, and the furnace carries ETL and CSA listings.
Specifications
-
AFUE: 96%
-
Voltage: 115V
-
Phase: 1
-
Frequency: 60 Hz
-
Configuration: Upflow or Horizontal
-
Fuel: Natural/Propane Gas
-
Stages: Two
-
Blower Motor: ECM
-
Filter: Replaceable
-
AHRI Certified: Yes
-
ETL Listed: Yes
-
CSA Listed: Yes
-
Color: Gray
60,000 BTU, 17.5" cabinet
-
Model: MGM96EE060B3NB
-
Heat Input: 60,000 BTU/h
-
Heat Output: 57,000 BTU/h
-
Minimum Circuit Ampacity: 8 A
-
Max Fuse / Breaker: 15 A
-
Dimensions: 17.5"W x 28.75"D x 33.75"H
-
Weight: 135 lbs
80,000 BTU, 17.5" cabinet
-
Model: MGM96EE080B3NB
-
Heat Input: 80,000 BTU/h
-
Heat Output: 76,000 BTU/h
-
Minimum Circuit Ampacity: 8 A
-
Max Fuse / Breaker: 15 A
-
Dimensions: 17.5"W x 28.75"D x 33.75"H
-
Weight: 141 lbs
80,000 BTU, 21" cabinet
-
Model: MGM96EE080C4NB
-
Heat Input: 80,000 BTU/h
-
Heat Output: 76,000 BTU/h
-
Minimum Circuit Ampacity: 7.8 A
-
Max Fuse / Breaker: 15 A
-
Dimensions: 21"W x 28.75"D x 33.75"H
-
Weight: 152 lbs
100,000 BTU, 21" cabinet
-
Model: MGM96EE100C5NB
-
Heat Input: 100,000 BTU/h
-
Heat Output: 95,000 BTU/h
-
Minimum Circuit Ampacity: 11.5 A
-
Max Fuse / Breaker: 20 A
-
Dimensions: 21"W x 28.75"D x 33.75"H
-
Weight: 162 lbs
120,000 BTU, 24.5" cabinet
-
Model: MGM96EE120D5NB
-
Heat Input: 120,000 BTU/h
-
Heat Output: 115,000 BTU/h
-
Minimum Circuit Ampacity: 10.5 A
-
Max Fuse / Breaker: 20 A
-
Dimensions: 24.5"W x 28.75"D x 33.75"H
-
Weight: 176 lbs
What's Included
- MRCOOL VersaPro 96% AFUE two-stage gas furnace
- LP conversion kit (listed as included in MRCOOL's catalog)
Installation
Professional installation required. Gas appliances must be installed by a licensed HVAC or gas contractor, following MRCOOL's installation manual, the fuel-gas and venting codes that apply where you live, and any permit requirements. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Factory-set for natural gas; propane uses the LP conversion kit, fitted by the gas contractor. As a condensing furnace it needs a condensate drain and vents with 2" or 3" pipe; MRCOOL's concentric vent kit is an option where a single roof or wall penetration is wanted. Approved positions are upflow and horizontal. Power is 115V. MRCOOL lists a 1/2" gas connection for this range.
Resources
Shipping, Returns & Warranty
Ships to addresses in the United States only, by freight carrier for the larger cartons. Shipping cost is calculated at checkout, and the carrier may call ahead to book a delivery window.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL's VersaPro furnace warranty is 5 years on parts and 20 years on the heat exchanger as standard, with no registration required. Registering the furnace with MRCOOL within 90 days of purchase extends this to 10 years on parts and a lifetime heat exchanger warranty. It does not cover labor. Full terms, registration steps and exclusions are in the MRCOOL warranty document under Resources.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
About MRCOOL
MRCOOL designs heating, cooling and water-heating equipment from its home base in Hickory, Kentucky. The range runs from DIY ductless mini-splits, built around MRCOOL's patented pre-charged Quick Connect line sets, through contractor-installed mini-splits, central split systems, packaged units and gas furnaces, to HeatWise water heaters and CoolBlade HVLS fans for warehouses and shops.
The VersaPro gas furnaces are MRCOOL's natural gas heating line for ducted homes, built in two efficiency tiers: the single-stage 80% AFUE MGA80 range and the two-stage 96% AFUE MGM96 condensing range. Both share MRCOOL's industry-standard cabinet widths, so they slot in where an older furnace sat, and both accept a cased evaporator coil on top for add-on cooling with a split condenser, including MRCOOL's pre-charged R-454B evaporator coils.
