The MRCOOL VersaPro packaged heat kit slides into the blower section of a VersaPro packaged heat pump and adds electric resistance heat, with thermostat control and overheat protection. It comes in 5kW, 7.5kW, 10kW, 15kW and 20kW; the 15kW and 20kW kits run in two stages.
It gives a packaged heat pump backup heat for the coldest weeks, or occasional heat in a mild climate. Installation is by a licensed electrician or HVAC contractor. This is the VersaPro packaged heat kit.
Features
Five Output Sizes
5kW, 7.5kW, 10kW, 15kW and 20kW at 240V, with the 15kW and 20kW kits in two stages.
Matched by Tonnage
5kW to 10kW fit 2-ton to 5-ton units, 15kW fits 2.5-ton and up, 20kW fits 3.5-ton and up.
R-454B and R-410A Units
Listed for both the HO13C and the H413B VersaPro packaged heat pumps.
Breakers on Board

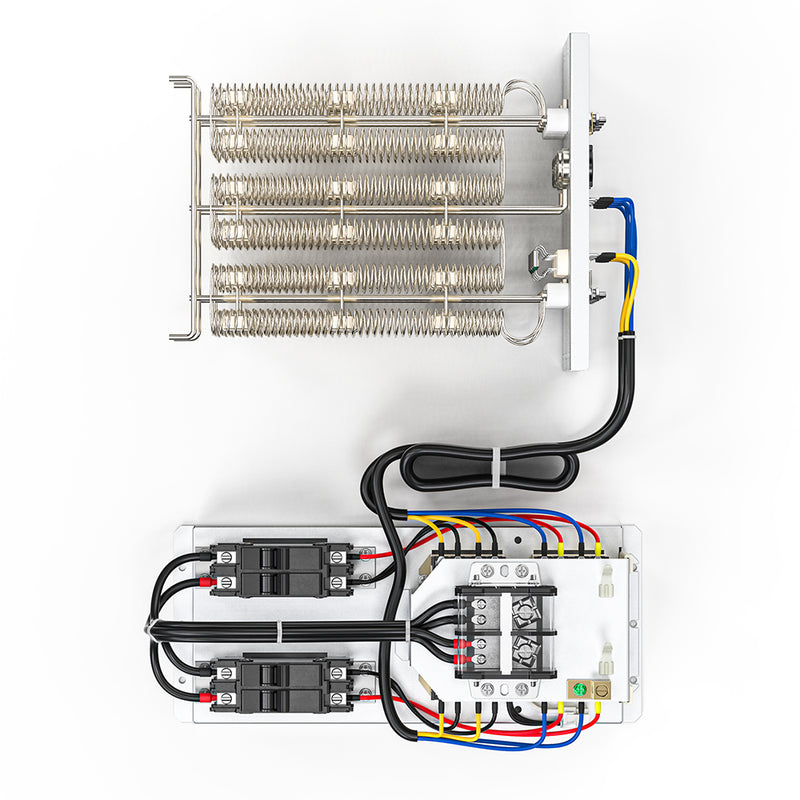

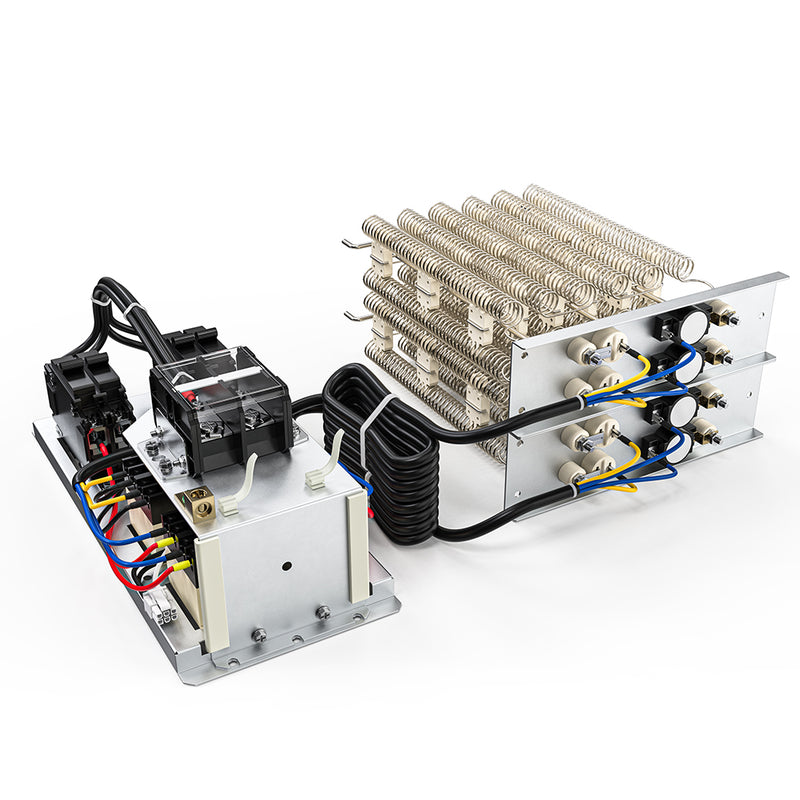

Circuit breakers mount on the kit's control panel, two on the larger kits.
Own Power Supply
The heater runs on a separate high-voltage line routed through its own knockout.
Slide-In Fit
The element assembly slides into the plenum slot and its support rod seats in the blower compartment.
Specifications

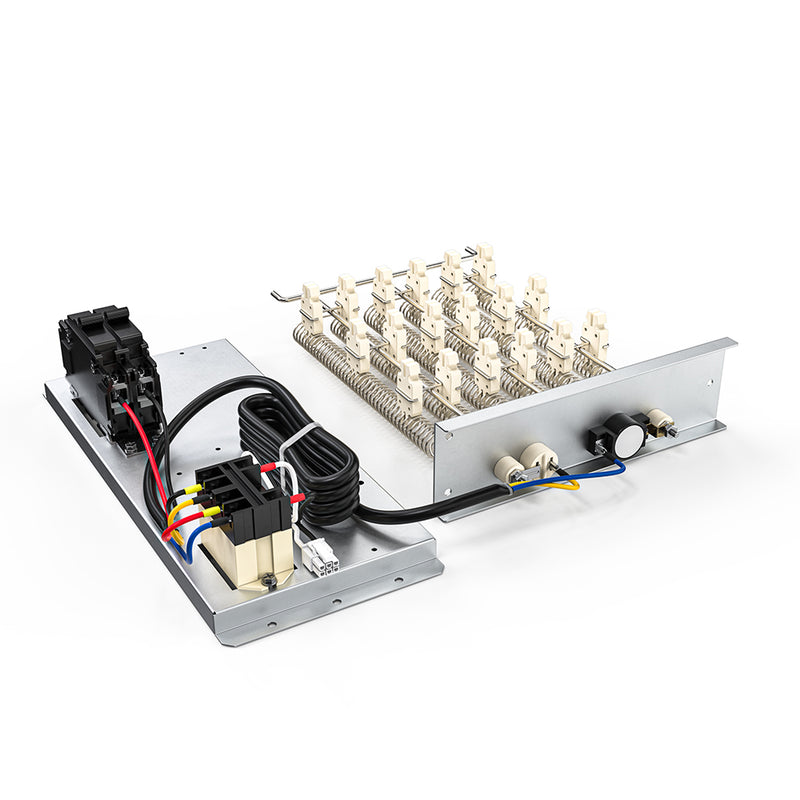

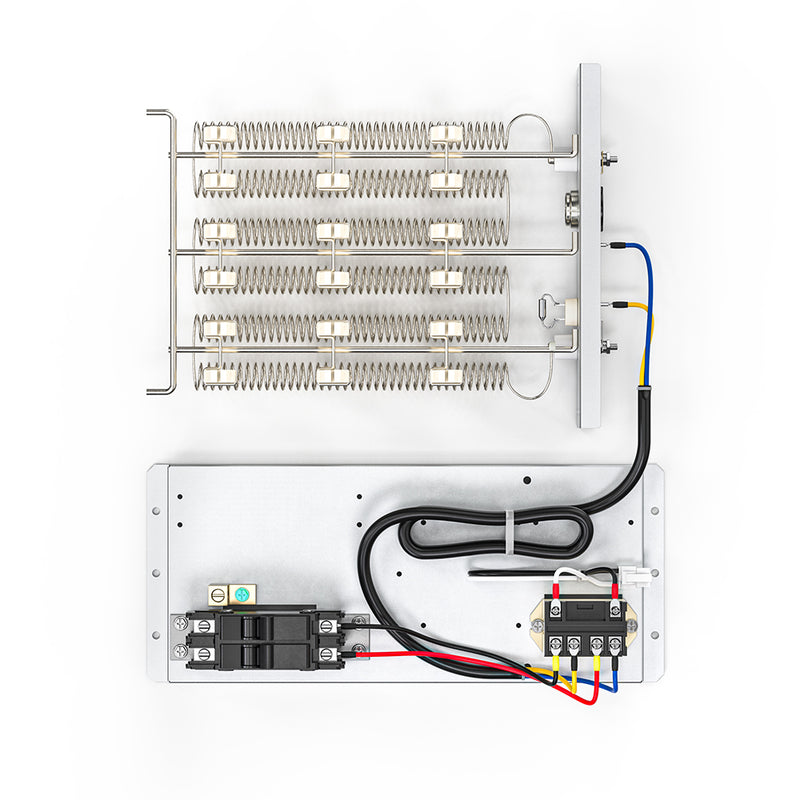

5 kW
-
Model: MHK05PB
-
Works With: MPH241/301/361/421/481/601 HO13C (R-454B) and H413B (R-410A)

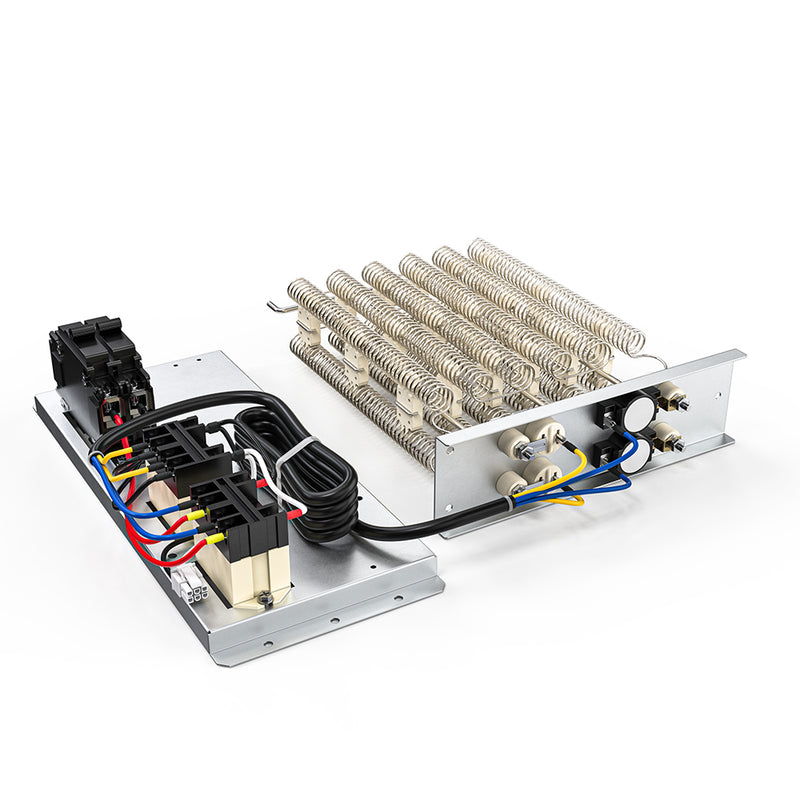

7.5 kW
-
Model: MHK07PB
-
Works With: MPH241/301/361/421/481/601 HO13C (R-454B) and H413B (R-410A)

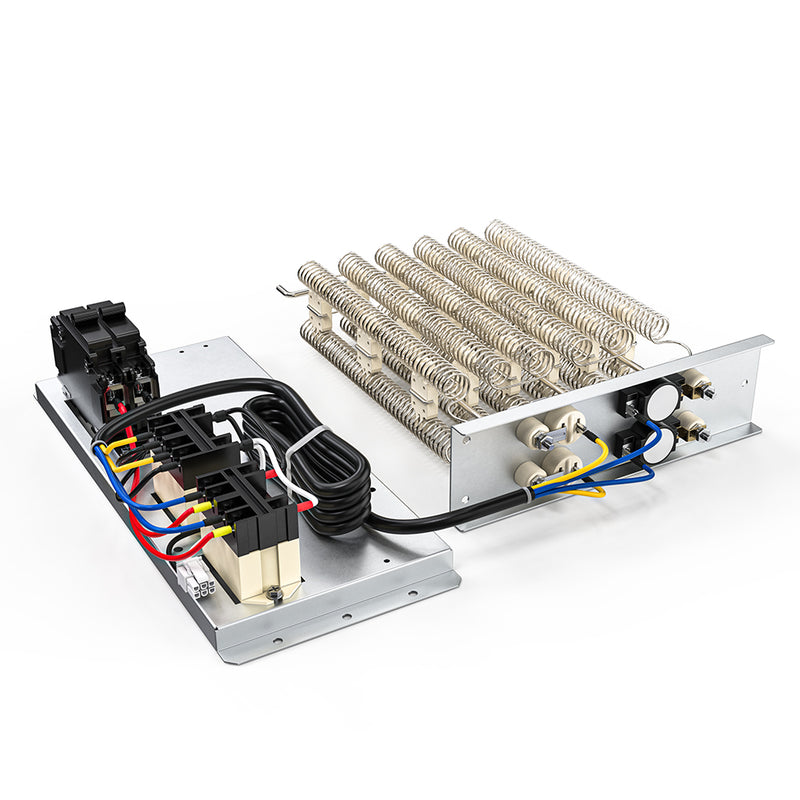

10 kW
-
Model: MHK10PB
-
Works With: MPH241/301/361/421/481/601 HO13C (R-454B) and H413B (R-410A)

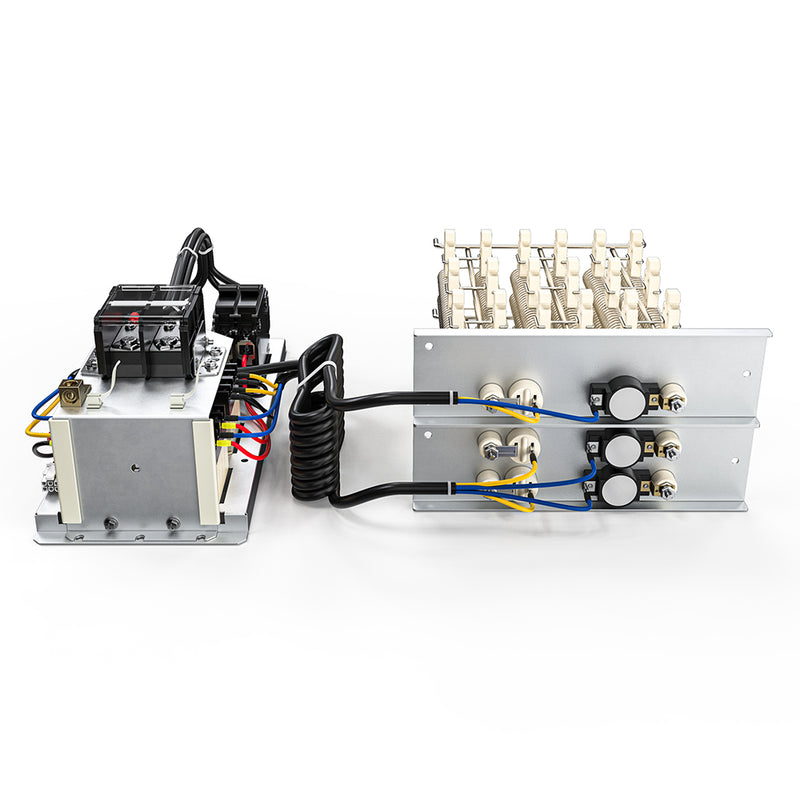

15 kW
-
Model: MHK15PB
-
Works With: MPH301/361/421/481/601 HO13C (R-454B) and H413B (R-410A)
20 kW
-
Model: MHK20PB
-
Works With: MPH421/481/601 HO13C (R-454B) and H413B (R-410A)
What's Included
- MRCOOL VersaPro packaged electric heat kit in the selected size
- Control board mounting screws (4)
- Accessory pouch with screws
- Installation manual
Installation
Professional installation required. This equipment must be installed by a qualified, licensed electrician or contractor, following MRCOOL's installation manual and all local electrical and building codes and permit requirements. MRCOOL's limited warranty applies only to units installed that way, and it does not cover installation labor.
Fits VersaPro packaged heat pumps MPH241HO13C to MPH601HO13C (R-454B) and MPH241H413B to MPH601H413B (R-410A): 5kW to 10kW on all sizes, 15kW on 2.5-ton and larger, 20kW on 3.5-ton and larger. The heater needs its own 208/230V supply line. Install the kit before the supply duct is attached.
