The Nantucket Sinks NS-UD-BRORB is an umbrella pop-up bathroom sink drain without overflow, finished in brushed oil rubbed bronze. It replaces a plain drain with a push-to-open, push-to-close umbrella cap, made for 1.5" drain holes and listed for Nantucket's NSV105, NSV107a, NSV109 and NSV222 vessel sinks, so the drain matches the faucet instead of standing out in the bowl.
This version has a solid drain body with no overflow slot, designed for bathroom sinks without an overflow; if your sink has an overflow hole, choose the matching -OF version instead.

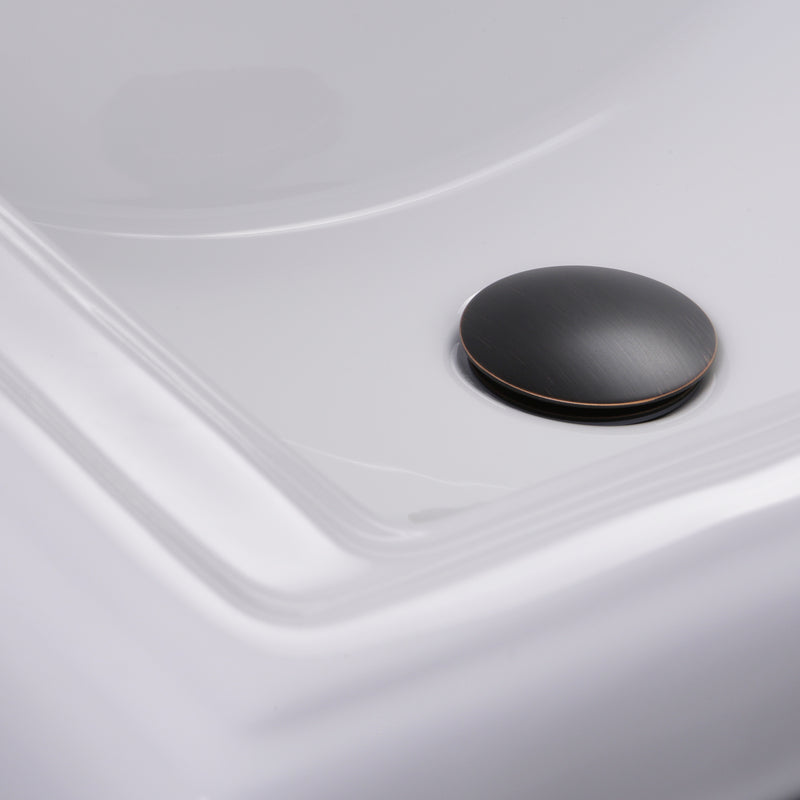

The umbrella top is a push-pop design: press the cap to close the drain and fill the basin, press again to open it, with a spring mechanism doing the work instead of a lift rod behind the faucet. That keeps the deck behind the faucet clear and leaves the drain cap as a small finished detail in the bowl. Nantucket builds the drain in brass, and a rubber seal ring on each side of the sink ensures a snug fit in the drain hole.
Nantucket notes that its drain hole size is the standard US vanity size, so it suits most bathroom sinks as well as Nantucket's own. Choosing the drain in the same finish as the faucet and other hardware ties the whole vanity together, and Nantucket offers the umbrella drain in matte black, brushed gold, brushed nickel, chrome, oil rubbed bronze and brushed oil rubbed bronze.
Before ordering, check the opening and the sink. The NS-UD-BRORB measures 2.4" diameter top and 8.6" tall. Nantucket lists it for its NSV105, NSV107a, NSV109 and NSV222 sinks. Nantucket recommends professional installation. It ships on its own, with no other parts in the box.
In short, the Nantucket Sinks NS-UD-BRORB adds a brushed oil rubbed bronze push-pop umbrella drain to a bathroom sink without an overflow.
Features
Built for Sinks Without Overflow
The solid drain body has no overflow slot, matching vessels and basins that have no overflow hole, such as Nantucket's NSV105, NSV107a, NSV109 and NSV222.

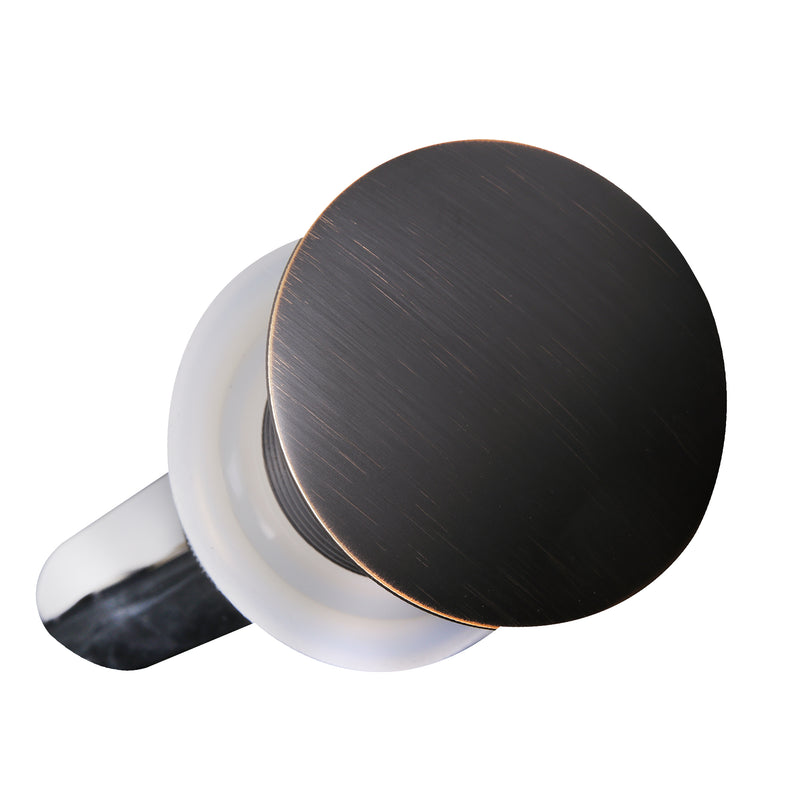

Distinguished Brush Strokes
Nantucket says the brushed oil rubbed bronze adds depth and character: a deep bronze color with distinguished brush strokes that catch the light.

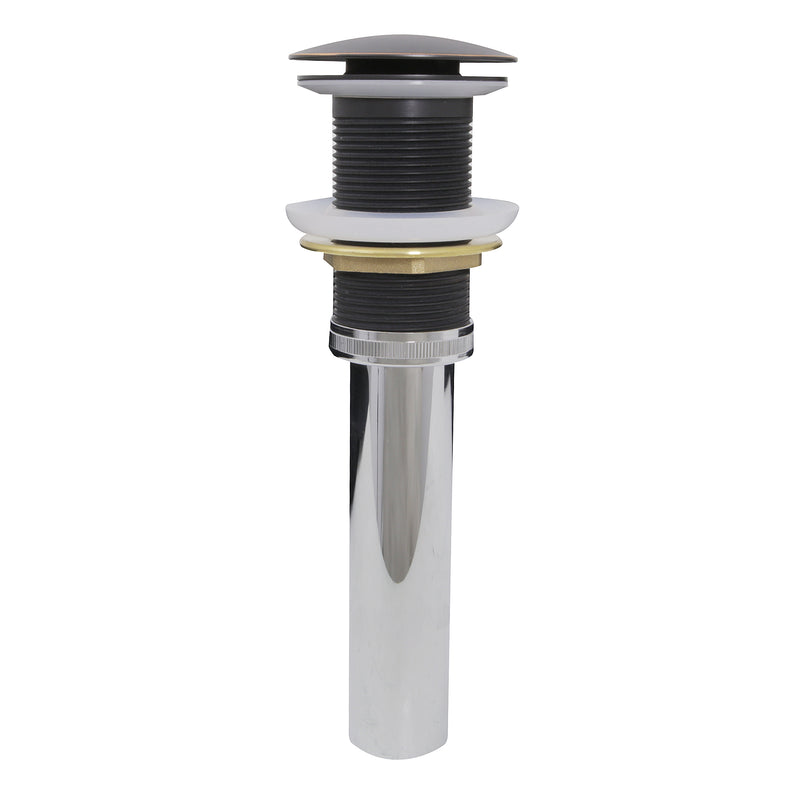

Compact Drain Body
The drain has a 2.4" diameter top and a 1.3" base and stands 8.6" tall.
ASME and CSA Compliant
Nantucket's spec sheet lists compliance with ASME A112.18.2 and CSA B125.2, the North American standards for plumbing waste fittings.
Push-Pop Spring Mechanism
Press the umbrella cap to close the drain and press again to open it; the spring mechanism replaces a lift rod, so there is nothing to install behind the faucet.
Rubber Seal Ring Each Side
A rubber seal ring sits on each side of the sink, above and below the drain hole, so the drain body seats snugly and does not leak around the opening.
Brass Construction
Nantucket lists the drain's materials as brass and rubber: the pop-up drain assembly is brass, fitted with a rubber ring.
Fits 1.5" Drain Holes
Nantucket sizes it for 1.5" sink drain holes, the standard US vanity size, so it fits most bathroom sinks as well as Nantucket's own models.
Specifications
-
Model: NS-UD-BRORB
-
Material: Brass, rubber
-
Finish: Brushed Oil Rubbed Bronze
-
Overflow: For sinks without overflow
-
Drain Opening: 1.5"
-
Exterior Dimensions: 2.4" diameter top x 8.6" H
-
Base Diameter: 1.3"
-
Certification: ASME A112.18.2, CSA B125.2
-
Compatible Sinks: NSV105, NSV107a, NSV109, NSV222
-
Weight: 2 lbs
-
Country of Origin: China
-
Warranty: 1-year limited
-
California Prop 65: Warning: contains Lead, Di(2-ethylhexyl)phthalate (DEHP), Nickel Compounds, chemicals listed under California Proposition 65. See www.P65Warnings.ca.gov.
What's Included
- NS-UD-BRORB umbrella drain
Installation & Care
Installation
Nantucket recommends professional installation. The drain fits a 1.5" drain hole and is designed for sinks without overflow; Nantucket lists it for its NSV105, NSV107a, NSV109 and NSV222 vessel sinks. A rubber seal ring sits on each side of the sink. Installation instructions are printed on a paper insert in the box.
Care
Wipe the drain with a soft damp cloth and a little mild soap free of antibacterial or bleach additives, then rinse and dry it by hand. For mineral deposits or water spots, Nantucket recommends Bar Keepers Friend or Brasso. Never use steel wool, a scouring pad or a sponge, and rinse off face cleansers, toothpaste, grooming products, wine, fruit acid and ketchup promptly, since they can alter the finish.
Resources
Shipping, Returns & Warranty
Nantucket Sinks ships this item by UPS or FedEx from North Kingstown, Rhode Island, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Nantucket Sinks products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. Returns carry Nantucket Sinks' 25% restocking fee, you pay the return shipping, and the return travels at your risk, so pack it as it arrived. Payment processing fees are not refunded. Installed, used or damaged products, and discontinued models, can't be returned.
Nantucket Sinks backs its accessories with a 1-year limited warranty and replaces a drain, faucet, grid or other accessory found to have a material defect. The warranty covers residential installations for the original purchaser; installation, labor and transportation costs, and damage from installation, improper cleaning, misuse or neglect, are not covered.
Warranty claims. Email Nantucket Sinks at info@nantucketsinksusa.com with the date and place of purchase and installation, the model number, a description of the defect and photos of it. Nantucket Sinks may inspect the product and the installation before it decides on a replacement or adjustment. Contact us with your order number if you would like help with the claim.
About Nantucket Sinks
Nantucket Sinks is a boutique sink maker based in North Kingstown, Rhode Island, that has designed kitchen and bath sinks for more than two decades. Its range of over 500 products brings together fireclay, stainless steel, granite composite, vitreous china, cast iron and hand-hammered metals sourced from skilled makers in Italy, China and beyond, styled with the charm of the New England coast.
Nantucket Sinks' Premium Bath Accessories are the drains and fittings that finish the brand's bathroom sinks. The umbrella drains come in two builds, one for basins without an overflow and one for basins with an overflow, and in a run of finishes so the drain can match the faucet and the rest of the vanity hardware.
