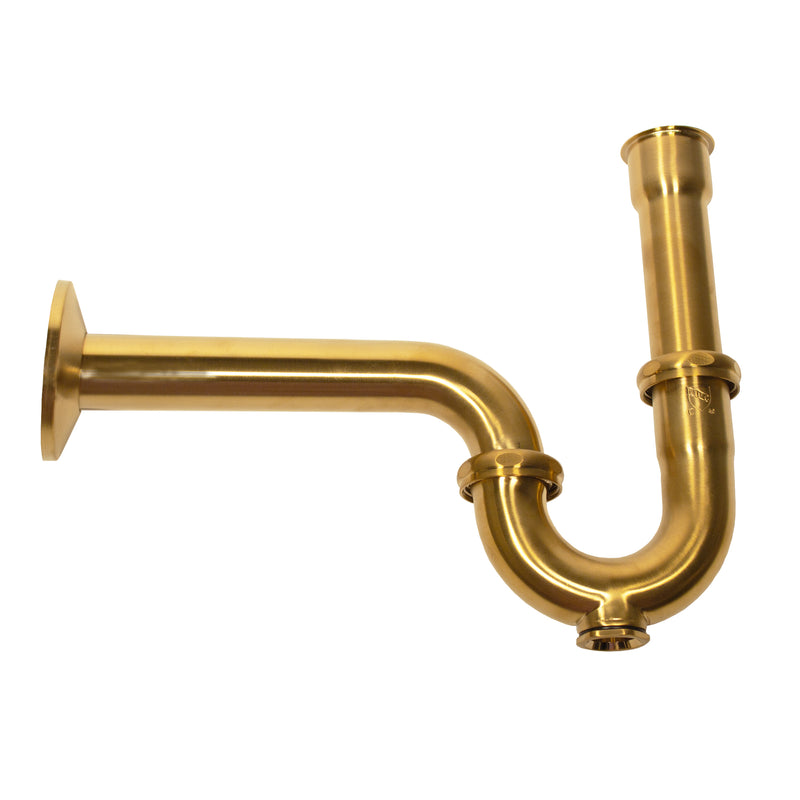

The Nantucket Sinks PT-SB is a decorative brass P-trap with a wall escutcheon in brushed satin brass, made for Nantucket's Anchor Collection utility sinks, its Victorian Collection sinks and console-mounted vanity sinks, where the plumbing under the basin is exposed. It pairs with the 3CHGRSB satin brass utility drain for a warm, matched drain line.

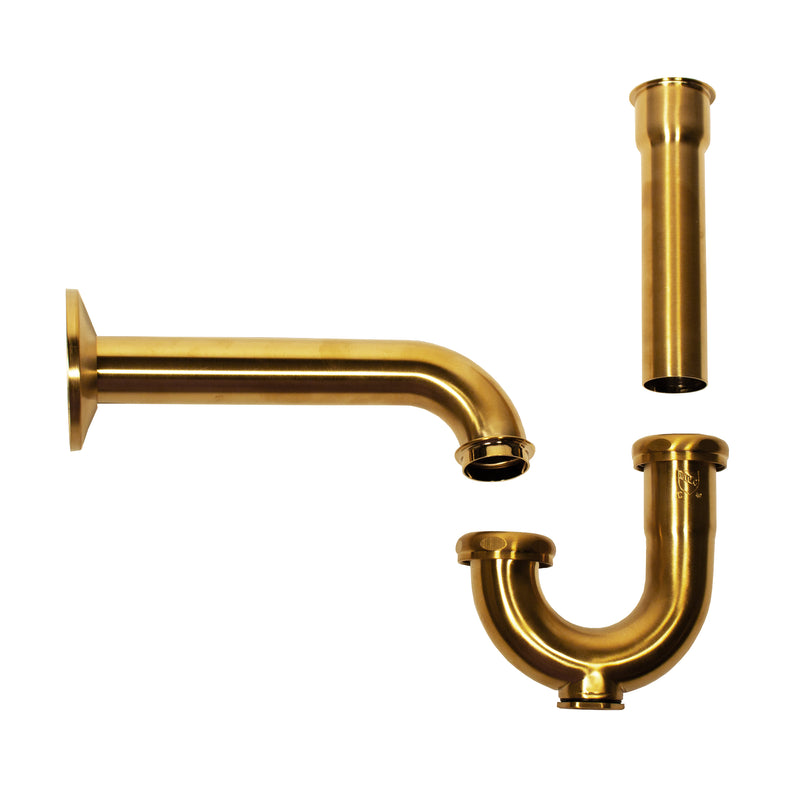

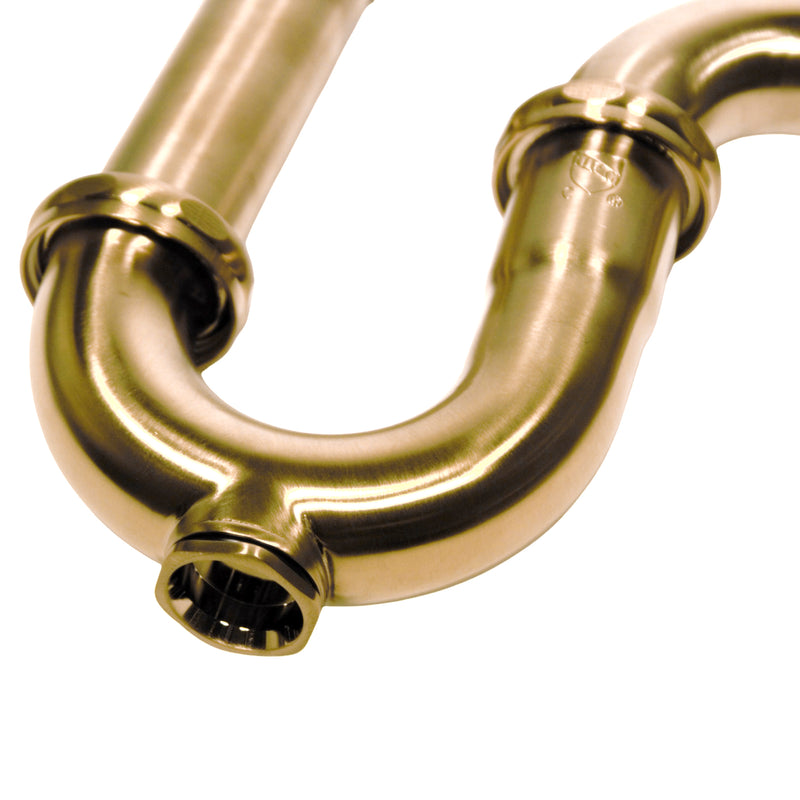

Nantucket notes that bath and utility sinks in North America require a P-trap system for proper and safe use, and on a wall-hung or console sink that trap is on display. This decorative P-trap turns it into a finished part of the design: it connects to the bottom of the basin, curves down and back, and mounts to the wall behind a same-finish escutcheon that covers the drain opening in the wall.
Nantucket describes it as made from solid brass, with the material listed as brass and PVC, and it has a 1.25" inlet and outlet with a cleanout. Nantucket lists it as cUPC certified. Assembled, it measures 11.5" long, 9.5" high and 2.95" wide, and it includes all the components needed to attach it to the sink and the wall outlet.
Before ordering, check the opening and the sink. Nantucket lists it for its CI-2218WNRG sink and 3CHGRSB drain. Nantucket recommends professional installation.
Nantucket makes the decorative P-trap in three finishes matched to its 3" utility grid drains: the PT-CP in chrome with the 3CHGR, the PT-SB in brushed brass with the 3CHGRSB and the PT-MBL in matte black with the 3CHGRMBL. Each includes a tailpipe designed for its matching drain, which can be removed to connect the trap to a standard vanity drain, and Nantucket lists the CI-2218WNRG Anchor Collection sink as the compatible utility sink.
In short, the Nantucket Sinks PT-SB turns the exposed trap under an Anchor or Victorian sink into a brushed brass design detail.
Features
Brushed Satin Brass
The brushed satin brass finish gives exposed plumbing a warm, soft sheen that matches brass faucets and the 3CHGRSB drain.
Tailpipe Fits the 3CHGRSB
The included tailpipe is designed to fit the 3CHGRSB satin brass grid drain, so the drain and trap match on a CI-2218WNRG sink.
Required Trap, Finished Look
Every bath and utility sink needs a P-trap, and Nantucket designed this one to be seen, for Anchor and Victorian Collection sinks or a console vanity.
Solid Brass, cUPC Certified
Nantucket describes the trap as solid brass, lists its material as brass and PVC, and lists it as cUPC certified.
Cleanout and Full Components

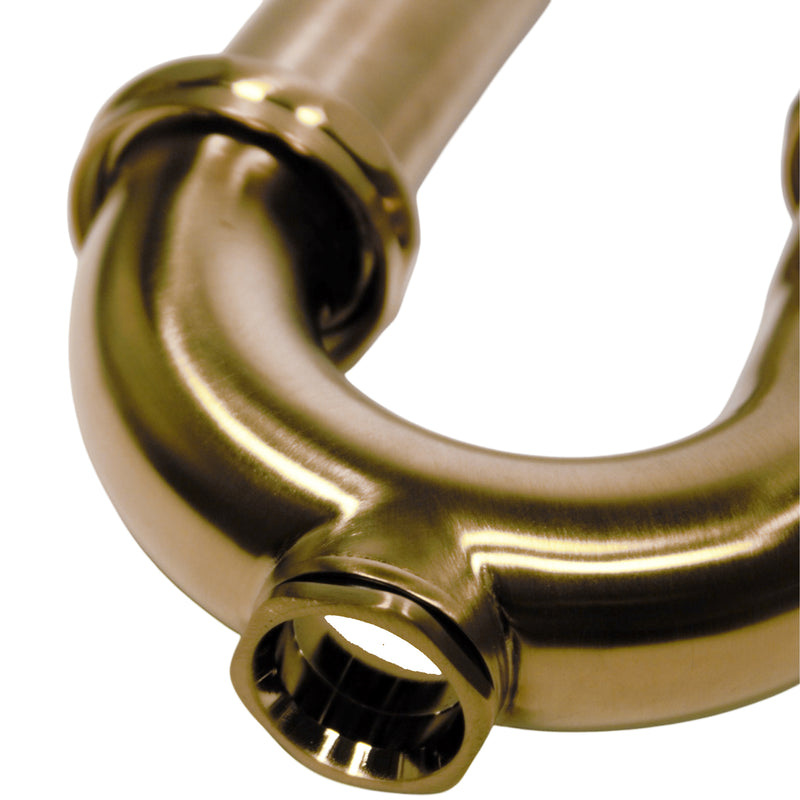

Nantucket lists a cleanout on the trap, a 1.25" inlet and outlet, and all the components needed to attach it to the sink and wall.
Wall Escutcheon Included
A same-finish wall escutcheon covers the drain opening in the wall, so the exposed plumbing looks finished from sink to wall.
Specifications
-
Model: PT-SB
-
Material: Brass, PVC
-
Finish: Satin Brass
-
Inlet / Outlet: 1.25"
-
Exterior Dimensions: 11.5" x 2.95" x 9.5" assembled
-
Compatible: CI-2218WNRG, 3CHGRSB
-
Certification: cUPC
-
Weight: 2.75 lbs
-
Country of Origin: Taiwan
-
Warranty: 1-year limited
-
California Prop 65: Warning: contains Nickel Compounds, chemicals listed under California Proposition 65. See www.P65Warnings.ca.gov.

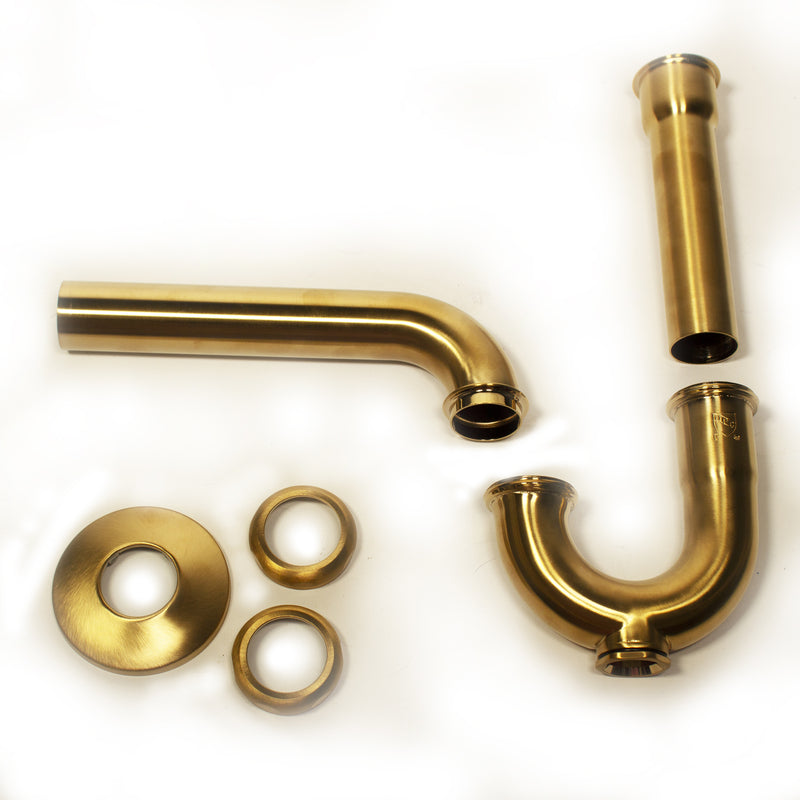

What's Included
- PT-SB P-trap
- Tailpipe
- Wall escutcheon
- Mounting components
Installation & Care
Installation
Nantucket recommends professional installation. The P-trap connects to the bottom of the basin and to the wall outlet, with a 1.25" inlet and outlet, and every component needed to attach it to the sink and the wall comes in the box, including the same-finish wall escutcheon. The included tailpipe is designed to fit the 3CHGRSB utility grid drain on Nantucket's CI-2218WNRG Anchor Collection sink; remove the tailpipe to attach the trap to a standard vanity drain. Assembled, the trap measures 11.5" long and 9.5" high, so check the distance from the sink drain to the wall outlet before installing.
Care
Wipe the trap with a soft damp cloth and a little mild soap free of antibacterial or bleach additives, then rinse and dry it by hand. For mineral deposits or water spots, Nantucket recommends Bar Keepers Friend or Brasso. Never use steel wool, a scouring pad or a sponge, and rinse off face cleansers, toothpaste, grooming products, wine, fruit acid and ketchup promptly, since they can alter the finish.
Resources
Shipping, Returns & Warranty
Nantucket Sinks ships this item by UPS or FedEx from North Kingstown, Rhode Island, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Nantucket Sinks products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. Returns carry Nantucket Sinks' 25% restocking fee, you pay the return shipping, and the return travels at your risk, so pack it as it arrived. Payment processing fees are not refunded. Installed, used or damaged products, and discontinued models, can't be returned.
Nantucket Sinks backs its accessories with a 1-year limited warranty and replaces a drain, faucet, grid or other accessory found to have a material defect. The warranty covers residential installations for the original purchaser; installation, labor and transportation costs, and damage from installation, improper cleaning, misuse or neglect, are not covered.
Warranty claims. Email Nantucket Sinks at info@nantucketsinksusa.com with the date and place of purchase and installation, the model number, a description of the defect and photos of it. Nantucket Sinks may inspect the product and the installation before it decides on a replacement or adjustment. Contact us with your order number if you would like help with the claim.
About Nantucket Sinks
Nantucket Sinks is a boutique sink maker based in North Kingstown, Rhode Island, that has designed kitchen and bath sinks for more than two decades. Its range of over 500 products brings together fireclay, stainless steel, granite composite, vitreous china, cast iron and hand-hammered metals sourced from skilled makers in Italy, China and beyond, styled with the charm of the New England coast.
Nantucket Sinks' Premium Accessories finish the brand's specialty sinks with matching fittings. The decorative P-traps and over-sink soap holders are made for exposed installations such as the Anchor Collection wall-mount utility sinks and the Victorian Collection basins, where the plumbing and hardware are part of the look.
